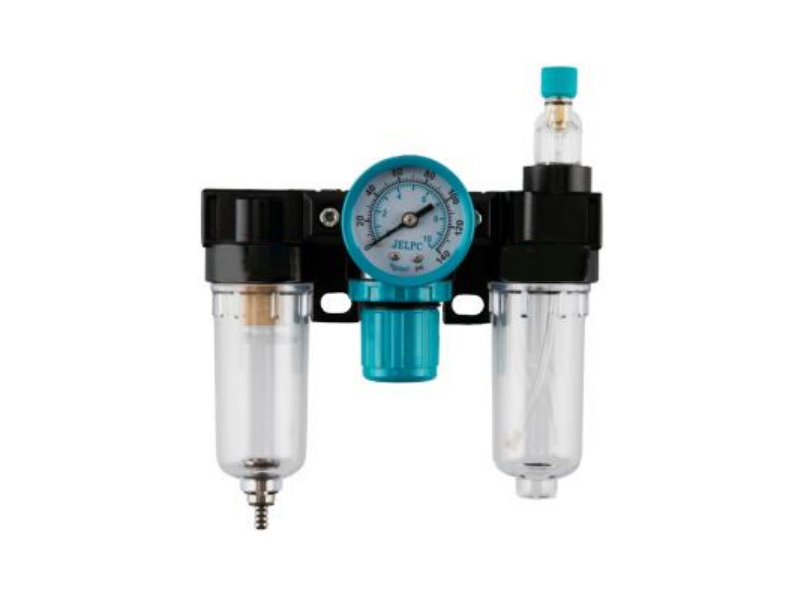

AC, BC Series Three-devices Combination (F.R.L. Combination)

AC, BC Series Three-devices Combination (F.R.L. Combination)

  • Product parameters

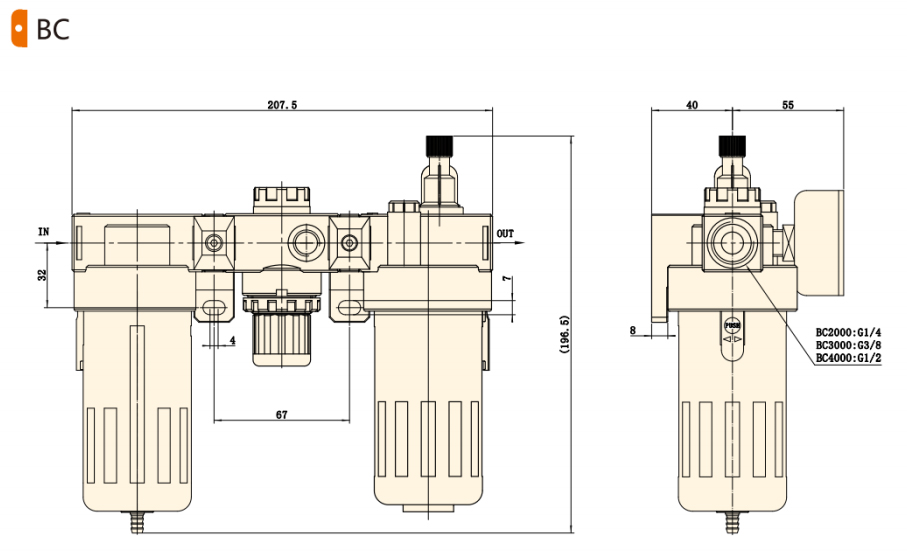

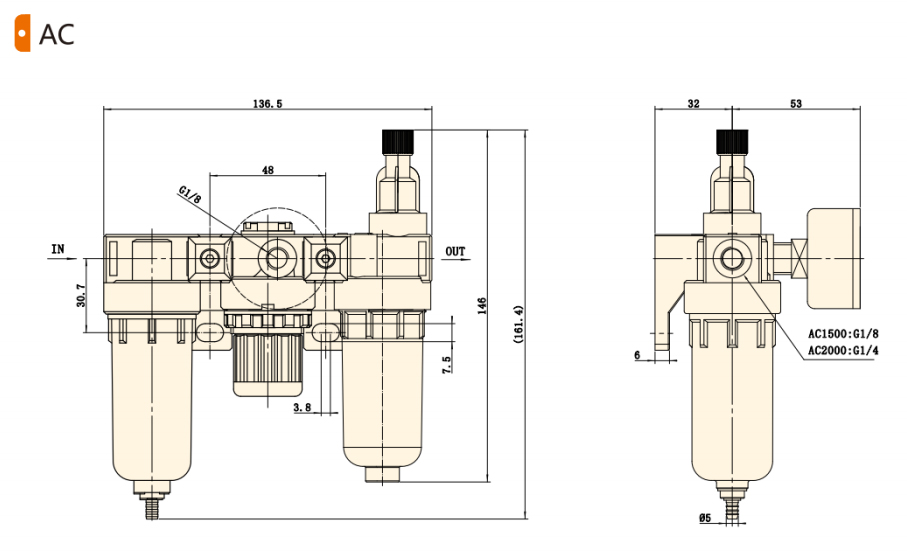

  • Product size

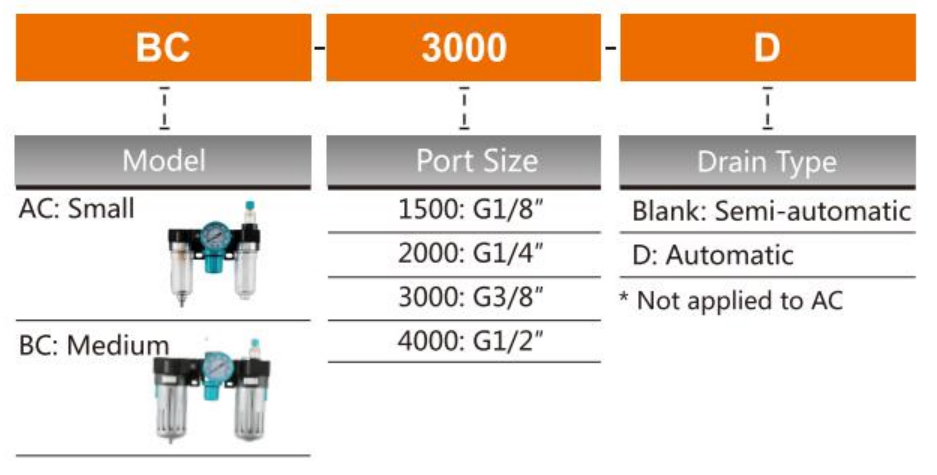

Ordering Code

Symbol



Specification

Model AC1500 AC2000   BC2000 BC3000 BC4000
Operating Fluid Air
Port Size G1/8" G1/4"  G1/4” G3/8" G1/2"
Filter Precision 40μ
Range of Adjustable Pressure 0.05~0.85 MPa
Max.Adjustable Pressure 0.95 MPa
Proof Pressure Resistance 1.5 MPa
Operating Temperature Range 5~60℃
Capacity of Filter Cup 15 cc 60 cc
Capacity of oil Cup 25 cc 90 cc
Recommended Lubricant ISO VG 32 or Same Grade Oil
Weight 0.7 KG 0.9 KG
  Material Body Aluminum Alloy Die-casting Forming
Container Cup PC
Protective Cover - Iron
  Components Filter Regulator AF1500 AF2000  BF2000 BF3000 BF4000
Regulator AR1500 AR2000  BR2000 BR3000 BR4000
Lubricator AL1500 AL2000  BL2000 BL3000 BL4000
