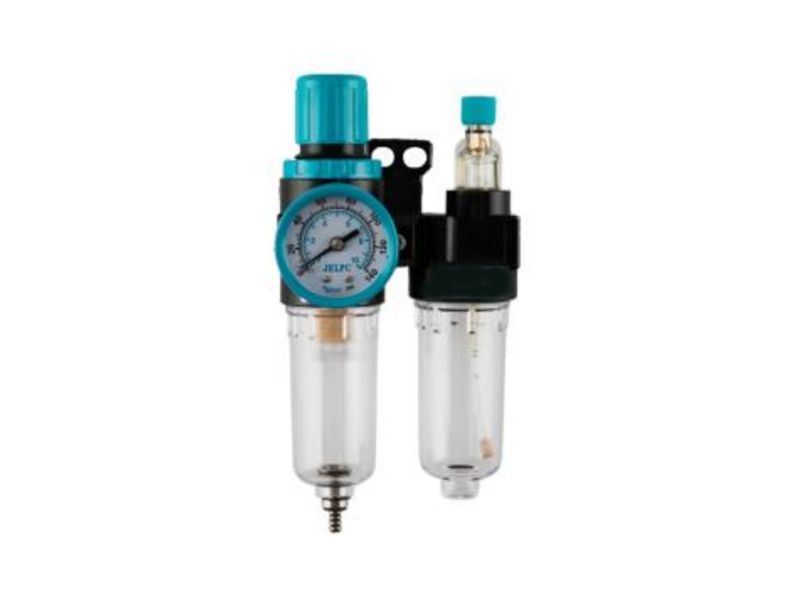

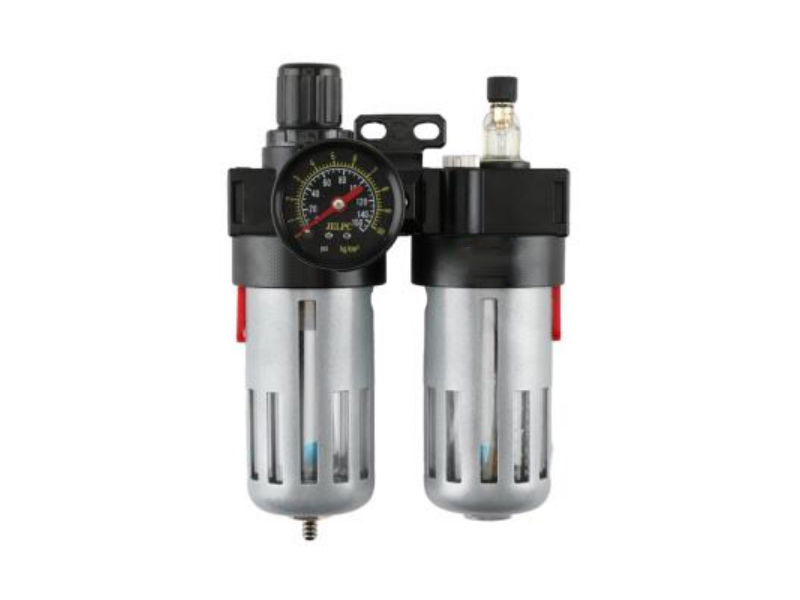

AFC, BFC Series Two-devices Combination (FR.L. Combination)

AFC, BFC Series Two-devices Combination (FR.L. Combination)

  • Product parameters

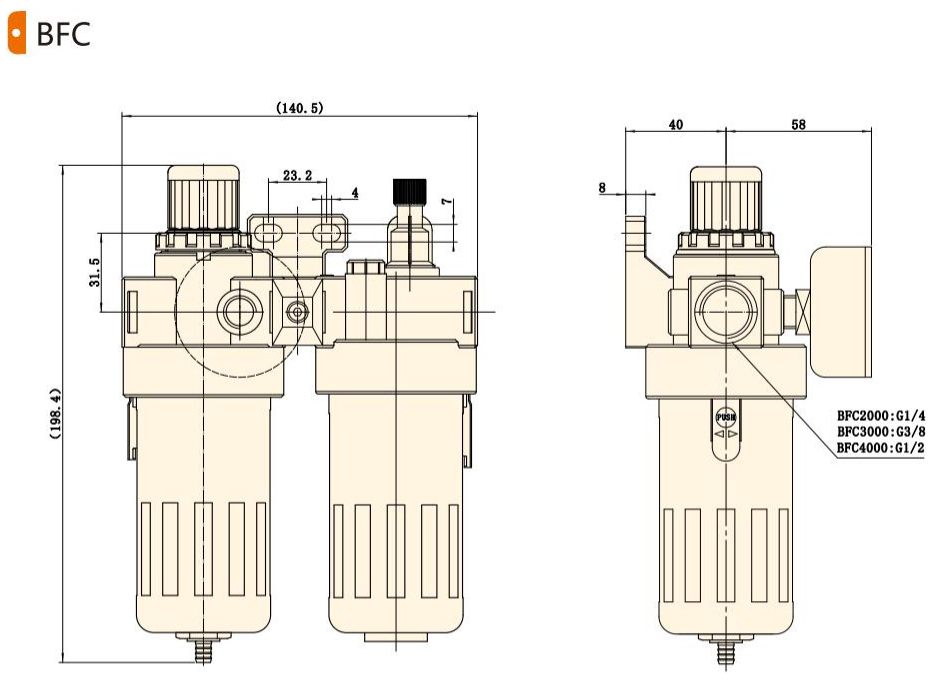

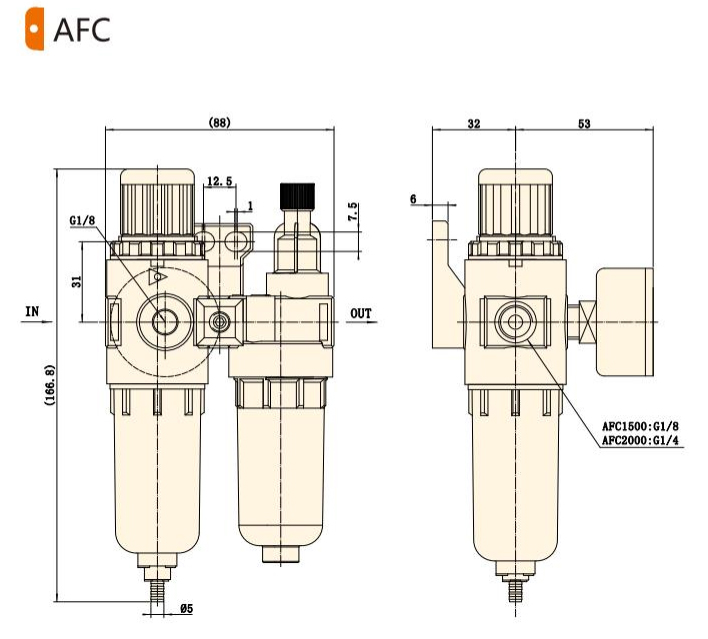

  • Product size

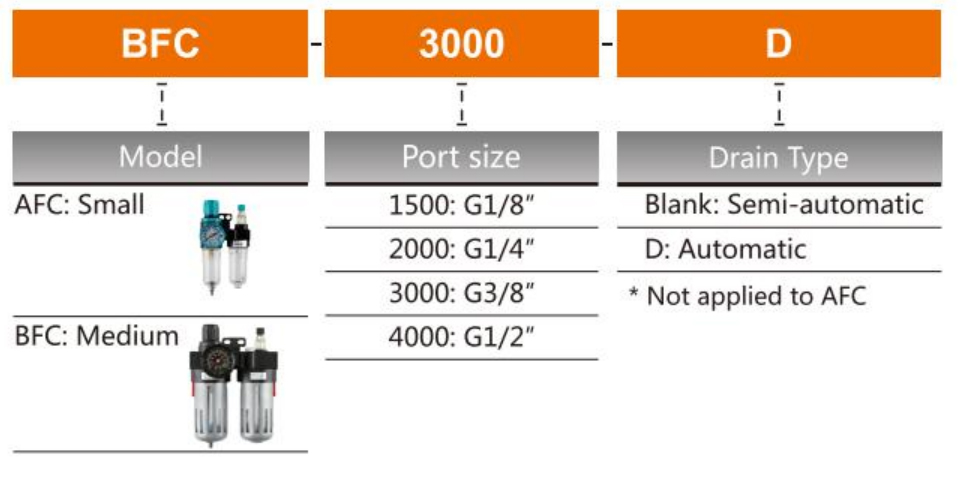

Ordering Code

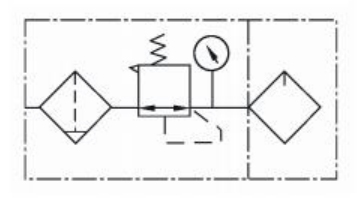

Symbol



Specification

Model AFC1500 AFC2000 BFC2000 BFC3000 BFC4000
Operating Fluid Air
Port Size G1/8" G1/4" G1/4" G3/8" G1/2"
Filter Precision 40μ
Range of Adjustable Pressure 0.05~0.85 MPa
Max.Adjustable Pressure 0.95 MPa
Proof Pressure Resistance 1.5 MPa
Operating Temperature Range 5~60℃
Capacity Of Filter Cup 15 cc 60 cc
Capacity Of Oil Cup 25 cc 90 cc
Recommended Lubricant ISO VG 32 or Same Grade Oil
Weight 0.5 KG 0.7 KG
Material Body   Aluminum Alloy Die-casting Forming
Container Cup       PC
Protective Cover - Iron
Components Filter Regulator AFR1500 AFR2000 BFR2000 BFR3000 BFR4000
Lubricator AL1500 AL2000 BL2000 BL3000 BL4000
