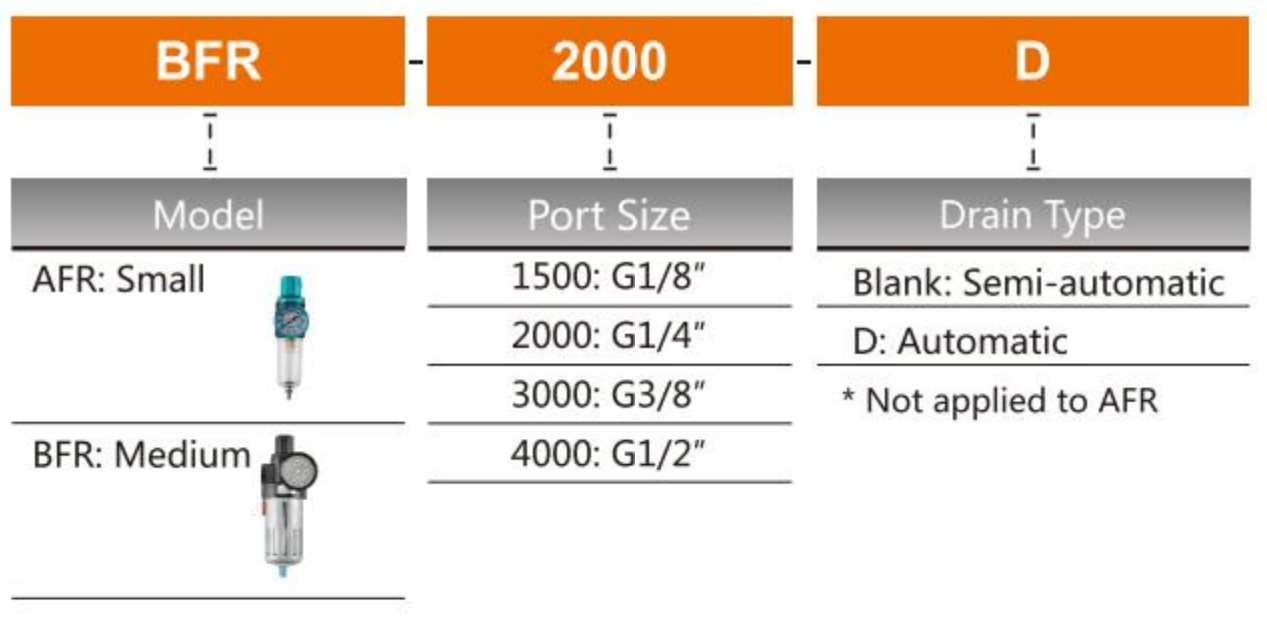

Ordering Code
Symbol
Specification
|
Model |
AFR1500 |
AFR2000 |
BFR2000 |
BFR3000 |
BFR4000 |
|
|
Operating Fluid |
Air |
|||||
|
Port Size |
G1/8" |
G1/4" |
G1/4" |
G3/8" |
G1/2" |
|
|
Range of Adjustable Pressure |
0.05 〜0.85MPa |
|||||
|
Max. Adjustable Pressure |
0.95 MPa |
|||||
|
Proof Pressure Resistance |
1.5 MPa |
|||||
|
Operating Temperature Range |
5~60℃ |
|||||
|
Capacity of Filter Cup |
15 cc |
60 cc |
||||
|
Weight |
0.26 KG |
0.4 KG |
||||
|
Material |
Body |
Aluminum Alloy, Die-casting Forming |
||||
|
Container Cup |
PC |
|||||
|
Protective Cover |
- |
Iron |
||||

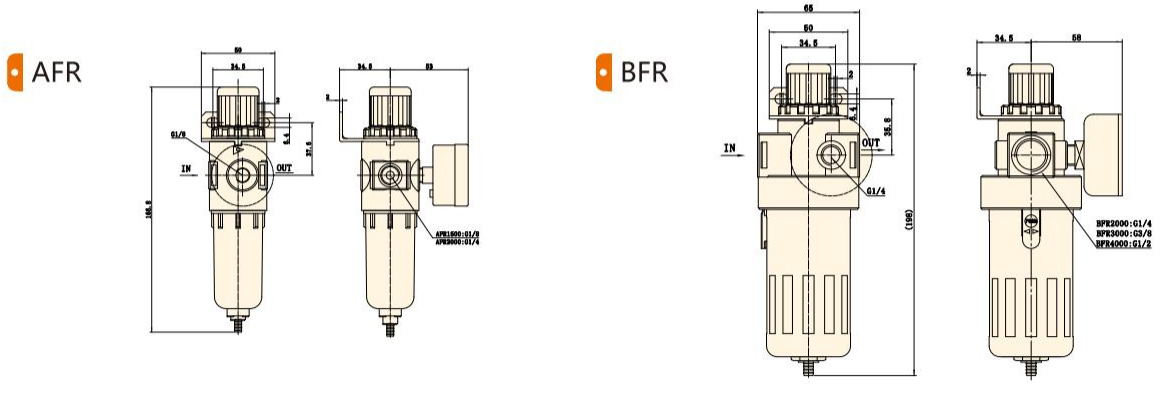

Overall Dimension
