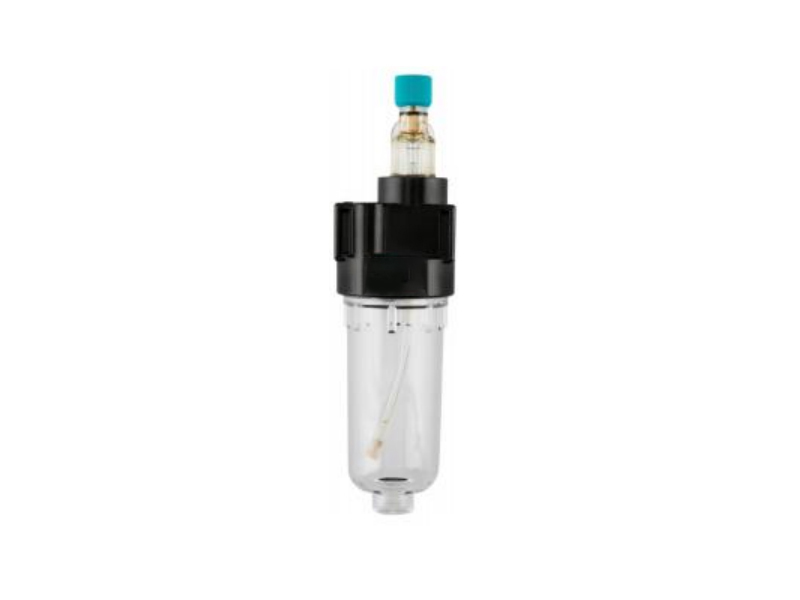

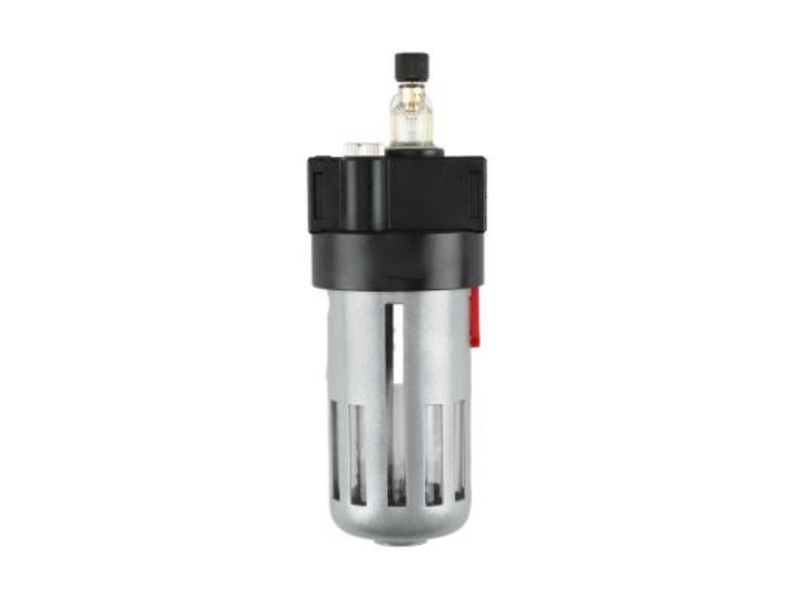

AL, BL Series Lubricator

AL, BL Series Lubricator

  • Product parameters

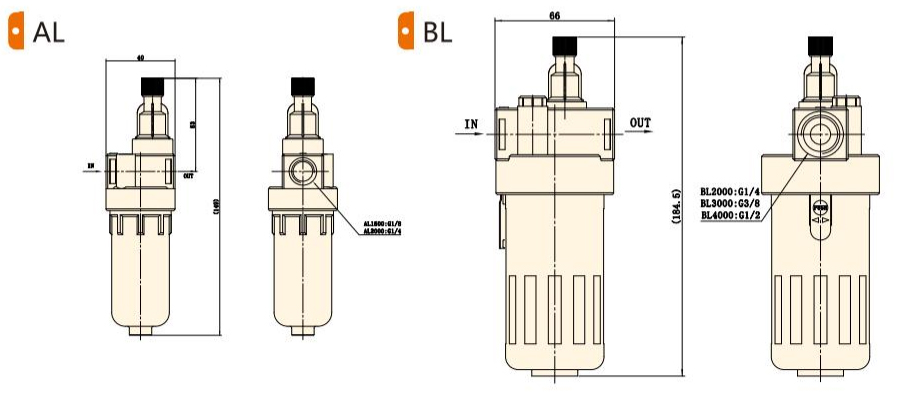

  • Product size

Ordering Code

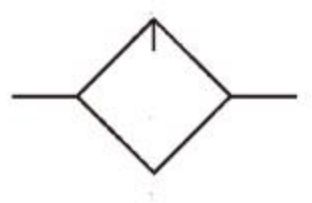

Symbol



Specification

Model

AL1500

AL2000

BL2000

BL3000

BL4000

Operating Fluid

Air

Port Size

G1/8"

G1/4"

G1/4"

G3/8"

G1/2"

Range of Adjustable Pressure

1.5MPa

Proof Pressure Resistance

5〜60℃

Operating Temperature Range

ISO VG 32 or Same Grade Oil

Capacity of Filter Cup

25 cc

90 cc

Weight

0.17 KG

0.25 KG

Material

Body

Aluminum Alloy, Die-casting Forming

Container Cup

PC

Protective Cover

-

Iron
