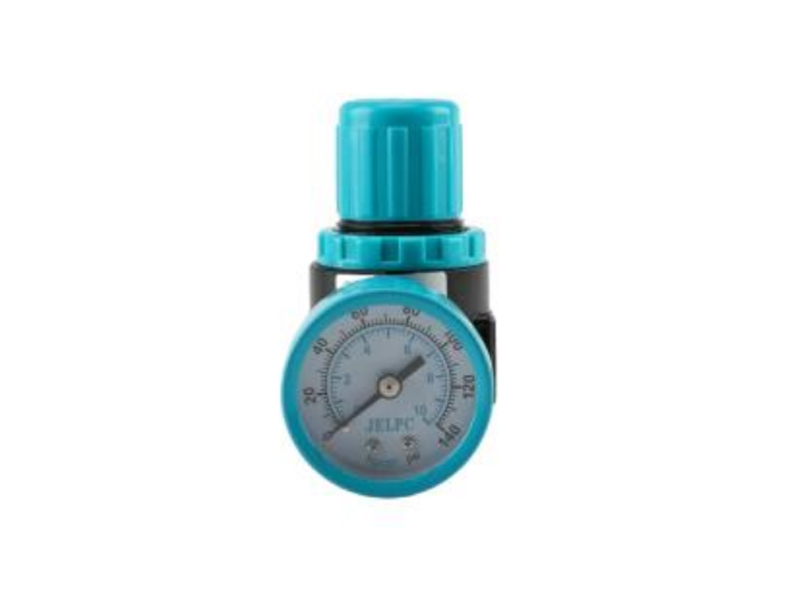

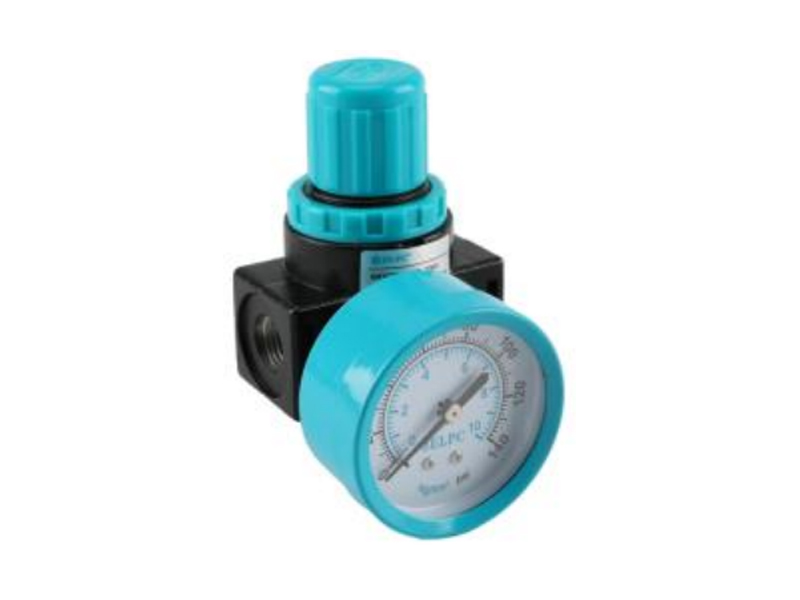

AR, BR Series Regulator

AR, BR Series Regulator

  • Product parameters

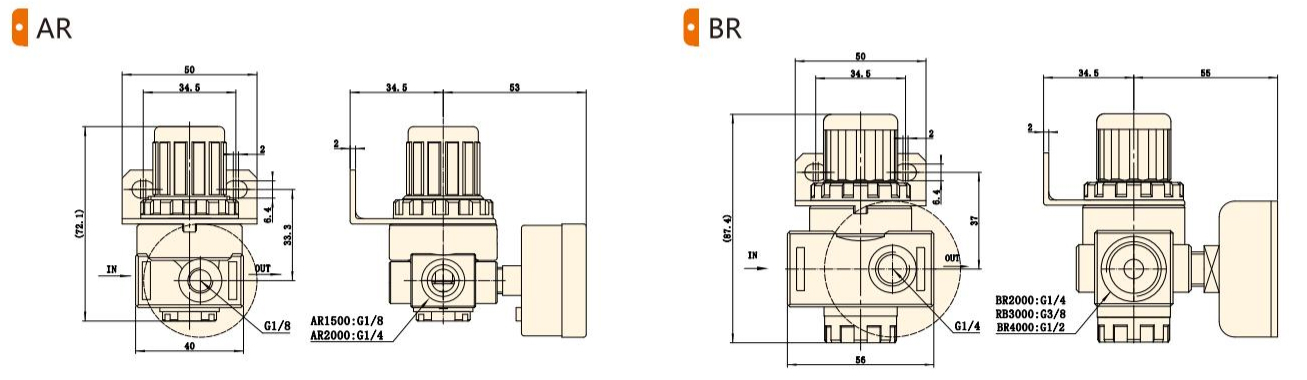

  • Product size

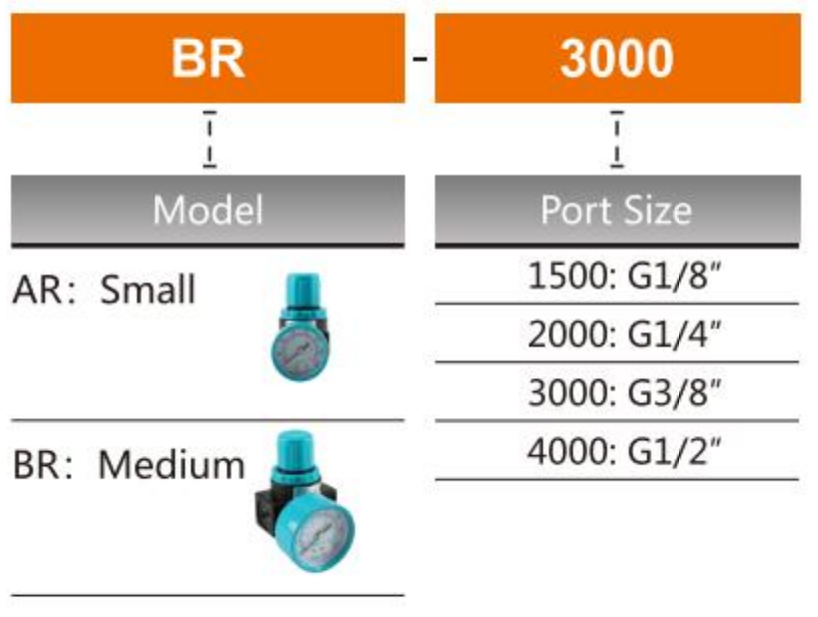

Ordering Code

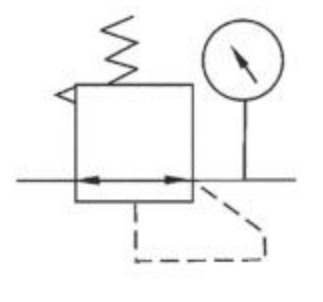

Symbol



Specification

Model

AR1500

AR2000

BR2000

BR3000

BR4000

Operating Fluid

Air

Port Size

G1/8"

G1/4"

G1/4"

G3/8"

G1/2"

Range of Adjustable Pressure

0.05 〜0.85MPa

Max. Adjustable Pressure

0.95 MPa

Proof Pressure Resistance

1.5 MPa

Operating Temperature Range

5~60°C

Weight

0.20 KG

0.23 KG

Body Material

Aluminum alloy, Die-casting Forming
