3A100-400 Series

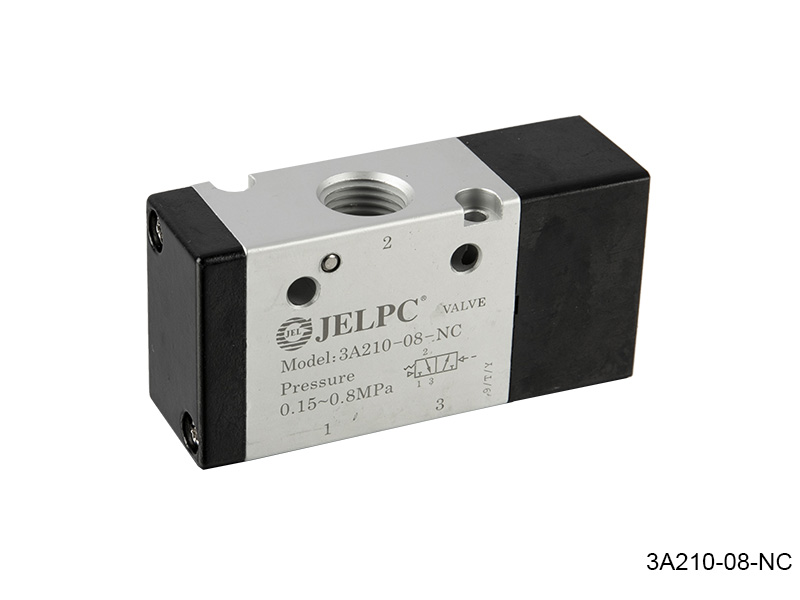

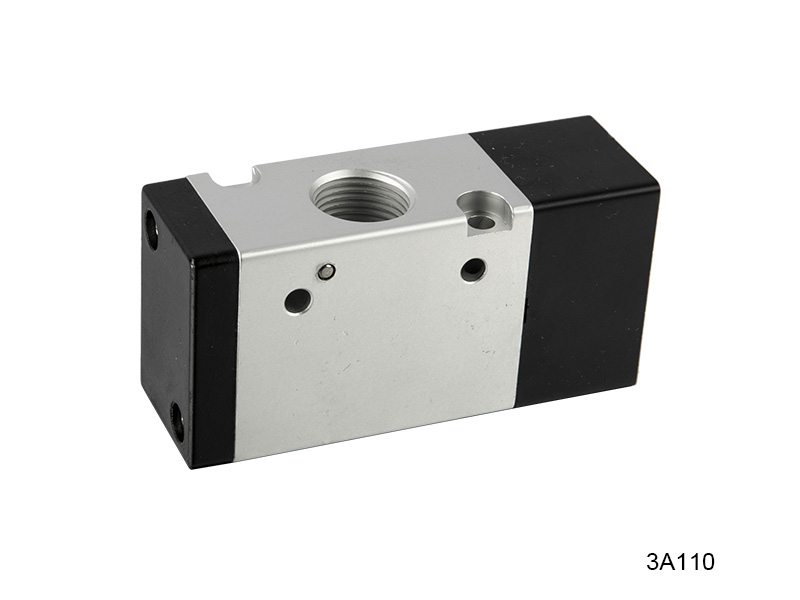

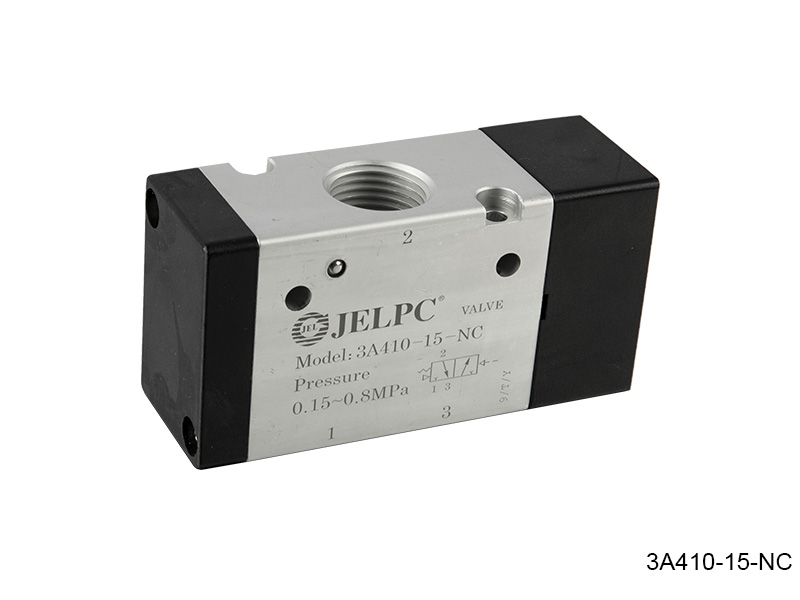

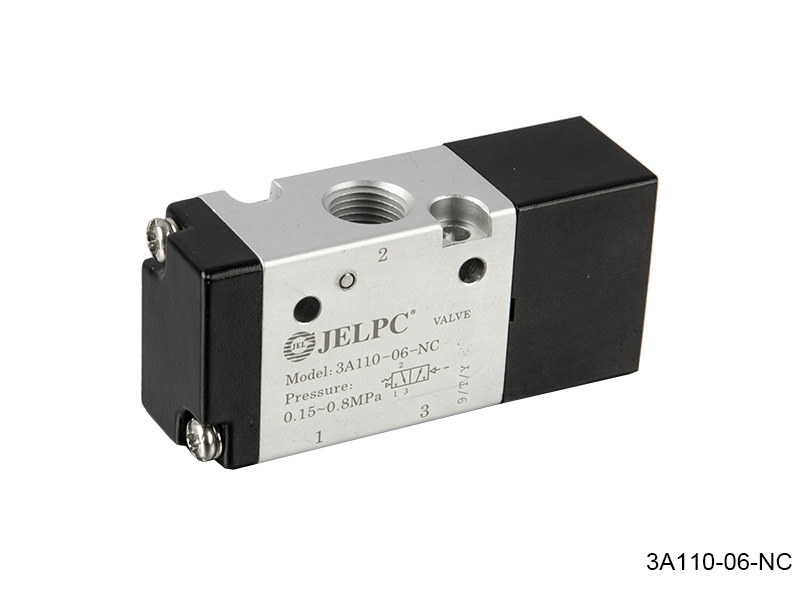

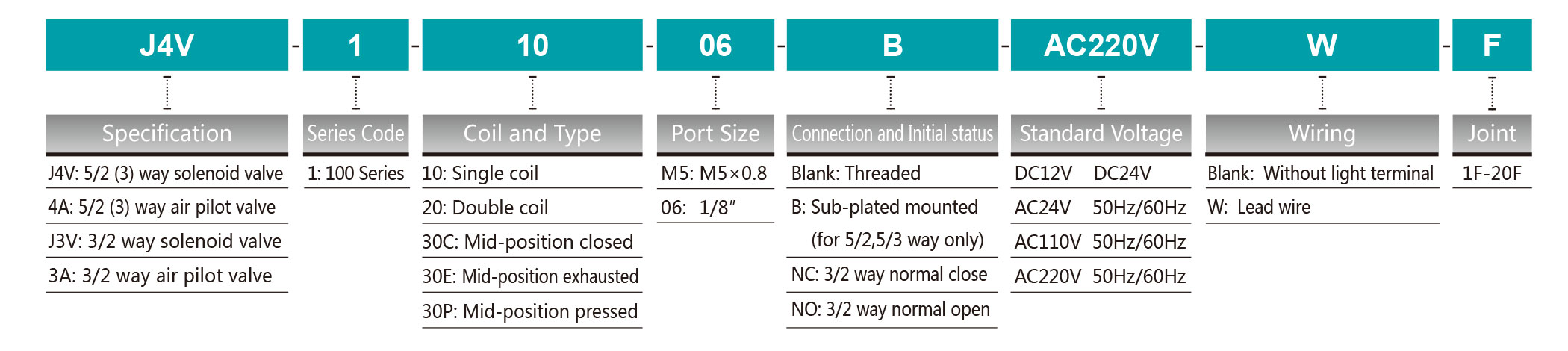

Ordering Code

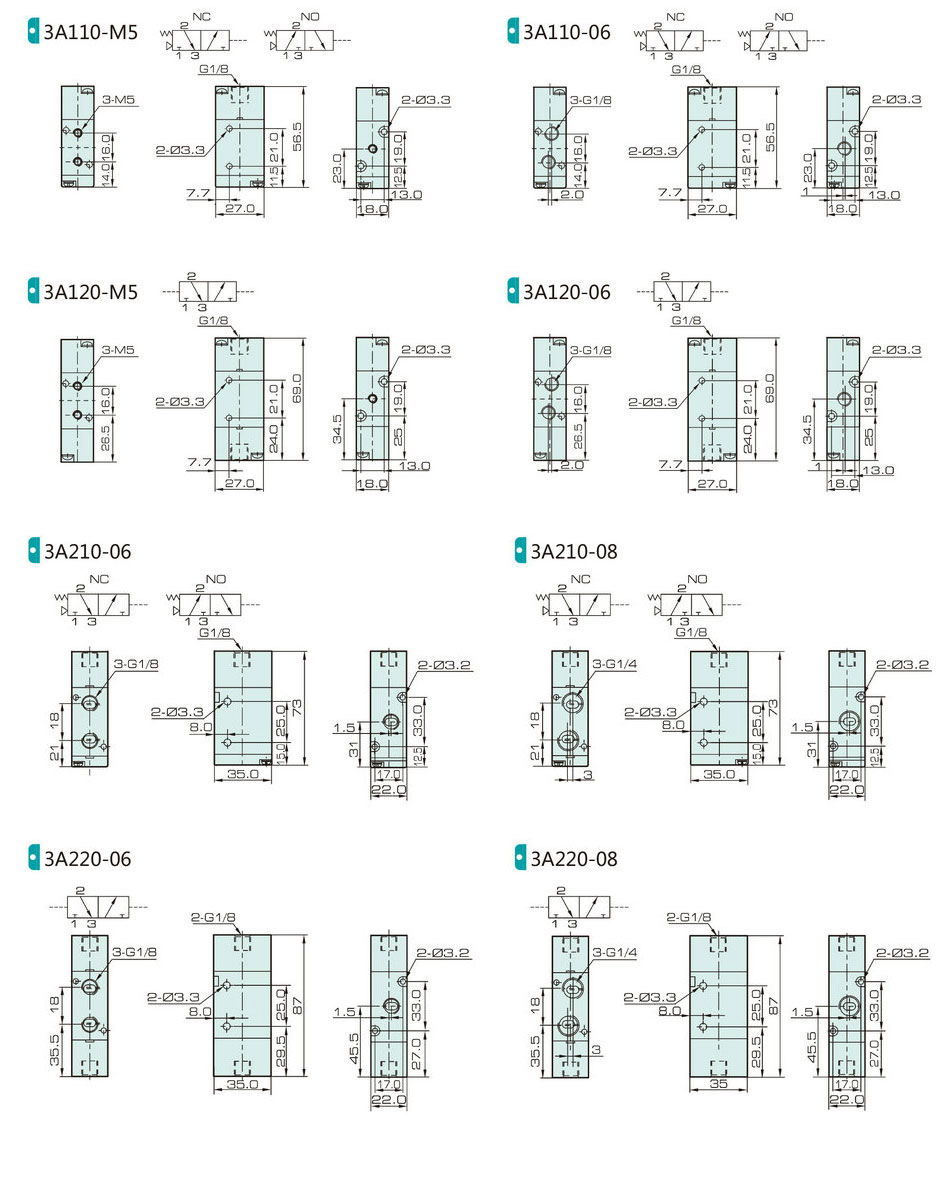

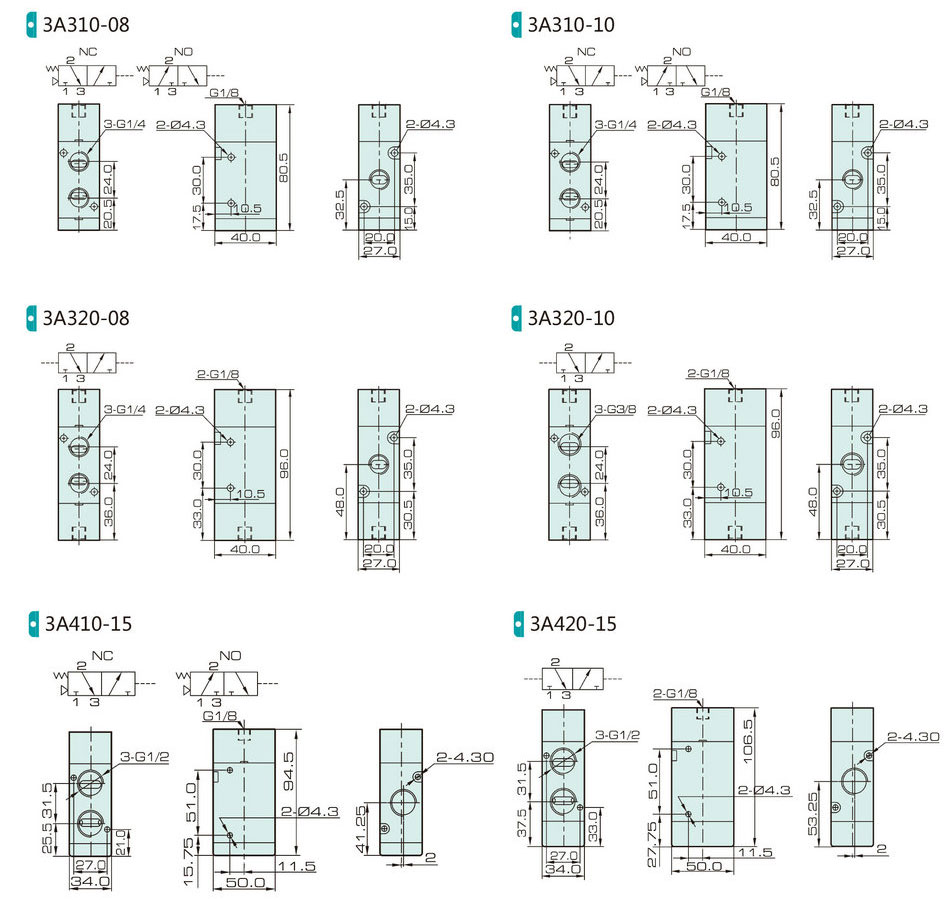

Specification

Model	J4V110-M5	J4V120-M5	J4V130C-M5	J4V130E-M5	J4V130P-M5	J4V110-06	J4V120-06	J4V130C-06	J4V130E-06	J4V130P-06
	4A110-M5	4A120-M5	4A130C-M5	4A130E-M5	4A130P-M5	4A110-06	4A120-06	4A130C-06	4A130E-06	4A130P-06
Valve Type	5/2 way		5/3 way			5/2 way		5/3 way
Effective Cross Section Area	10 mm 2 (CV = 0.56)		7 mm 2 (CV = 0.40)			12 mm 2 (CV = 0.67)		9 mm 2 (CV = 0.5)
Model	J3V110-M5	J3V120-M5	3A110-M5	3A120-M5	J3V110-06	J3V120-06	3A110-06	3A120-06
Valve Type	3/2 way
Effective Cross Section Area	10 mm 2 (CV = 0.56)				12 mm 2 ( CV = 0.67)
Port Size	Inlet, Outlet, Exhaust Port ＝ M5 × 0.8				Inlet, Outlet, Exhaust Port ＝ G 1/8″
Working Medium	40 Micron Filtered Air
Operation	Internal piloted
Working-pressure	0.15～0.8 MPa
Max. Test Pressure	1.2MPa
Ambient Temperature	-20 ~ 70 ℃
Operating Voltage Tolerance	± 10%
Power Consumption	AC: 2.5VA DC: 2.5W
Connector Protection	F Class, IP 65
Wiring / Connector	Cable / Lead Wire or DIN Connector
Switching Frequency	5 Cycles / Sec.
Response Time	0.05 Sec.

Air Pilot Valves
