DNT Series Economical Cylinder

DNT Series Economical Cylinder

Economical Cylinder

0
Views: 3,227
  • Product parameters

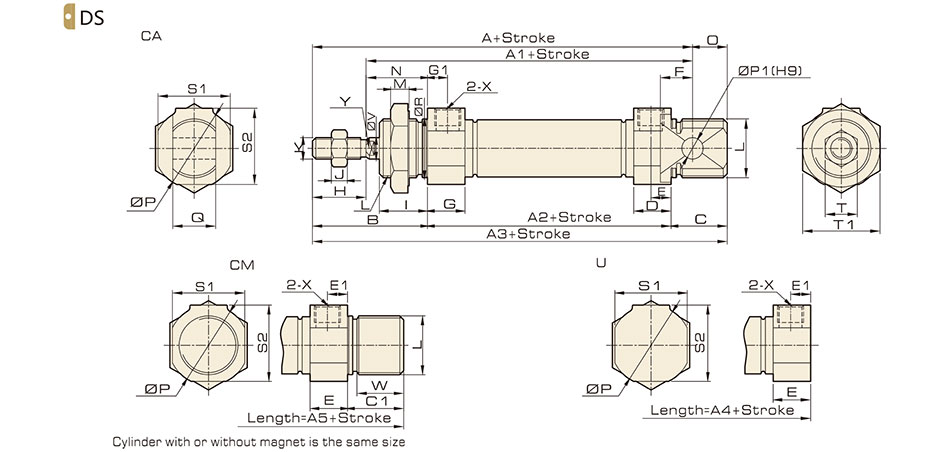

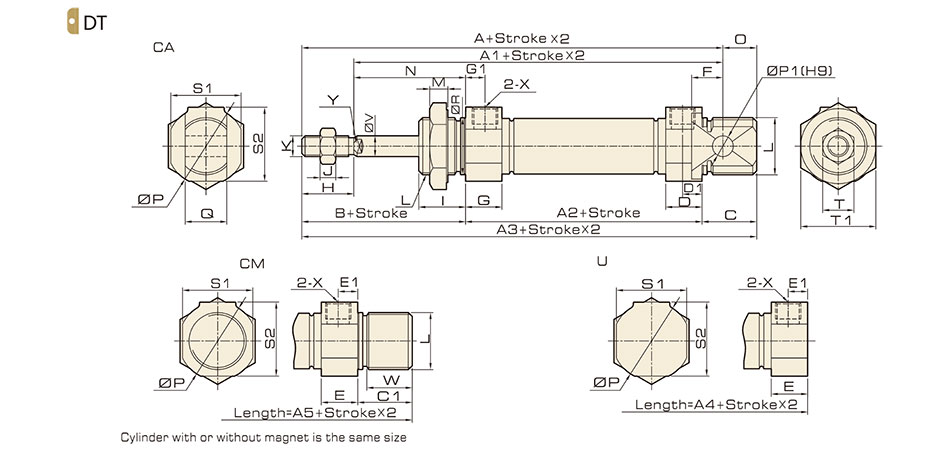

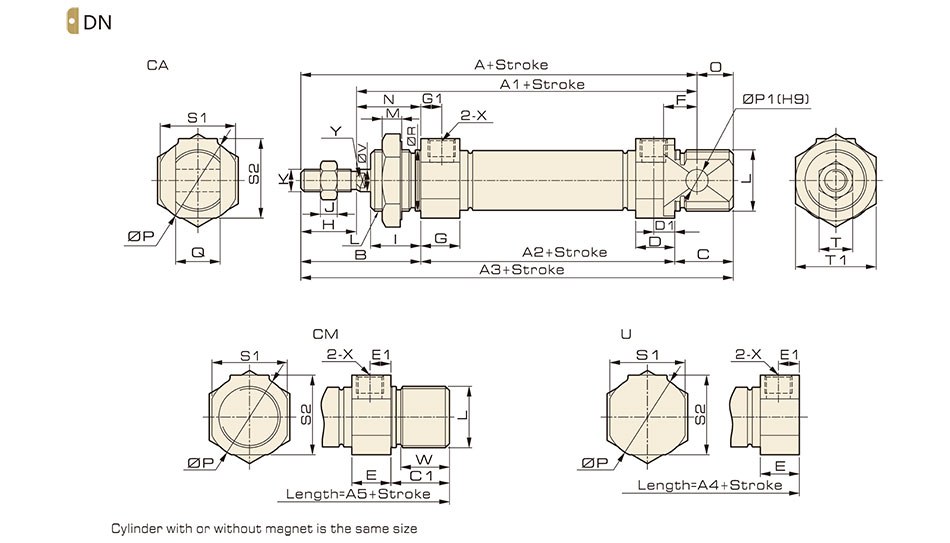

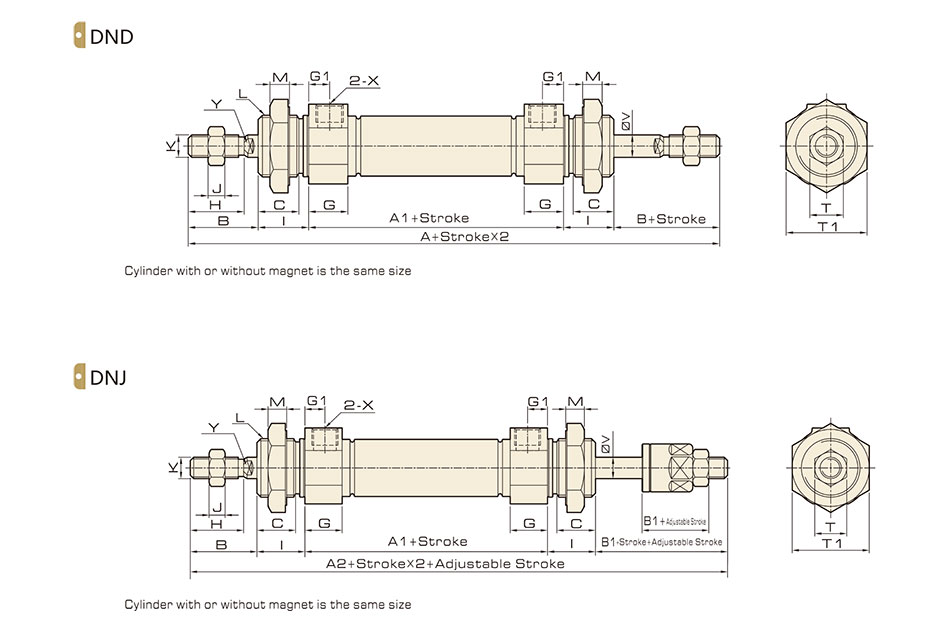

  • Product size

Features



1. Improving for adapting wide range applications,using precisepolishing of piston rod, more sense of products quality and longer life of front seal.

2. Optima design and improve the production efficiency.

3. Combined with enterprise color planning and new structure design,stainless steel series cylinder integrated as the semicircular groove cramping.

4. Using embedded gasket, increase the pressured area of pistons after collision.





Internal Structure



Parts



Number

Name

Number

Name

l

Piston rod

9

O ring

2

Hexagon nut

10

Piston seal

3

Shaft seal

11

Anti-friction seal

4

Hexagon nut

12

Magnet

5

DU bearing

13

Piston

6

Front cover

14

Socket head cap screw

7

Anti-collision gasket

15

Back cover

8

Barrel

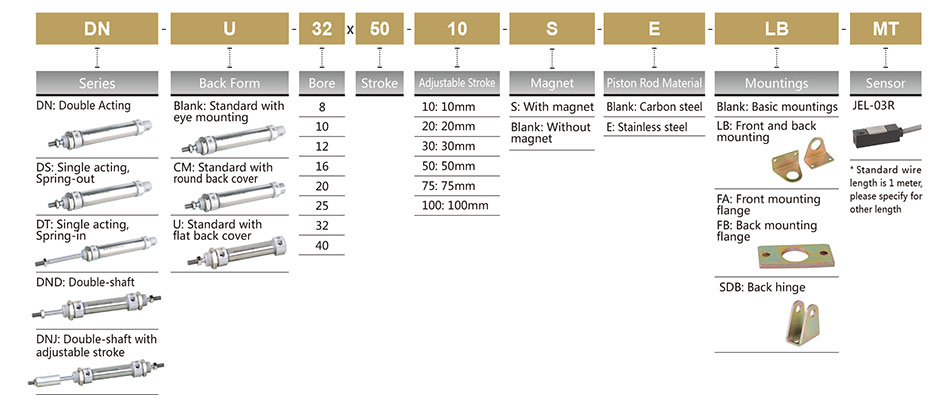

Ordering Code







Specification



Bore (mm)

08

10 12

16

20 25 32 40

Operation

Double Acting or Single Acting

Working Medium

Air

Mountings

Basic LB FA FB SDB

Operating Pressure

0.1~1.0MPa

Proof Pressure

1.5 MPa

Operating Temperature Range

-20~80℃

Operating Speed Range

50~800mm/s

Cushion

Gasket Cushion

Port Size

M5x0.8

G1/8"
