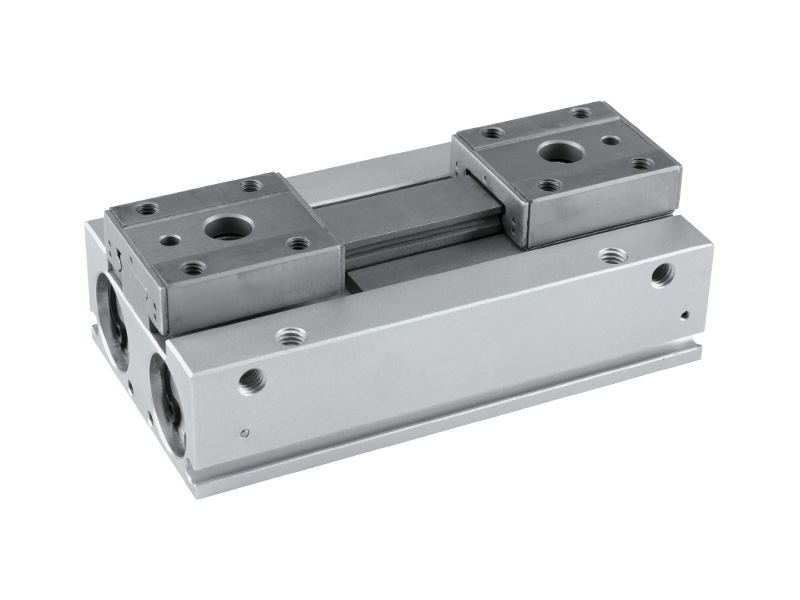

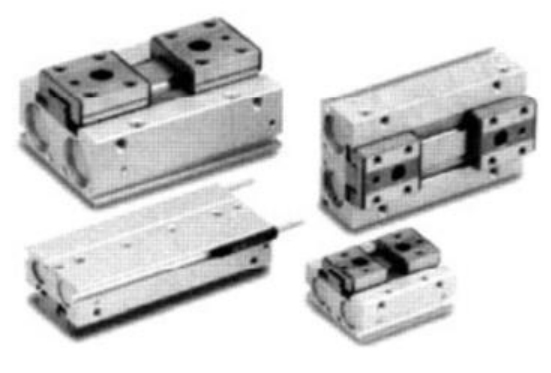

JHF2 Series Compact Air Gripper

JHF2 Series Compact Air Gripper

  • Product parameters

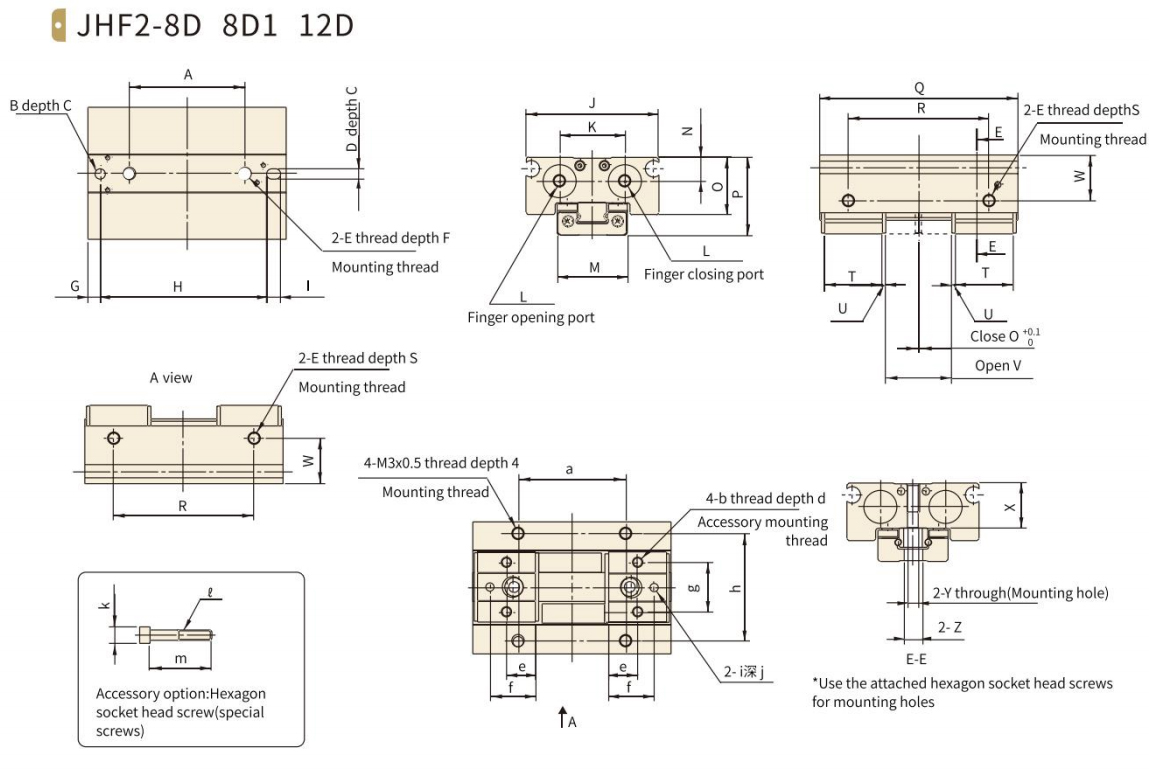

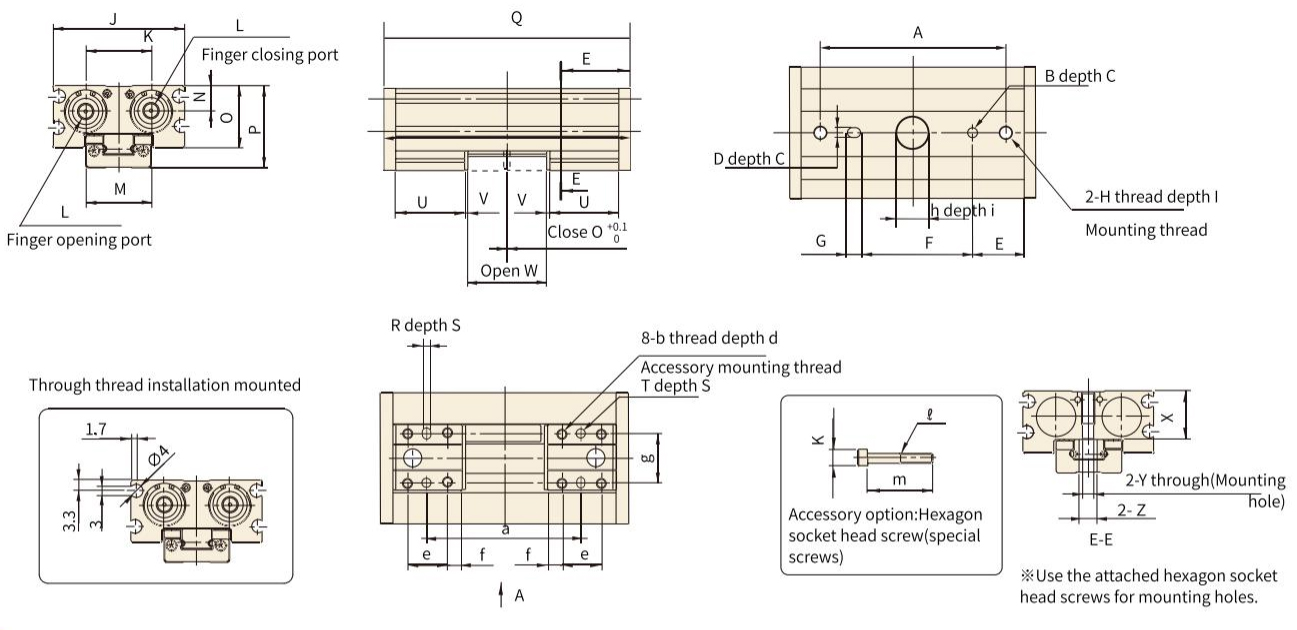

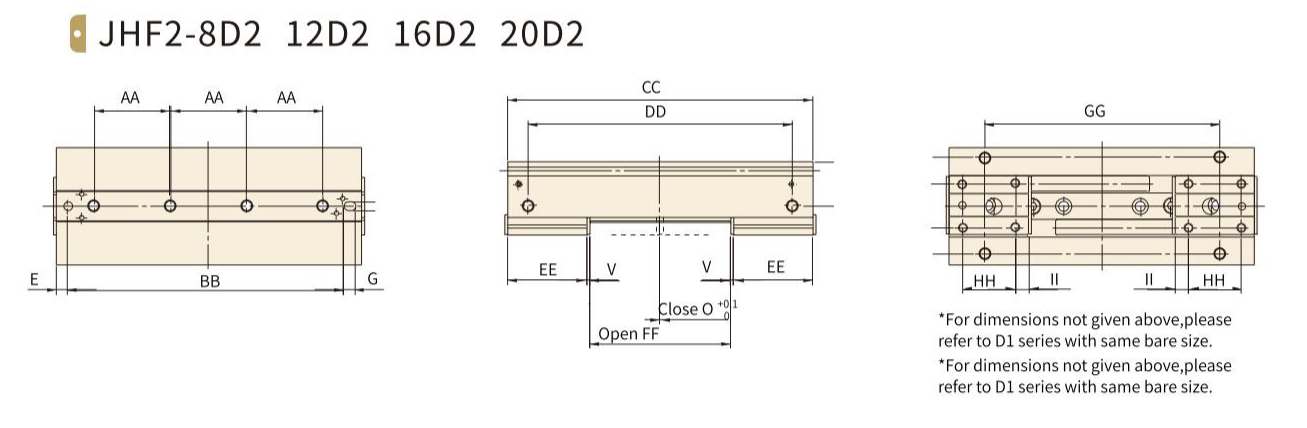

  • Product size

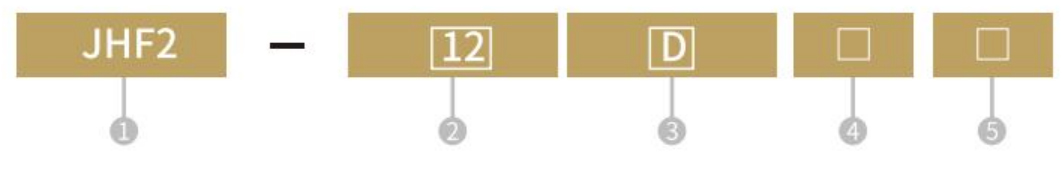

Ordering Code

①2 Claws ② Bore Size ③DoubleActing ④ Stroke ⑤Boby Option
2 Claws Bore size Double
  acting		 Nil Short stroke  Boby option
1  Medium stroke Nil Axial piping type

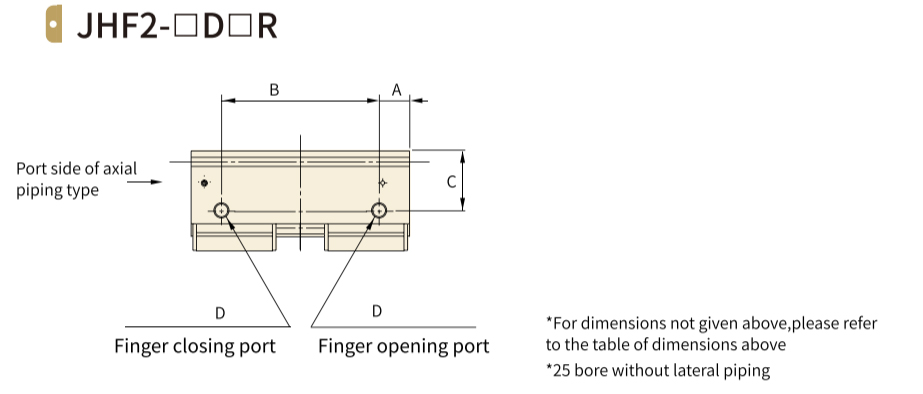

2  Long stroke R Side piping type

[Note] Sensor model please refer to P173 for the specific ordering code.

Operation Model Bore Size(mm) Gripping Force Opening/Closing
Stroke(Both Sides)(mm)		 Weight Unobstructed Capacity  (cm³)
Effective Gripping
Force Per Finger
Finger Open Side Finger Close Side
Difunctional JHF2-8D 8  19  8  65  0.7  0.6
JHF2-8D1 16  85  1.1  1.0
JHF2-8D2 32  120  2.0  1.9
JHF2-12D 12  48  12  155  1.9  1.6
JHF2-12D1 24  190  3.3  3.0
JHF2-12D2 48  275  6.1  5.8
JHF2-16D 16  90  16  350  4.9  4.1
JHF2-16D1 32  445  8.2  7.4
JHF2-16D2 64  650  14.9  14.0
JHF2-20D 20  141  20  645  8.47  7.3
JHF2-20D1 40  850  15.1  13.7
JHF2-20D2 80  1225  28.0  26.6
JHF2-25D 25  236  60  1650  30.0  27.3

*[Note] At the pressure of 0.5MPa when gripping point L is 20mm.


Specification

Bore Size(mm) 8  12  16  20  25
Operation Double Acting
Working Medium Air
Operating Pressure Range(Mpa) 0.15~0.7 0.1~0.7
Ambient And Fluid Temperature -10~60℃(with no condensation)
Repeatability(mm) ±0.05*
Max.Operating Frequency(c.p.m) Short stroke、Medium stroke:120 Long stroke:60
Sensor Model Contactless 2-Wire JEL-07D
3-Wire NPN JEL-07N

*[Note] When cylinder side mount and not full stroken used, the minmun operating pressure can't be less than 0.4Mpa

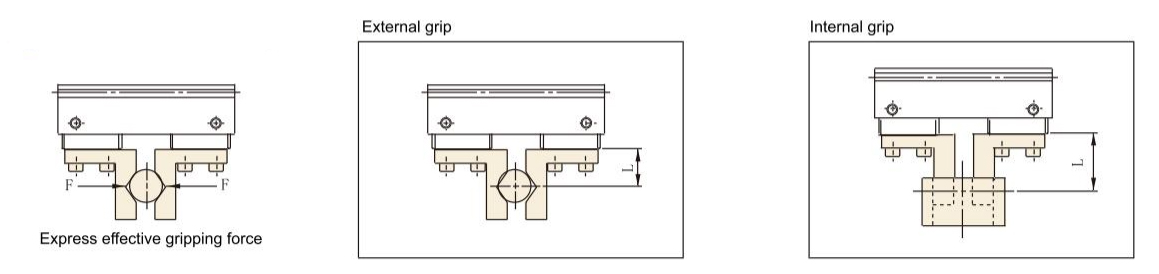

Effective Gripping Force

Specifications/Model Bore

Model Bore Size(mm) Operation Fuild Operating Pressure RangeMpa(Mpa) Ambient And Fluid Temperature(℃) Repeatability(mm) Max.Operating Frequency
(C.p.m)		 Gripping Force(N) Opening/ Closing Stroke(mm) Sensor Model
JHF2-8D 8  Double
acting		 Air 0.15~0.7   -10~60
  (with no
condensation)		 ±0.05 120  19  8



JEL-07D
JHF2-8D1 120  16
JHF2-8D2 60  32
JHF2-12D 12  0.1~0.7 120  48  12
JHF2-12D1 120  24
JHF2-12D2 60  48
JHF2-16D 16  120  90  16
JHF2-16D1 120  32
JHF2-16D2 60  64
JHF2-20D 20  120  141  20
JHF2-20D1 120  40
JHF2-20D2 60  80
JHF2-25D 25  120  236  60

[Note] At the pressure of 0.5MPa when gripping point L is 10mm.

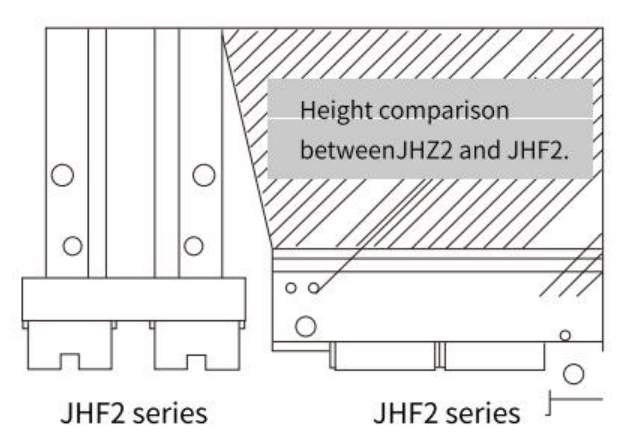

Much shorter than JHZ2 series

- Space-saving design.
- Strong gripping force.
- Centralized wiring and piping.
- Three standard stroke lengths: short/medium/long.
[Note]JHF2-25D only have short stroke

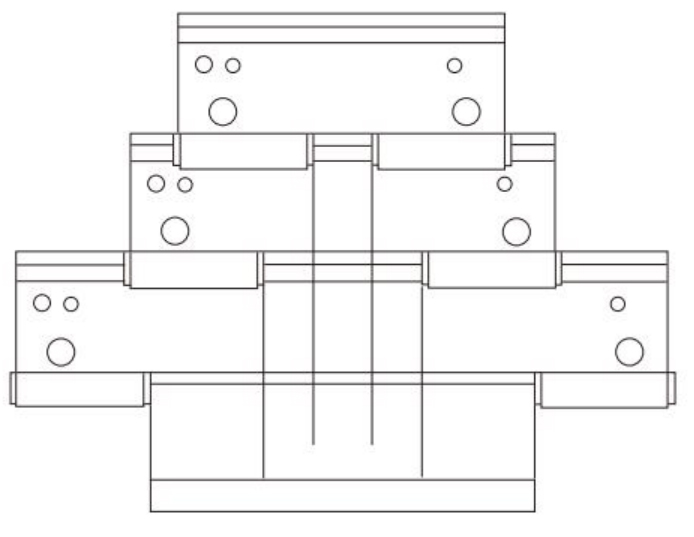

Standard stroke lengths for each bore size. Stroke can be selected to suit the workpiece.

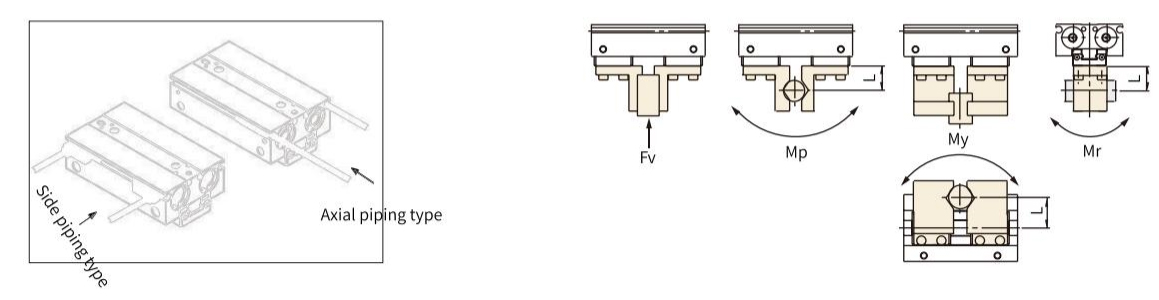

Centralized wiring and piping are possible.
