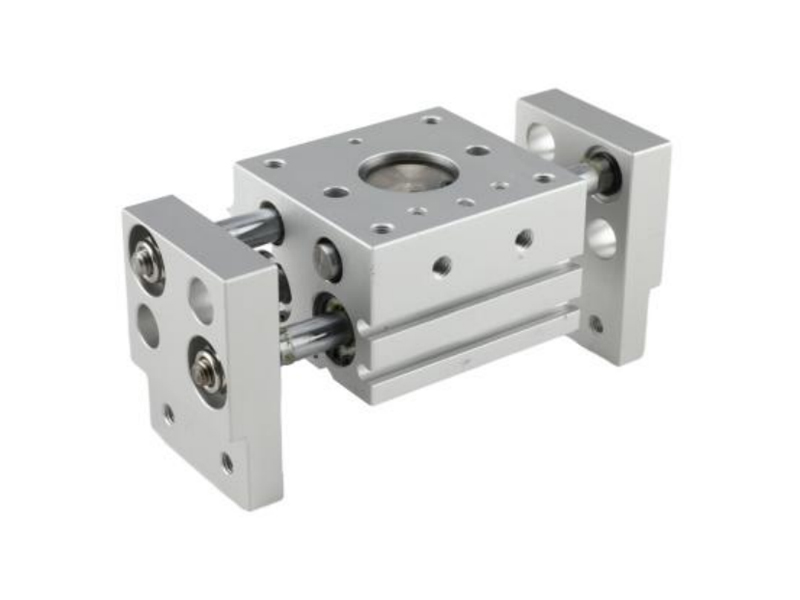

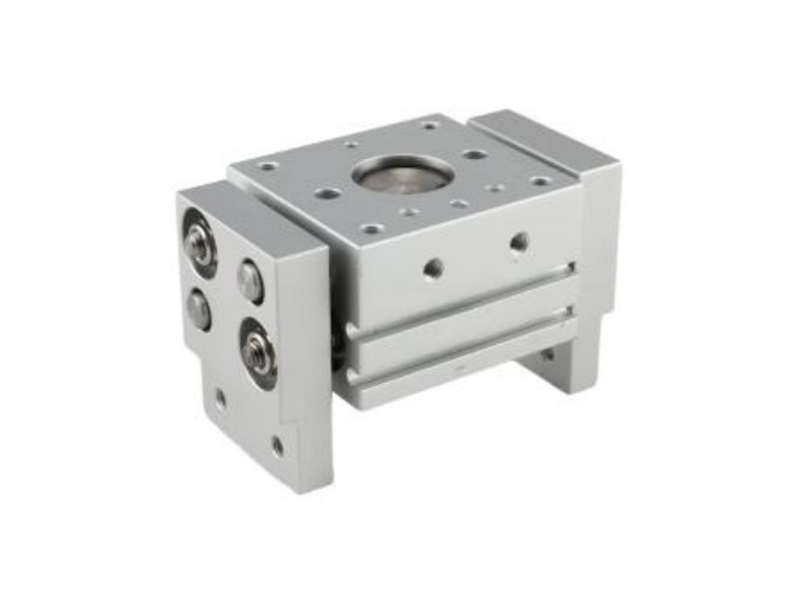

JHL2 Series Wide Type Air Gripper (Parallel style)

JHL2 Series Wide Type Air Gripper (Parallel style)

Features:

1. Long stroke, suitable for bulky objects.
2. Double piston rod design to increase the holding force.
3. Gear rod operation to make finger open and close synchronously.
4. A scraper with a dust lip is adopted for al rod rotating parts.
5. Many options for different working conditions.

  • Product parameters

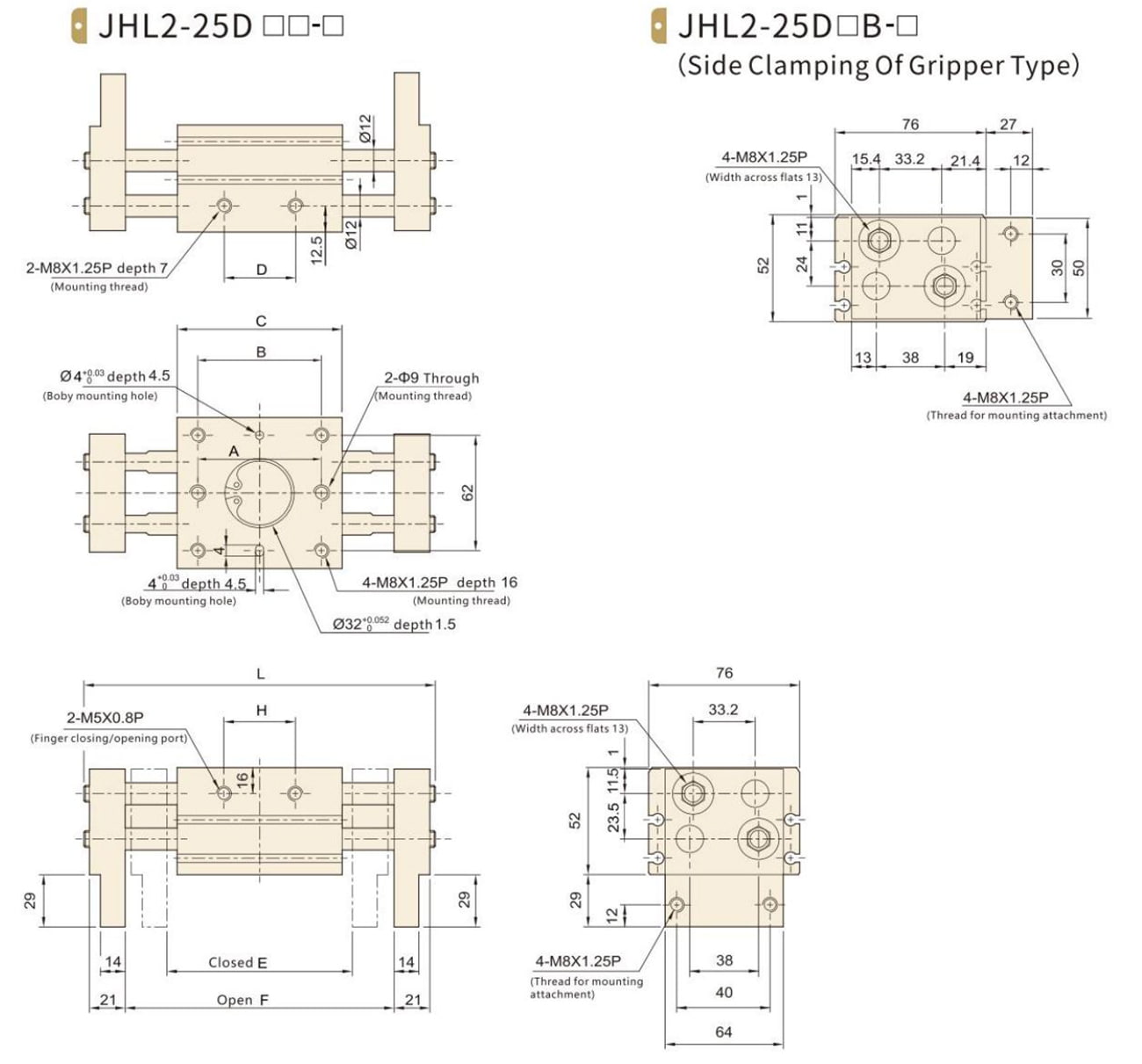

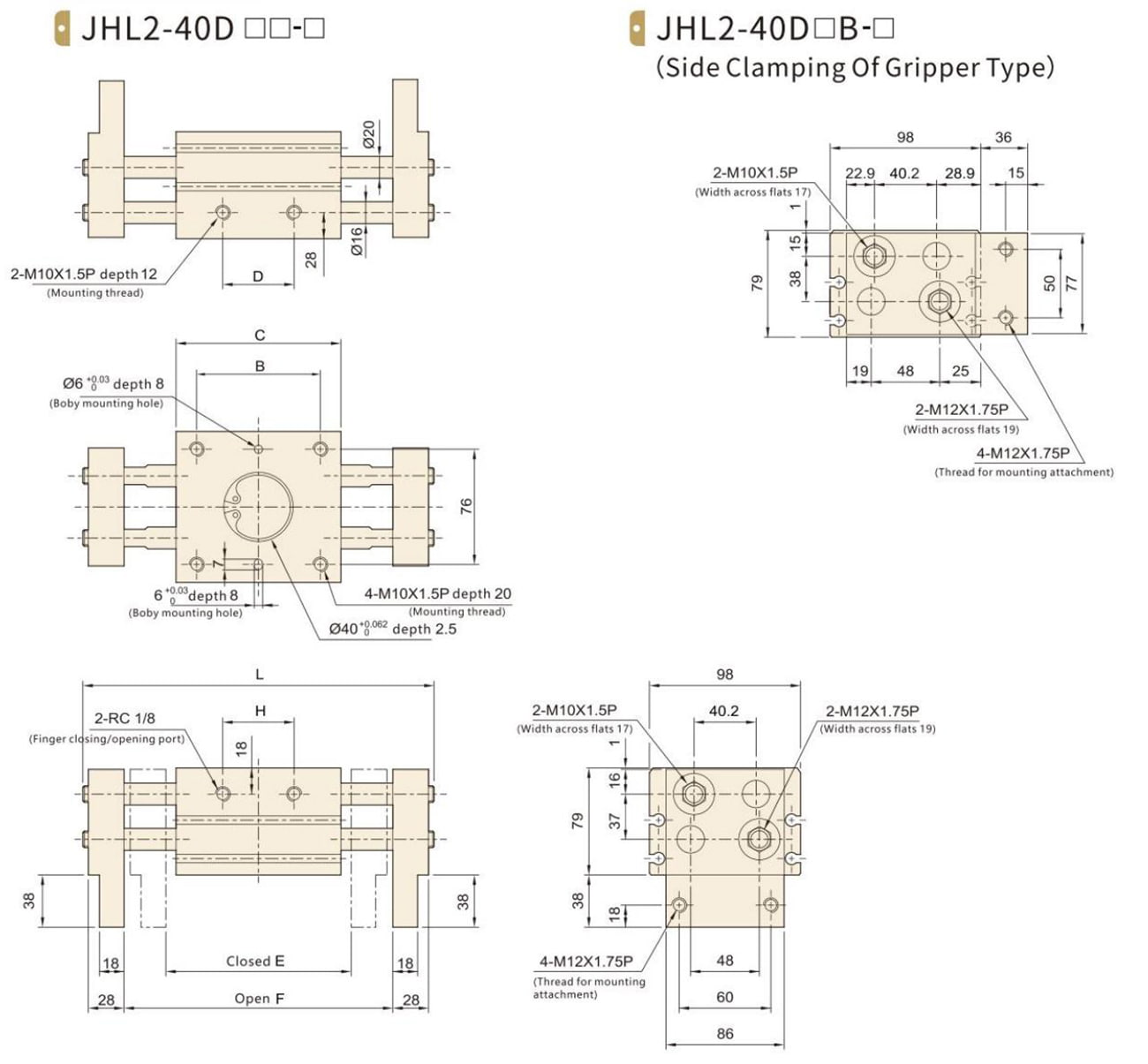

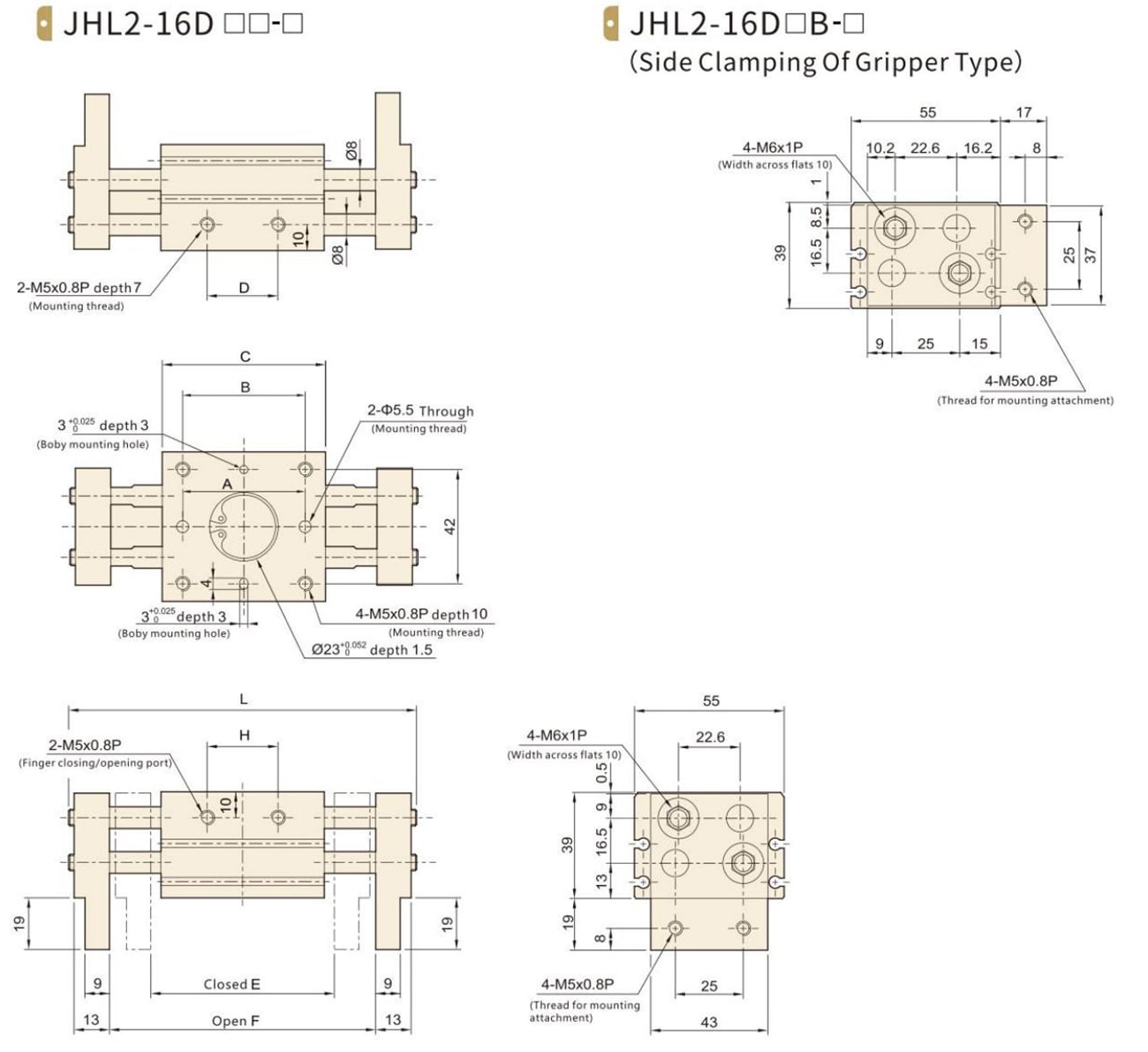

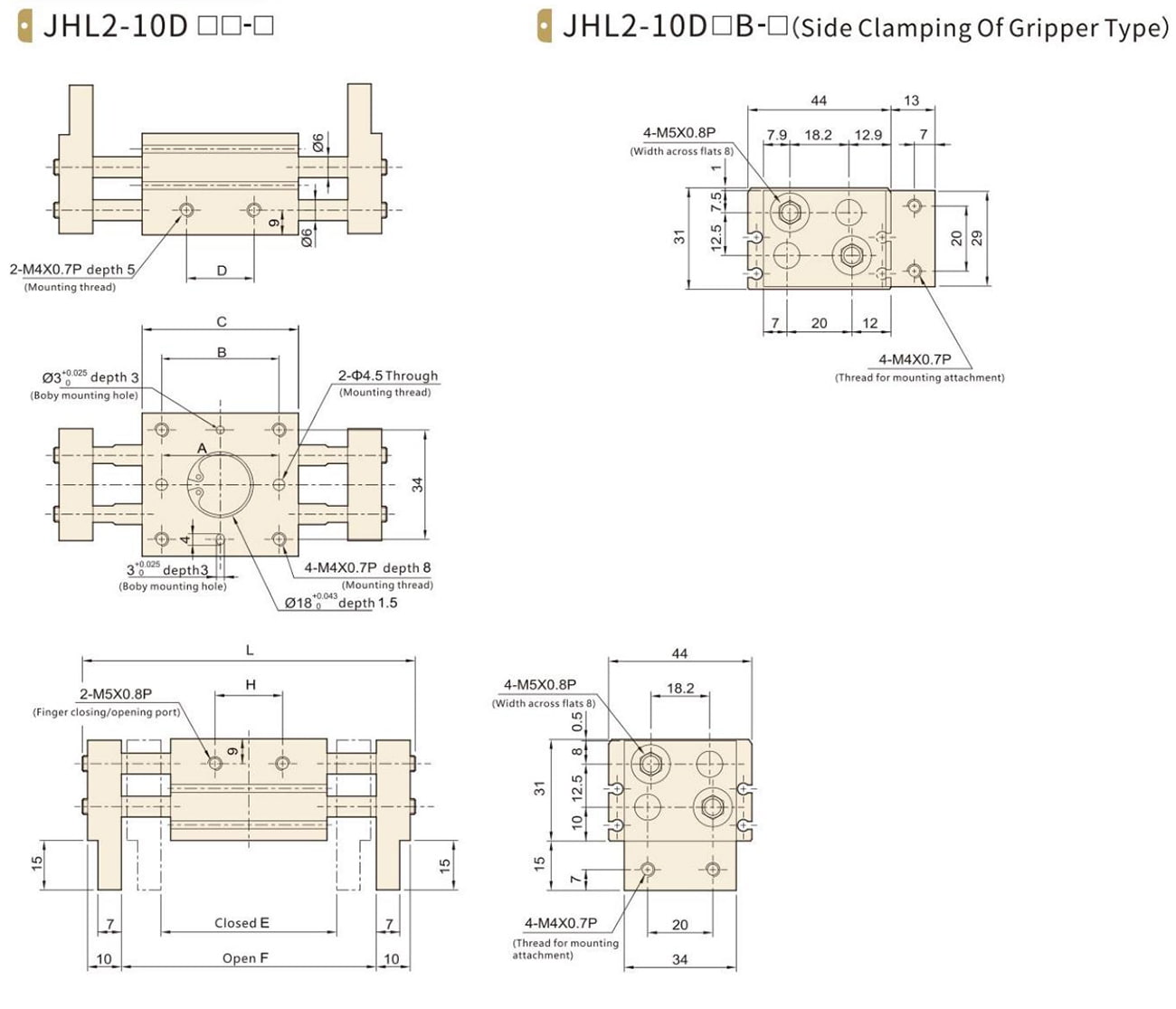

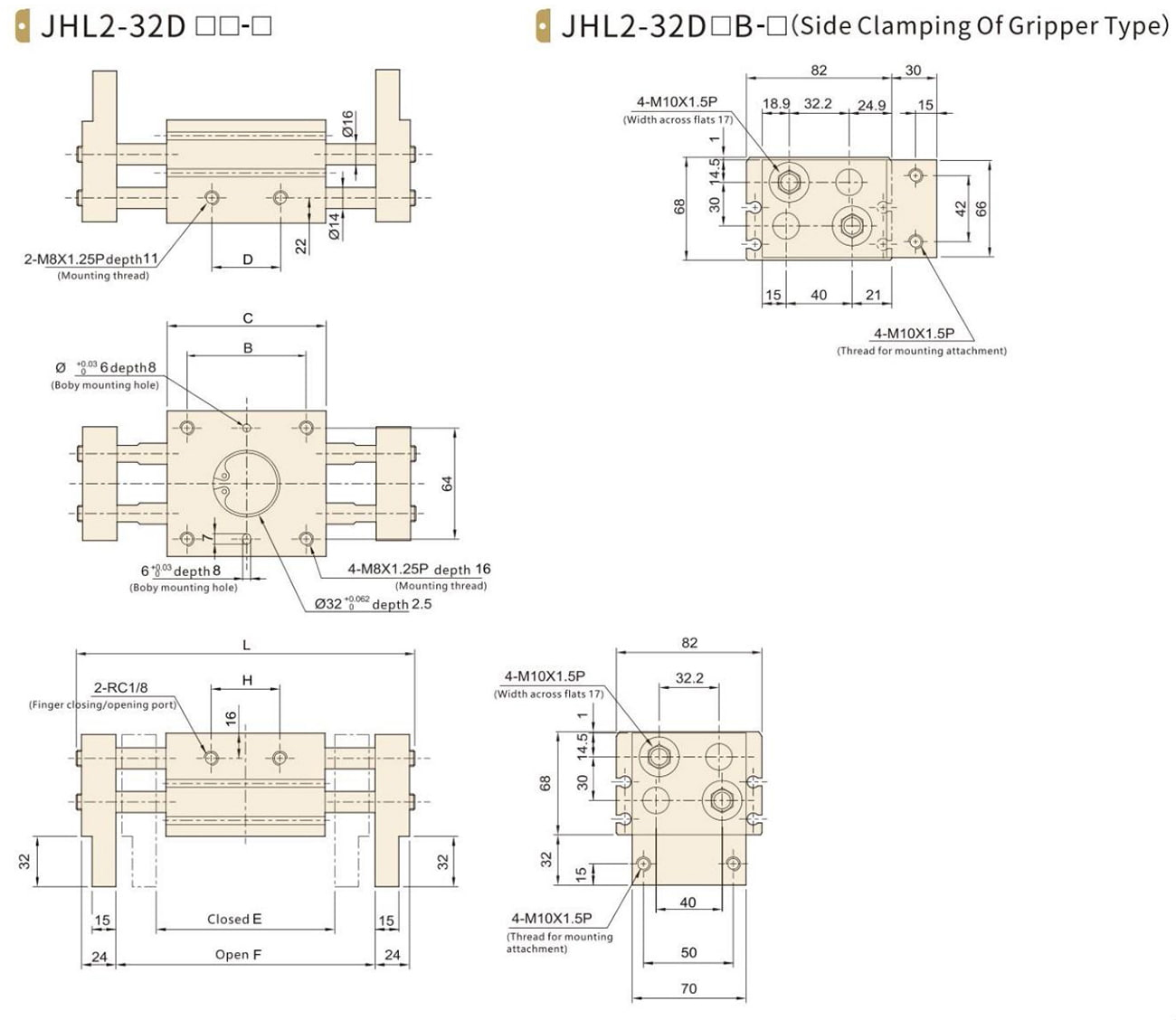

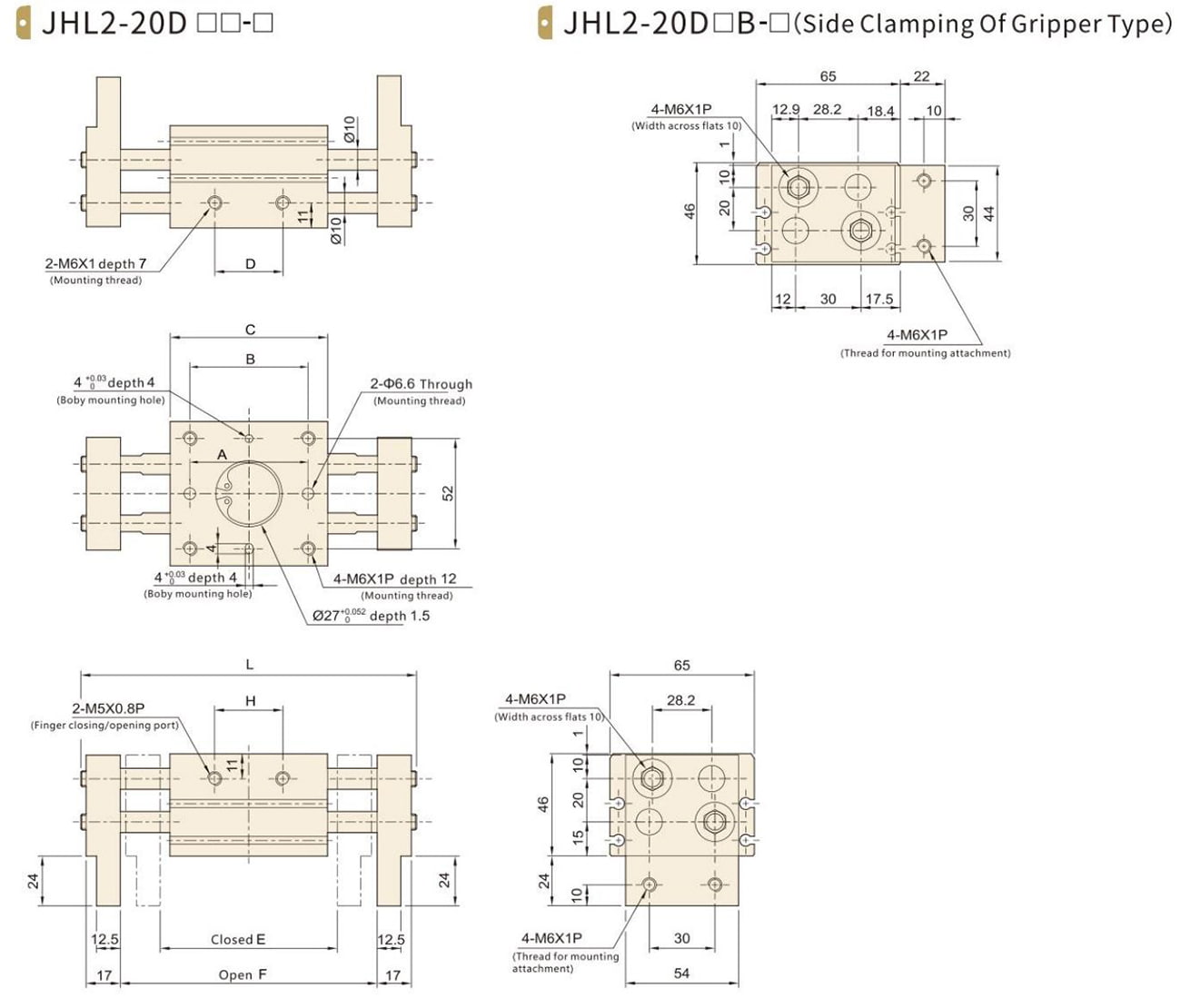

  • Product size

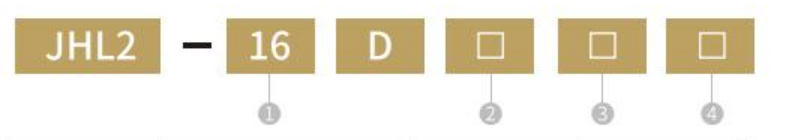

Ordering Code

①Bore Size ② Opening/Closing Stroke ③Gripper Type ④Load Capacity
∅10 Nil Short stroke N/A Standard N/A Standard
∅16
∅20 1  Short stroke
∅25 B Side gripping A Sleeve extension
∅32 2  Short stroke
∅40

[Note] Sensor model please refer to P173 for the specific ordering code.
[Note] Extended bearing type has same installation size with the standard type. Extended shaft sleeve has stronger load capacity but no dustproof function.


Specification

Boresize 10  16  20  25  32  40
Operation Double Acting
Working Medium Air
Max. Operating Pressure 0.6{6.1}
Min. Operating Pressure 0.15{1.5}   0.1{1.0}
Ambient And Fluid Temperature -10-60℃ with no(condensation)
Repeatability ±0.1
Holding Power 14{1.4} 45{4.6} 74{7.5} 131{13.4} 228{23.4} 396{40.4}
Port Size M5×0.8 1/8

[Note] Under the pressure of 0.5MPa and the holding point 40mm(∅10~∅25),80mm(∅32/∅40)

Stroke/Weight Table

Model Bore Size(mm) Max.Operating Frequency(c.p.m) Opening/Closing Stroke(mm)(L2-L1) Closing Width(mm)(L1) Opening Width(mm)(L2) Weight(g)
JHL2-10D□-□ 10  60  20  56  76  280
JHL2-10D1□-□ 40  40  78  118  345
JHL2-10D2□-□ 40  40  96  156  425
JHL2-16D□-□ 16  60  30  68  98  585
JHL2-16D1□-□ 40  60  110  170  795
JHL2-16D2□-□ 40  80  130  210  935
JHL2-20D□-□ 20  60  40  82  122  1025
JHL2-20D1□-□ 40  80  142  222  1495
JHL2-20D2□-□ 40  100  162  262  1690
JHL2-25D□-□ 25  60  50  100  150  1690
JHL2-25D1□-□ 40  100  182  282  2560
JHL2-25D2□-□ 40  120  200  320  2775
JHL2-32D□-□ 32  30  70  150  220  2905
JHL2-32D1□-□ 20  120  198  318  3820
JHL2-32D2□-□ 20  160  242  402  4655
JHL2-40D□-□ 40  30  100  188  288  5270
JHL2-40D1□-□ 20  160  246  406  6830
JHL2-40D2□-□ 20  200  286  486  7905
