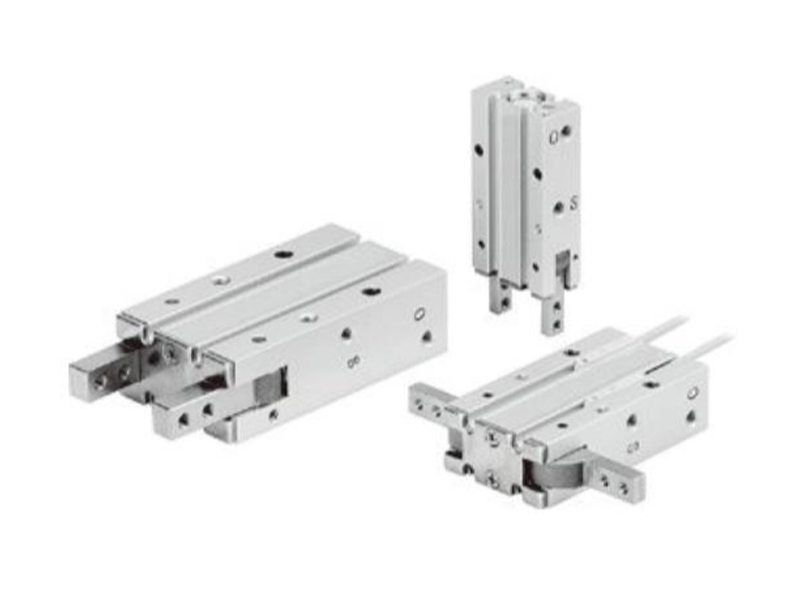

JHY2 Series Air Gripper (Fulcrum open and close type)/Cam Type 1809

JHY2 Series Air Gripper (Fulcrum open and close type)/Cam Type 1809

Features:

1. Built-in magnetic ring, and sensor can be placed.

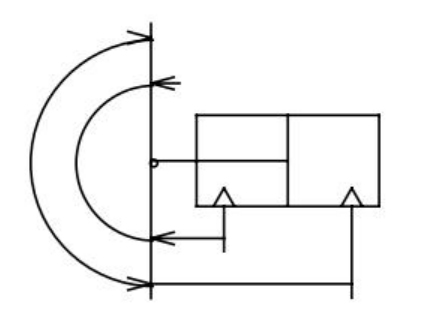

2. 180angular clamping type, simplify holding and placing.

3. Can be suitable for special environment use, finger opening and closing part is specially designed to prevent small objects from entering.

4. Easy to install, with positioning dowel pin hole.

  • Product parameters

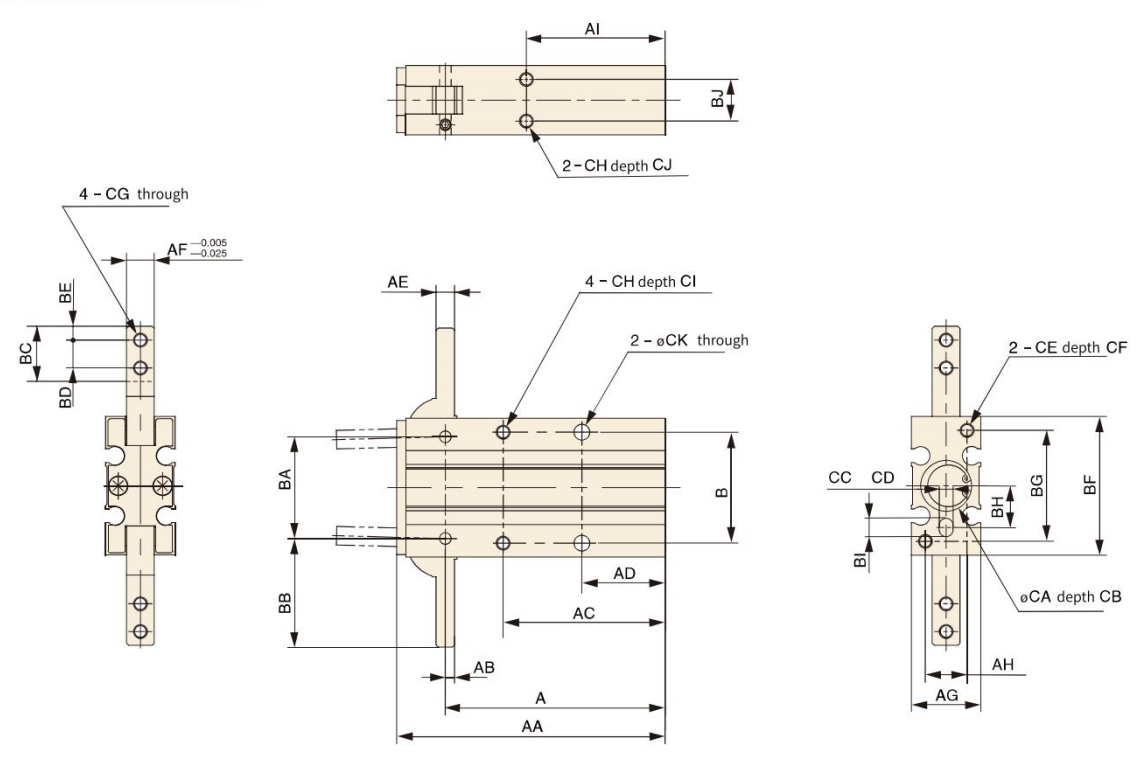

  • Product size

Specification

Bore Size(mm) 10  16  20  25
Operation Double Acting
Working Medium Air
Max.Operating Pressure(Mpa)(kgf/cm²) 0.6{6.1}
Min.Operating Pressure(Mpa)(kgf/cm²)   0.15{1.5} 0.1{1.0}
Ambient And Fluid Temperature -10~60℃(with no condensation)
Max.Operating Frequency(c.p.m) 60
Repeatability(mm) ±0.2
Holding Power(N){kg} 0.16{1.6} 0.54{5.5} 1.10{11.2} 2.28{23.3}
Weight(g) 70  150  320  560
Lubrication No need
Piping Size M5×0.8

[Note] At the pressure of 0.5MPa(kgf/cm²).

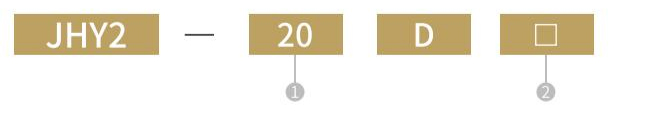

Ordering Code

① ②Air Gripper
Bore size Nil Thread
2  Through-hole

[Note]Sensor model please refer to P173 for the specific ordering code.

Symbol

Gripping Point

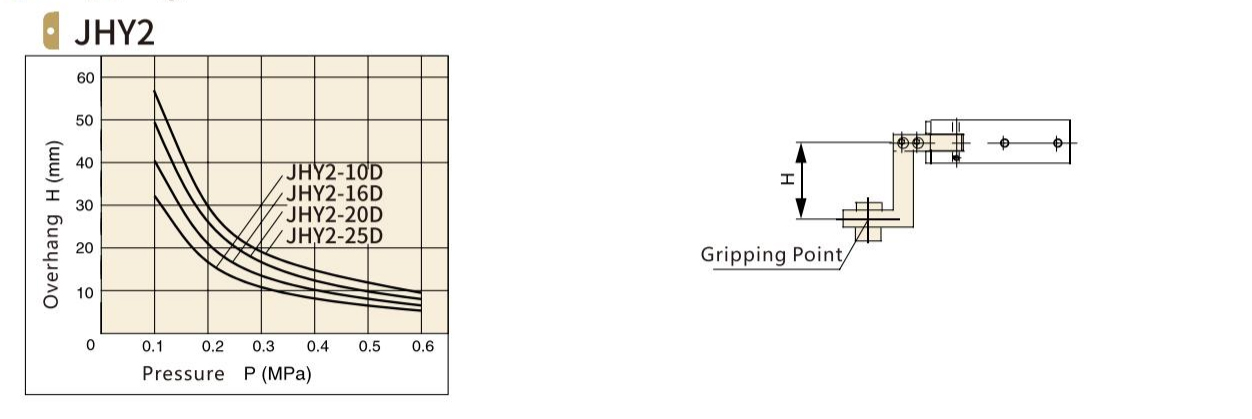

If operated with the workpiece gripping point beyond the indicated range H, the lifetime of the product will be affected.
