JHZ2 Series Air Gripper (Parallel Type)

Features:

1. Linear guide with integrated design, high rigidity, high precision.

2. A positioning dowel pinhole is arranged at the bottom of the guide rail to prevent the guide rail deviating from the cylinder block.

3. Cylinder block has multiple dowel pin hole, which make high installation positioning accuracy.

4. The initial position of the gripper can be selected according to the actual situation of customers to meet different working conditions.

Specification

Bore Size(mm)		6	10	16	20	25	32	40
Working Medium		Air
OperatingPressure Range	Double Acting	0.15~0.7MPa	0.2~0.7MPa	0.1~0.7MPa			0.1~0.7MPa
Ambient And Fluid Temperature		10~60℃(with no condensation)
Repeatability		±0.01mm					±0.02mm
Max.Operating Frequency(c.p.m)		180					60
Lubrication		No need
Operation		Double acting ·Single acting
Sensor Model		JEL-07
Piping Size		M3×0.5		M5×0.8

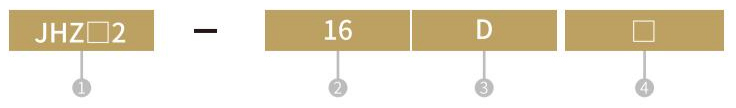

Ordering Code

①Option		②Bore Size		③Operation		④Finger Option
Nil	Standard type	6	6mm	D	Double acting	[Standard] Nil: Basic type	[Narrow type] Basic type
		10	10mm
				S	Single acting (Normally open)	1:Side tapped mounting	N1:Side tapped mounting
		16	16mm
L	Long stroke	20	20mm
						2:Through-holes	N2:Through-holes
		25	25mm
		32	32mm

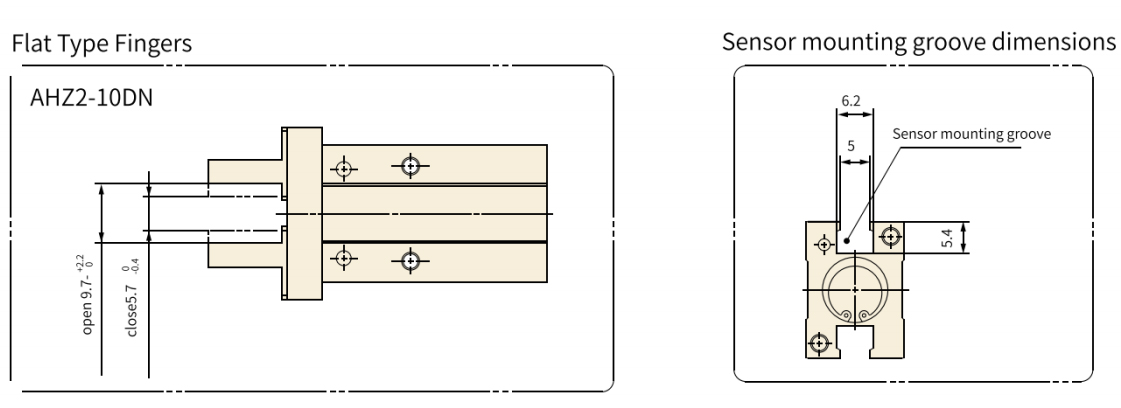

				C	Single acting (Normally close)	3:Flat type	[Note]Flat type can only make 10,16,20,25 bore size
		40	40mm
