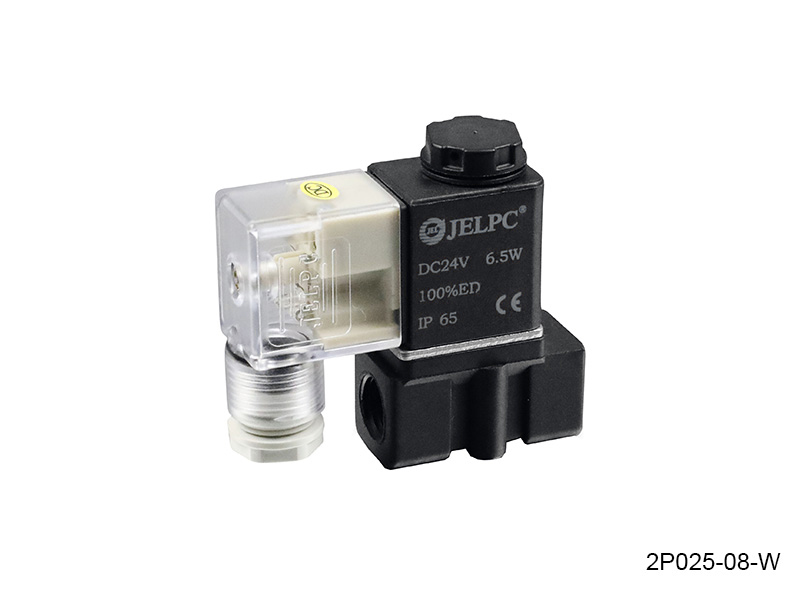

2P Series 2/2 Way Solenoid Valve (Direct Operated)

2P Series 2/2 Way Solenoid Valve (Direct Operated)

  • Product parameters

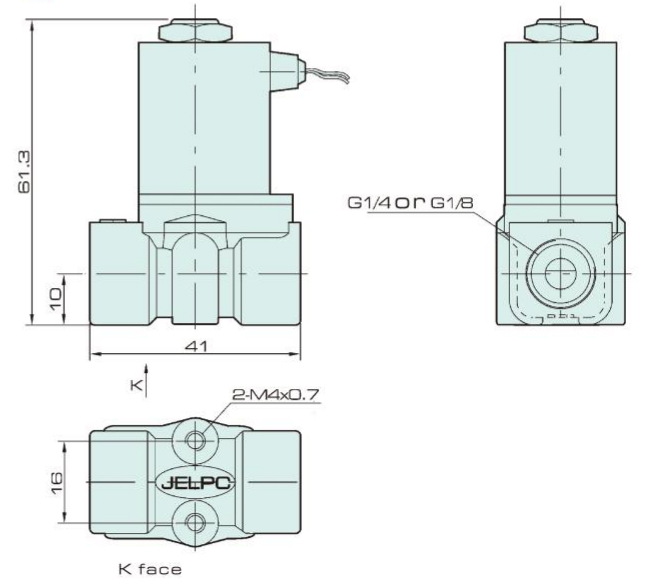

  • Product size

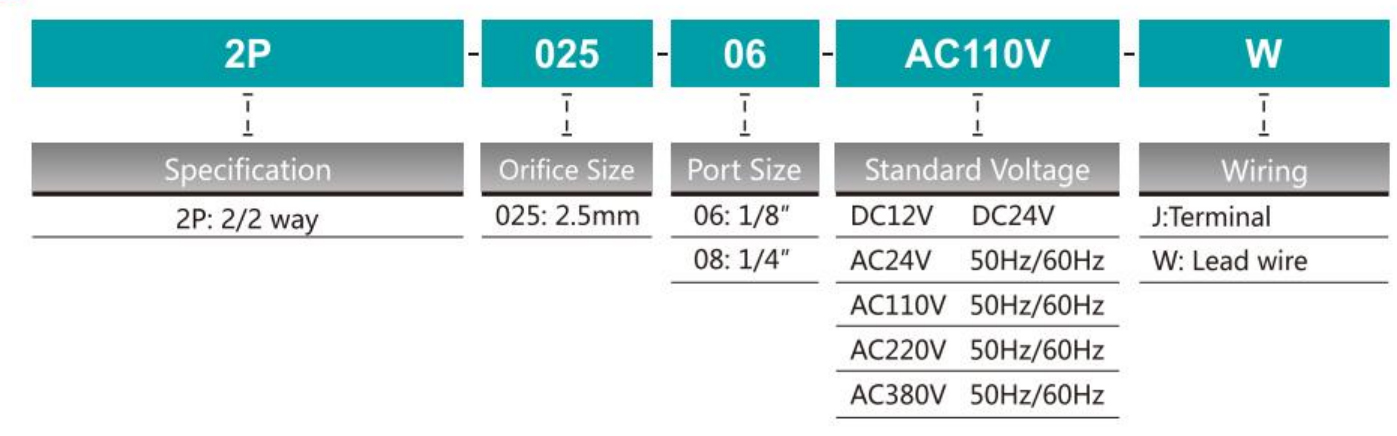

Ordering Code

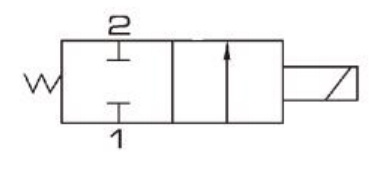

Symbol

Specification

Model

2P025-06

2P025-08

Working Medium

Air, Water, Oil, Gas

Operation

Direct

Type

Normal Close

Orifice

2.5mm

CV Value

0.23

Port Size

1/8"

1/4"

Operation Fluid Viscosity

Below 20 CST

Working Pressure

0 〜0.7MPa

Max. Test Pressure

1.0MPa

Max. Ambient Temperature

-10 〜80oC

Operating Voltage Tolerance

±10%

Material of Body

Engineering Plastic

Material of Oil Seal

NBR or VITON
