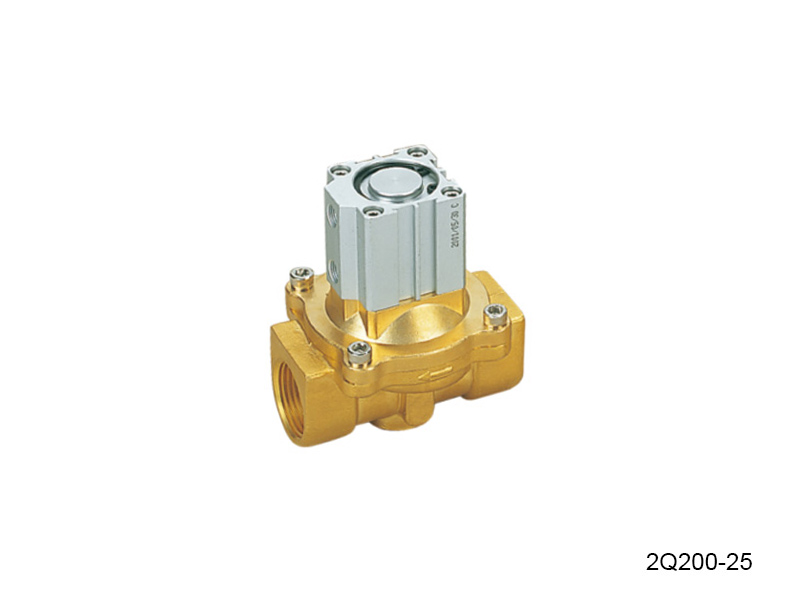

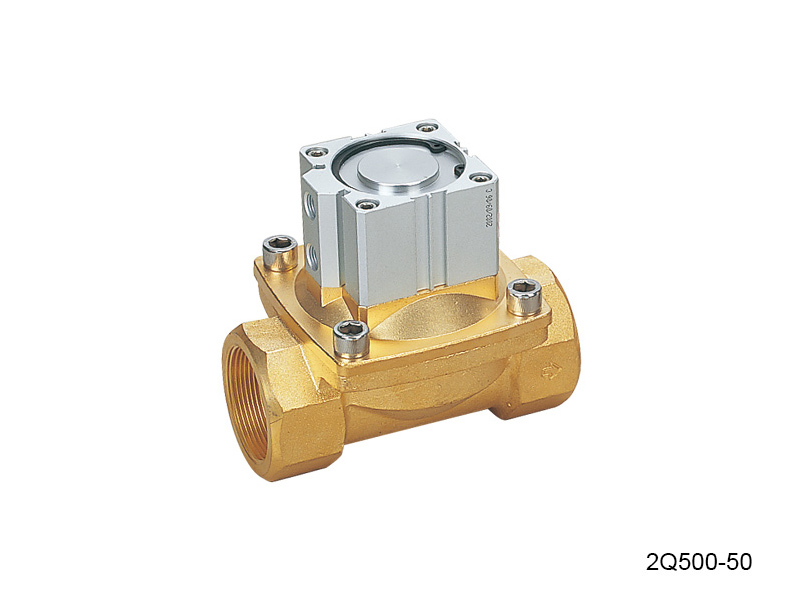

2Q Series 2/2 Way Valve

2Q Series 2/2 Way Valve

  • Product parameters

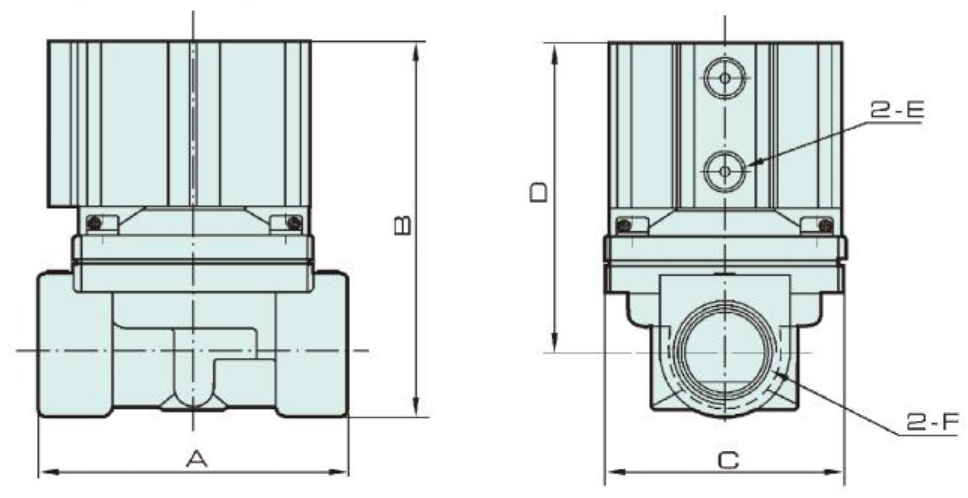

  • Product size

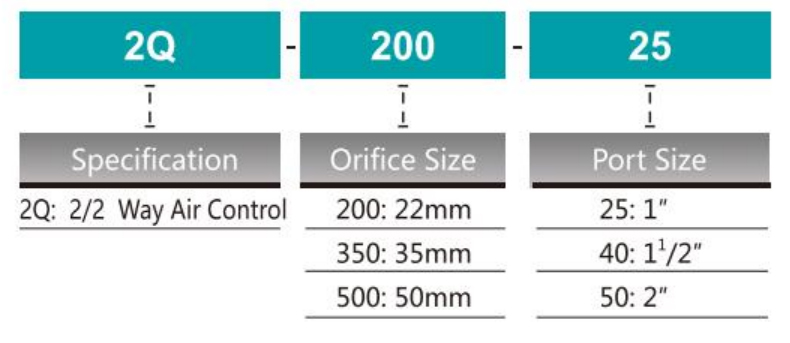

Ordering Code

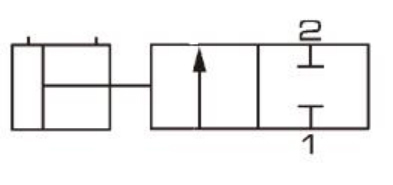

Symbol

Specification

Model 2Q200-20 2Q200-25 2Q350-40 2Q500-50
Working Medium Air, Water, Oil, Gas
Operation Direct
Orifice 22mm 22mm  35mm 50mm
CV Value 12  12    24  48
Port Size 3/4" 1" 1¹/2" 2"
Operation Fluid Viscosity Below 50 CST
Applied Pressure Range 0~0.7MPa
Max.Test Pressure 1.05MPa
Control Pressure Range 0.3~0.6MPa
Ambient Temperature Range -10~100℃
Material of Body Brass
Material of Oil Seal PTFE
Control Port Size 2-G1/8" 2-G1/8”   2-G1/4” 2-G1/4”
