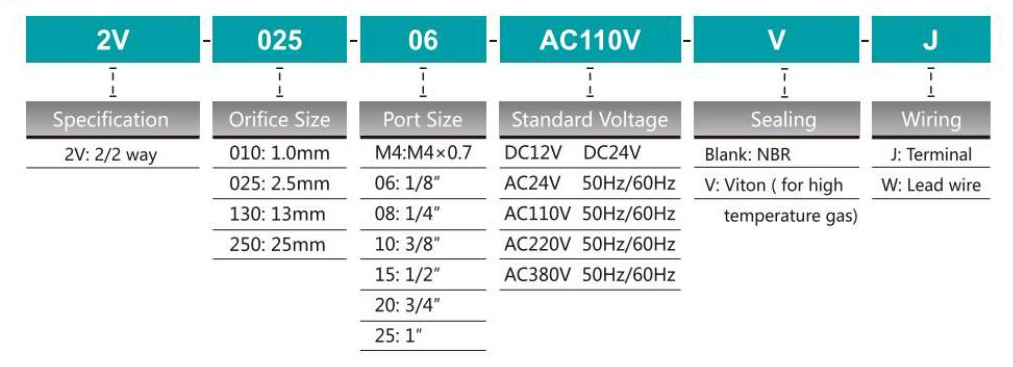

Ordering Code
Symbol
Specification
| Model | 2V010-M4 | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 |
| Working Medium | Air, Water, Oil | ||||||
| Operation | Direct | Internal piloted | |||||
| Type | Normal Close | ||||||
| Orifice | 1.0mm | 2.5mm | 13mm | 25mm | |||
| CV Value | 0.04 | 0.23 | 6.2 | 23 | |||
| Port Size | M4×0.7 | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| Operation Fluid Viscosity | Below 20 CST | ||||||
| Working-pressure | 0.05~0.7 MPa | ||||||
| Max.Test Pressure | 1.2MPa | 1.6MPa | 1.0MPa | ||||
| Max.Ambient Temperature | -10~80℃ | ||||||
| Operating Voltage Tolerance | ±10% | ||||||
| Protect Class | IP65 | ||||||
| Power Consumption | AC:6.5VA DC:6.5W | ||||||
| Insulation | F Class | ||||||
| Material of Body | Aluminum or Brass(Nickel Plated) | Brass | |||||
| Material of Oil Seal | NBR Or VITON | NBR Or VITON | |||||
| Response Time | 0.05 Sec. | ||||||
Overall Dimension
