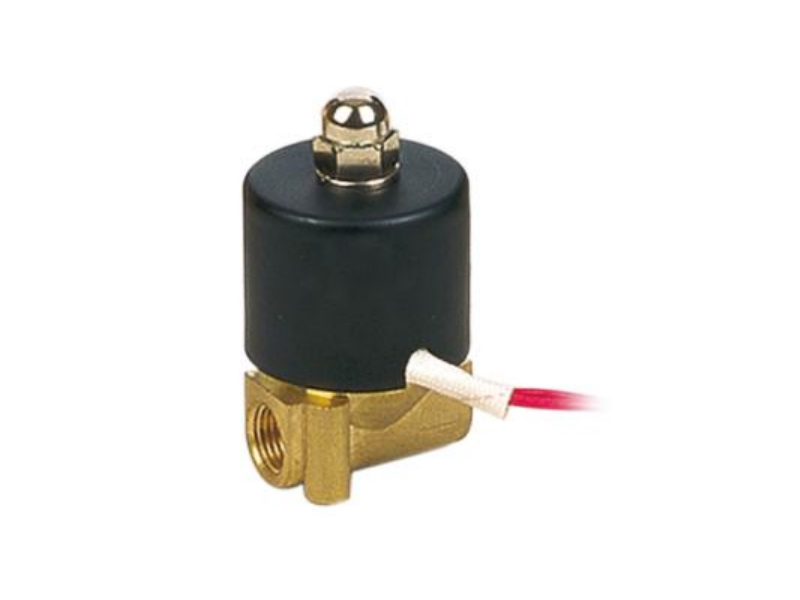

2W Series 2/2 Way Solenoid Valve (Direct Operated)

2W Series 2/2 Way Solenoid Valve (Direct Operated)

  • Product parameters
  • Product size

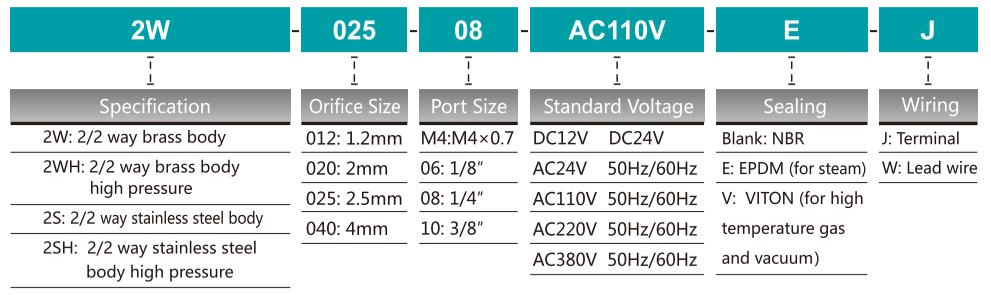

Ordering Code

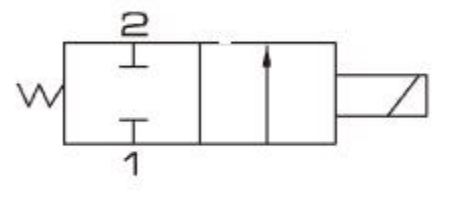

Symbol

Specification

Model 2W025-06 2W025-08 2W040-10 2WH012-06 2WH012-08 2WH020-10
2S025-06 2S025-08 2S040-10 2SH012-06 2SH012-08 2SH020-10
Working Medium Air, Water, Oil, Gas  Air, Water, Oil
Operation Direct
Type Normal Close
Orifice 2.5mm 4mm 1.2mm 2mm
CV Value 0.23  0.60  0.05  0.15
Port Size 1/8" 1/4" 3/8" 1/8" 1/4" 3/8"
Operation Fluid Viscosity Below 20 CST
Working Pressure 0~0.7MPa 0~2.0MPa
Max.Test Pressure 1.0MPa 3.5MPa
Max.Ambient Temperature -10~80℃
Operating Voltage Tolerance ±10%
Material of Body 2W:Brass 2S:Stainless Steel
Material of Oil Seal NBR, EPDM or VITON
