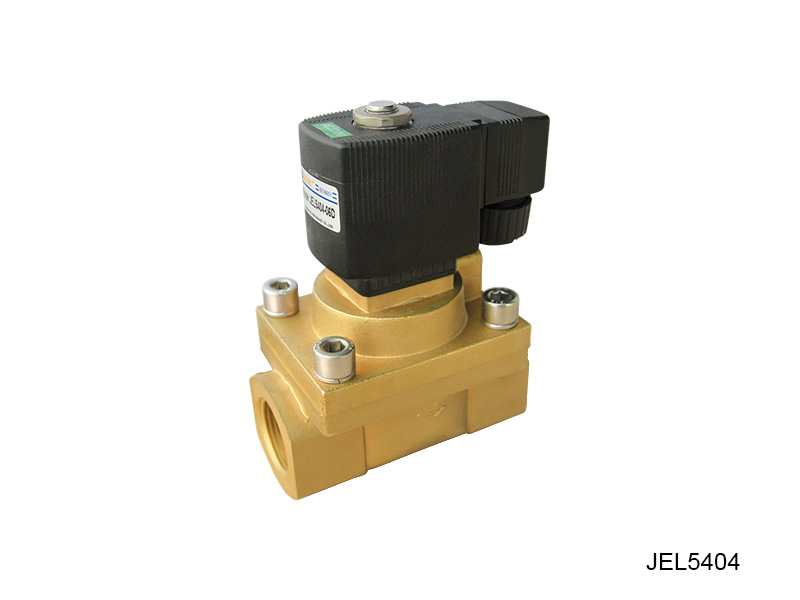

JEL5404 Series High Pressure and Temperature Solenoid Valve

JEL5404 Series High Pressure and Temperature Solenoid Valve

  • Product parameters

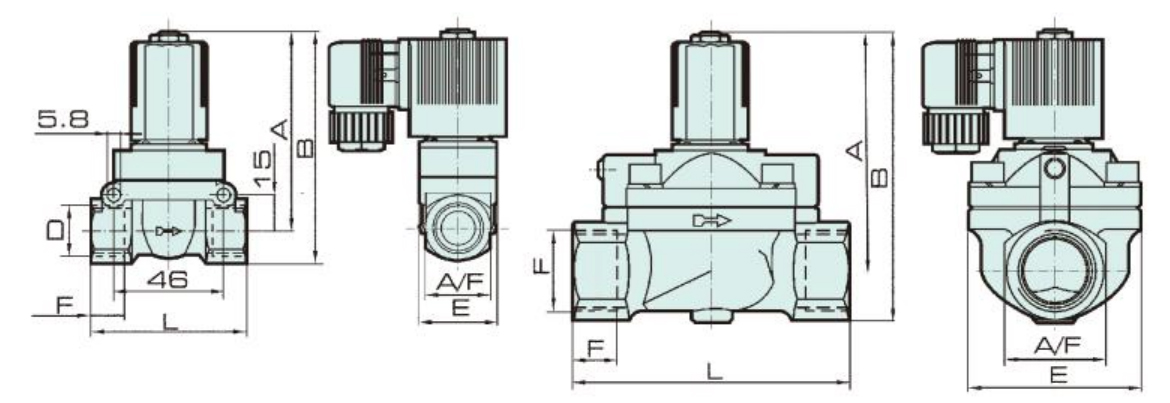

  • Product size

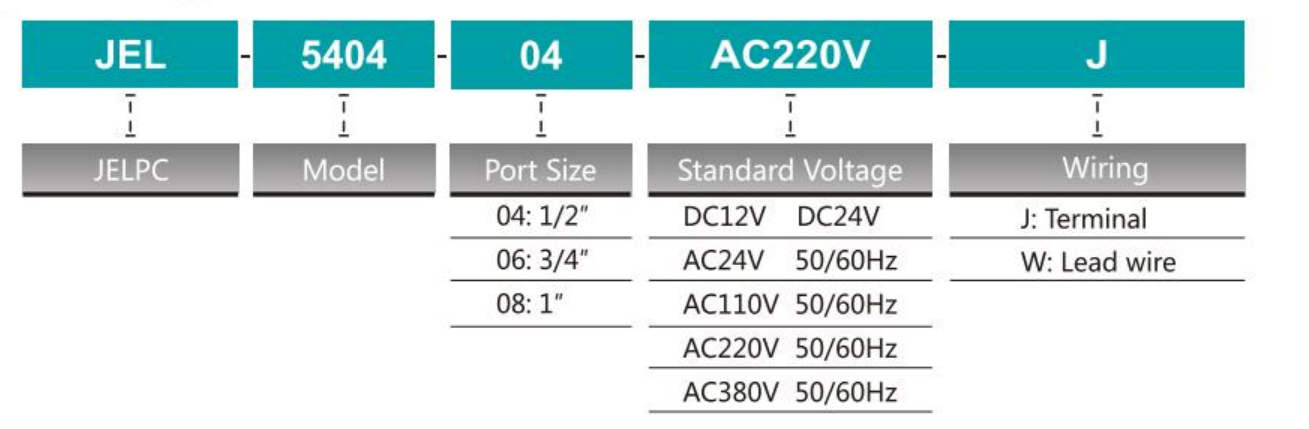

Ordering Code

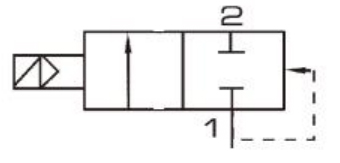

Symbol

Specification

Model JEL5404-04 JEL5404-06 JEL5404-08
Working Medium Air, Water, Oil
Operation Internal Piloted
Type Normal Close
Orifice 12mm 20mm 25mm
KV Value 2.0  5.0  10.0
Port Size 1/2" 3/4" 1"
Applied Pressure Range Gas/Liquid:0.1~5.0 MPa Gas:0.1~4.0 MPa Liquid:0.1~2.5 MPa Gas:0.1~4.0MPa  Liquid:0.1~2.5MPa
Max.Test Pressure 7.5MPa 6.0MPa
Ambient Temperature Range 10~150℃
Applied Voltage Range ±10%
Protection IP65
Power Consumption AC:5.5VA  DC:9W
Insulation F Class
Material of Body Brass
Material of Oil Seal PTFE
