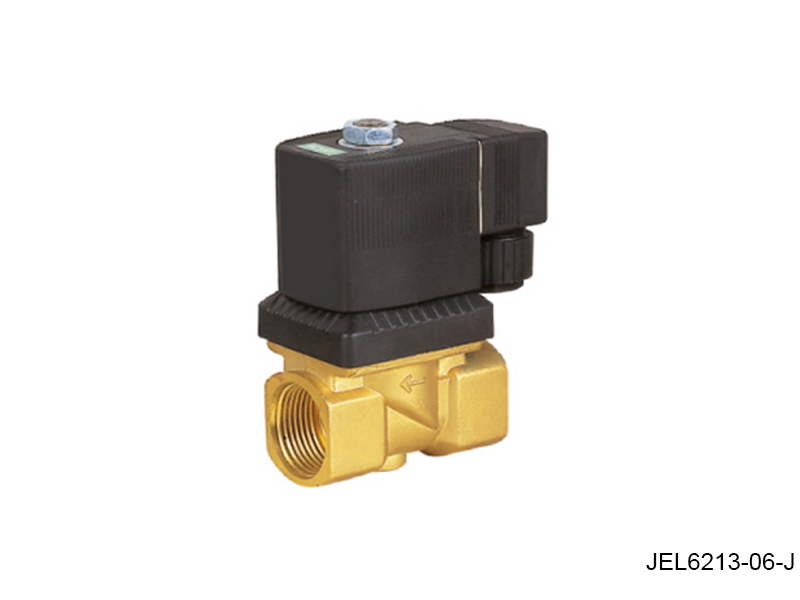

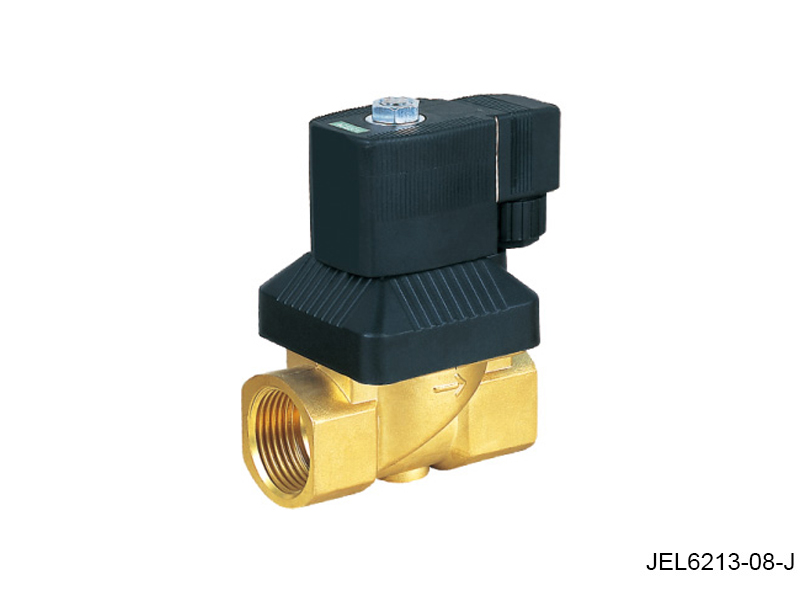

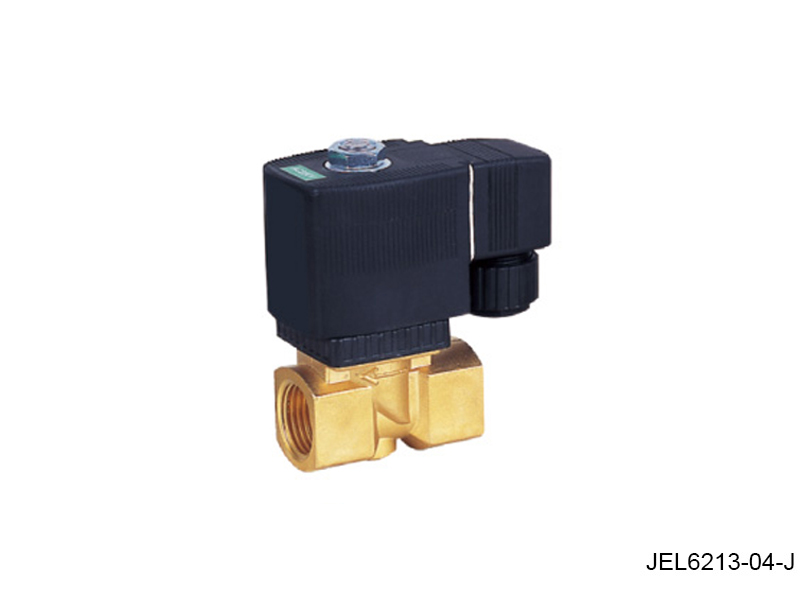

JEL6213 Series Solenoid Valve

JEL6213 Series Solenoid Valve

  • Product parameters

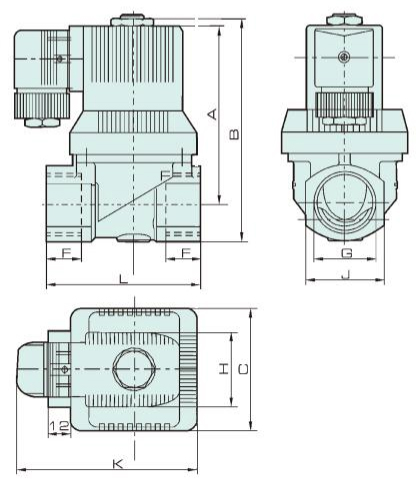

  • Product size

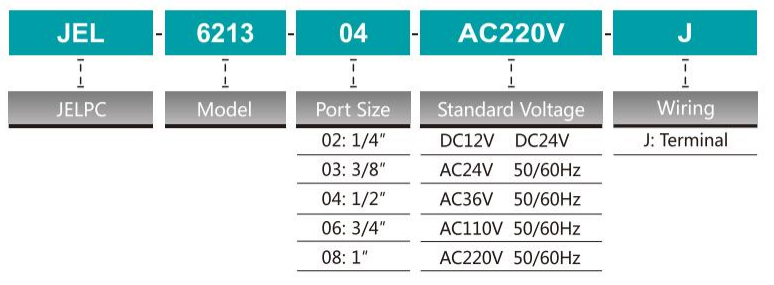

Ordering Code

Symbol

Specification

Model JEL6213-02 JEL6213-03 JEL6213-04 JEL6213-04  JEL6213-06 JEL6213-06 JEL6213-08
Orifice 10mm 14mm 25mm
Screw Port Size PT1/4" PT3/8" PT1/2" PT1/2" PT3/4” PT3/4" PT1"
Working Pressure 0.03~1.0MPa
Ambient Temperature -10~+55℃
Medium Environment -10~+90℃
KV Valve 2  3.6  8.3    8.3  11  11
Power Consume AC(VA) 14
DC(W) 8
Switching Frequency ≥1 Sec ≥0.5 Sec
