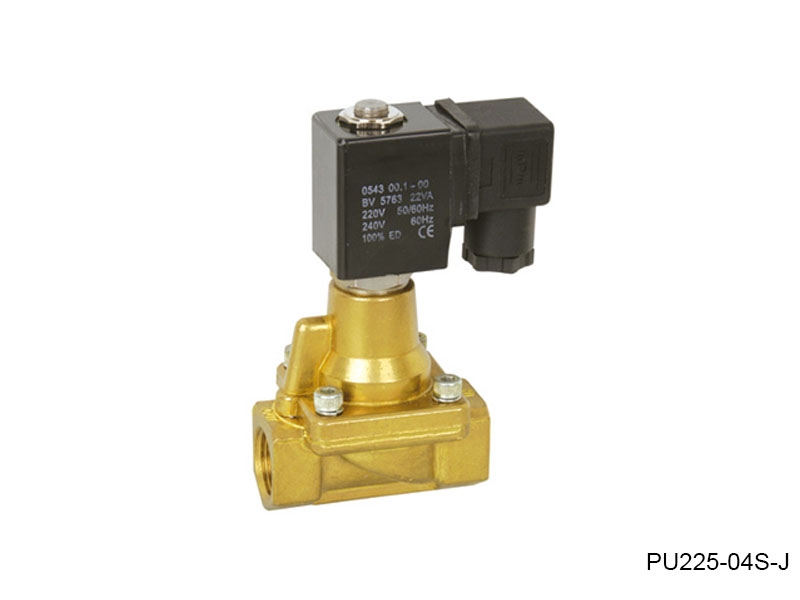

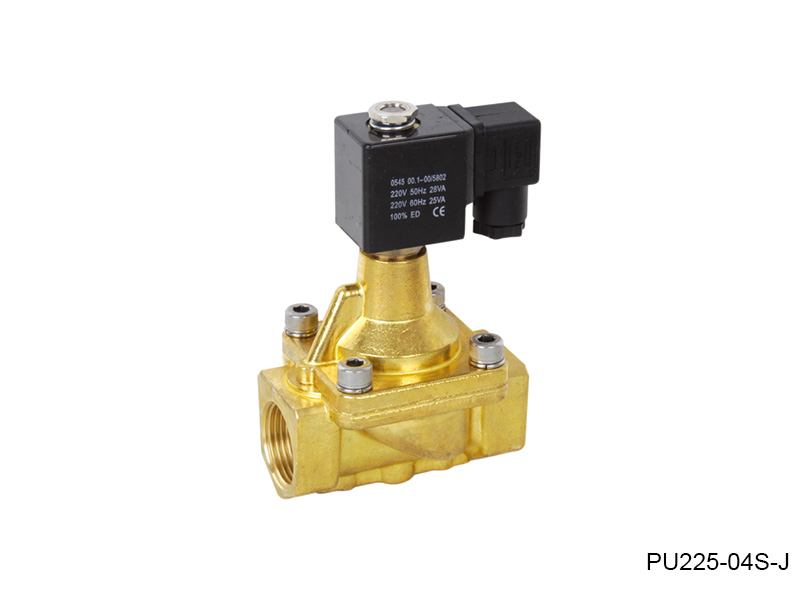

PU Series Solenoid Valve (For Steam)

PU Series Solenoid Valve (For Steam)

  • Product parameters

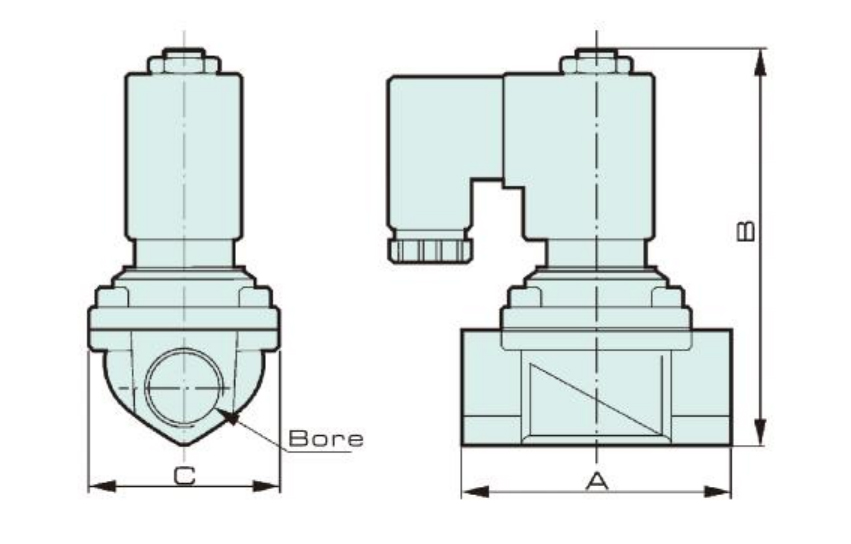

  • Product size

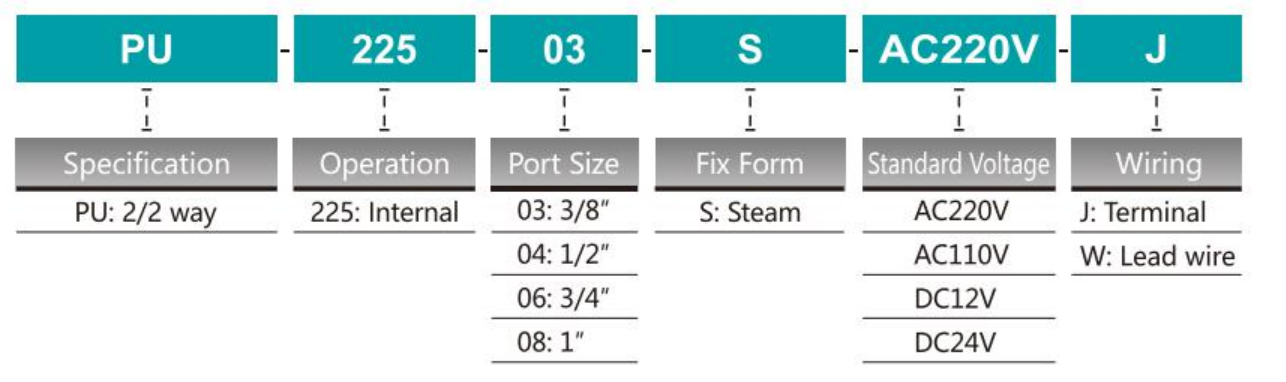

Ordering Code

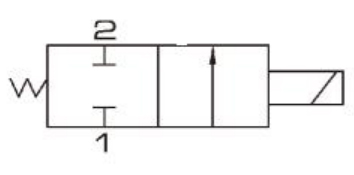

Symbol

Specification

Model PU225-03S PU225-04S PU225-06S PU225-08S
Working Medium Air, Water, Oil, Gas
Operation Internal Piloted
Type Normal Close
Orifice 13mm 13mm 25mm 25mm
CV Value 4.50  4.50  12.00  12.00
Port Size 3/8" 1/2 3/4" 1"
Operation Fluid Viscosity 50 CST
Working Pressure 0.05~1.0MPa
Max.Test Pressure 1.5MPa
Ambient Temperature -10~185℃
