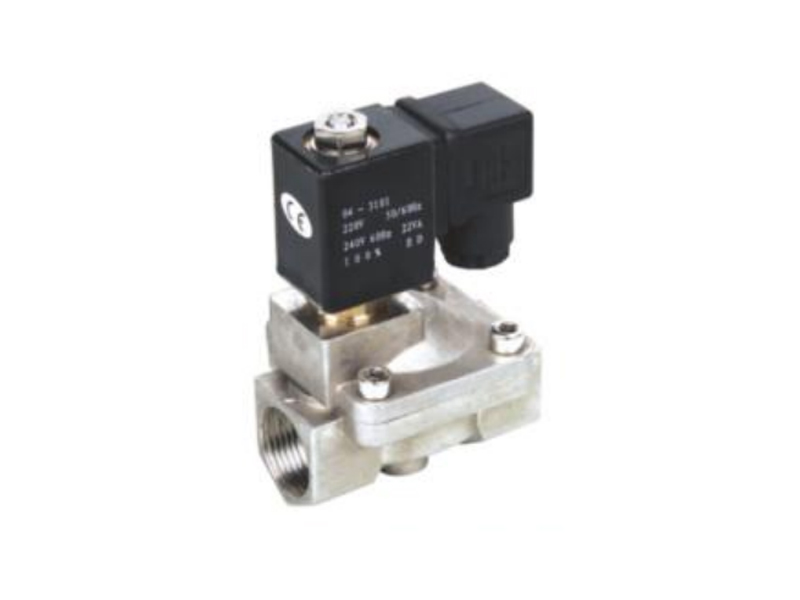

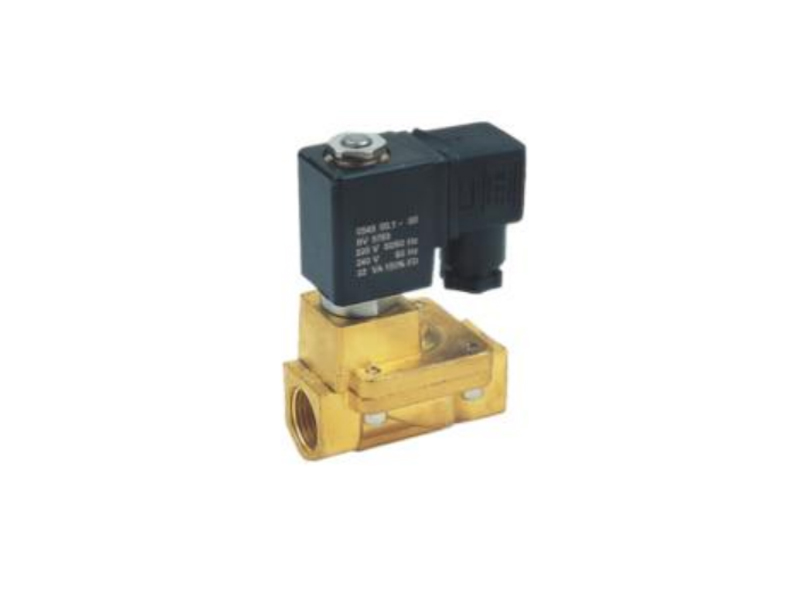

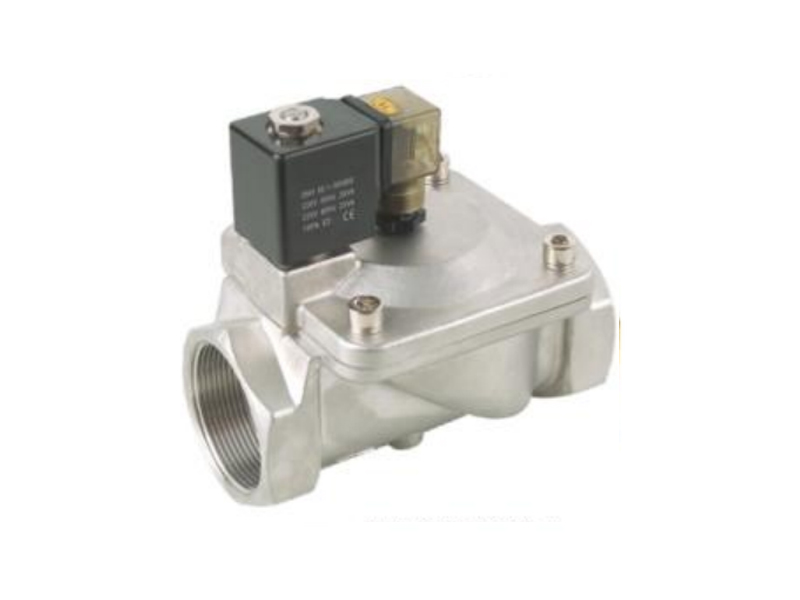

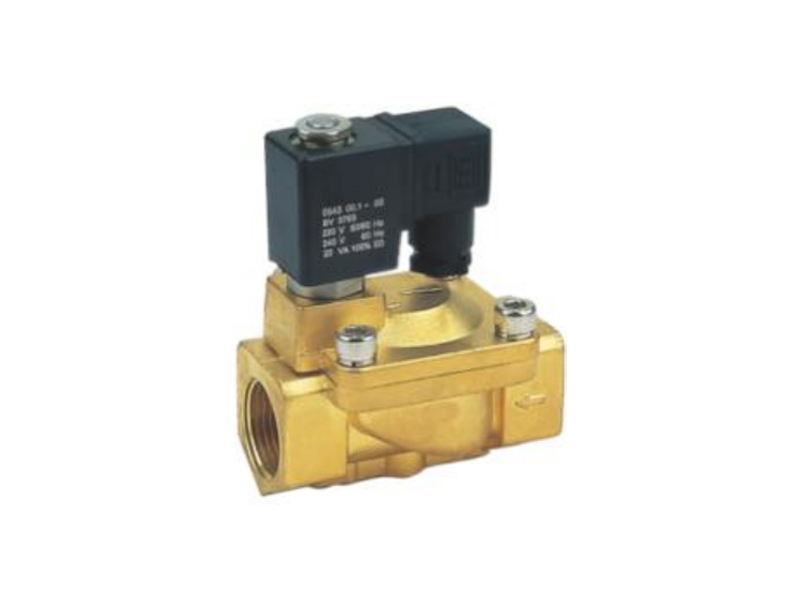

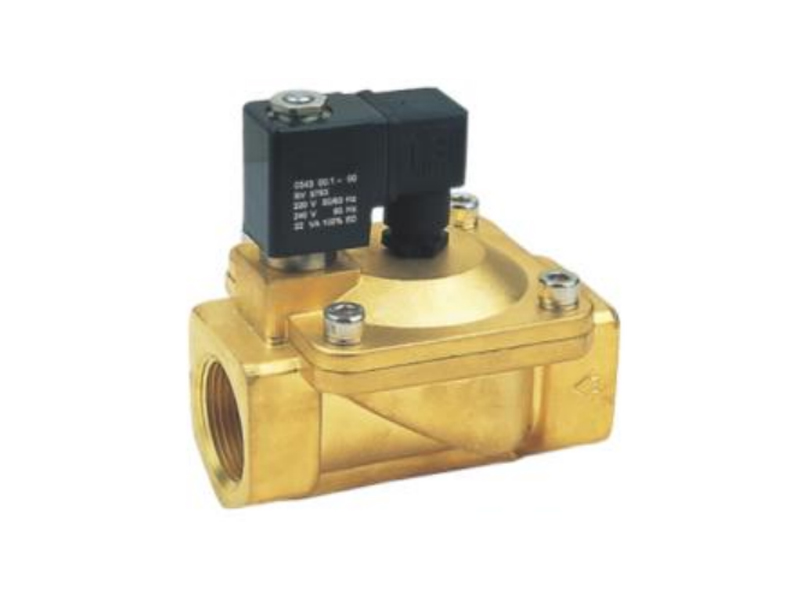

PU225 Series Solenoid Valve

PU225 Series Solenoid Valve

  • Product parameters

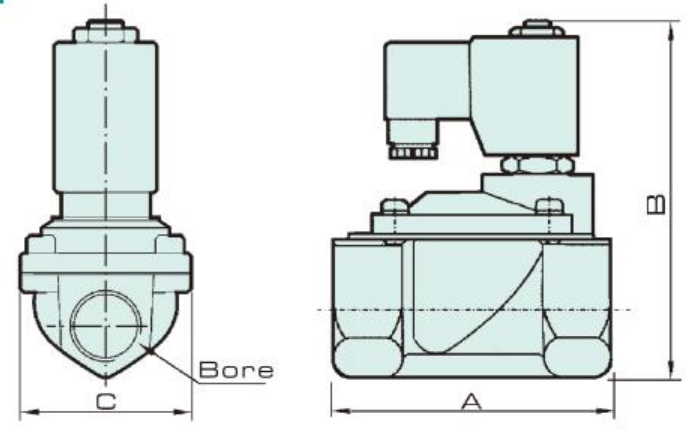

  • Product size

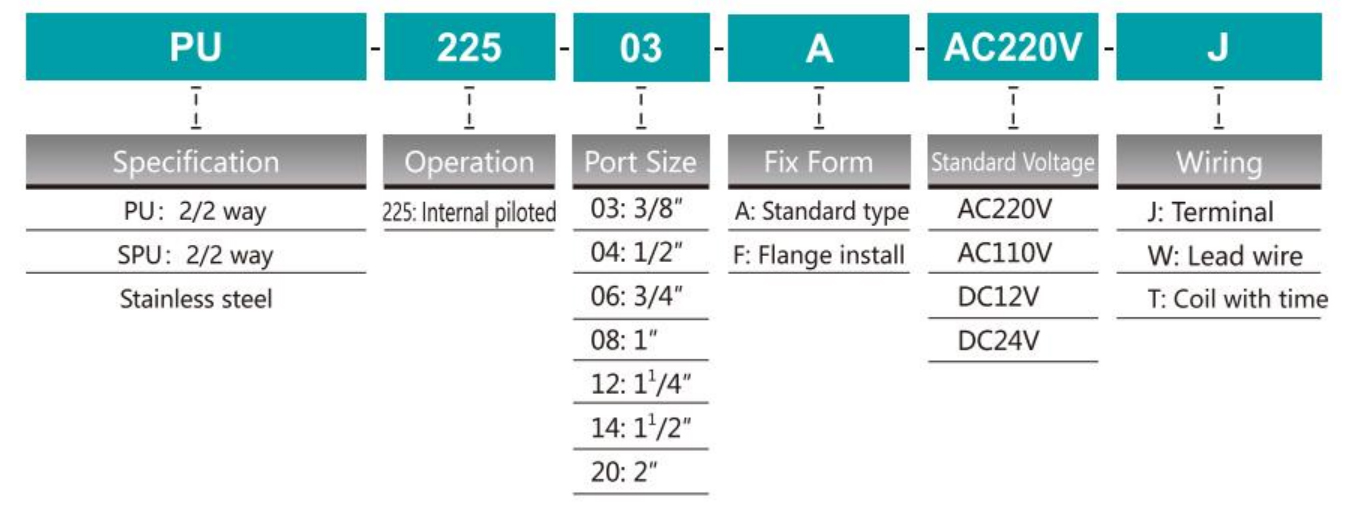

Ordering Code

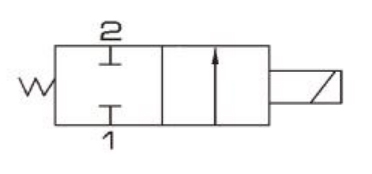

Symbol

Specification

Model PU225-03A PU225-04A PU225-06A PU225-08A PU225-12A   PU225-14A PU225-20A
SPU225-03A SPU225-04A SPU225-06A SPU225-08A SPU225-12A   SPU225-14A
Working Medium Air, Water, Oil
Operation Internal Piloted
Type Normal Close
Orifice 13mm 13mm 25mm 25mm 38mm  38mm 50mm
CV Value 4.50  4.50  12.00  12.00  22.00   30.00  48
Port Size 3/8" 1/2" 3/4" 3/4" 1¹/4”  1¹/2" 2"
Medium of Body Brass or Steel
Operation Fluid Viscosity Below 50 CST
Working Pressure 0.05~1.0MPa
Max.Test Pressure 1.5MPa
Ambient Temperature 10~80℃
