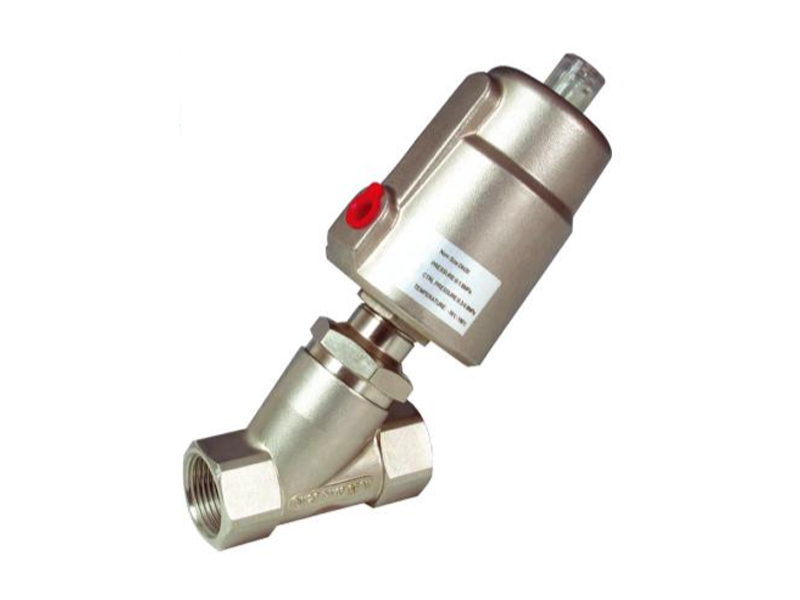

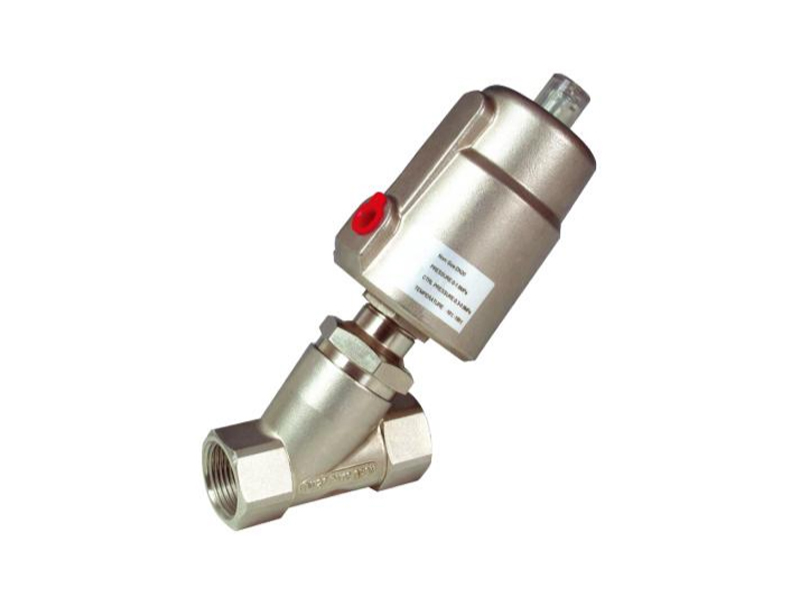

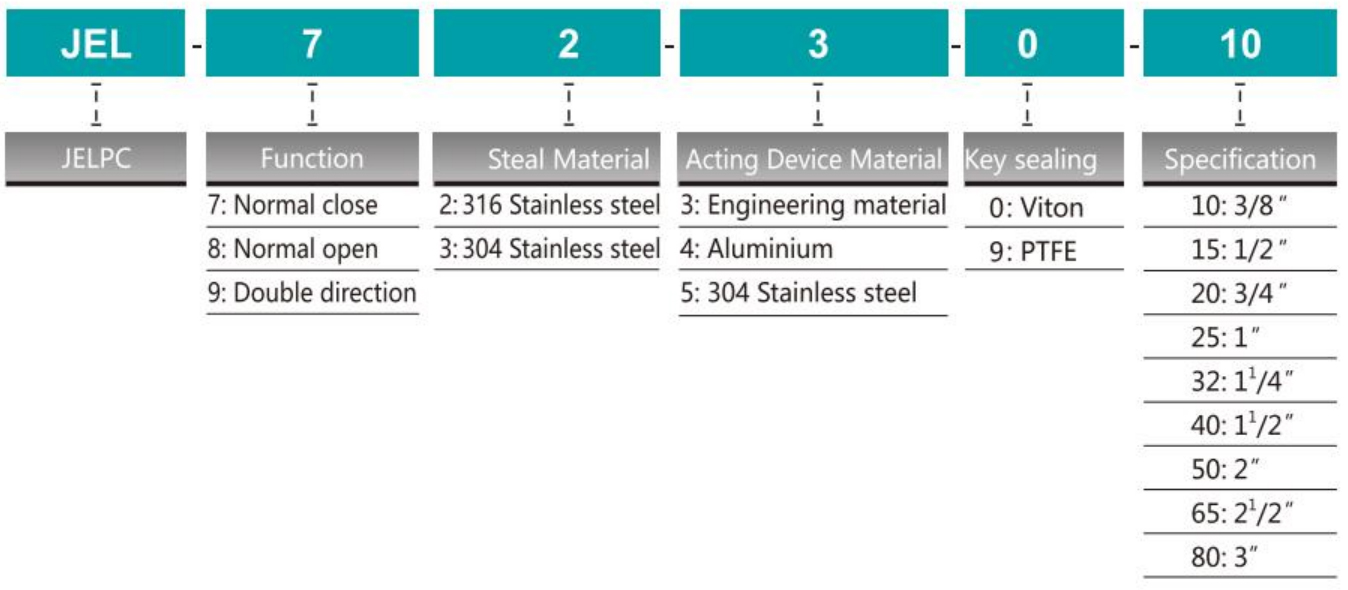

Ordering Code

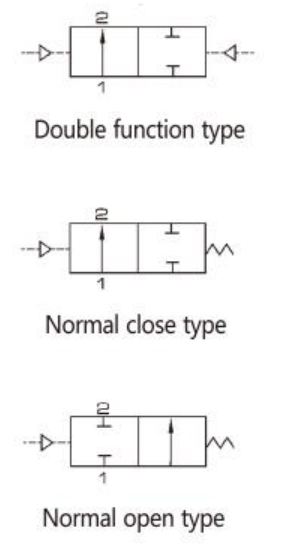

Symbol
Specification
| Connection Size | DN10-DN80 |
| Screw | 3/8"～3" |
| Material of Body | Stainless Steel 316/304 |
| Acting Device Material | Stainless Steel 304 |
| Valve Core Seal | PTFE/FPM |
| Valve Rod Seal | PTFE/FPM |
| Piston Seal | FPM/NBR |
| Suitable Medium | Water, Neutral Air(or liquid), Alchohol, Oil, Organic liquid, Steam, Weak Acid or alkalescence |
| Medium Temperature | PTFE:-10℃~+200℃ FPM:-10℃~+100℃ |
| Stickiness | Max600mm²/s |
| Installation | Follow flow installation |
| Control Medium | Air/Neutral Air |
| Controlled Pressure Range | 0.3~0.8MPa |
| Working Pressure | 0~1.6MPa |

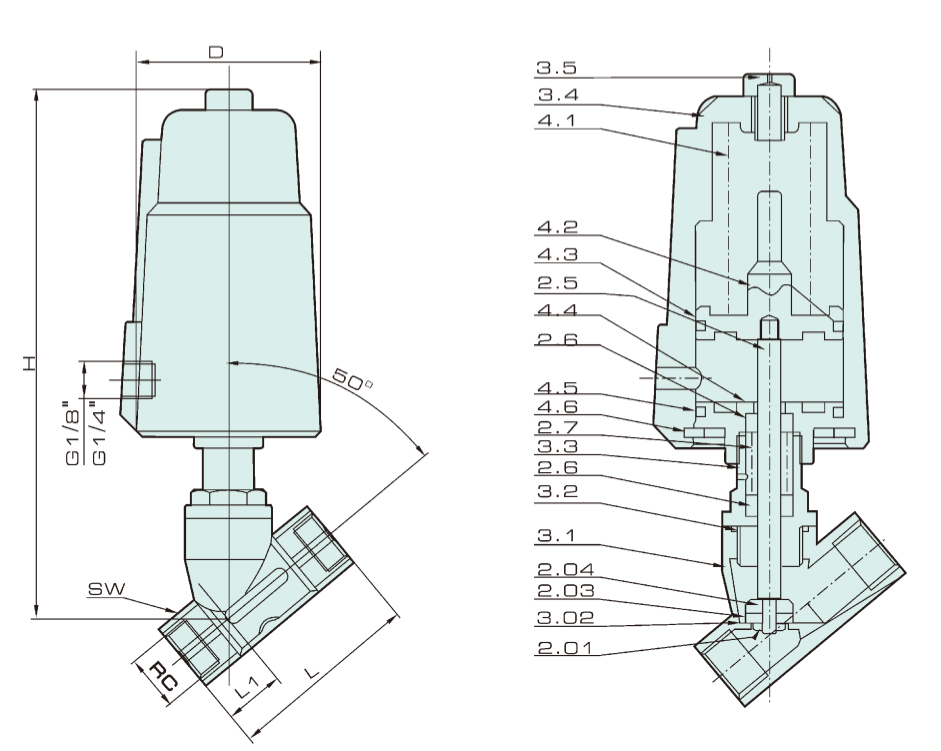

Overall Dimension
Specification
| Overall Dimension | |||||||
| DN | RC | L | L1 | SW | H | D | Acting Device |
| 10 | 3/8□ | 55 | 17 | 21 | 120 | 51 | 40 |
| 15 | 1/2□ | 70 | 21 | 26.5 | 138 | 51 | 40 |
| 20 | 3/4□ | 76 | 23 | 32 | 154 | 62 | 50 |
| 25 | 1□ | 90 | 25 | 40 | 168 | 62 | 50 |
| 32 | 1/4□ | 116 | 32 | 50 | 200 | 76 | 63 |
| 40 | 1/2□ | 116 | 32 | 55.5 | 215 | 92 | 80 |
| 50 | 2□ | 138 | 40 | 68.5 | 230 | 92 | 80 |
| 65 | 2¹/2□ | 168 | 51 | 85 | 268 | 117 | 100 |
| 80 | 3□ | 192 | 54 | 100 | 325 | 140 | 125 |
| Parts | ||
| 2.01 Bolt | 3.1 Valve body | 4.1 Spring |
| 2.02 Hole plate sealing | 3.2o-ring seal | 4.2 Piston |
| 2.03 Sealing disk | 3.3 Threed connecting accessory | 4.3 O-ring |
| 2.04 Valve disk | 3.4Cylinder | 4.4 Valve Cover |
| 2.5 Valvespool | 3.5 Decorating Cover | 4.5 O-ring |
| 2.6V Shape material | 4.6 Pressure receipt ring | |
| 2.7 Spring | ||
