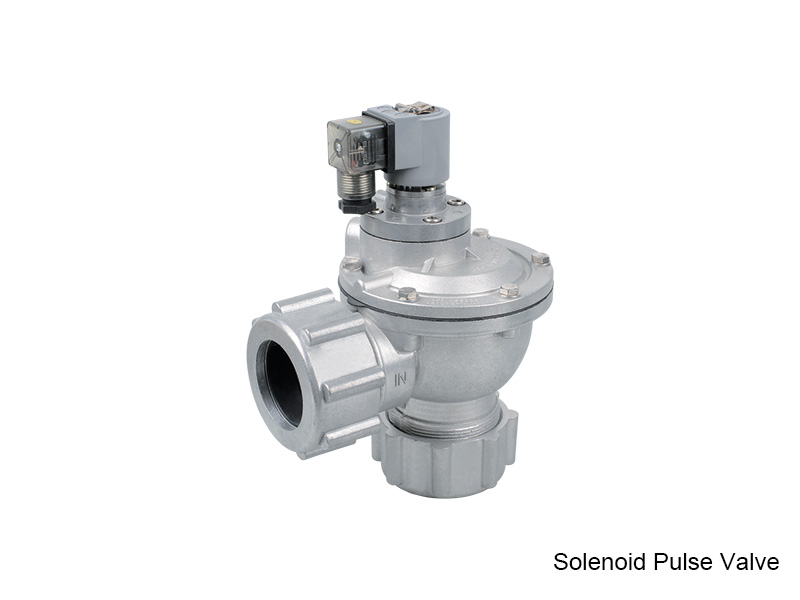

Vertical Type/ Pipe Connecting Type Solenoid Pulse Valve

Vertical Type/ Pipe Connecting Type Solenoid Pulse Valve

Feature:
1. Brought in advanced design and improved.
2. Applied for dust clear of compressed air switch in dust cleaning system.
3. Key components materials are imported.
4. Air control type, solenoid type and anti explosion solenoid type are available.
5. Pipe type connecting ensures firmly and reliable installation.

  • Product parameters
  • Product size

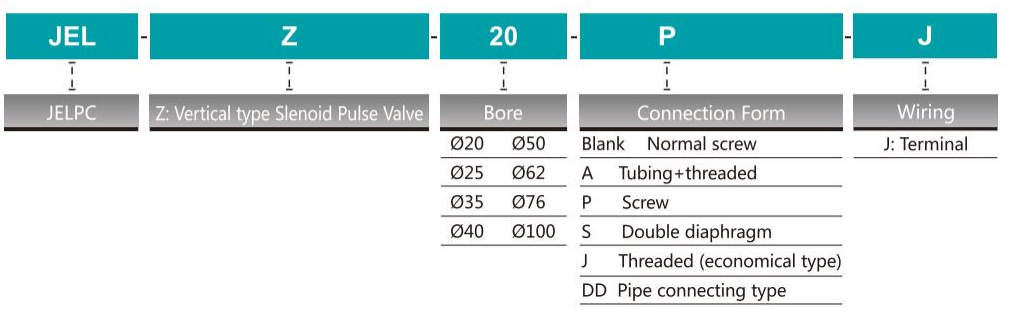

Ordering Code

Specification

Model

Working-pressure

Ambient Temperature

Humidity

Applied Medium

Voltage

Diaphragm life

Orifice

Thread

JEL-Z-20A

0.3~0.8MPa

-10 〜55°C

< 85%



AC110V

AC220V

DC24V



∅20

G3/4"

JEL-Z-20P

∅20

G3/4"

JEL-Z-20

∅20

G3/4"

JEL-Z-25

∅25

G1"

JEL-Z-25P

∅25

Gl"

JEL-Z-35P

∅35

G1V2"

JEL-Z-40S

∅40

G1V2"

JEL-Z-50S

∅50

G2"

JEL-Z-62S

∅62

G2V2"

JEL-Z-76S

∅76

G3"

JEL-Z-100S

∅100

∅100
