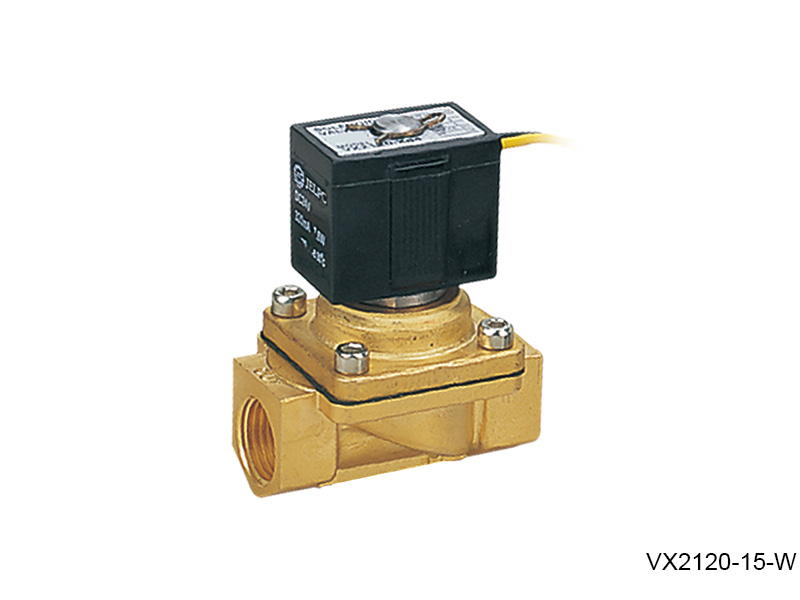

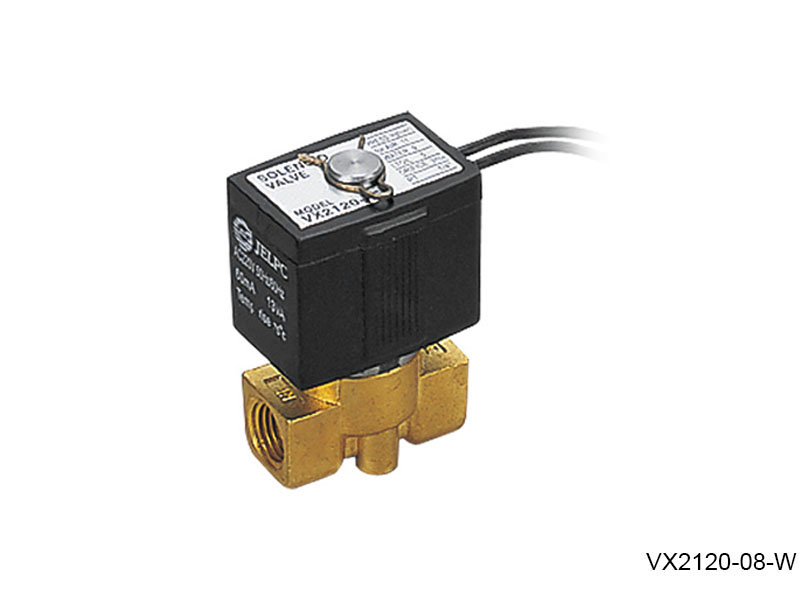

VX Series 2/2 Way Solenoid Valve (Direct Operated)

VX Series 2/2 Way Solenoid Valve (Direct Operated)

  • Product parameters

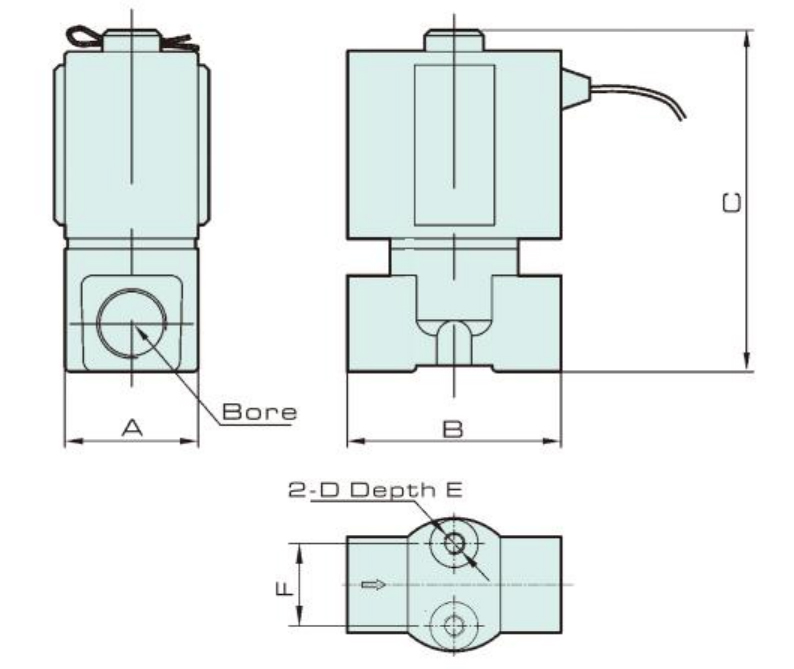

  • Product size

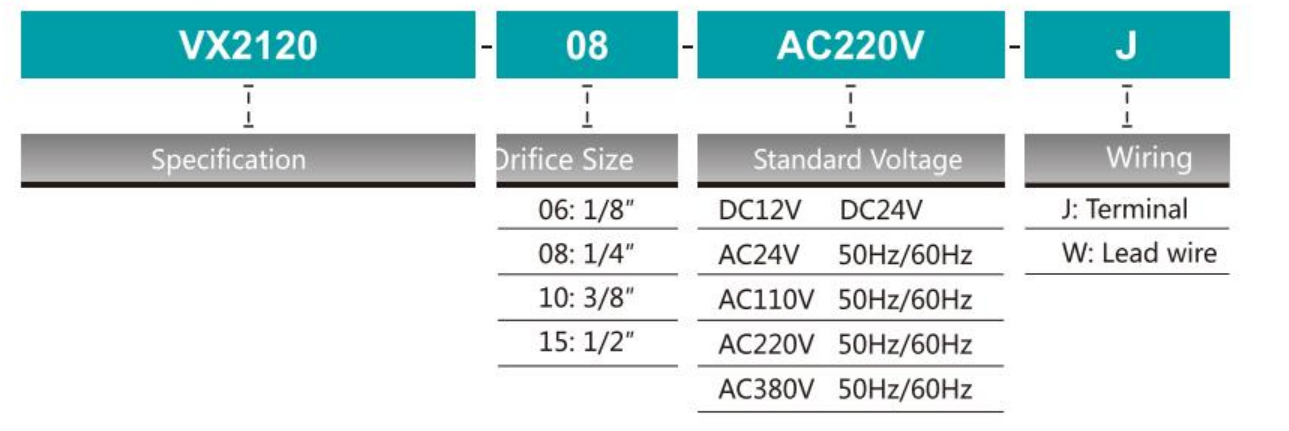

Ordering Code

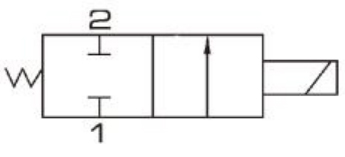

Symbol

Specification

Model VX2120-06 VX2120-08 VX2120-10 VX2120-15
Working Medium Air, Water, Steam
Operation Direct
Type Normal Close
Max.Test Pressure 1.05MPa
Working Pressure 0~1.0MPa
Orifice 3mm 13mm
Port Size 1/8" 1/4” 3/8” 1/2”
Max.Ambient Temperature -10~150℃ -10~80℃
Material of Oil Seal VITON NBR
