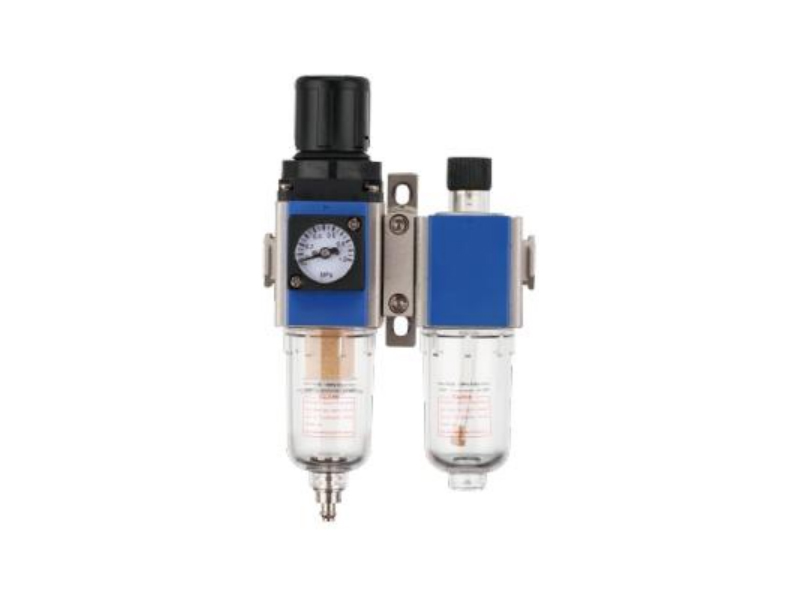

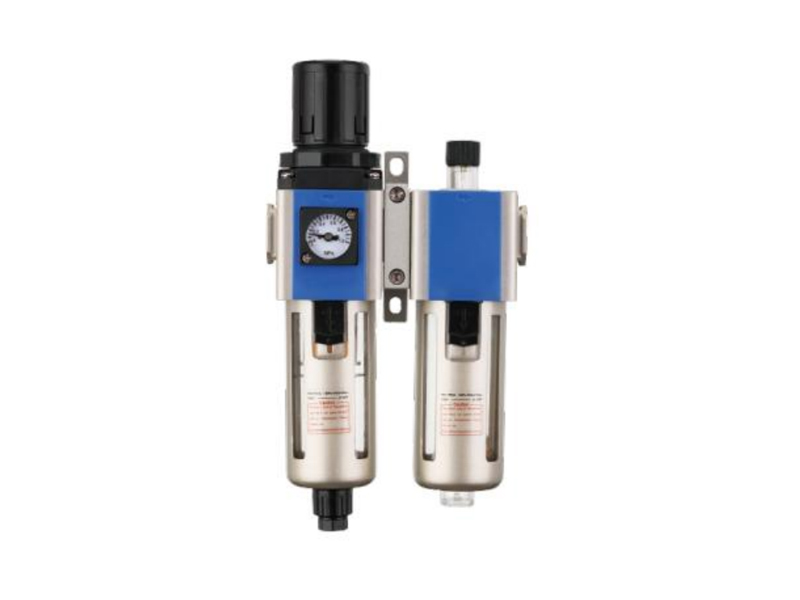

GC Series Air Source Unit (3 or 2 Combination)

GC Series Air Source Unit (3 or 2 Combination)

  • Product parameters

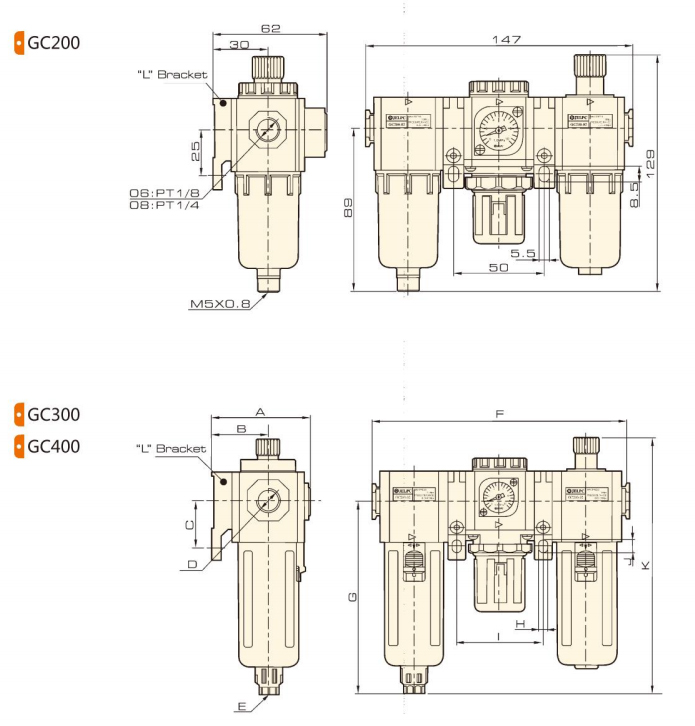

  • Product size

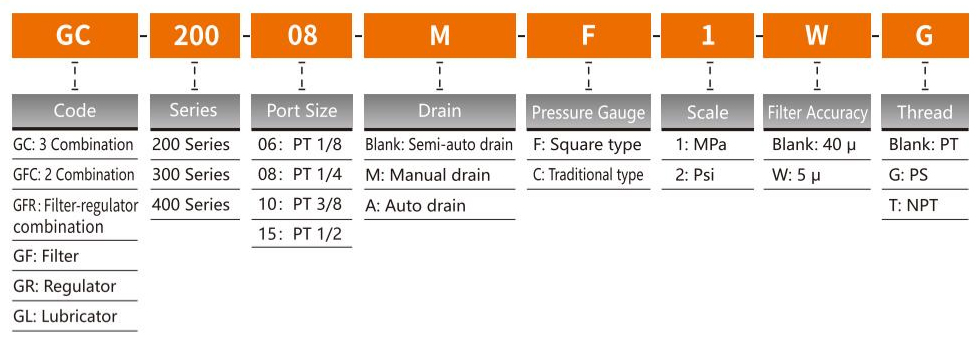

Ordering Code

*Note: No Auto Drain type is available on GC 200 Series.
*Note: Max. adjustable pressure is at 0.4 MPa on Low pressure type.

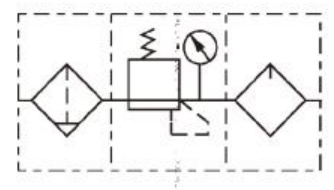

Symbol



Specification

Model GC200-06 GC200-08 GC300-08 GC300-10 GC300-15 GC400-10 GC400-15
Working medium Air
Port Size PT1/8 PT1/4 PT1/4 PT3/8 PT1/2 PT3/8 PT1/2
Filtration 40μ or 5μ
Adjustable pressure range 0.15-0.9MPa
Maximum working pressure 1.0MPa
Proof Pressure 1.5MPa
Operating TemperatureRange 5-60℃
Capacity of Filter Cup 10CC 40CC 80CC
Capacity of Oil Cup 25CC 75CC 160CC
Recommended Lubrication ISO VG 32 or Same Grade
Weight 580g 1300g 2358g
Components Filter GF200-06 GF200-08 GF300-08 GF300-10 GF300-15 GF400-10 GF400-15
Regulator GR200-06 GR200-08 GR300-08 GR300-10 GR300-15 GR400-10 GR400-15
Lubricator GL200-06 GL200-08 GL300-08 GL300-10 GL300-15 GL400-10 GL400-15
