JAC Series 1000~5000 Air Filter Combination (F.R.L. Combination)

JAC Series 1000~5000 Air Filter Combination (F.R.L. Combination)

  • Product parameters

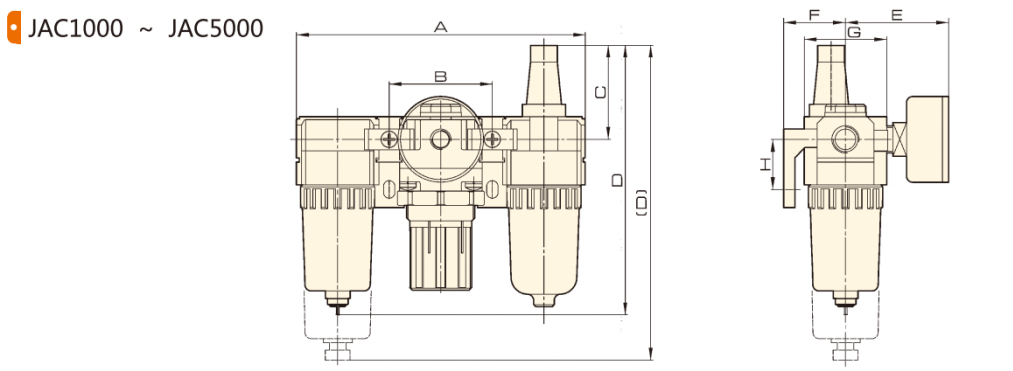

  • Product size

Ordering Code

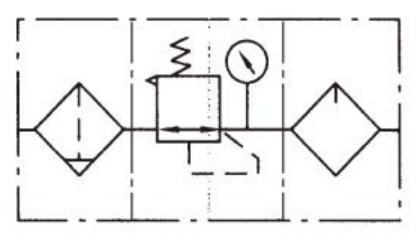

Symbol



Specification

Model

JAC1000-M5

JAC2000-01

JAC2000-02

JAC2500-02

JAC2500-03

JAC3000-02

JAC3000-03

JAC4000-03

JAC4000-04

JAC4000-06

JAC5000-06

JAC5000-10

Rated Flow

90

500

500

1500

1500

2000

2000

4000

4000

4500

5000

5000

Port Size

M5

1/8

1/4

1/4

3/8

1/4

3/8

3/8

1/2

3/4

3/4

1

Filter Precision

25 pm

Max. Adjustable Pressure

1.0 MPa

Proof Pressure Resistance

1.5 MPa

Operating Temperature Range

5 〜60oC

Range of Adjustable Pressure

0.05~0.7MPa

0.05 ~ 0.85 MPa

Recommended Lubricant

ISO VG 32

Container Material



Protective Cup Cover

Unavailable

Iron

Drain Function

Differential Drain

Differential Drain, Automatic Drain

Valve Type

With Overflow

Assembly

Filter

JAF1000-M5

JAF2000-01

JAF2000-02

JAF3000-02

JAF3000-02

JAF3000-02

JAF3000-03

JAF4000-03

JAF4000-04

JAF4000-06

JAF5000-06

JAF5000-10

Regulator

JAR1000-M5

JAR2000-01

JAR2000-02

JAR2500-02

JAR2500-02

JAR3000-02

JAR3000-03

JAR4000-03

JAR4000-04

JAR4000-06

JAR5000-06

JAR5000-10

Lubricator

JAL1000-M5

JAL2000-01

JAL2000-02

JAL3000-02

JAL3000-02

JAL3000-02

JAL3000-03

JAL4000-03

JAL4000-04

JAL4000-06

JAL5000-06

JAL5000-10
