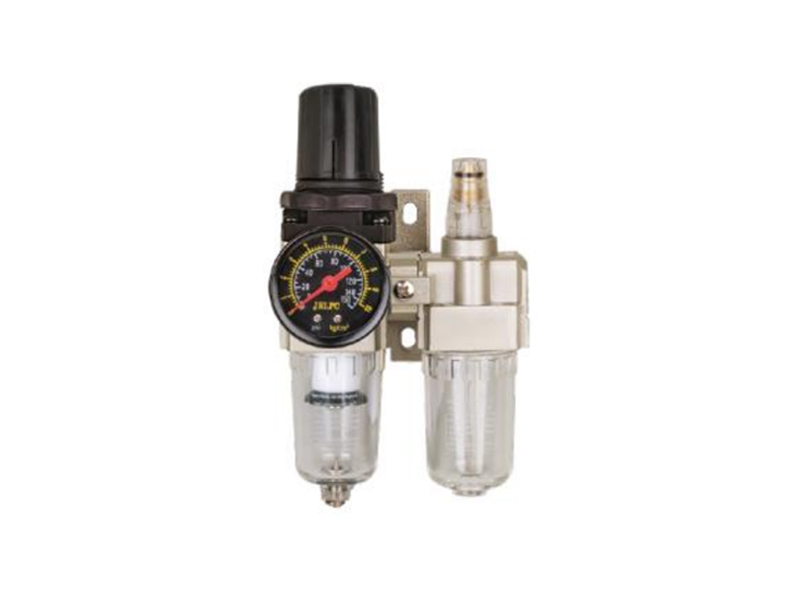

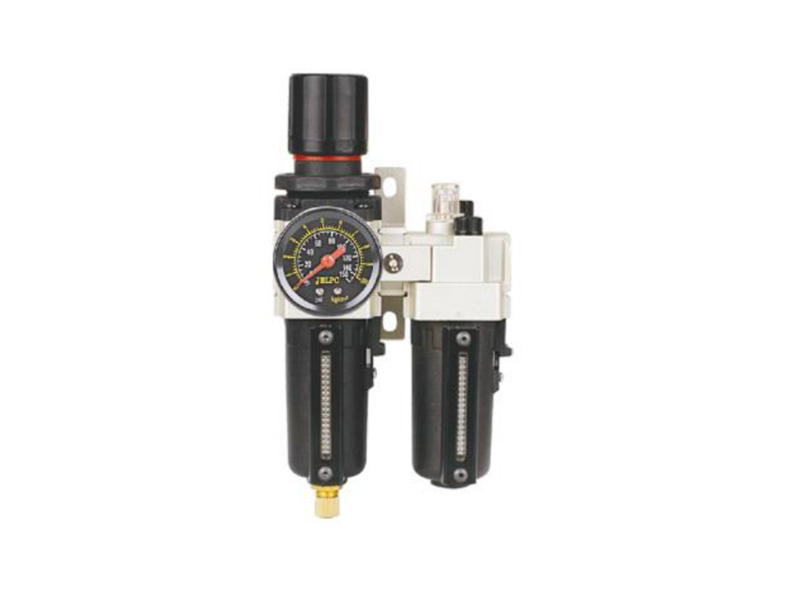

JAC Series 1010~5010 Air Filter Combination (FR.L. Combination)

JAC Series 1010~5010 Air Filter Combination (FR.L. Combination)

  • Product parameters

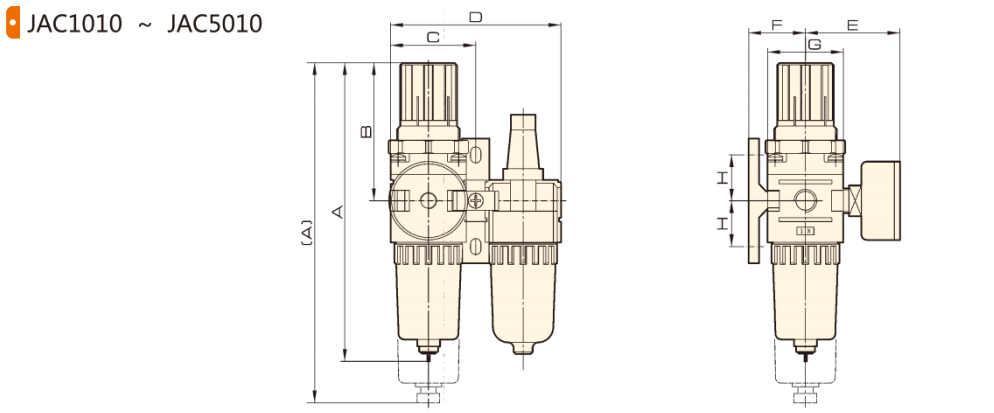

  • Product size

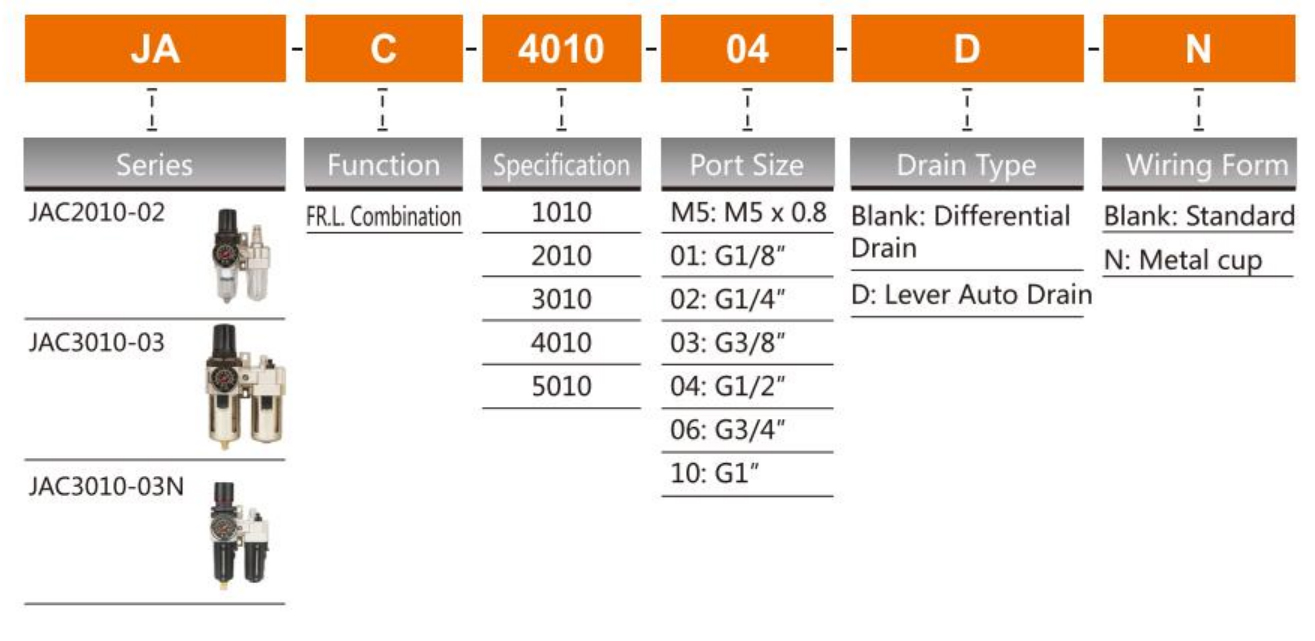

Ordering Code

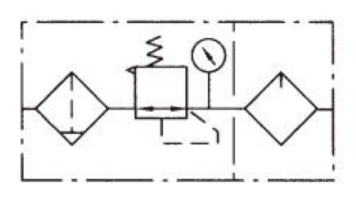

Symbol



Specification

Model

JAC1010-M5

JAC2010-01

JAC2010-02

JAC3010-02

JAC3010-03

JAC4010-03

JAC4010-04

JAC4010-06

JAC5010-06

JAC5010-10

Rated Flow

90

500

500

1700

1700

3000

3000

3000

4000

4000

Port Size

M5

1/8

1/4

1/4

3/8

3/8

1/2

3/4

3/4

1

Filter Precision

25 pm

Max. Adjustable Pressure

1.0 MPa

Proof Pressure Resistance

1.5 MPa

Operating Temperature Range

5 〜60℃

Range of Adjustable Pressure

0.05~0.7MPa

0.05~0.85MPa

Recommended Lubricant

ISO VG 32

Container Material

Poly Carbonate

Protective Cup Cover

Unavailable

Iron

Drain Function

Deferential Drain

Differential Drain, Automatic Drain

Valve Type

With Overflow

Assembly

Filter Regulator

JAW1000-M5

JAW2000-01

JAW2000-02

JAW3000-02

JAW3000-03

JAW4000-03

JAW4000-04

JAW4000-06

JAW5000-06

JAW5000-10

Lubricator

JAL1000-M5

JAL2000-01

JAL2000-02

JAL3000-02

JAL3000-03

JAL4000-03

JAL4000-04

JAL4000-06

JAL5000-06

JAL5000-10
