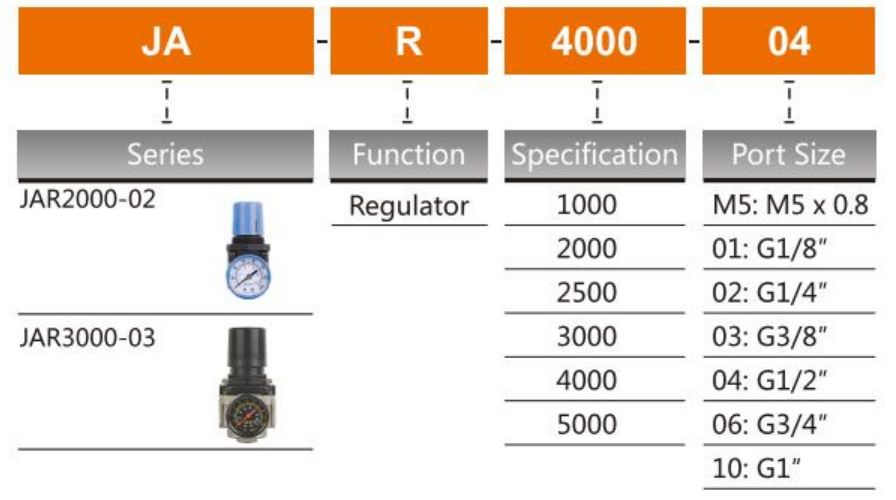

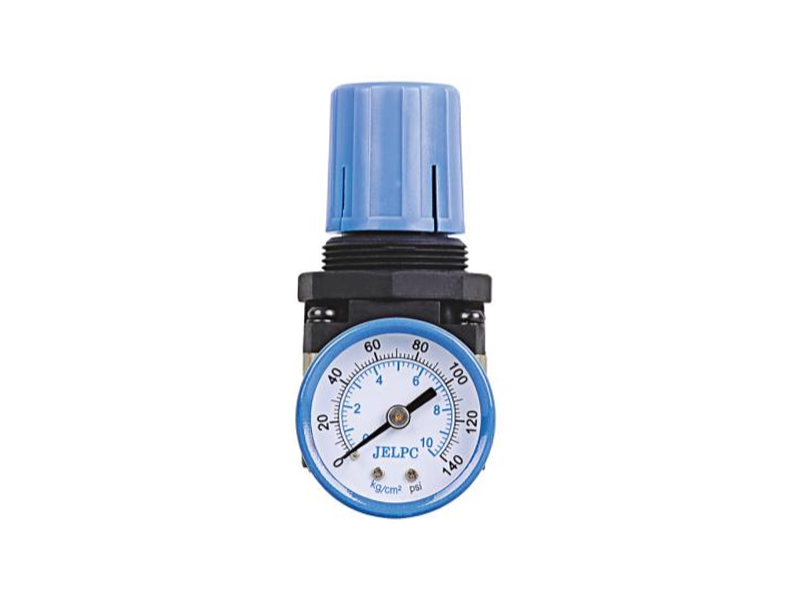

Ordering Code
Symbol
Specification
|
Model |
JAR1000-M5 |
JAR2000-01 |
JAR2000-02 |
JAR2500-02 |
JAR2500-03 |
JAR3000-02 |
JAR3000-03 |
JAR4000-03 |
JAR4000-04 |
JAR4000-06 |
JAR5000-06 |
JAR5000-10 |
|
Rated Flow |
110 |
550 |
550 |
2000 |
2000 |
2500 |
2500 |
6000 |
6000 |
6000 |
8000 |
8000 |
|
Port Size |
M5 |
1/8 |
1/4 |
1/4 |
3/8 |
1/4 |
3/8 |
3/8 |
1/2 |
3/4 |
3/4 |
1 |
|
Max. Adjustable Pressure |
1.0 MPa |
|||||||||||
|
Proof Pressure Resistance |
1.5 MPa |
|||||||||||
|
Range of Adjustable Pressure |
5 〜60℃ |
|||||||||||
|
Range of Adjustable Pressure |
0.05-0.7 MPa |
0.05~0.85 MPa |
||||||||||
|
Valve Type |
With Overflow |
|||||||||||

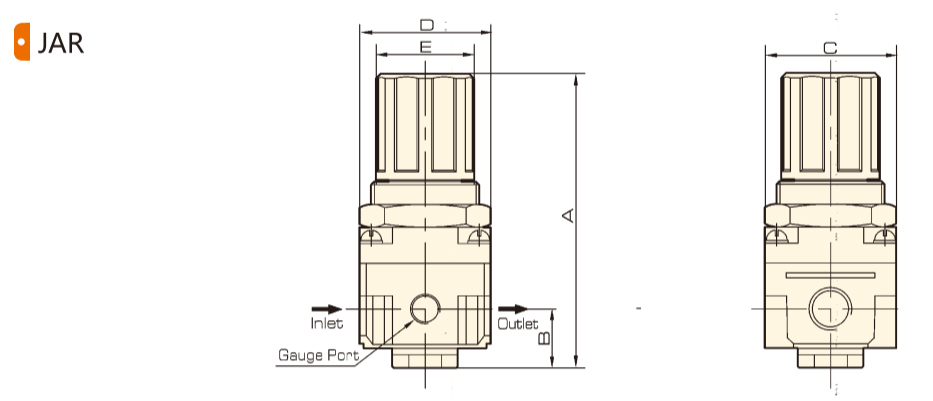

Overall Dimension
Dimension
| Model | Bore | A | B | C | D | E |
| JAR1000 | M5 | 61.5 | 11 | 25 | 25 | 28 |
| JAR2000 | 1/8-1/4 | 95 | 17 | 40 | 40 | 34 |
| JAR2500 | 1/4-3/8 | 102.5 | 25 | 48 | 53 | 34 |
| JAR3000 | 1/4-3/8 | 127.5 | 35 | 53 | 53 | 40 |
| JAR4000 | 3/8-1/2 | 149.5 | 37.5 | 70 | 70 | 54 |
| JAR4000-06 | 3/4 | 154 | 40.5 | 70 | 75 | 54 |
| JAR5000 | 3/4-1 | 168 | 48 | 90 | 90 | 54 |
