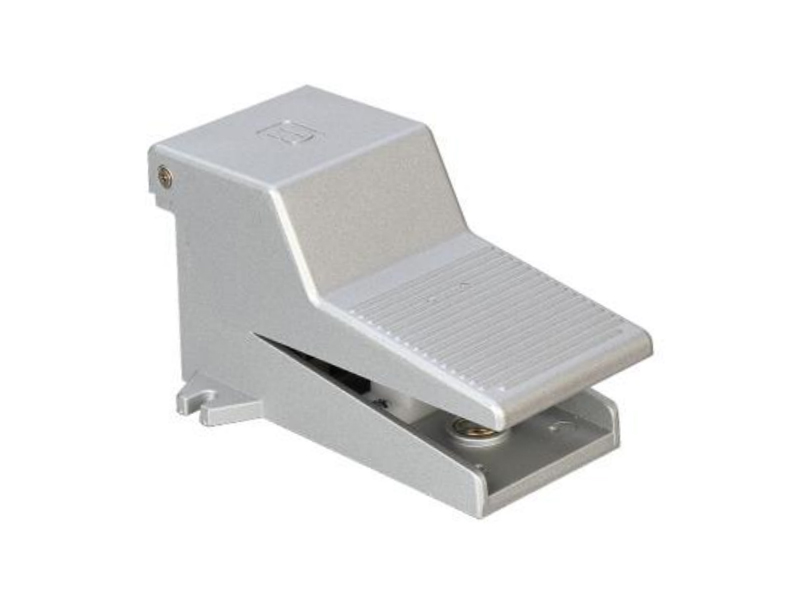

4F210 Series Foot Valve

4F210 Series Foot Valve

Features:
1. Renew appearance to improve sense quality.
2. Renew the lock structure to improve products reliability.

  • Product parameters

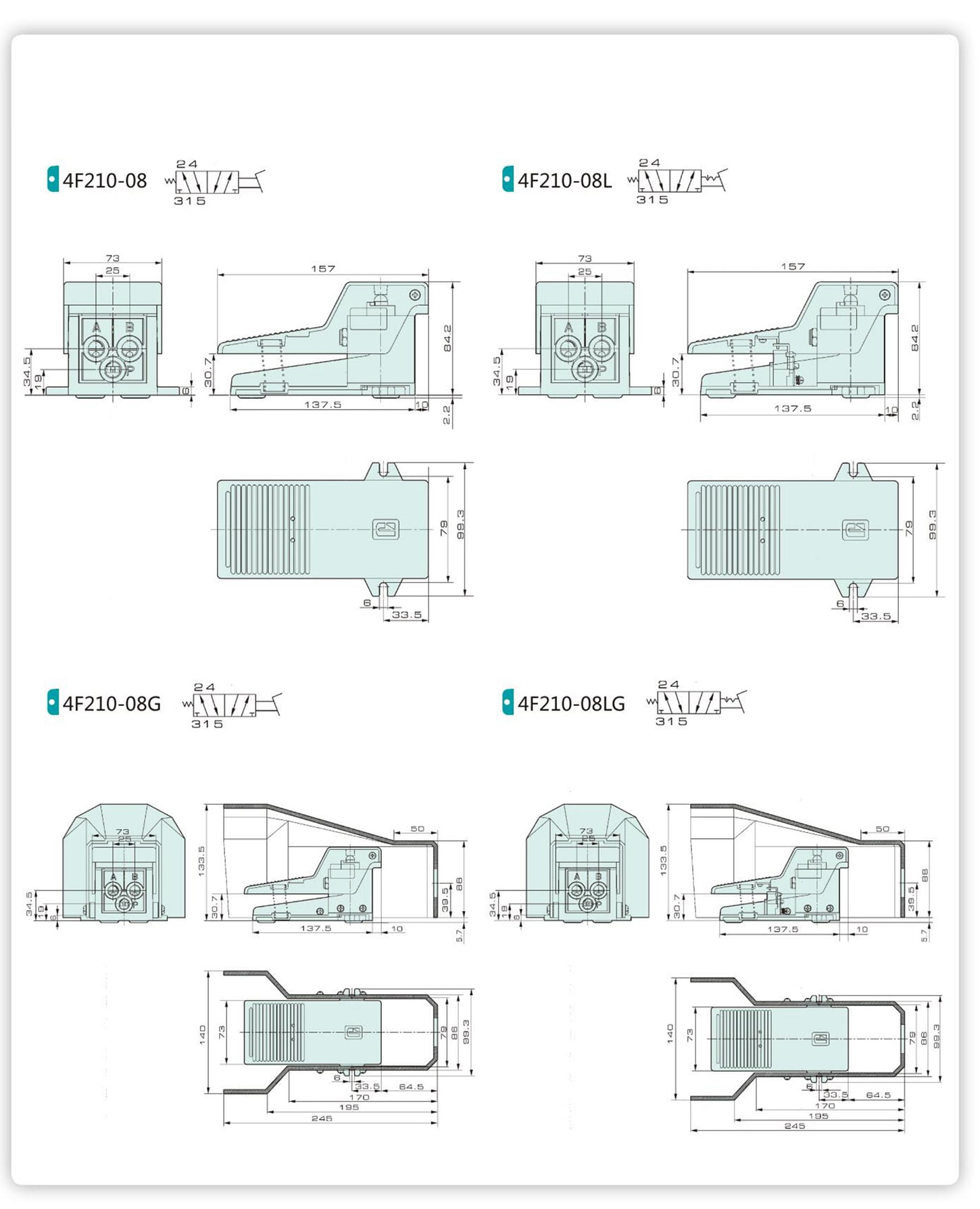

  • Product size

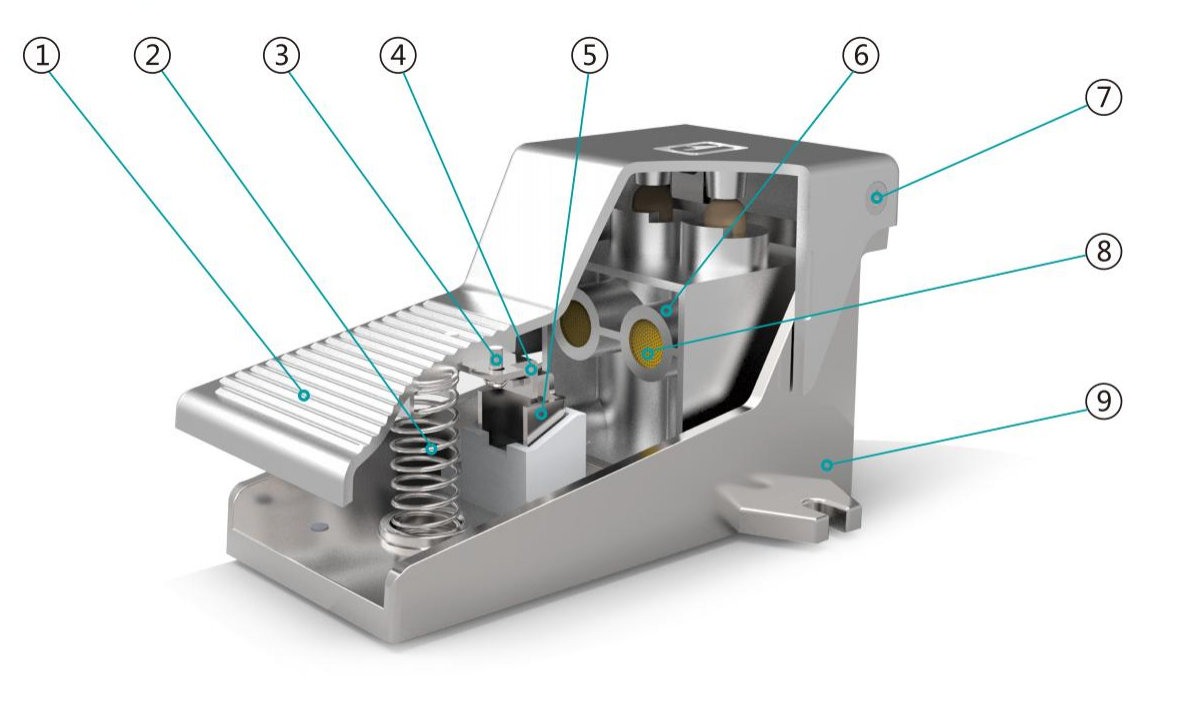

Internal Structure

Parts

Number Name Number Name Number Name
1  Pedal 4  Hook 7  Screw
2  Spring 5  Lock 8  Silencer
3  Screw 6  Valve body 9  Valve base

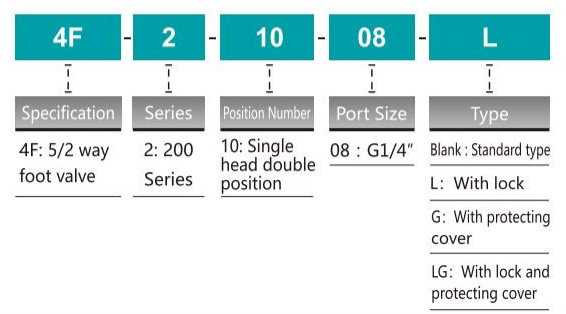

Ordering Code


Specification

Model

4F210-08

4F210-08L

4F210-08G

4F210-08LG

Working Medium

40 Micron Filtered Air

Position Number

5/2 way

Port Size

Inlet, Outlet, Exhaust Port = G1/4"

Operation

Direct

Working Pressure

0~0.8MPa

Working Temp

-20~70°C
