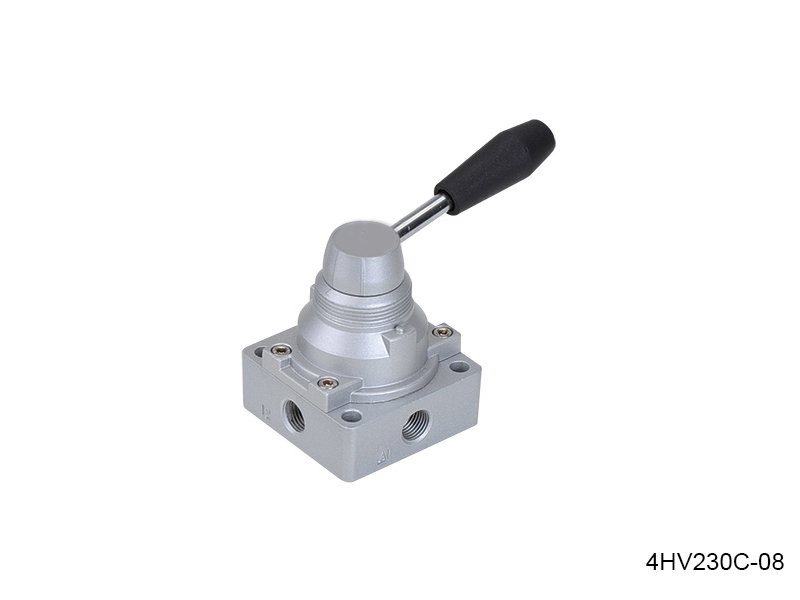

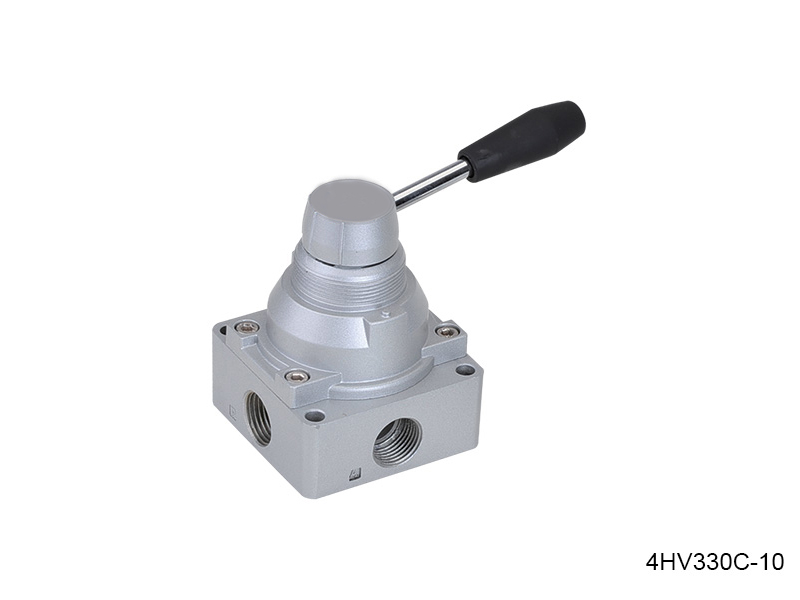

4HV Series Hand Switching Valve

4HV Series Hand Switching Valve

  • Product parameters

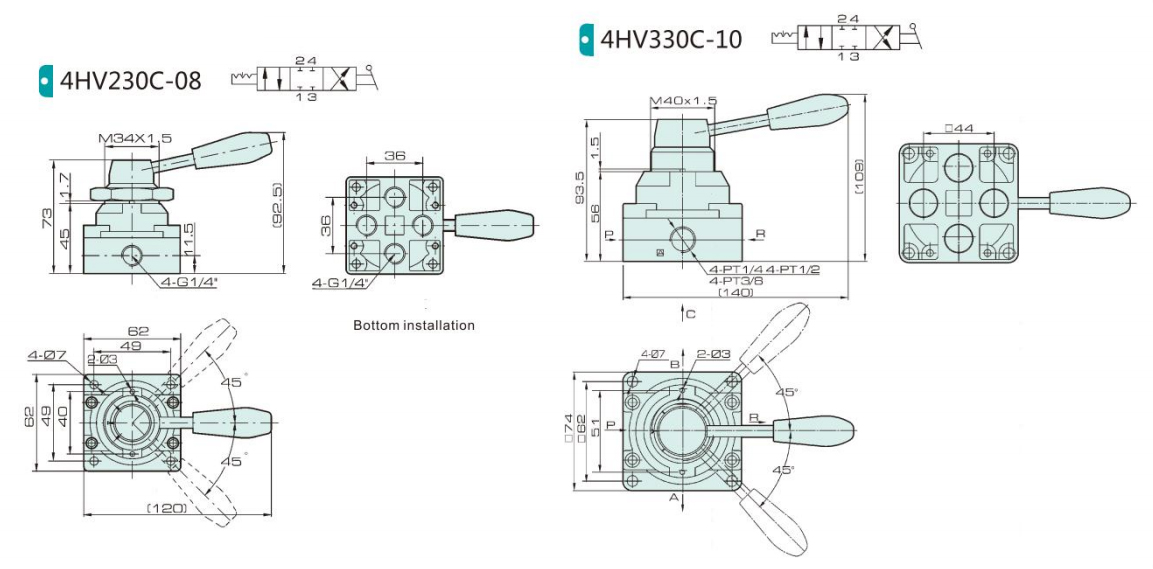

  • Product size

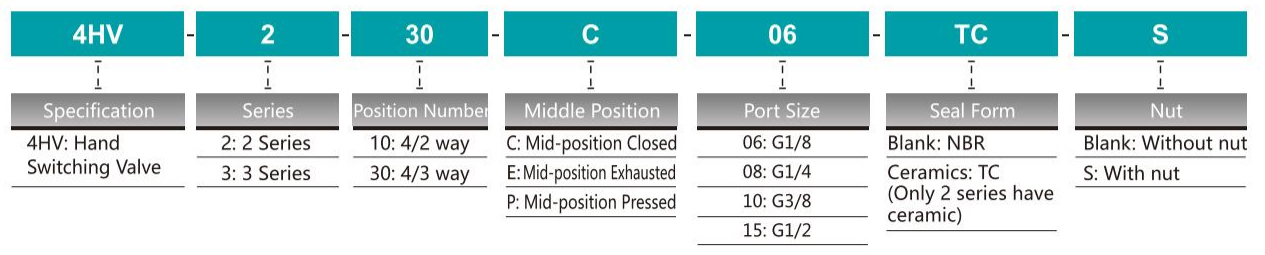

Ordering Code

Specification

Model

4HV2□□□-06

4HV2□□□-08

4HV3□□□-08

4HV3□□□-10

4HV4□□□-15

4HV4□□□-20

Working Medium

40 Micron Filtered Air

Port Size

G1/8"

G1/4"

G1/4"

G3/8"

G1/2"

G3/4"

Working Pressure

1.0 MPa

Max. Test Pressure

1.2 MPa

Max. Ambient Temperature

-20 〜70°C

Working Angle

90
