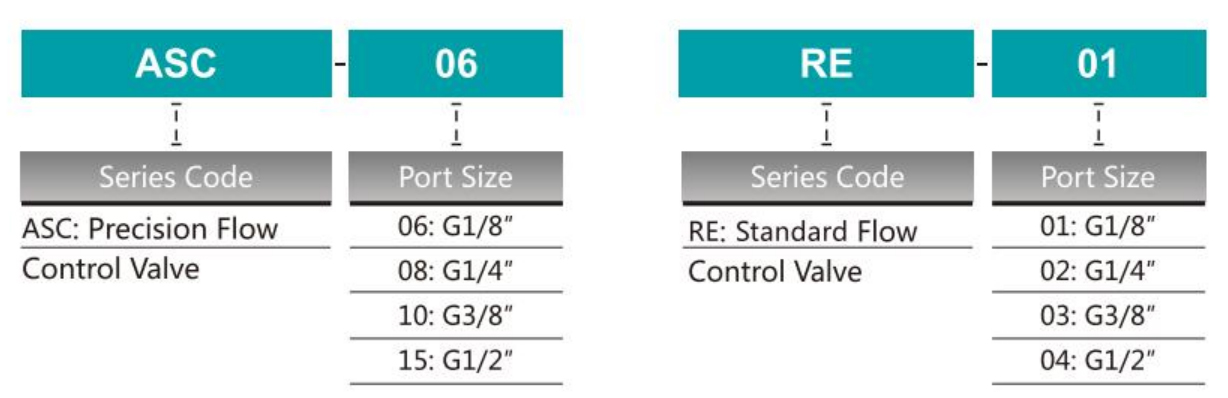

Ordering Code

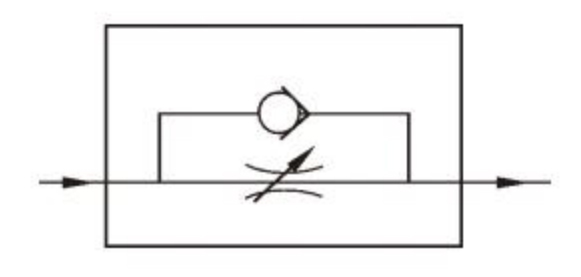

Symbol
Specification
| Model | Accurate Type | Ordinary Type | ||||||

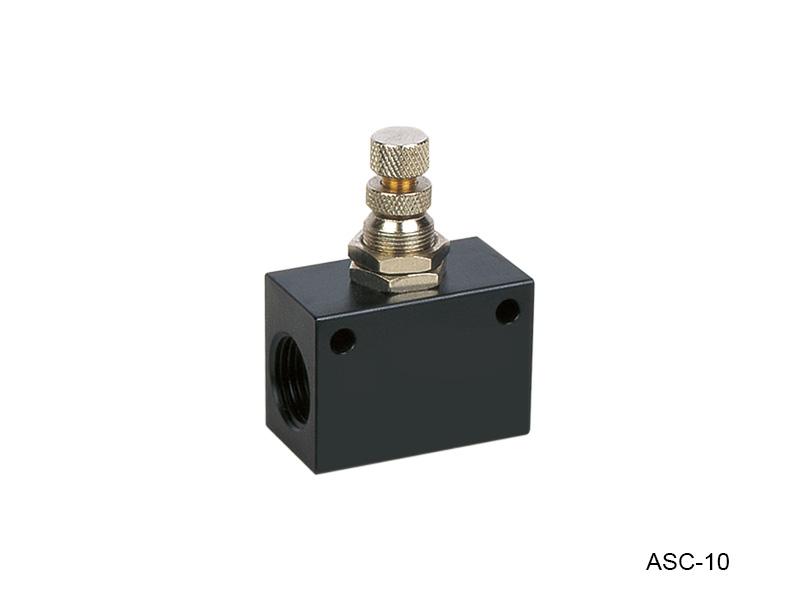

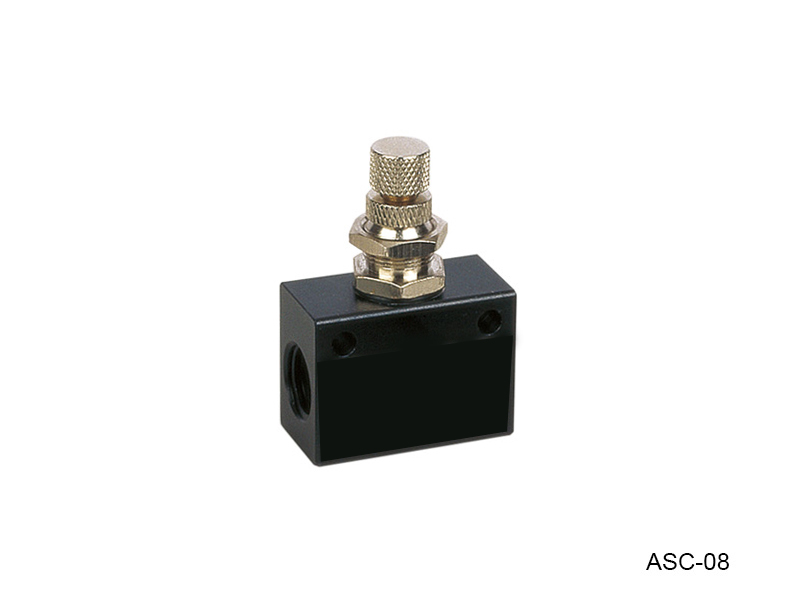

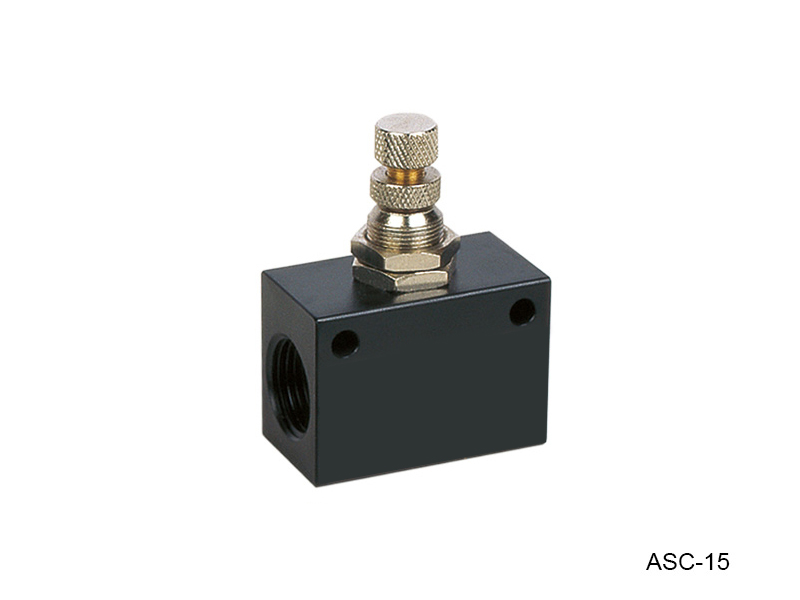

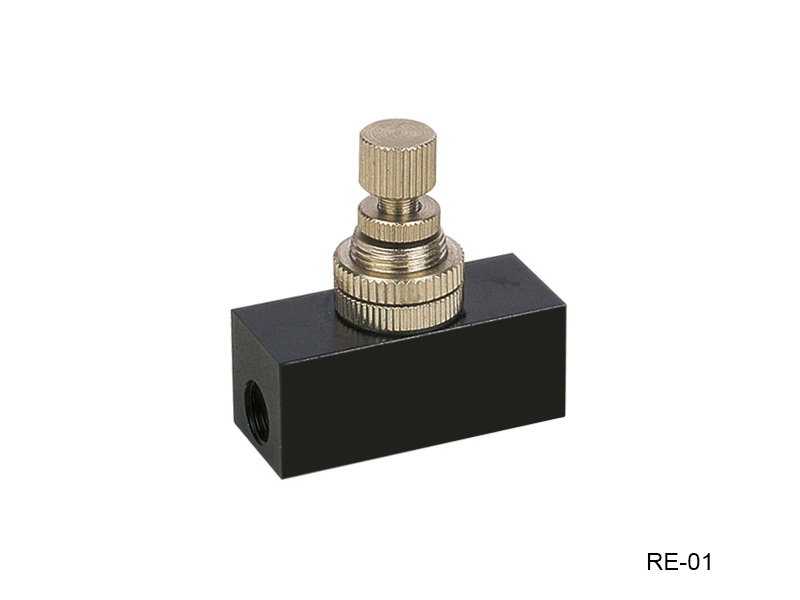

| ASC-06 | ASC-08 | ASC-10 | ASC-15 | RE-01 | RE-02 | RE-03 | RE-04 | |
| Port Size | G1/8" | G1/4" | G3/8" | G1/2" | G1/8" | G1/4" | G3/8" | G1/2" |
| Working Medium | Air | |||||||
| Working Pressure | 0~0.95MPa | |||||||
| Ambient Temperature | -20~70℃ | |||||||

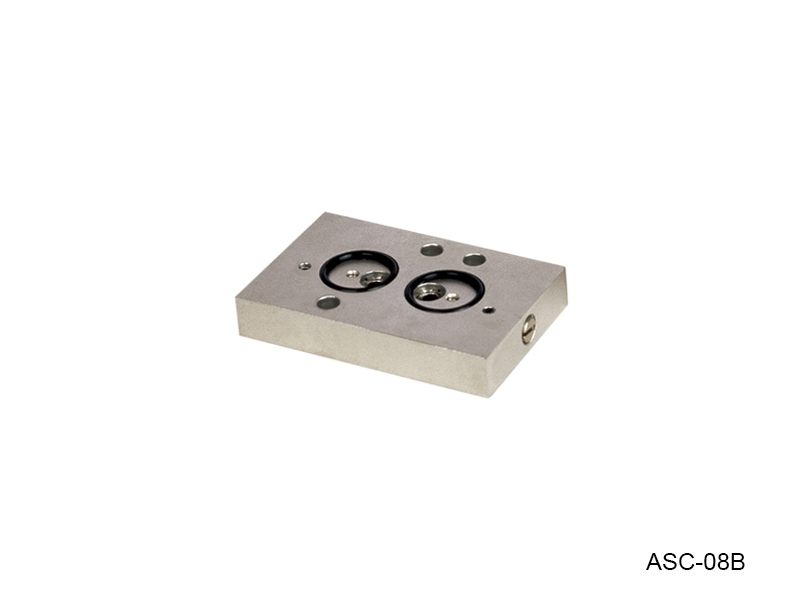

* ASC-08B installation conforms to NUMAR standard to control the speed of executive unit.

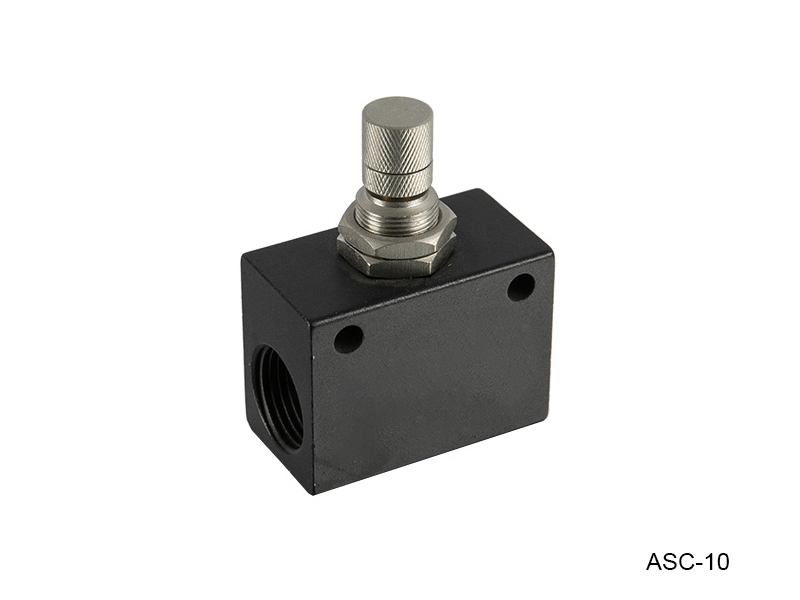

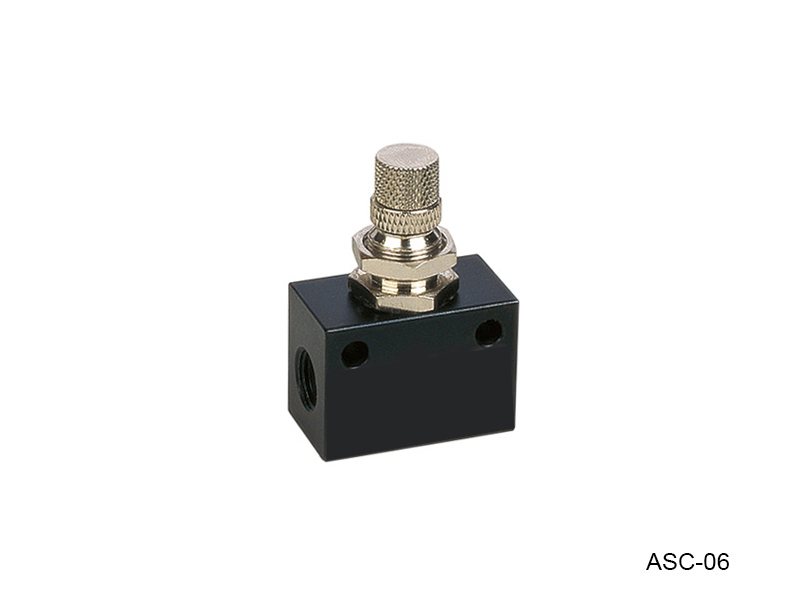

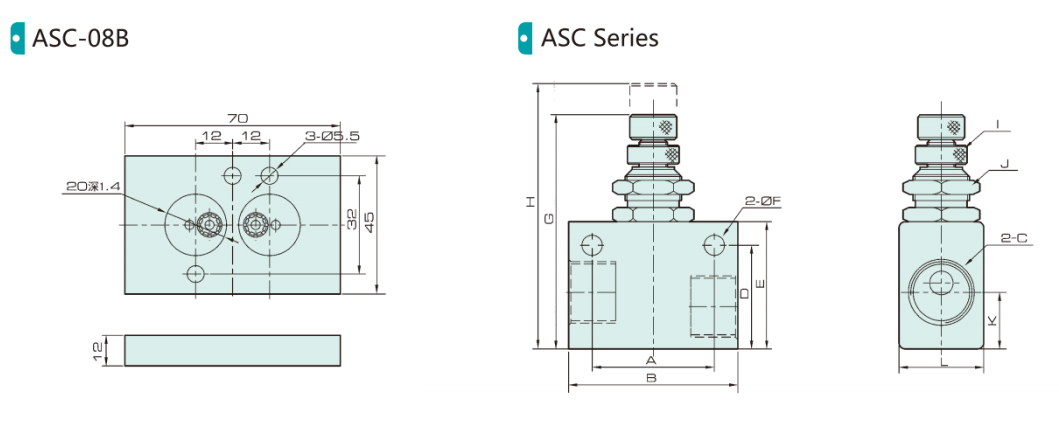

Overall Dimension
Dimension
| Model | A | B | C | D | E | F | G | H | I | J | K | L |
| ASC-06 | 22 | 32 | G1/8 | 22 | 27 | 4.3 | 49.7 | 56.5 | M6X0.5 | M12X0.75 | 12 | 18 |
| ASC-08 | 26 | 36 | G1/4 | 22 | 27 | 4.3 | 49.7 | 56.5 | M6X0.5 | M12X0.75 | 12 | 18 |
| ASC-10 | 28 | 40 | G3/8 | 25 | 30 | 4.3 | 52.7 | 59.5 | M6X0.5 | M12X0.75 | 13 | 22 |
| ASC-15 | 28 | 40 | G1/2 | 30 | 35 | 4.3 | 58.7 | 65.5 | M6X0.5 | M12X0.75 | 13.5 | 26 |

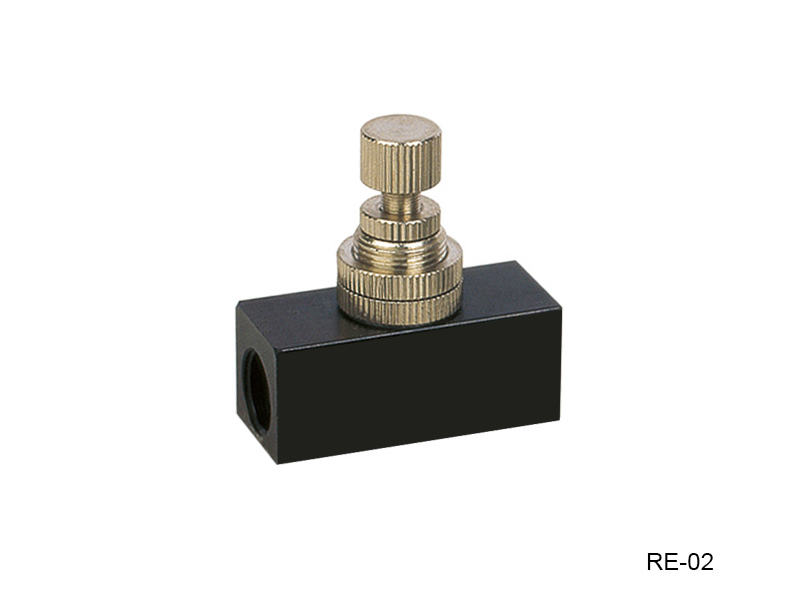

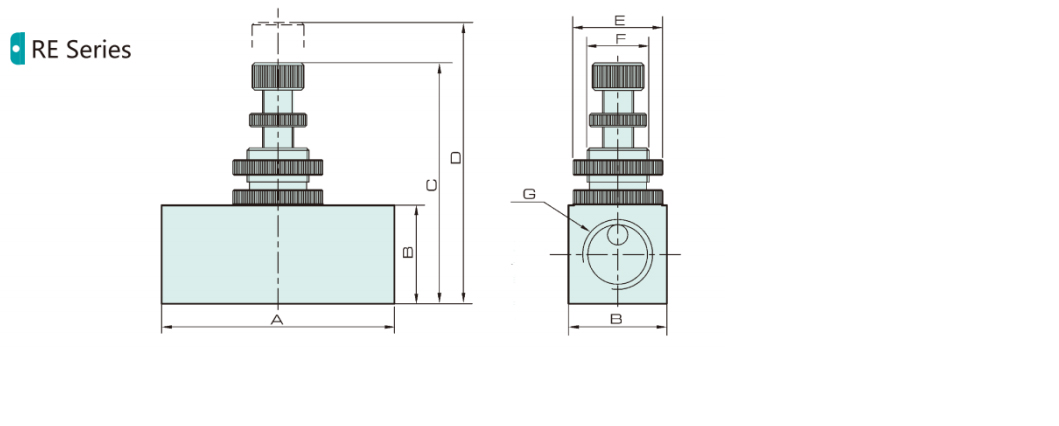

Overall Dimension
Dimension
| Model/Symbol | A | B | C | D | E | F | G |
| RE-01 | 43 | 20 | 48.5 | 52 | ∅19 | M14X1 | G1/8 |
| RE-02 | 43 | 20 | 48.5 | 52 | ∅19 | M14X1 | G1/4 |
| RE-03 | 53 | 26 | 54.5 | 61.5 | ∅25 | M18X1 | G3/8 |
| RE-04 | 53 | 26 | 54.5 | 61.5 | ∅25 | M18X1 | G1/2 |
