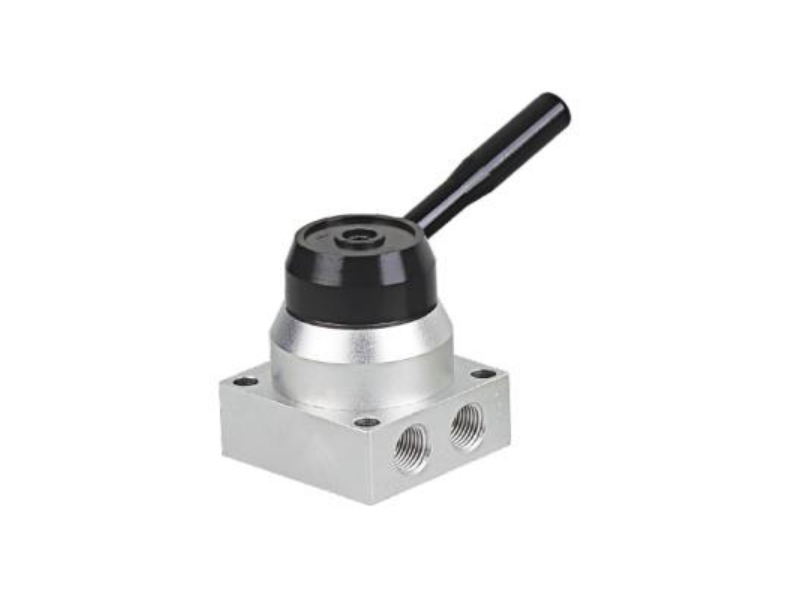

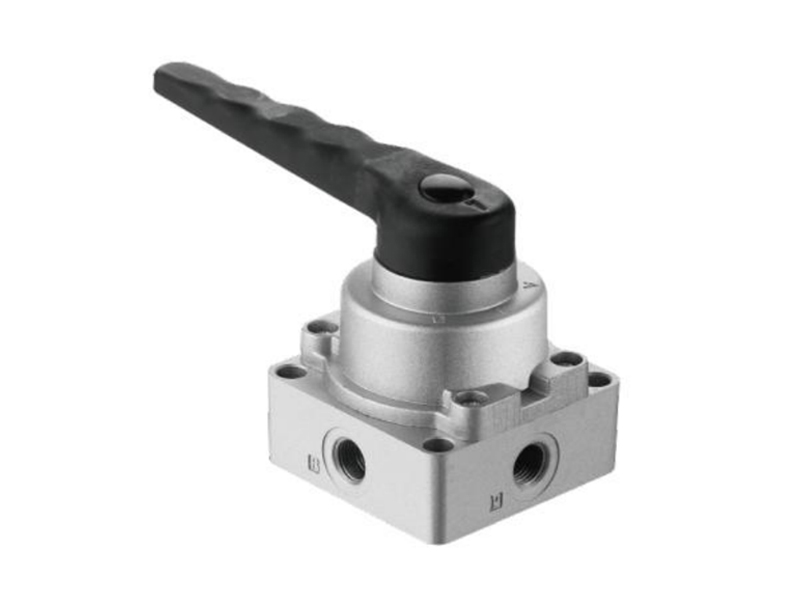

HV、K Series Hand Switching Valve

HV、K Series Hand Switching Valve

  • Product parameters

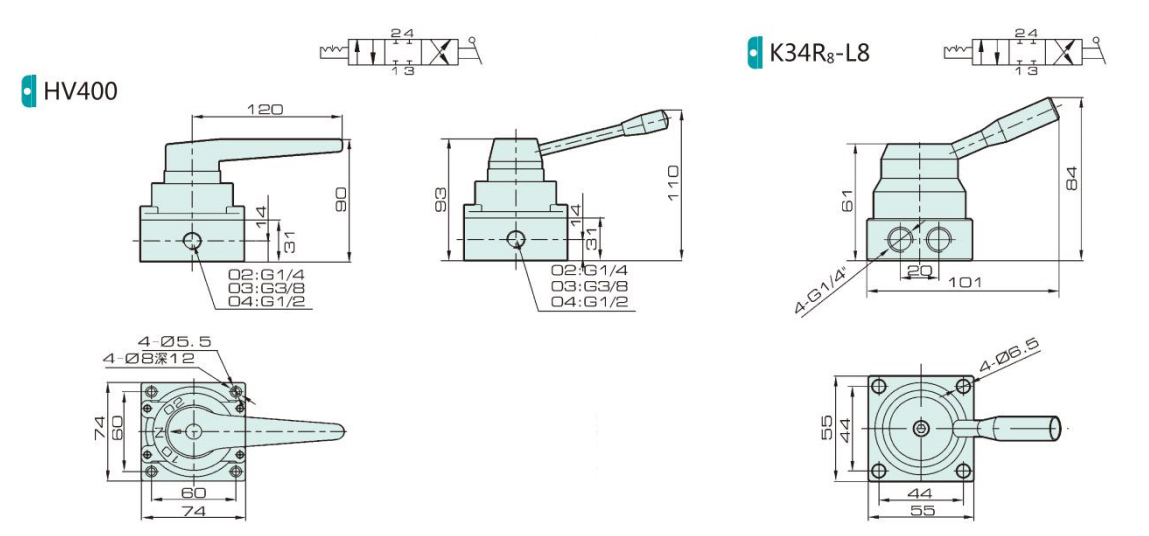

  • Product size

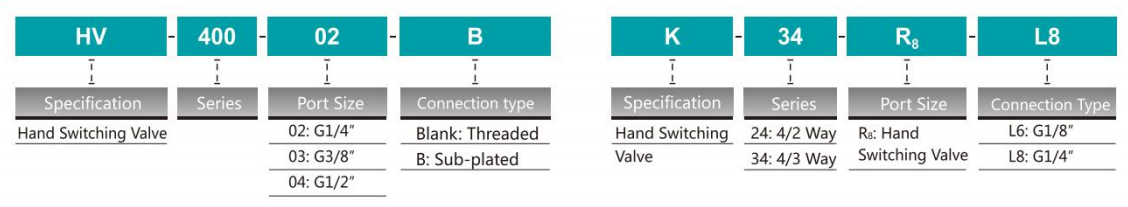

Ordering Code

Specification

Model HV400-02 HV400-03 HV400-04 K34R₈-L6 K34R₈-L8
Working Medium 40 Micron Filtered Air
Port Size G1/4" G3/8" G1/2"   G1/8" G1/4"
Effective Cross Section Area 30 mm²(CV=1.68) 18 mm²(CV=1.00)
Working Pressure 0~0.8 MPa
Max. Ambient Temperature -20~70℃
