MSV Series Mechanical Valve

MSV Series Mechanical Valve

  • Product parameters

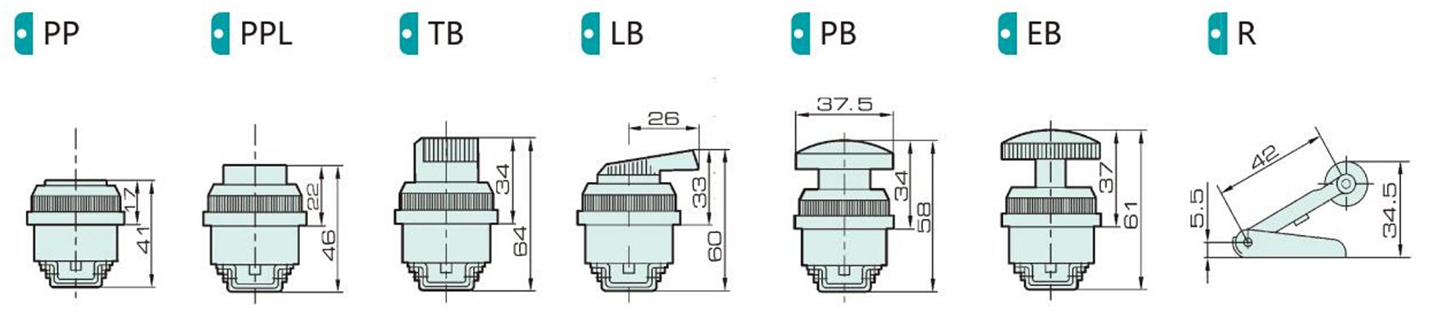

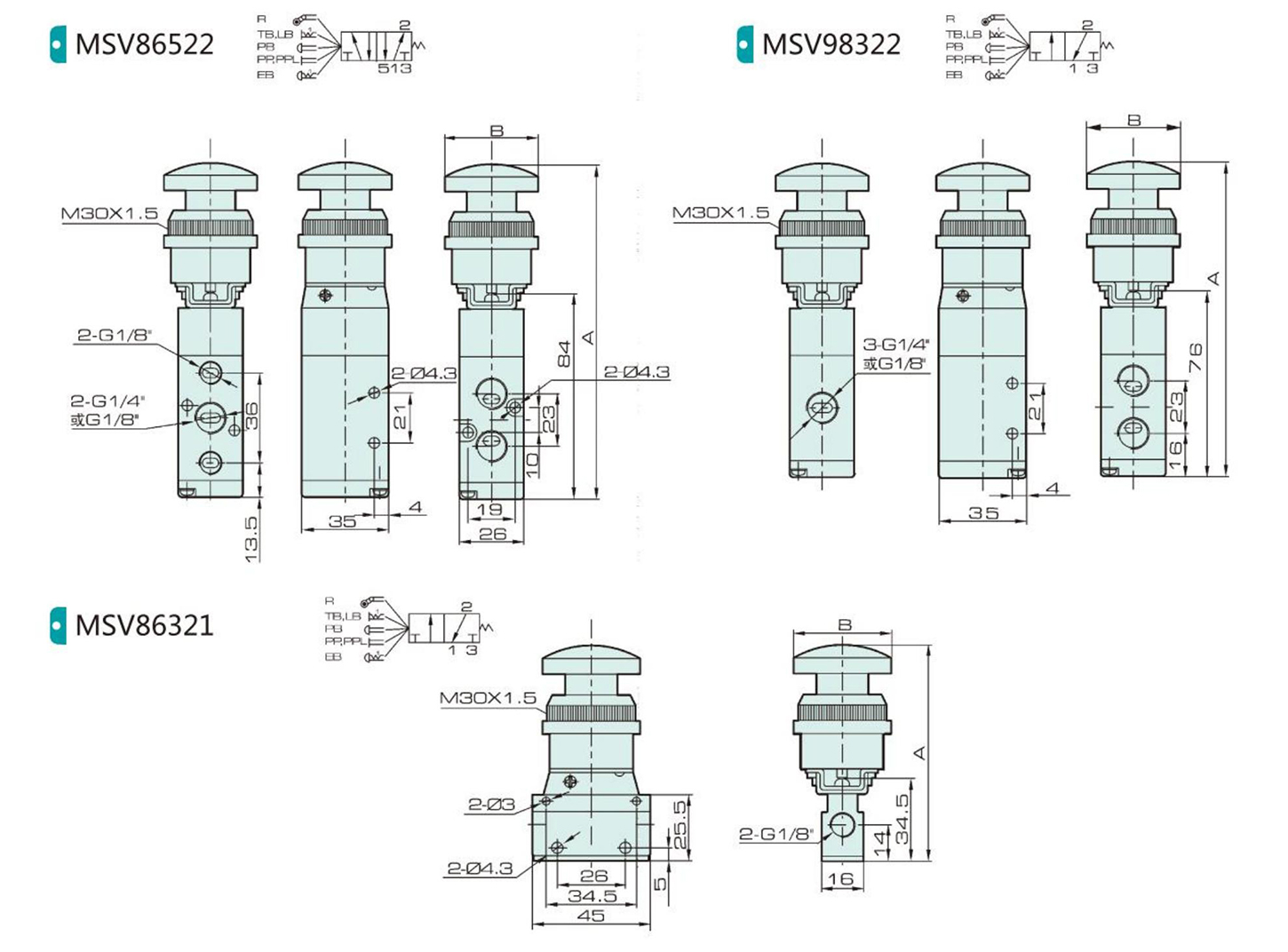

  • Product size

Ordering Code


Specification

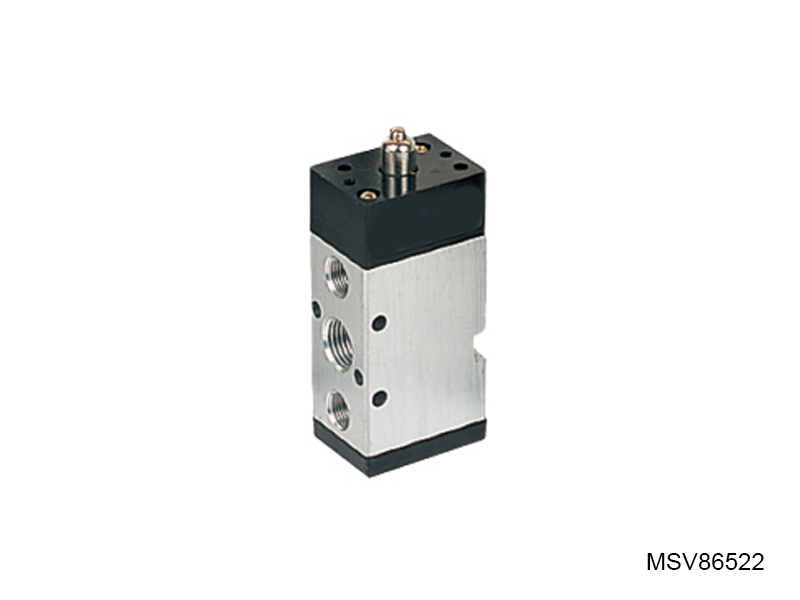

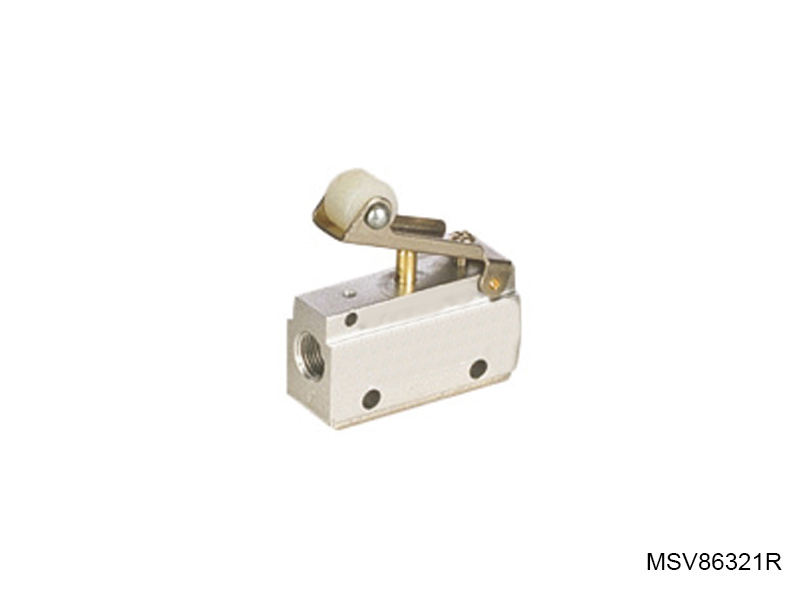

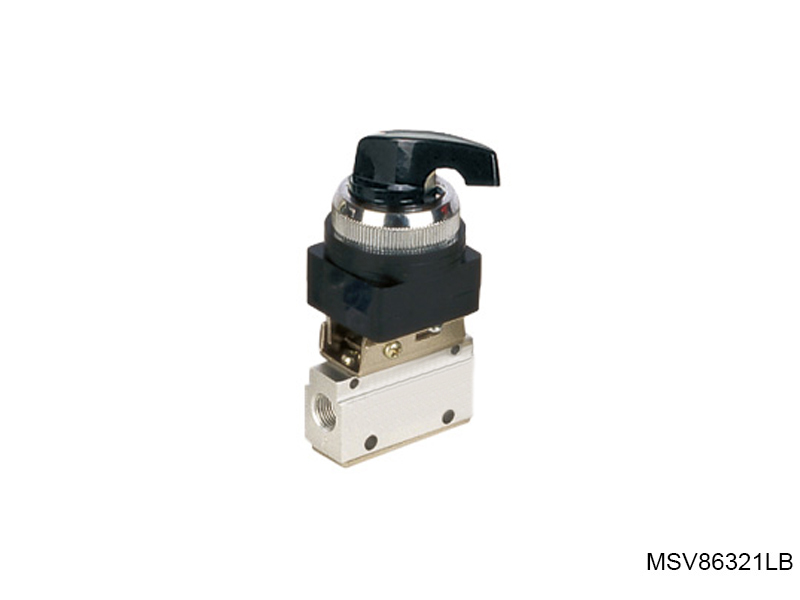

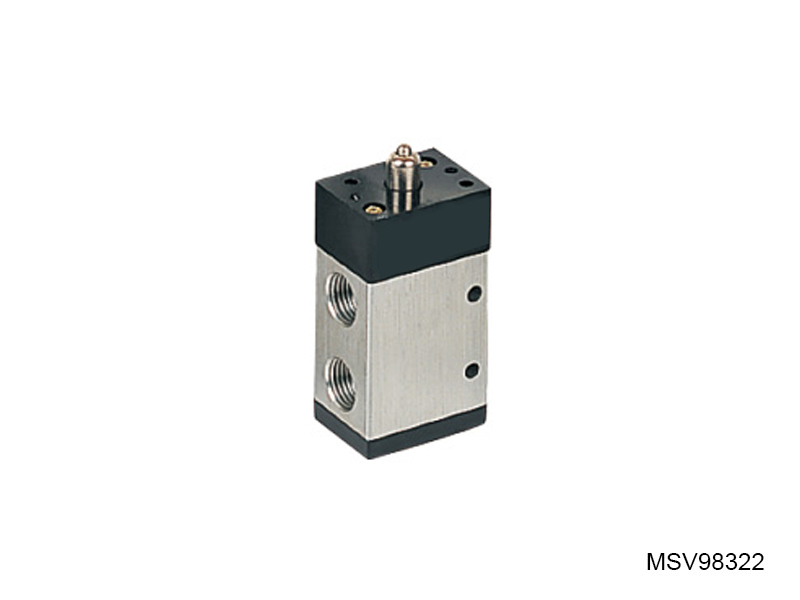

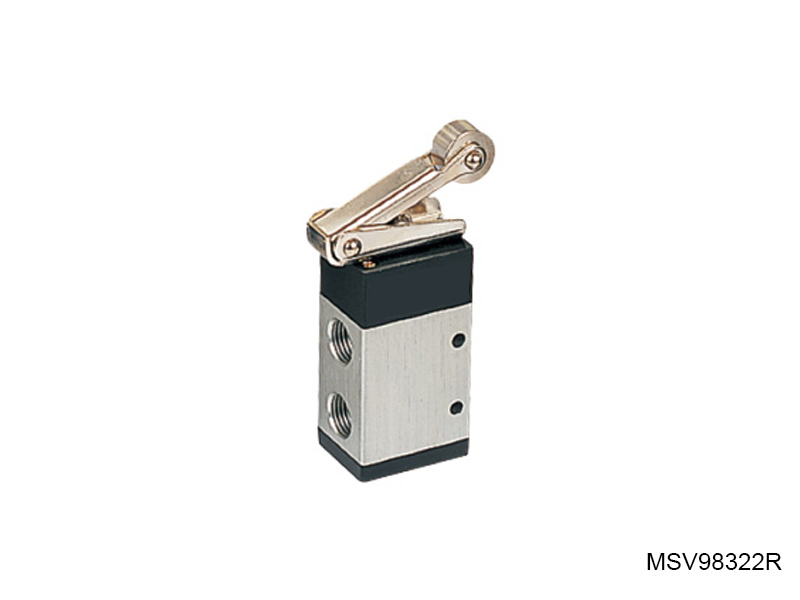

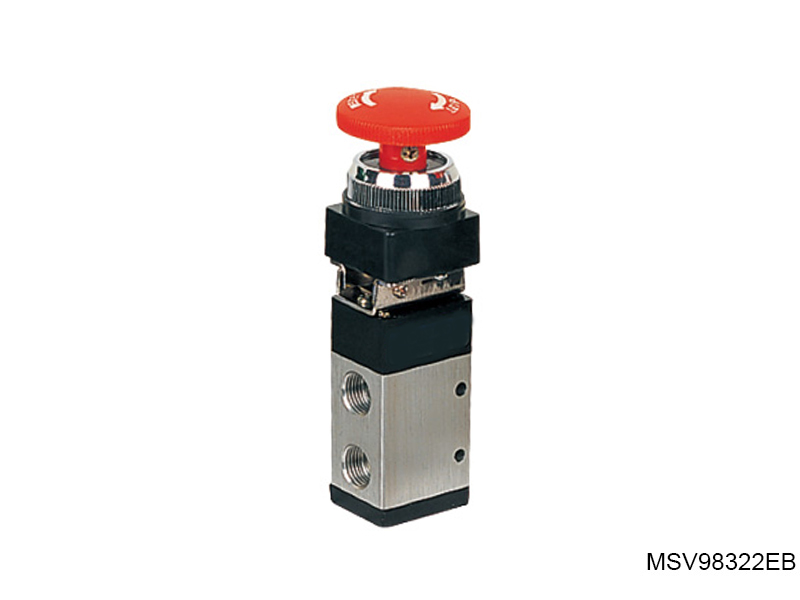

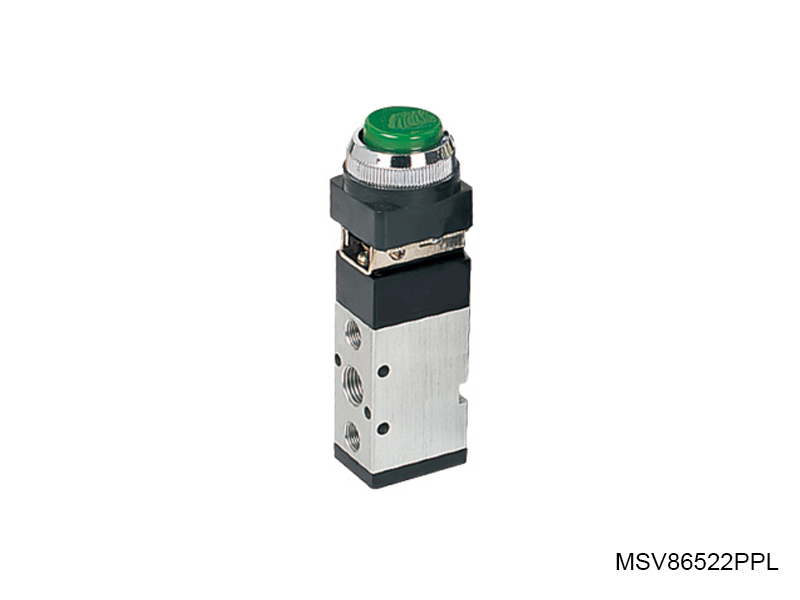

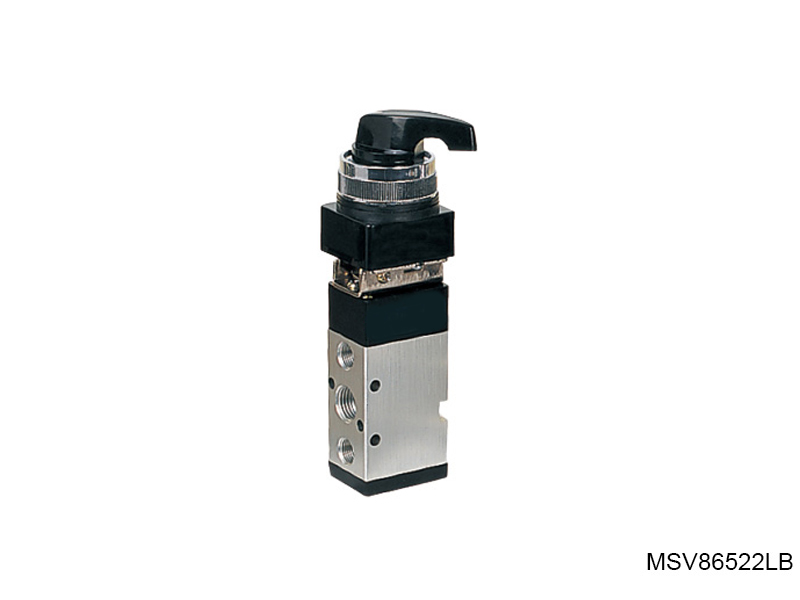

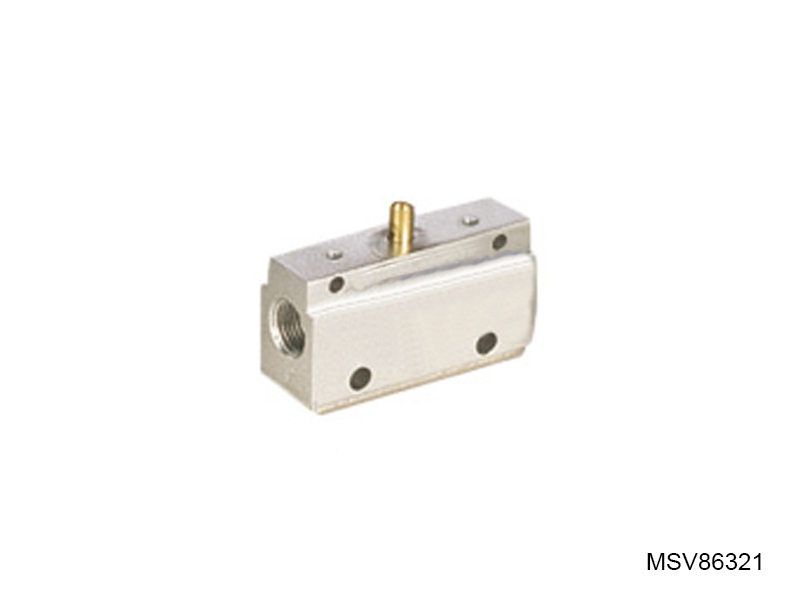

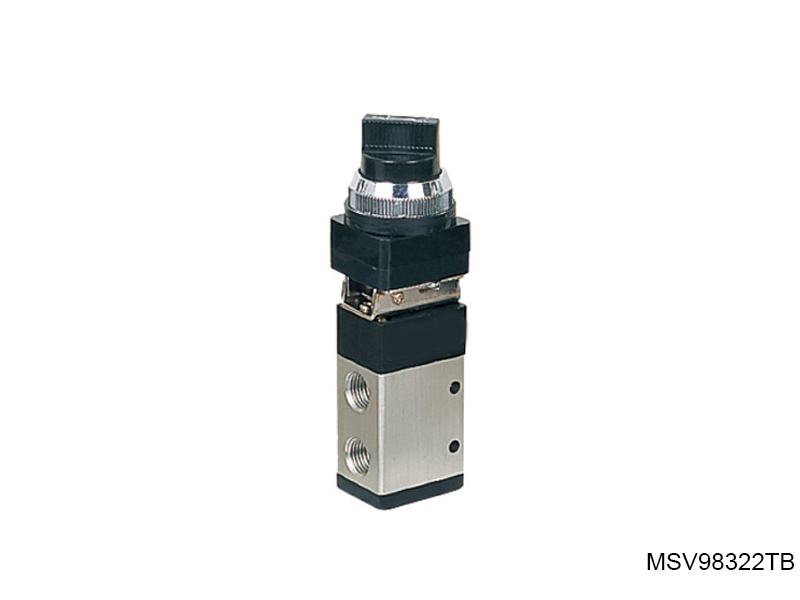

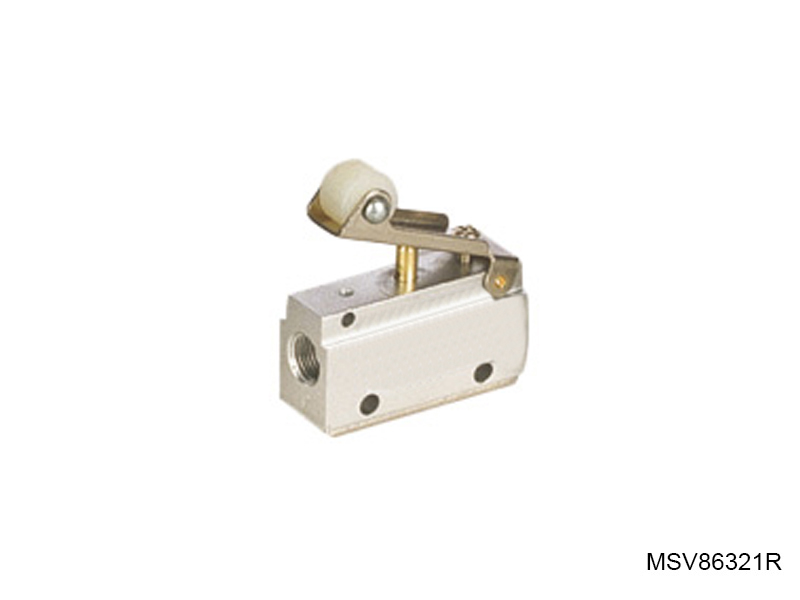

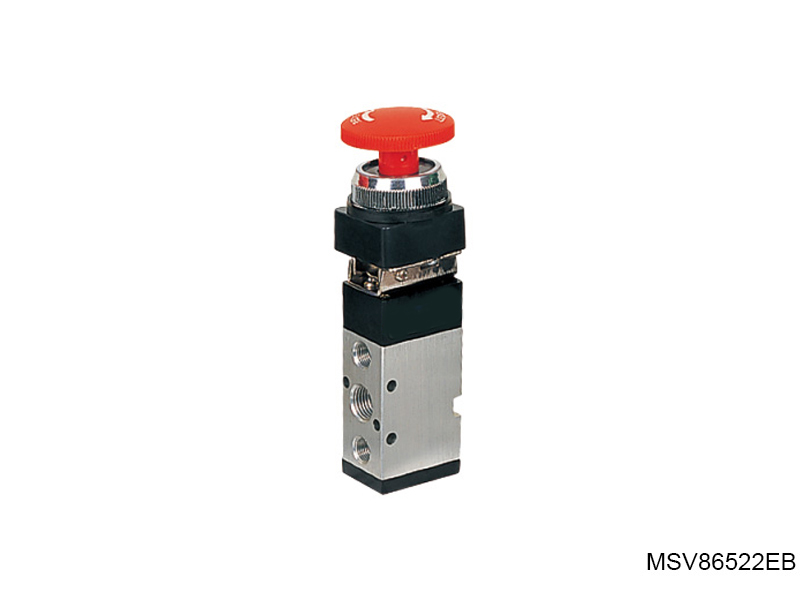

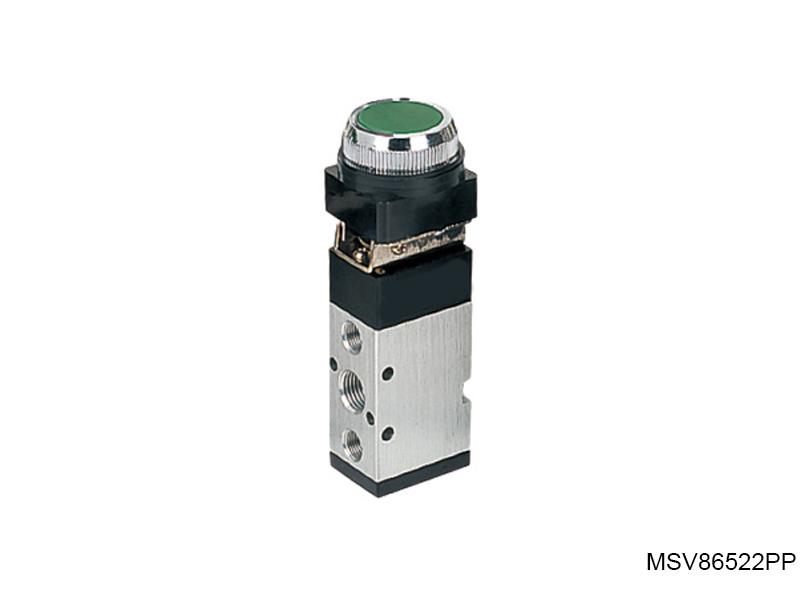

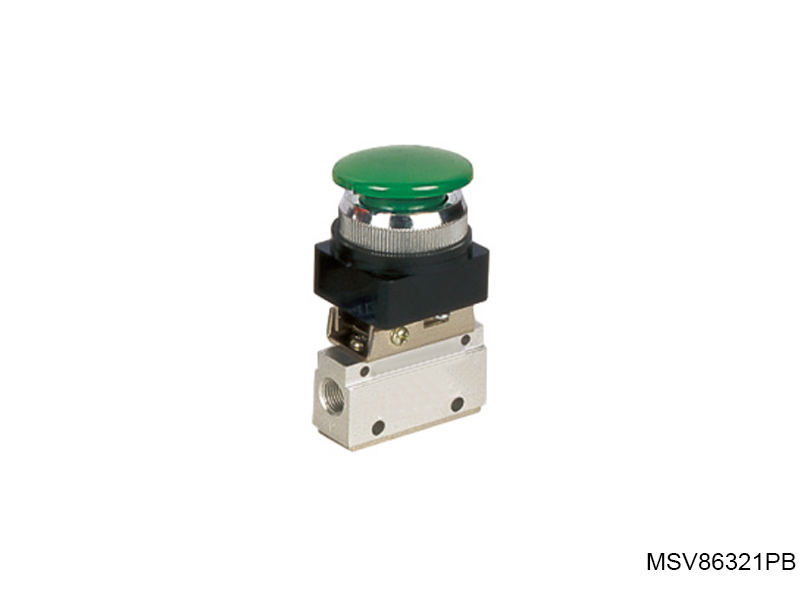

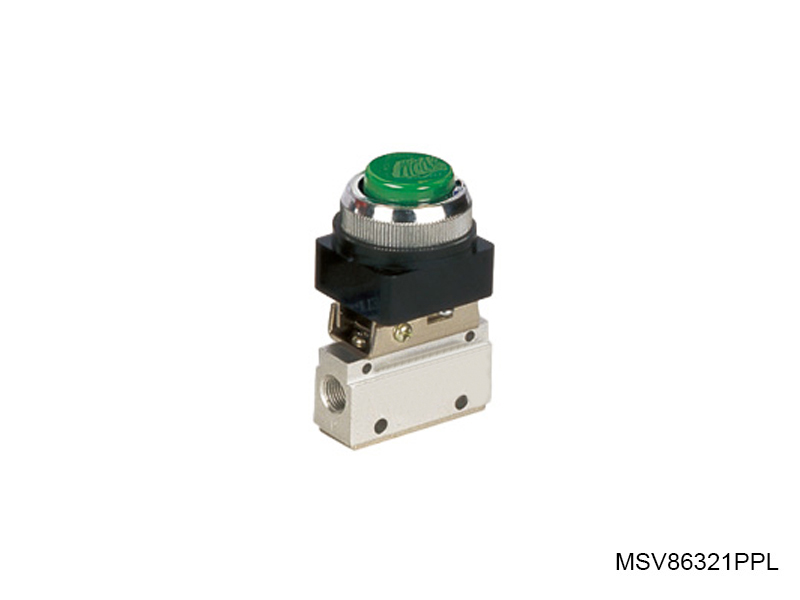

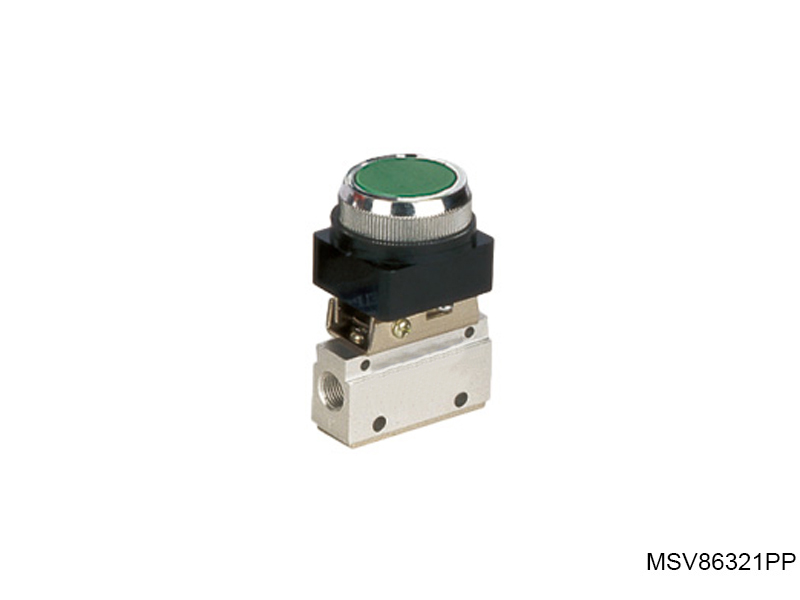

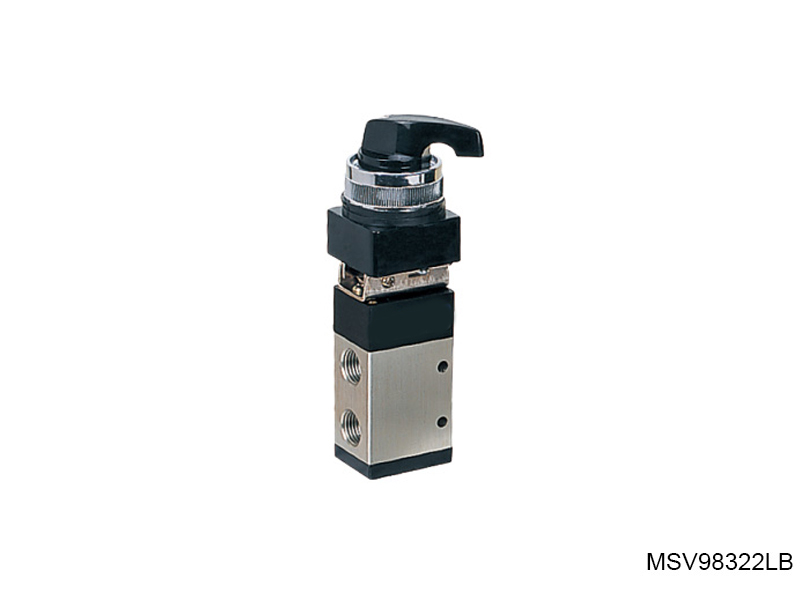

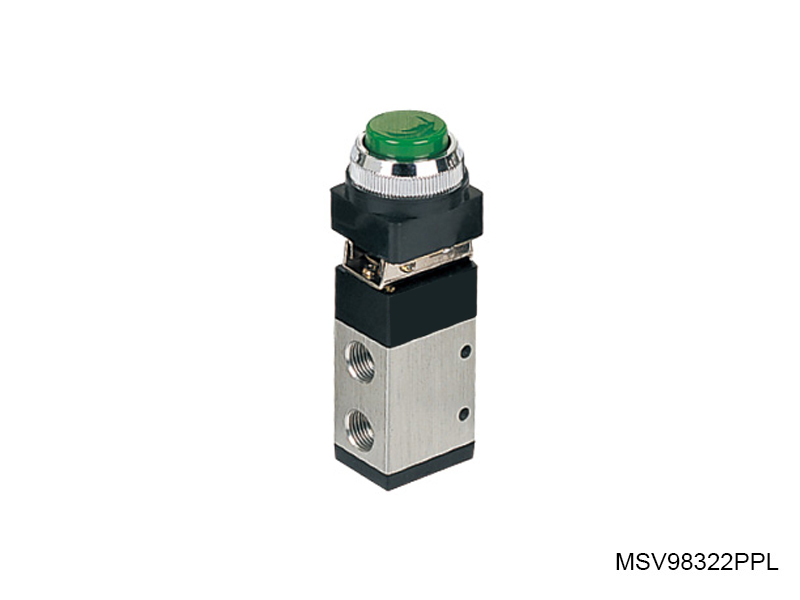

Model MSV86321 MSV86522 MSV98322
Working Medium 40 Micron Filtered Air
Valve Type 3/2 Way 5/2 Way 3/2 Way
Working Pressure 0~0.8MPa 0~0.8MPa 0~0.8MPa
Ambient Temperature -20~70℃
Effective Cross Section Area 12mm²(CV=0.67) 16mm²(CV=0.89) 16mm²(CV=0.89)
Port Size G1/8" G1/4" G1/4"
