ST Series Shuttle Valve

ST Series Shuttle Valve

  • Product parameters
  • Product size

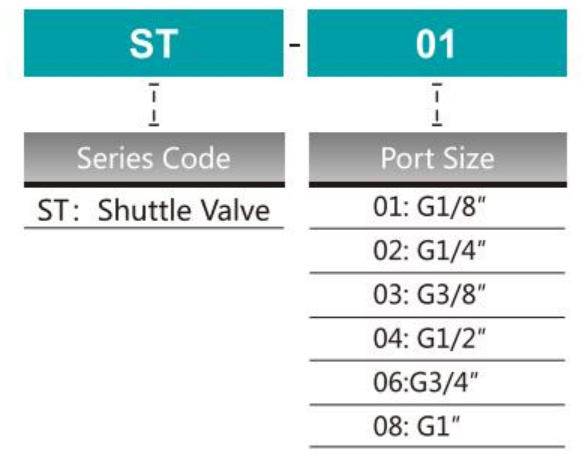

Ordering Code

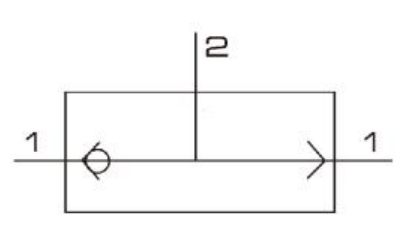

Symbol





Specification

Model ST-01 ST-02 ST-03 ST-04 ST-06  ST-08
Working Medium Air
Effective Cross Section Area G1/8" G1/4" G3/8" G1/2" G3/4"  G1"
Port Size 7.5mm² 21mm² 40mm² 60mm² 110mm²   190mm²
Working Pressure 0~1.0MPa
Ambient Temperature -20~70℃
