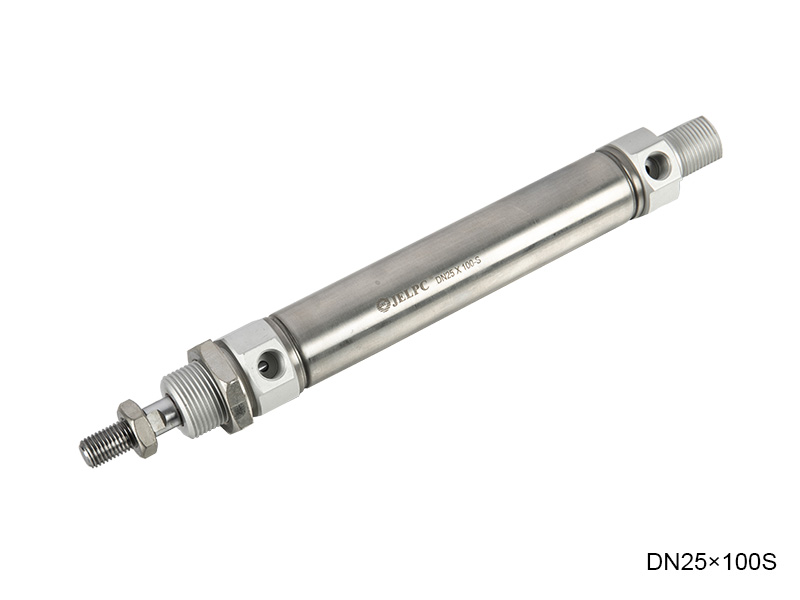

DN Series Stainless Steel Mini Cylinder (IS06432 Standard)

Features:
1. Improving for adapting wide range applications, using precisepolishing of piston rod, more sense of products quality and longer life of front seal.
2. Optima design and improve the production efficiency.
3. Combined with enterprise colorplanning and new structure design, stainless steel series cylinder integrated as the semicircular groove cramping.
4. Using embedded gasket, increase the pressured area of pistons after collision.

Product parameters
Product size

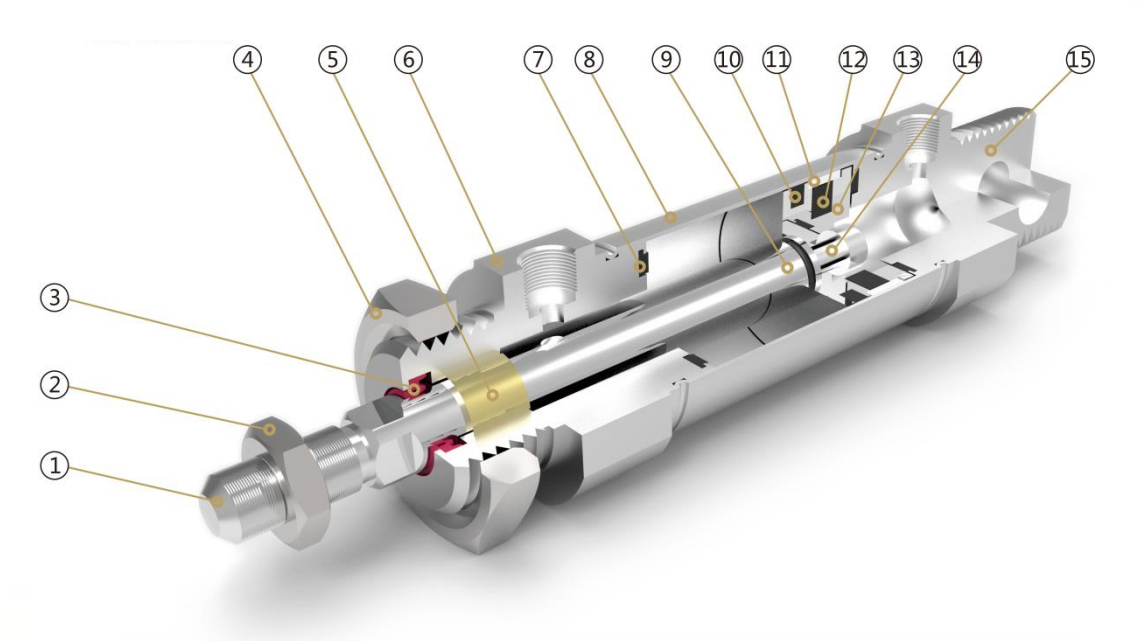

Internal Structure

Parts

Number	Name	Number	Name
1	Piston rod	9	O ring
2	Hexagon nut	10	Piston seal
3	Shaft seal	11	Anti-friction seal
4	Hexagon nut	12	Magnet
5	DU bearing	13	Piston
6	Front cover	14	Socket head cap screw
7	Anti-collision gasket	15	Back cover
8	Barrel

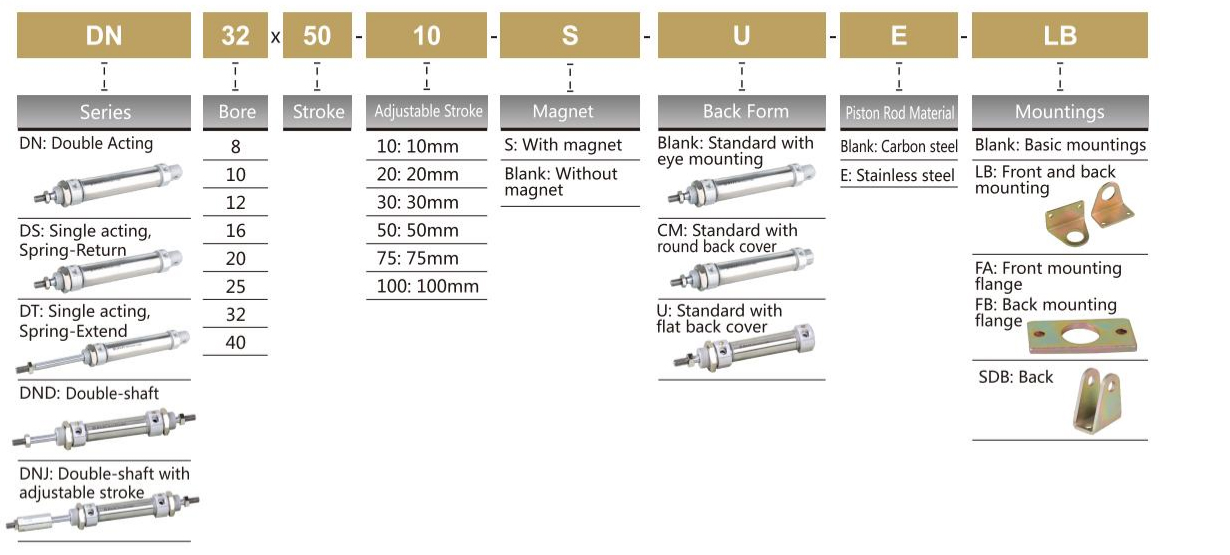

Ordering Code

*Sensor model JEL-01, Strap type "SKB-Bore" , please refer to P173 forthe specific orderingcode.

Specification

Bore (mm)	08	10	12	16	20	25	32	40
Operation	Double Acting or Single Acting
Working Medium	Air
Mountings	Basic LB FA FB SDB
Operating Pressure	0.1 〜1.0MPa
Proof Pressure	1.5 MPa
Operating Temperature Range	-20~80°C
Operating Speed Range	50 ~ 800mm/s
Cushion	Gasket Cushion
Port Size	M5x0.8			G1/8"

Stroke

Bore		Standard Stroke	Max. Stroke
DN	8	15 20 25 30 40 50 60 75 80 100 125 150	150
	10	15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200
	12	15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250	250
DN/DSN	16/20/25/32/40	15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 275 300	500
DND/DNJ	8	15 20 25 30 40 50 60 75 80 100	100
	10	15 20 25 30 40 50 60 75 80 100	100
	12	15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	250
DND/DNJ DSND/DSNJ	16/20/25	15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 275 300	300
DND/DNJ DSND/DSNJ	32/40	15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 275 300	300
DS/DT	08/10/12	15 20 25 30 40 50	50
	16	15 20 25 30 40 50 60 75 80 100	100
	20/25/32/40	15 20 25 30 40 50 60 75 80 100 125 150	150

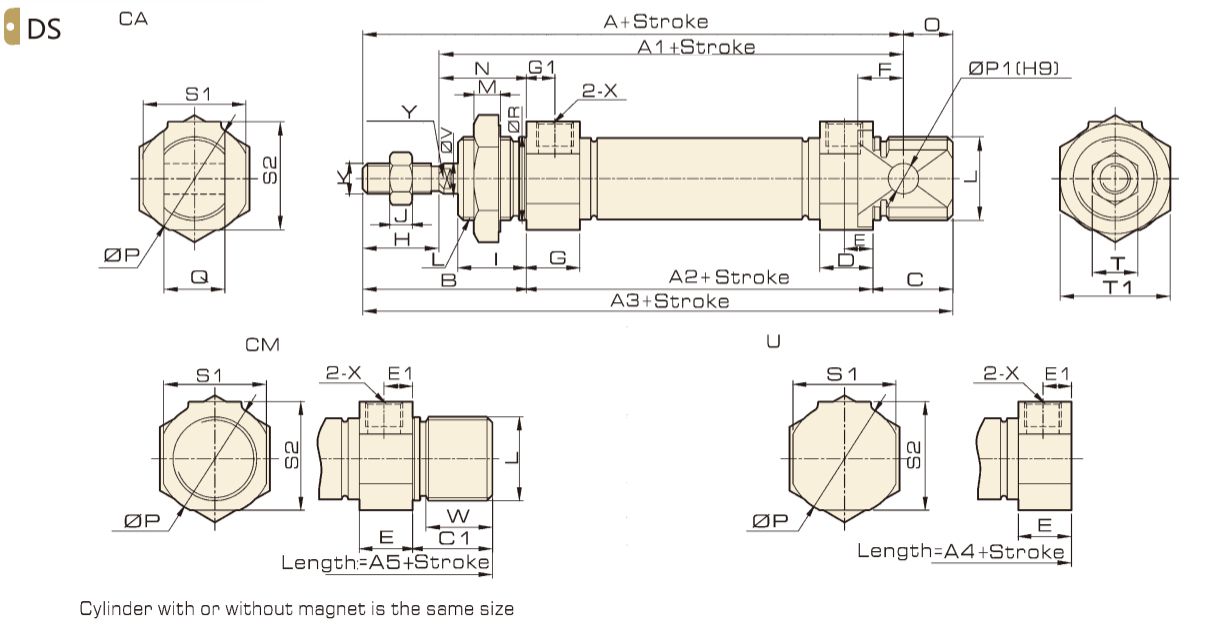

Overall Dimension

Dimension

Bore\Symbol	A	A1	A2	A3	A4	A5	B	C	C1	D	D1	E	E1	F	G	G1	H	I
8	76	64	46	86	74	86	28	12	12	10	5.5	10	5.5	6	10	5.5	12	12
10	76	64	46	86	74	86	28	12	12	10	5.5	10	5.5	6	10	5.5	12	12
12	91	74	50	105	88	105	38	17	17	10	6	10	6	9	10	6	16	17
16	98	82	55	111	92	111	37	19	19	10.5	6	10.5	6	9	10.5	6	16	16
20	115	95	64	128	107	128	43	21	21	14	7.5	14	7.5	12	14	7.5	20	18
25	126	104	66	137	116	137	50	21	21	15	8	15	8	12	15	8	22	22
32	135	113	72	147	120	132	48	27	12	17	8.5	17	8.5	15	17	8.5	22	18
40	138	115	72	150	123	136	51	27	14	16	8	16	8	15	16	8	23	20

Bore\Symbol	J	K	L	M	N	O	P	P1	Q	R	S1	S2	T	T1	X	V	W	Y
8	6	M4×0.7	M12×1.25	6	16	10	17	4	8	12	15	15	7	17	M5×0.8	4	9.3	-
10	6	M4×0.7	M12×1.25	6	16	10	17	4	8	12	15	15	7	17	M5×0.8	4	9.3	-
12	5	M6×1	M16×1.5	6	22	14	21	6	12	16	19	19	10	24	M5×0.8	6	14	5
16	5	M6×1	M16×1.5	6	21	13	21	6	12	16	19	19	10	24	M5×0.8	6	15.5	5
20	6	M8×1.25	M22×1.5	7	23	13	30	8	16	22	27	28.5	14	29	G1/8	8	17.5	6
25	6	M10×1.25	M22×1.5	7	28	11	30	8	16	22	27	28.5	17	29	G1/8	10	17.5	8
32	6	M10×1.25	M27×2	9	26	12	38	10	20	27	35	36.5	17	36	G1/8	12	8	10
40	8	M14×1.5	M33×2	9	28	12	45	10	20	33	42	43.5	22	45	G1/4	16	10	14

Overall Dimension

Dimension

Symbol	A			A1			A2			A3			A4			A5
Bore/Stroke	0-50	50-100	100-150	0-50	50-100	100-150	0-50	50-100	100-150	0-50	50-100	100-150	0-50	50-100	100-150	0-50	50-100	100-150
8	101	-	-	89	-	-	71	-	-	111	-	-	99	-	-	111	-	-
10	101	-	-	89	-	-	71	-	-	111	-	-	99	-	-	111	-	-
12	116	-	-	99	-	-	75	-	-	130	-	-	113	-	-	130	-	-
16	123	148	-	107	132	-	80	105	-	136	161	-	117	142	-	136	161	-
20	140	165	190	120	145	170	89	114	139	153	178	203	132	157	182	153	178	203
25	151	176	201	129	154	179	91	116	141	162	187	212	141	166	191	162	187	212
32	160	185	210	138	163	188	97	122	147	172	197	222	145	170	195	157	182	207
40	163	188	213	140	165	190	97	122	147	175	200	225	148	173	198	161	186	211

Bore/Symbol	B	C	C1	D	D1	E	E1	F	G	G1	H	I	J	K	L
8	28	12	12	10	5.5	10	5.5	6	10	5.5	12	12	6	M4x0.7	M12x1.25
10	28	12	12	10	5.5	10	5.5	6	10	5.5	12	12	6	M4x0.7	M12x1.25
12	38	17	17	10	6	10	6	9	10	6	16	17	5	M6xl	M16x1.5
16	37	19	19	10.5	6	10.5	6	9	10.5	6	16	16	5	M6xl	M16x1.5
20	43	21	21	14	7.5	14	7.5	9	14	7.5	20	18	6	M8x1.25	M22x1.5
25	50	21	21	15	8	15	8	12	15	8	22	22	6	M10x1.25	M22x1.5
32	48	27	12	17	8.5	17	8.5	15	17	8.5	22	18	6	M10x1.25	M27x2
40	51	27	14	16	8	16	8	15	16	8	23	20	8	M14x1.5	M33x2

Bore/Symbol	M	N	O	P	P1	Q	R	S1	S2	T	T1	X	V	W	Y
8	6	16	10	17	4	8	12	15	15	7	17	M5x0.8	4	9.3
10	6	16	10	17	4	8	12	15	15	7	17	M5x0.8	4	9.3	-
12	6	22	14	21	6	12	16	19	19	10	24	M5x0.8	6	14	5
16	6	21	13	21	6	12	16	19	19	10	24	M5x0.8	6	15.5	5
20	7	23	13	30	8	16	22	27	28.5	14	29	G1/8	8	17.5	6
25	7	28	11	30	8	16	22	27	28.5	17	29	G1/8	10	17.5	8
32	9	26	12	38	10	20	27	35	36.5	17	36	G1/8	12	8	10
40	9	28	12	45	10	20	33	42	43.5	22	45	G1/4	16	10	14

Overall Dimension

Dimension

Symbol	A			A11			A2			A3			A4			A5
Bore/Stroke	0-50	50-100	100-150	0-50	50-100	100-150	0-50	50-100	100-150	0-50	50-100	100-150	0-50	50-100	100-150	0-50	50-100	100-150
8	101	-	-	89	-	-	71	-	-	111	-	-	99	-	-	111	-	-
10	101	-	-	89	-	-	71	-	-	111	-	-	99	-	-	111	-	-
12	116	-	-	99	-	-	75	-	-	130	-	-	113	-	-	130	-	-
16	123	148	-	107	132	-	80	105	-	136	161	-	117	142	-	136	161	-
20	140	165	190	120	145	170	89	114	139	153	178	203	132	157	182	153	178	203
25	151	176	201	129	154	179	91	116	141	162	187	212	141	166	191	162	187	212
32	160	185	210	138	163	188	97	122	147	172	197	222	145	170	195	157	182	207
40	163	188	213	140	165	190	97	122	147	175	200	225	148	173	198	161	186	211

Bore/Symbol	B	C	C1	D	D1	E	E1	F	G	G1	H	I	J	K	L
8	28	12	12	10	5.5	10	5.5	6	10	5.5	12	12	6	M4x0.7	M12x1.25
10	28	12	12	10	5.5	10	5.5	6	10	5.5	12	12	6	M4x0.7	M12x1.25
12	38	17	17	10	6	10	6	9	10	6	16	17	5	M6x1	M16x1.5
16	37	19	19	10.5	6	10.5	6	9	10.5	6	16	16	5	M6x1	M16x1.5
20	43	21	21	14	7.5	14	7.5	9	14	7.5	20	18	6	M8x125	M22x1.5
25	50	21	21	15	8	15	8	12	15	8	22	22	6	M10x1.25	M22x1.5
32	48	27	12	17	8.5	17	8.5	15	17	8.5	22	18	6	M10x1.25	M27x2
40	51	27	14	16	8	16	8	15	16	8	23	20	8	M14x1.5	M33x2

Bore/Symbol	M	N	O	P	P1	Q	R	S1	S2	T	T1	X	V	W	Y
8	6	16	10	17	4	8	12	15	15	7	17	M5x0.8	4	9.3
10	6	16	10	17	4	8	12	15	15	7	17	M5x0.8	4	9.3	-
12	6	22	14	21	6	12	16	19	19	10	24	M5x0.8	6	14	5
16	6	21	13	21	6	12	16	19	19	10	24	M5x0.8	6	15.5	5
20	7	23	13	30	8	16	22	27	28.5	14	29	G1/8	8	17.5	6
25	7	28	11	30	8	16	22	27	28.5	17	29	G1/8	10	17.5	8
32	9	26	12	38	10	20	27	35	36.5	17	36	G1/8	12	8	10
40	9	28	12	45	10	20	33	42	43.5	22	45	G1/4	16	10	14

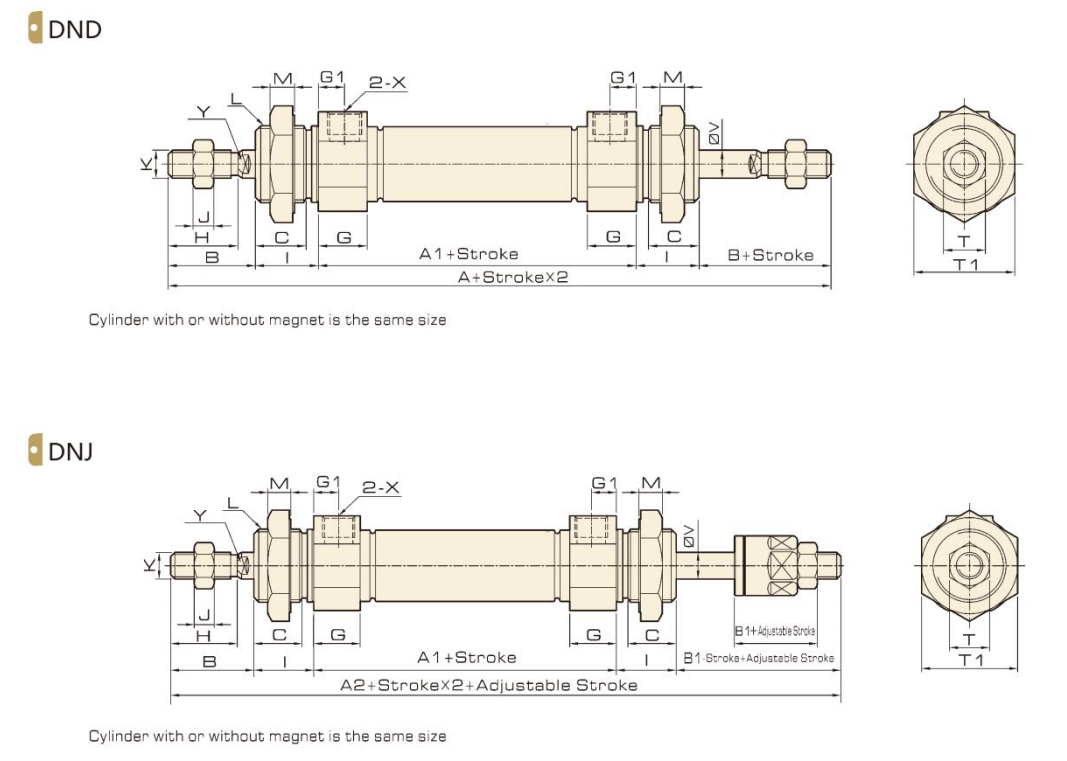

Overall Dimension

Dimension

Bore\Symbol	A	A1	A2	B	B1	C	D	G	G1	H	I	J	K	L	M	T	T1	V	X
8	102	46	100.5	16	14.5	9.3	-	10	5.5	12	12	6	M4x0.7	M12x1.25	6	7	17	4	M5x0.8
10	102	46	100.5	16	14.5	9.3	-	10	5.5	12	12	6	M4x0.7	M12x1.25	6	7	17	4	M5x0.8
12	126	50	126	21	21	14	5	10	6	16	17	5	M6x1	M16x1.5	6	10	24	6	M5x0.8
16	129	55	129	21	21	13	5	10.5	6	16	16	5	M6x1	M16x1.5	6	10	24	6	M5x0.8
20	150	64	150	27	25	14.5	6	14	7.5	20	18	6	M8x1.25	M22x1.5	7	14	29	8	G1/8
25	166	66	165	28	27	18.5	8	15	8	22	22	6	M10x1.25	M22x1.5	7	17	29	10	G1/8
32	168	72	165	30	27	14	10	17	8.5	22	18	6	M10x1.25	M27x2	9	17	36	12	G1/8
40	174	72	172	31	29	16	14	16	8	23	20	8	M14x1.5	M33x2	9	22	45	16	G11/4
