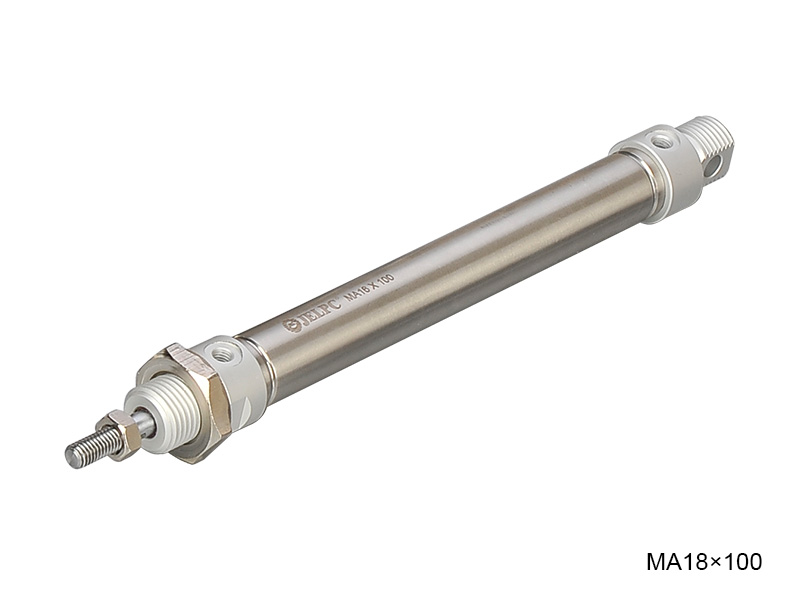

MA Series Stainless Steel Mini Cylinder

MA Series Stainless Steel Mini Cylinder

Features:
1. Improving for adapting wide range applications, using precise polishing of piston rod, more sense of products quality and longer life of front seal.
2. Optima design and improve the production efficiency.
3. Combined with enterprise color planning and new structure design, stainless steel series cylinder integrated as the semicircular groove cramping.
4. Using embedded gasket, increase the pressured area of pistons after collision.

  • Product parameters
  • Product size

Internal Structure

Parts

Number Name Number Name
1  Piston rod 9  O ring
2  Hexagon nut 10  Piston seal
3  Shaft seal 11  Anti-friction seal
4  Hexagon nut 12  Magnet
5  DU bearing 13  Piston
6  Front cover 14  Socket head cap screw
7  Anti-collision gasket 15  Back cover
8  Barrel

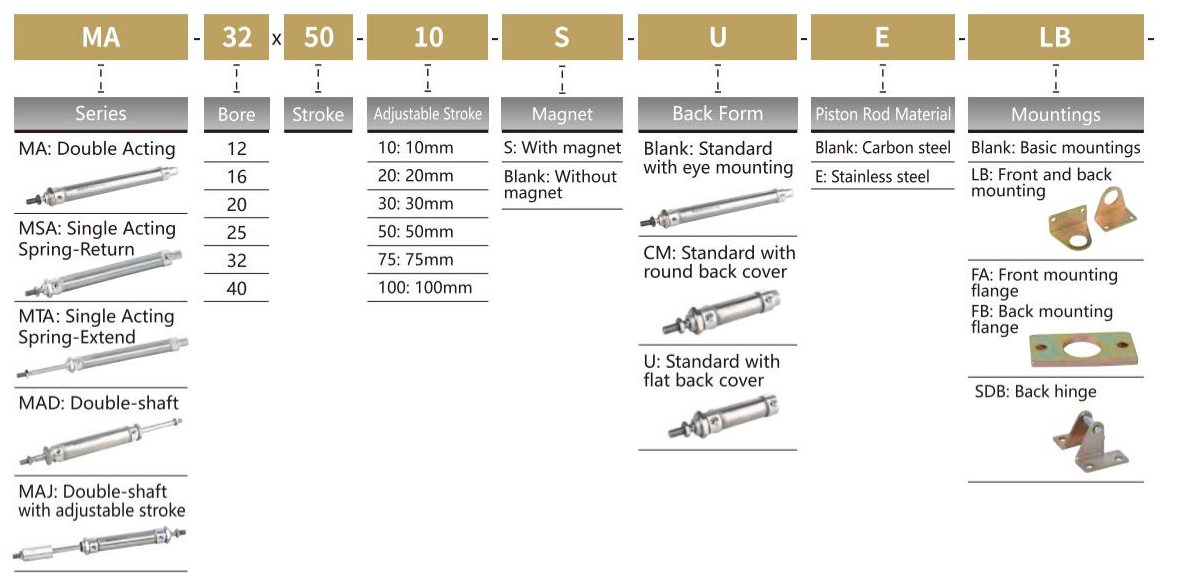

Ordering Code

*Sensor model JEL-01, Strap type "SKB-Bore" , please refer to P173 forthe specific orderingcode.


Specification

Bore (mm) 12  16  20  25  32  40
Operation Double Acting or Single Acting
Working Medium Air
Mountings Basic  LB FA FB SDB
Operating Pressure Range 0.1~1.0MPa
Proof Pressure 1.5 MPa
Operating Temperature Range -20~80℃
Operating Speed Range 50~800mm/s
Cushion Gasket Cushion
Port Size M5×0.8 G1/8"

Stroke

Bore Standard Stroke Max.Stroke
MA 12  15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 200
MA/MAC 16/20/25/32/40 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 275 300 500
MAD/MAJ 12  15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 250
MAD/MAJ
MACD/MACJ		 16/20/25/32/40 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 275 300 300
MSA/MTA 12  15 20 25 30 40 50 50
16  15 20 25 30 40 50 60 75 80 100 100
25/32/40 15 20 25 30 40 50 60 75 80 100 125 150 150
