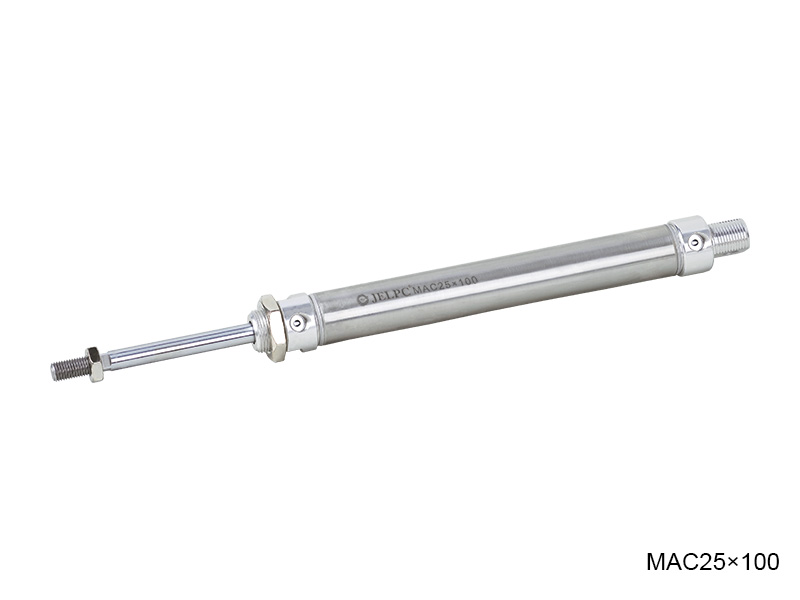

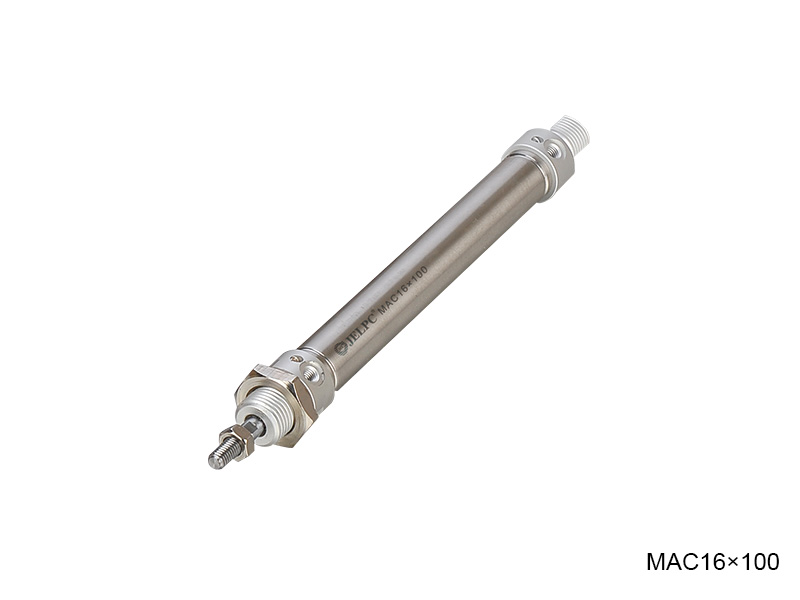

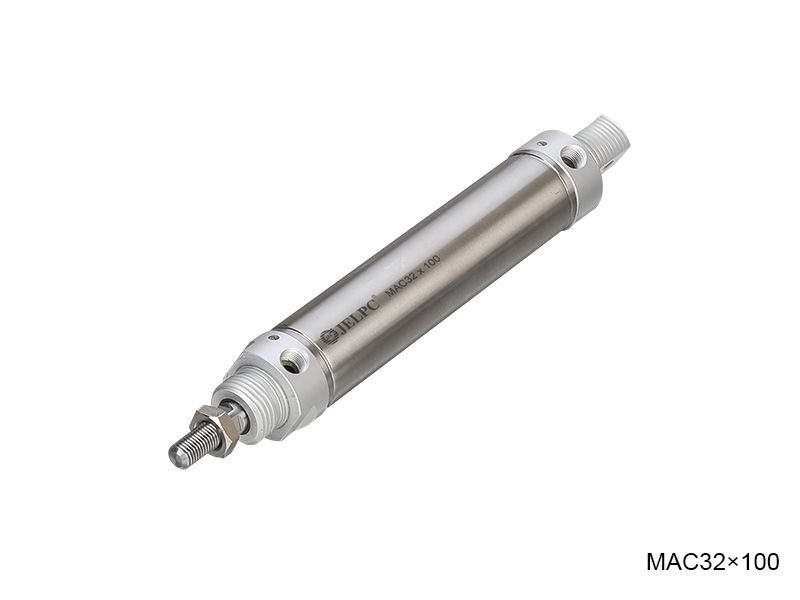

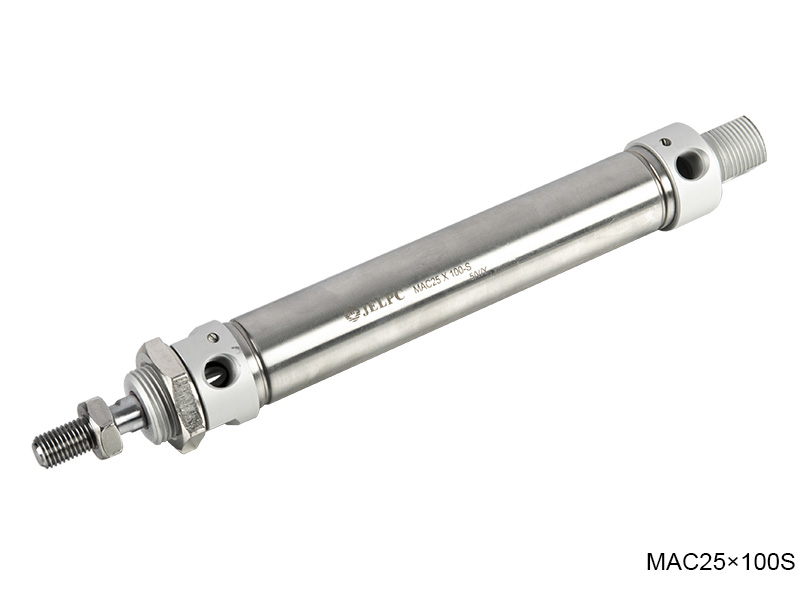

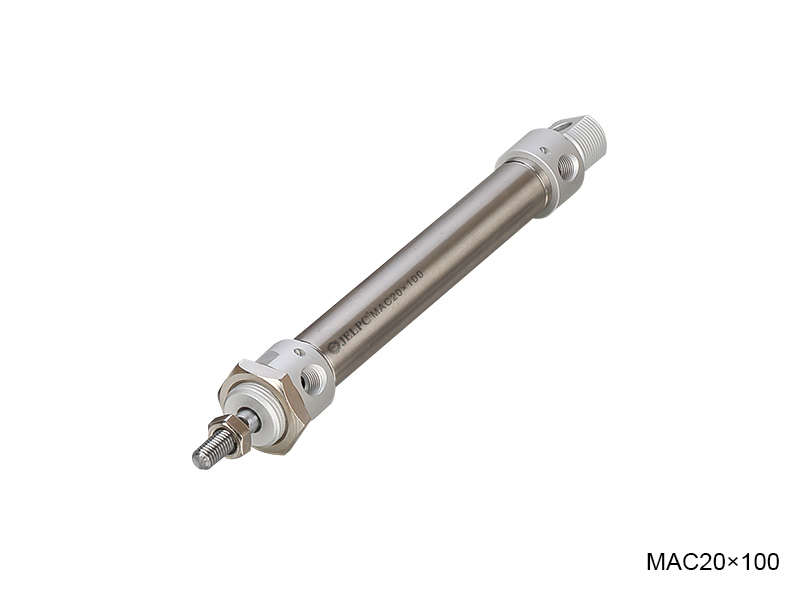

MAC Series Stainless Steel Mini Cylinder

Features:
1. Improving for adapting wide range applications, using precise polishing of piston rod, more sense of products quality and longer life of front seal.
2. Optima design and improve the production efficiency.
3. Combined with enterprise color planning and new structure design stainless steel series cylinder integrated as the semicircular groove cramping.
4. Change processing technology of cylinder cushion structure to ensure buffering function in stabilization.
5. Improved the range of buffering fine-tune, enable customers to more easily adjust the buffer throttling speed.

Product parameters
Product size

Internal Structure

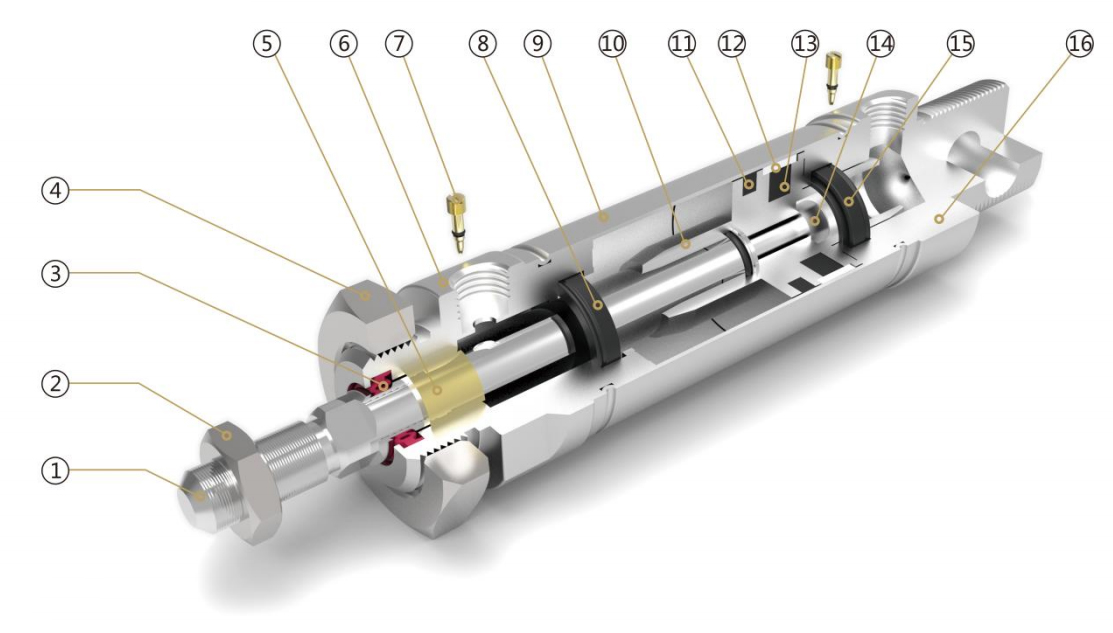

Parts

Number	Name	Number	Name
1	Piston rod	9	Barrel
2	Hexagon nut	10	Piston
3	Shaft seal	11	Piston seal
4	Hexagon nut	12	Anti-friction seal
5	DU bearing	13	Magnet
6	Front cover	14	Socket head cap screw
7	Anti-collision gasket	15	Cushion
8	Cushion	16	Back cover

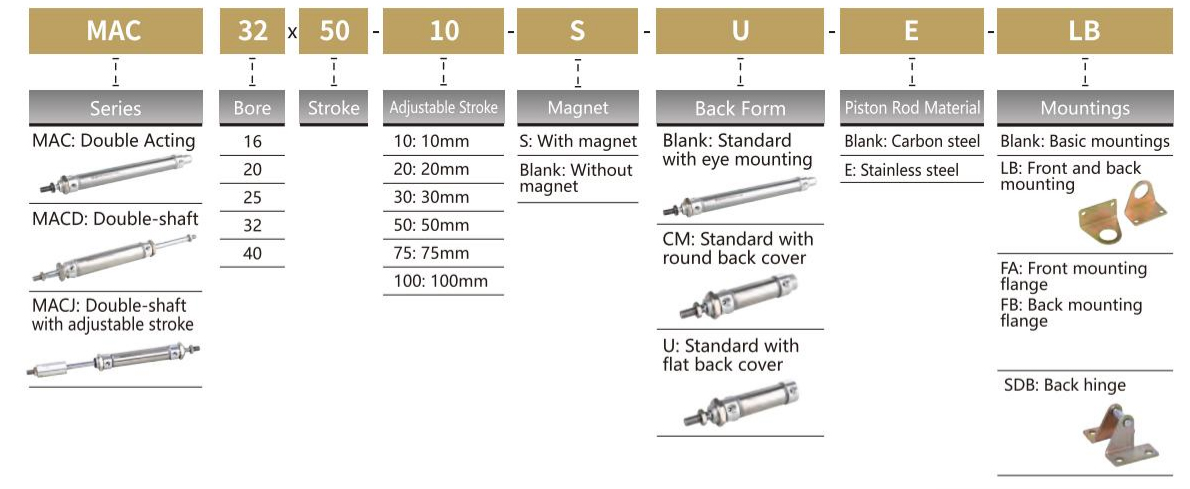

Ordering Code

*Sensor model JEL-01, Straptype "SKB-Bore" , please referto P173 forthe specific ordering code.

Specification

Bore (mm)	16	20	25	32	40
Operation	Double Acting
Working Medium	Air
Mountings	Basic LB FA FB SDB
Operating Pressure Range	0.1 〜1.0MPa
Proof Pressure	1.5 MPa
Operating Temperature Range	-20 〜80℃
Operating Speed Range	50-800mm/s
Cushion	Adjustable Air Cushion
Port Size	M5X0.8	G1/8"

Stroke

Bore		Standard Stroke	Max. Stroke
MAC	16/20/25/32/40	15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 275 300	500
MACD/MACJ	16/20/25/32/40	15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 275 300	300

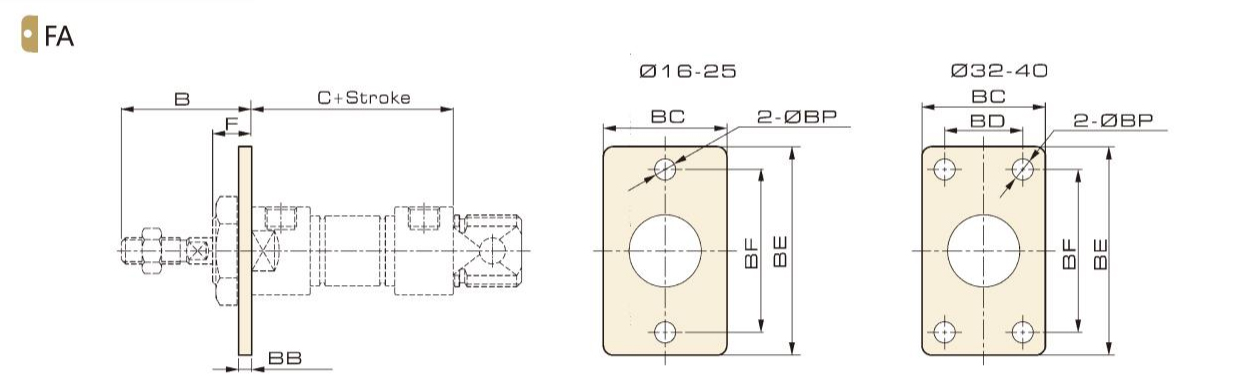

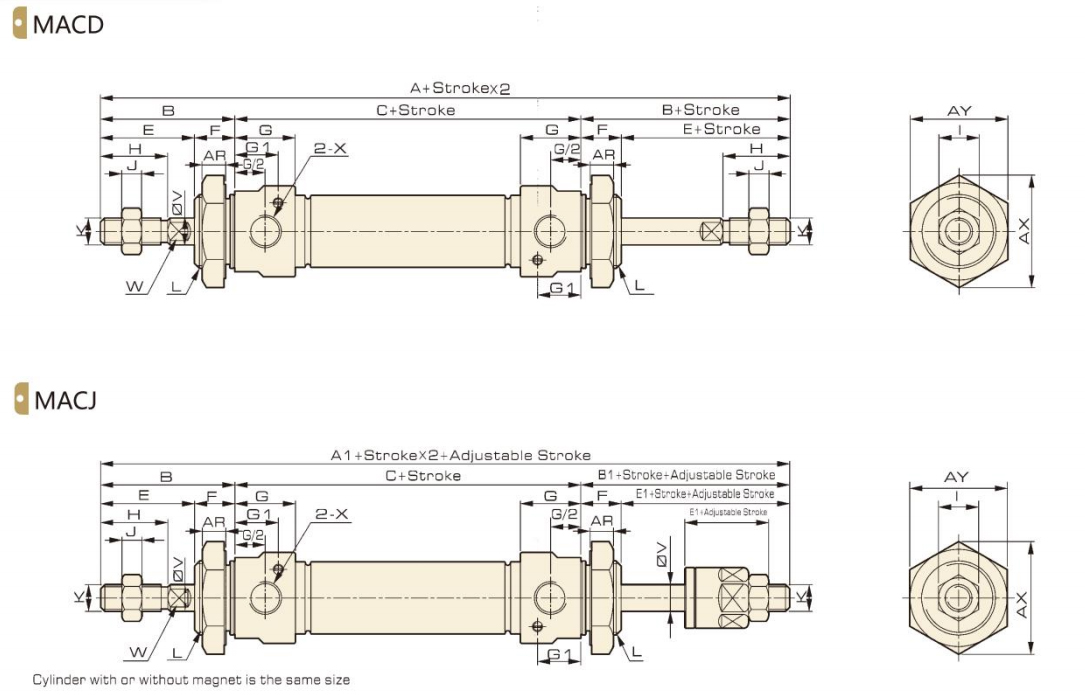

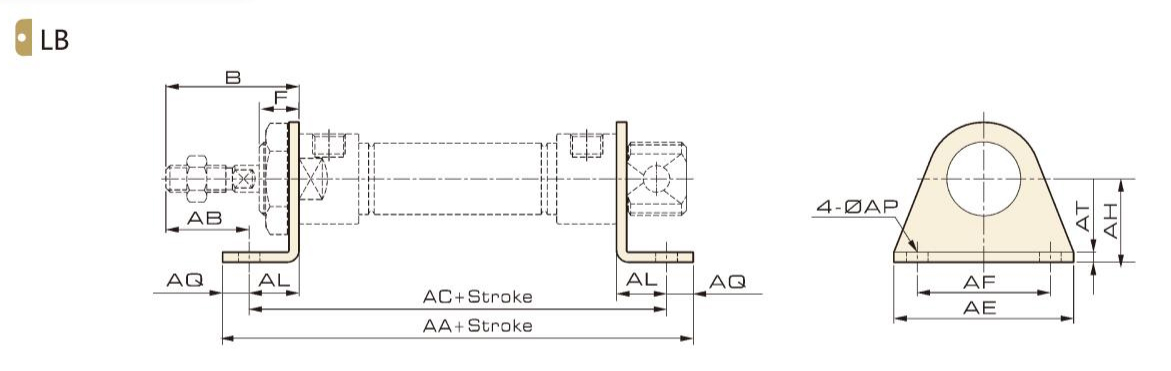

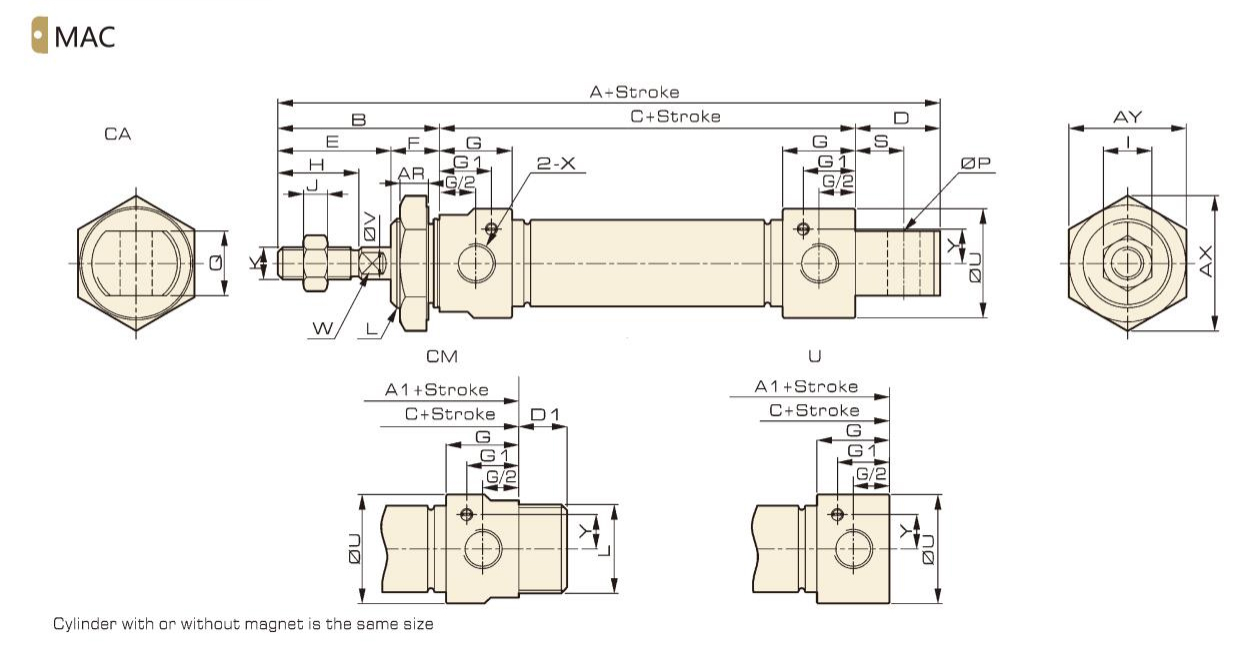

Overall Dimension

Dimension

Bore Symbol	A	A1	B	C	D	D1	E	F	G	G1	H	I	J	K
16	114	98	38	60	16	12	22	16	12	8	16	10	5	M6x1
20	137	116	40	76	21	12	28	12	18	13	20	12	6	M8x1.25
25	141	120	44	76	21	14	30	14	16	11	22	17	6	M10x1.25
32	147	120	44	76	27	14	30	14	16	11.5	22	17	6	M10x1.25
40	150	123	46	77	27	14	32	14	16.7	12	24	19	7	M12x1.25

Bore Symbol	L	P	Q	S	U	V	W	X	AR	AX	AY	Y
16	M16×1.5	6	12	9	21	6	5	M5×0.8	6	27.8	24	6
20	M22×1.5	8	16	12	27	8	6	G1/8	7	33.5	29	8.5
25	M22×1.5	8	16	12	30	10	8	G1/8	7	33.5	29	9.5
32	M24×2	10	16	15	35	12	10	G1/8	9	37	32	11.5
40	M30×2	12	20	15	42	16	14	G1/8	9	46	40	14

Overall Dimension

Dimension

Bore Symbol	A	A1	B	B1	C	E	E1	F	G	G1	H	I	J	K	L	U	V	W	X	AR	AX	AY	Y
16	136	135	38	37	60	22	21	16	12	8	16	10	5	M6×1	M16×1.5	21	6	5	M5×0.8	6	27.8	24	6
20	156	153	40	37	76	28	25	12	18	13	20	12	6	M8×1.25	M22×1.5	27	8	6	G1/8	7	33.5	29	8.5
25	164	161	44	41	76	30	27	14	16	11	22	17	6	M10×1.25	M22×1.5	30	10	8	G1/8	7	33.5	29	9.5
32	164	161	44	41	76	30	27	14	16	11.5	22	17	6	M10×1.25	M24×2	35	12	10	G1/8	9	37	32	11.5
40	169	166	46	42	77	32	28	14	16.7	12	24	19	7	M12×1.25	M30×2	42	16	14	G1/8	9	46	40	14

Overall Dimension

Dimension

Symbol	B	C(MA Series)	C(MSA/MTA Series)			BB	BC	BD	BE	BF	BP	F
Bore/Stroke	B	C(MA Series)	0-50	50-100	100-150	BB	BC	BD	BE	BF	BP	F
16	38	60	85	110		3	26		52	40	5.5	16
20	40	76	101	126	151	4	38	-	64	50	6.5	12
25	44	76	101	126	151	4	38	-	64	50	6.5	14
32	44	76	101	126	151	4	47	33	72	58	6.5	14
40	46	77	102	127	152	4	50	36	84	70	6.5	14

Overall Dimension

Dimension

Symbol	B	AA(MA Series)	AA(MSA/MTA Series)			AB	AC (MAL Series)	AC(MSAL/MTAL Series)			AE	AF	AH	AL	AP	AQ	AT	F
Bore/Stroke	B	AA(MA Series)	0-50	50-100	100-150	AB	AC (MAL Series)	0-50	50-100	100-150	AE	AF	AH	AL	AP	AQ	AT	F
16	38	98	123	148	-	25	86	111	136	-	44	32	20	13	5.5	6	3	16
20	40	122	147	172	197	25	106	131	156	181	54	40	25	15	6.5	8	3	12
25	44	122	147	172	197	29	106	131	156	181	54	40	25	15	6.5	8	3	14
32	44	142	167	192	217	19	126	151	176	201	59	45	32	25	6.5	8	4	14
40	46	143	168	193	218	21	127	152	177	202	64	50	36	25	6.5	8	4	14

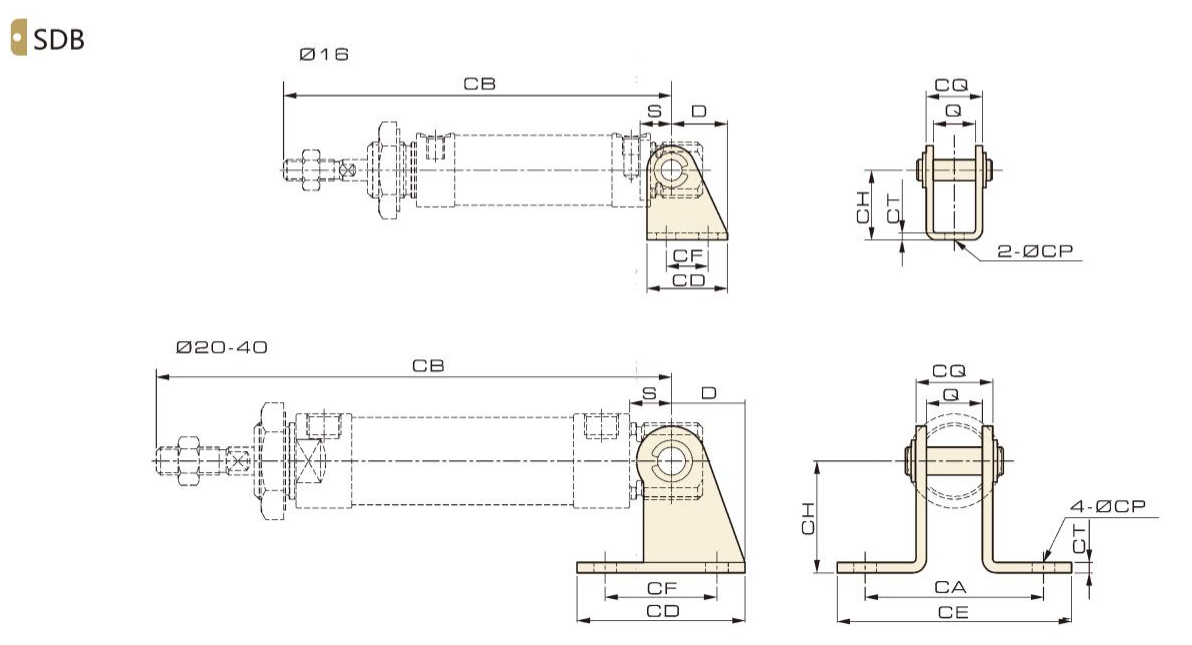

Overall Dimension

Dimension

Symbol	D	S	Q	CA	CB(MA Series)	CB (MSA/MTA Series)			CD	CE	CF	CH	CT	CP	CQ
Bore/Stroke	D	S	Q	CA	CB(MA Series)	0-50	50-100	100-150	CD	CE	CF	CH	CT	CP	CQ
16	16	9	12	-	107	132	157	-	23	-	12	20	2	5.5	16
20	21	12	16	51	128	153	178	203	48	67	32	32	3	6.5	22
25	21	12	16	51	132	157	182	207	48	67	32	32	3	6.5	22
32	27	15	16	51	135	160	185	210	52	67	36	36	4	6.5	24
40	27	15	20	55	138	163	188	213	56	71	40	40	4	6.5	28

Overall Dimension

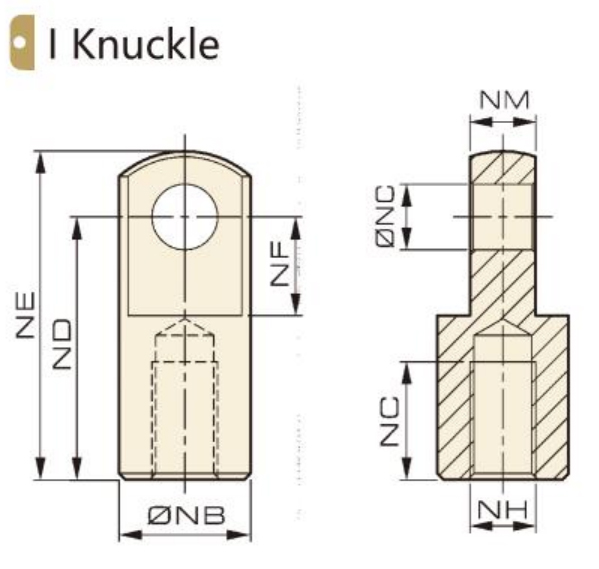

Dimension

Model	NB	NC	ND	NE	NF	NG	NH	NM	Bore	16	20	25	32	40
F-M04070I	10	4	16	21	7	6	M4x0.7	4	Adapted fitting form
F-M06100I	12	5	21	28	8.5	8	M6x1	6		√
F-M08125I	16	8	30	40	11	15	M8x1.25	8			√
F-M10125I	20	10	40	50	15	18	M10x1.25	10				√	√
F-M12125I	24	12	48	62	24	18	M12x1.25	12						√
