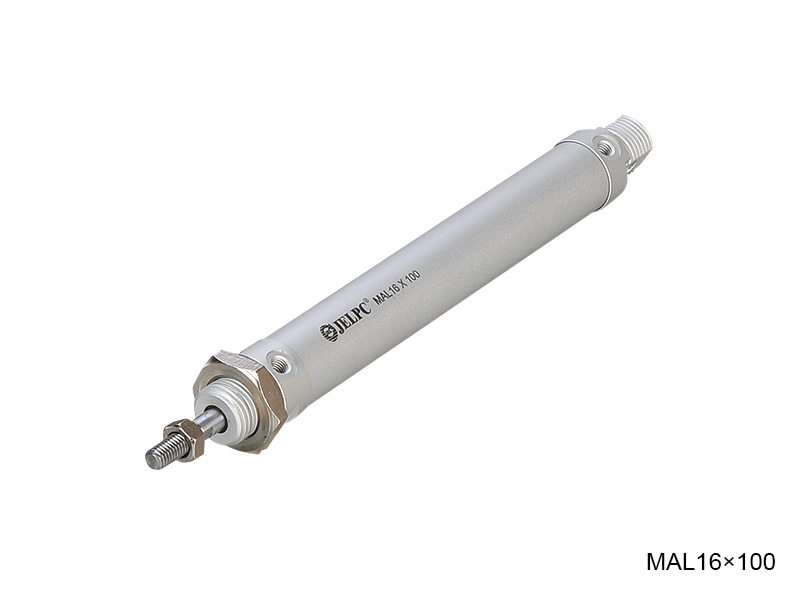

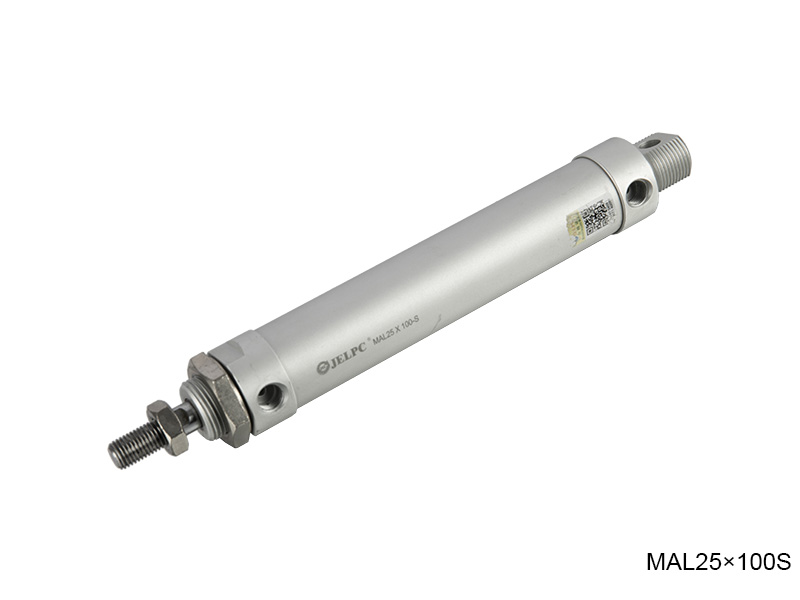

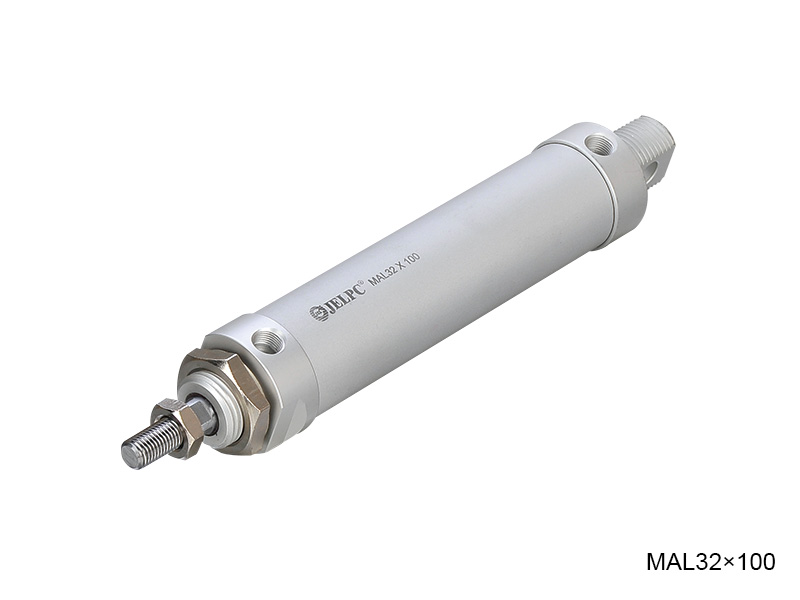

MAL Series Aluminum Alloy Mini Cylinder

MAL Series Aluminum Alloy Mini Cylinder

Features:
1. Improving for adapting wide range applications, using precise polishing of piston rod, more sense of products quality and longer life of front seal.
2. Optima design and improve the production efficiency.
3. Combined with enterprise color planning and new structure design.
4. Using embedded gasket, increase the pressured area of pistons after collision.

  • Product parameters

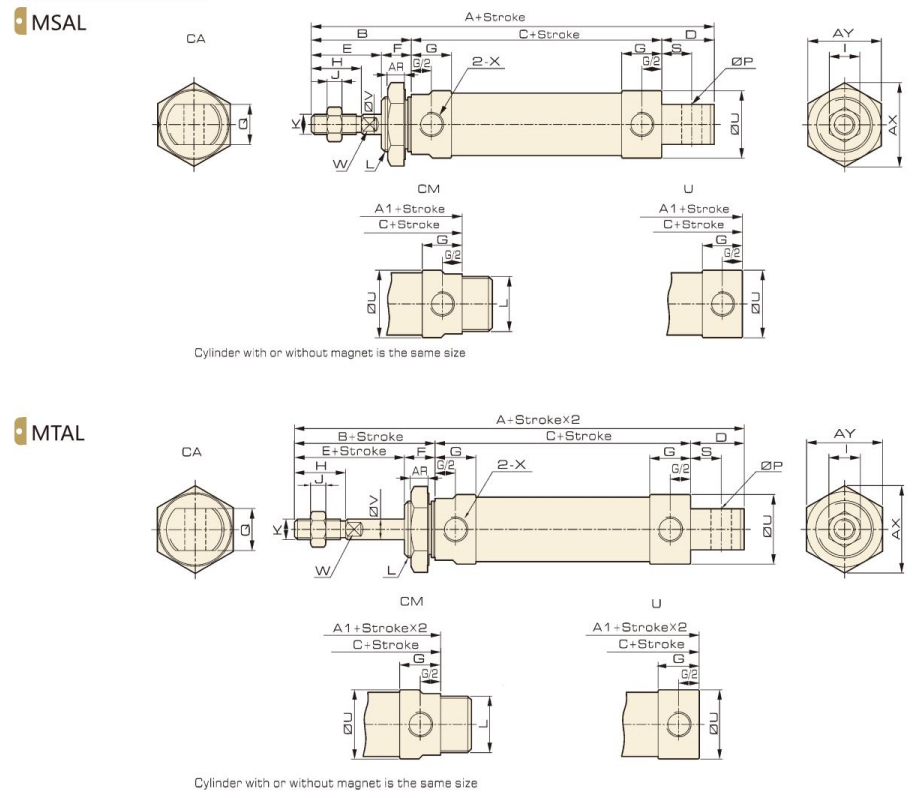

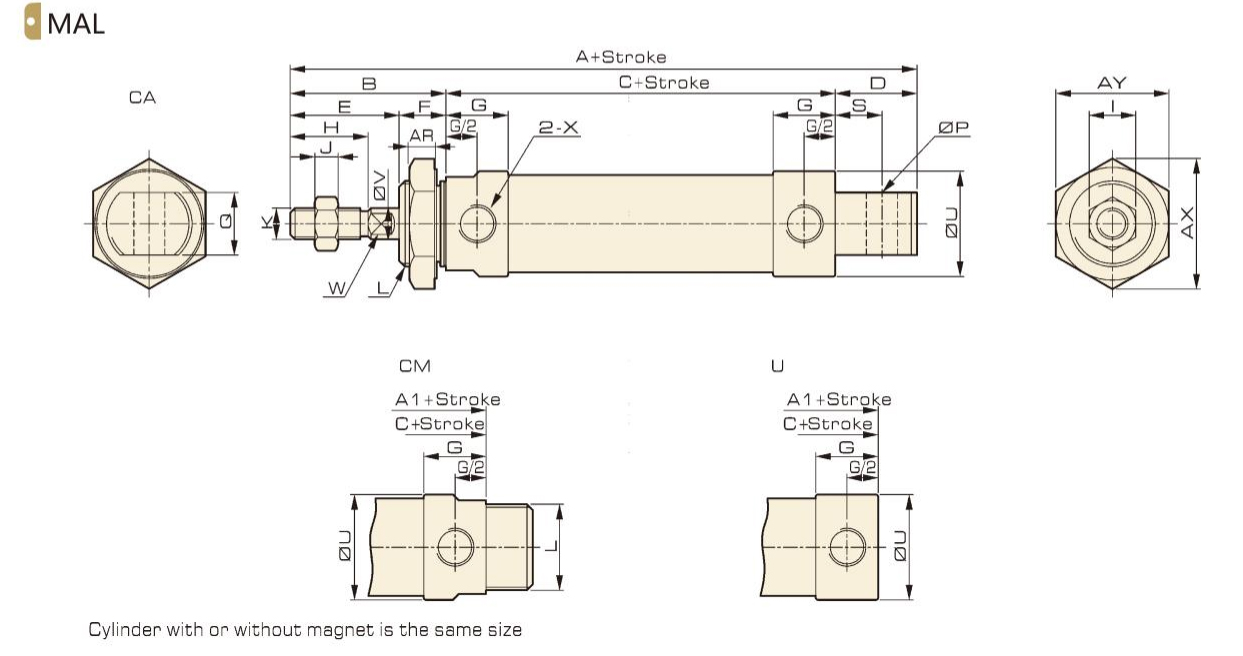

  • Product size

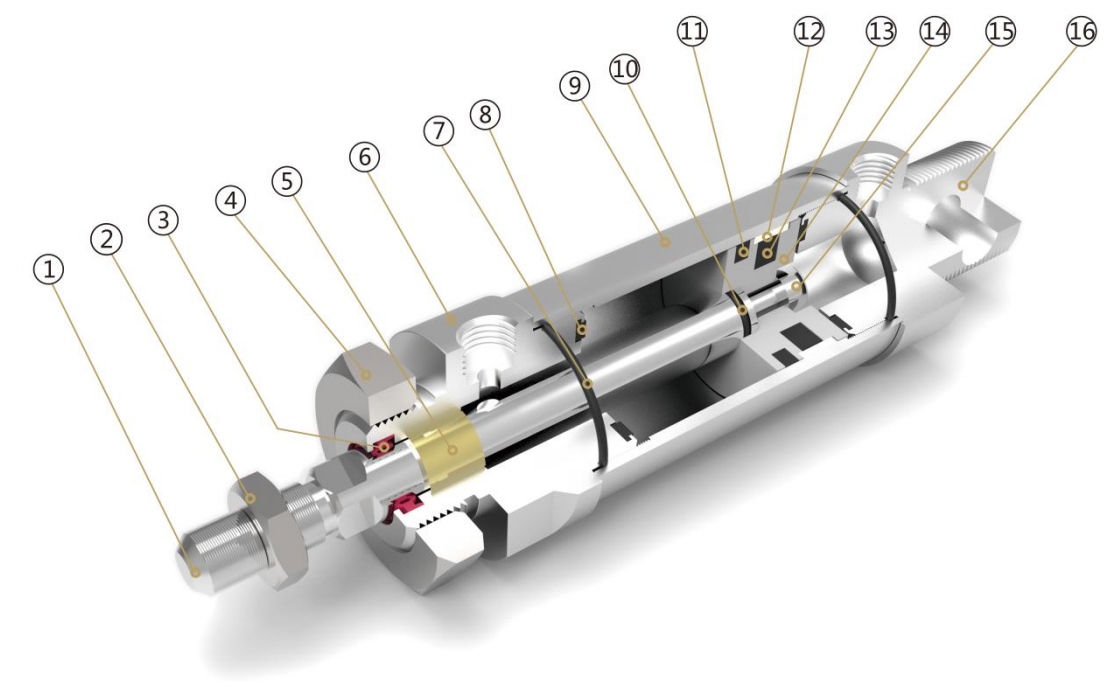

Internal Structure

Parts

Number Name Number Name
1  Piston rod 9  Barrel
2  Hexagon nut 10  O ring
3  Shaft seal 11  Piston seal
4  Hexagon nut 12  Anti-friction seal
5  DU bearing 13  Magnet
6  Front cover 14  Piston
7  O ring 15  Socket head cap screw
8  Anti-collision gasket 16  Back cover

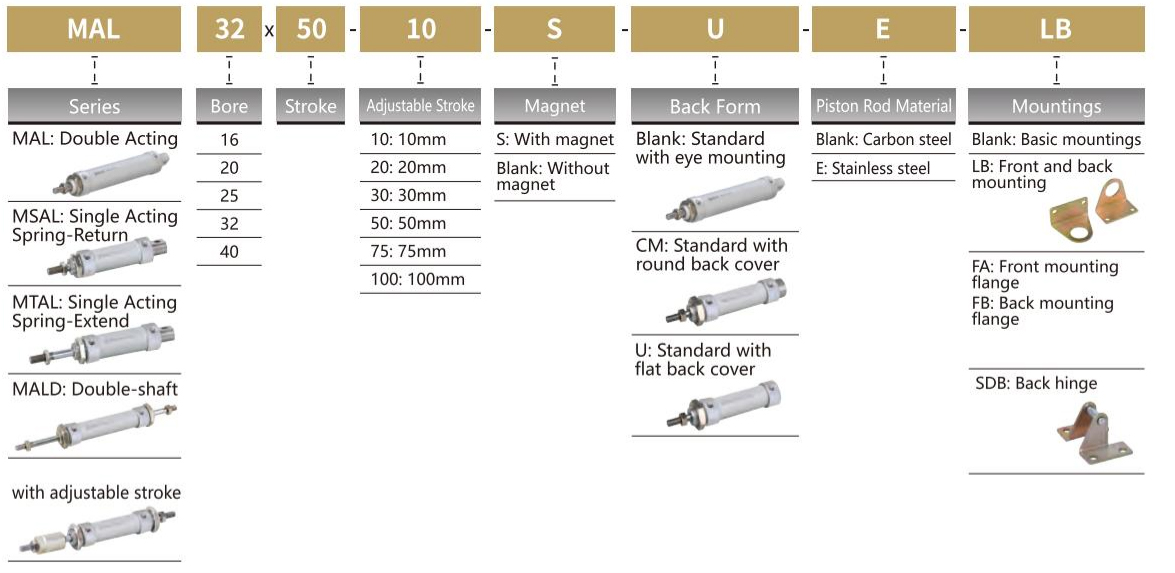

Ordering Code

*Sensor model JEL-01, Straptype "SKL-Bore" , please referto P173 for the specific ordering code.


Specification

Bore (mm)

16

20

25

32

40

Operation

Double Acting or Single Acting

Working Medium

Air

Mountings

Basic LB FA FB SDB

Operating Pressure Range

0.1 〜1.0MPa

Proof Pressure

1.5 MPa

Operating Temperature Range

-20 〜80℃

Operating Speed Range

50-800mm/s

Cushion

Gasket Cushion

Port Size

M5X0.8

G1/8"

G1/4"

Stroke

Bore Standard Stroke Max. Stroke
MAL/MALC 16/20/25/32/40 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 275 300 500
MALD/MALJ
MALCD/MALCJ		 16/20/25/32/40 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 275 300 300
MSAL/MTAL 16 15 20 25 30 40 50 60 75 80 100 100
20/25/32/40 15 20 25 30 40 50 60 75 80 100 125 150 150
