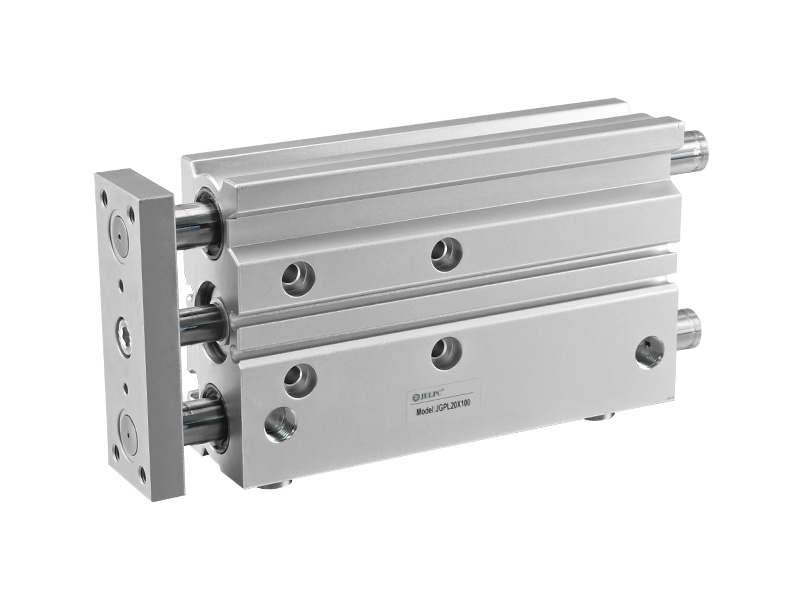

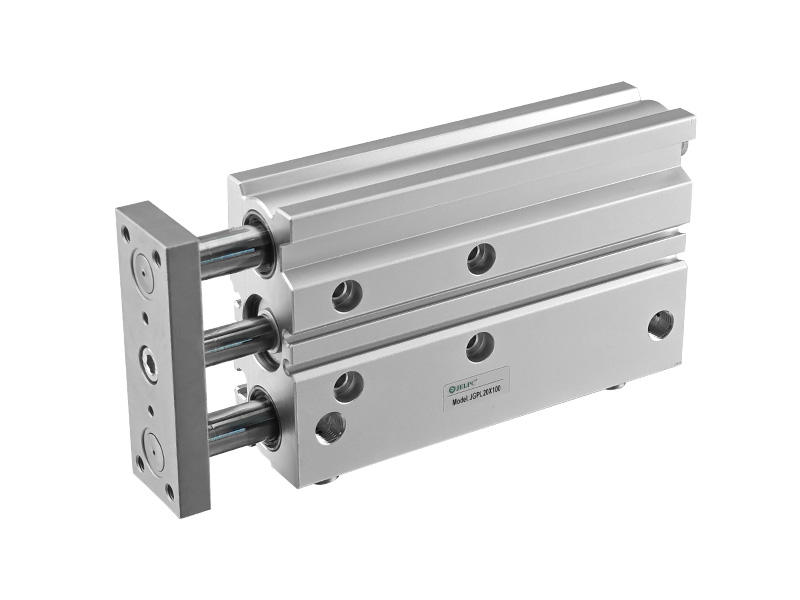

JGP Series Compact Guide Cylinder

Features:

1. Small axial size and more compact structure

2. Strong lateral load resistance

3. Strongloadcapacityandtorque force

4. Two ways to connect the pipes, convenient installation and use

Product parameters
Product size

Specification

Bore Size	12	16	20	25	32	40	50	63	80
Operation	Double acting
Working Medium	Air
Proof pressure	1.5MPa
Max.Operating Pressure	1.0MPa
Min. Operating Pressure	0.12MPa		0.1MPa
Ambient And Fluid Temperature
Piston Velocity	50~500mm/s							50~400mm/s
Cushing	Rubber cushion on both ends
Lubrication	No need
Stroke Length Tolerance	^+1.5₀mm

Cylinder Theoretical Refer To “Standard Stroke” Output Sheet

Bore Size(mm)	Piston Rod Size(mm)	Operating Direction		Piston Area(mm²)	Air Pressure(Mpa)
Bore Size(mm)	Piston Rod Size(mm)	Operating Direction		Piston Area(mm²)	0.1	0.2	0.3	0.4	0.5	0.6
12	6	Double acting	OUT	113.0	11.3	22.6	33.9	45.2	56.5	67.8
12	6	Double acting	IN	84.8	8.5	17.0	25.4	33.9	42.4	50.9
16	8	Double acting	OUT	201.0	20.1	40.2	60.3	80.4	100.5	120.6
16	8	Double acting	IN	150.7	15.1	30.1	45.2	60.3	75.4	90.4
20	10	Double acting	OUT	314.0	31.4	62.8	94.2	125.6	157.0	188.4
20	10	Double acting	IN	235.5	23.6	47.1	70.7	94.2	117.8	141.3
25	12	Double acting	OUT	490.6	49.1	98.1	147.2	196.3	245.3	294.4
25	12	Double acting	IN	377.6	37.8	75.5	113.3	151.0	188.8	226.6
32	16	Double acting	OUT	803.8	80.4	160.8	241.2	321.5	401.9	482.3
32	16	Double acting	IN	602.9	60.3	120.6	180.9	241.2	301.4	361.7
40	16	Double acting	OUT	1256.0	125.6	251.2	376.8	502.4	628.0	753.6
40	16	Double acting	IN	1055.0	105.5	211.0	613.5	422.0	527.5	633.0
50	20	Double acting	OUT	1962.5	196.3	392.5	588.8	785.0	981.3	1177.5
50	20	Double acting	IN	1648.5	164.9	329.7	494.6	659.4	824.3	989.1
63	20	Double acting	OUT	3115.7	311.6	623.1	934.7	1246.3	1557.8	1869.4
63	20	Double acting	IN	2801.7	280.2	560.3	840.5	1120.7	1400.8	1681.0
80	25	Double acting	OUT	5024.0	502.4	1004.8	1507.2	2009.6	2512.0	3014.4
80	25	Double acting	IN	4533.4	453.3	906.7	1360.0	1360.0	2266.7	2720.0

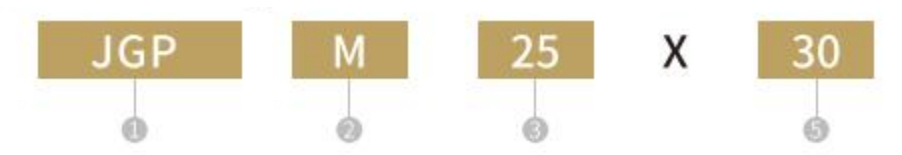

Ordering Code

Stroke

①	② Bearing Type		③Bore Size				⑤ Stroke
Compact Guide Cylinder	M	Slide bearing	12	12mm	40	40mm	Refer to "Standard Stroke"
	M	Slide bearing	16	16mm	50	50mm
	L	Linear bearing	20	20mm	63	63mm
			25	25mm	80	80mm
			32	32mm

[Note]Sensor please refer to P173 for the specific ordering code.

Stroke/Sensor

Bore Size(mm)	Standard Stroke	Sensor
12,16	10,20,30,40,50,75,100,125,150,175,200,250	JEL-07R JEL-07D
20,25	20,30,40,50,75,100,125,150,175,200,250,300,350,400
32~80	25,50,75,100,125,150,175,200,250,300,350,400

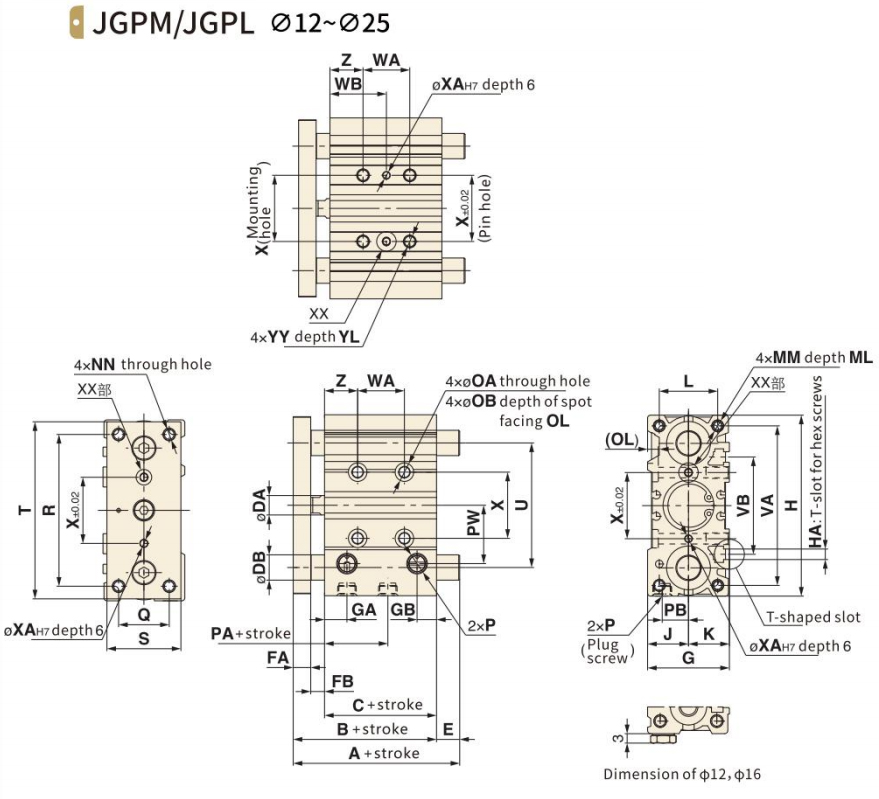

Overall Dimension

Dimension Of XX

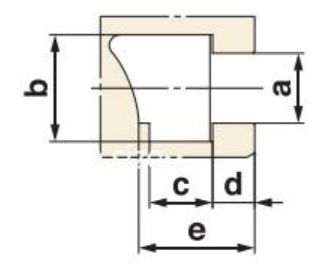

Dimension Of T-Shaped Slot

Bore Size	a	b	C	d	e
12	4.4	7.4	3.7	2	6.2
16	4.4	7.4	3.7	2.5	6.7
20	5.4	8.4	4.5	2.8	7.8
25	5.4	8.4	4.5	3	8.2

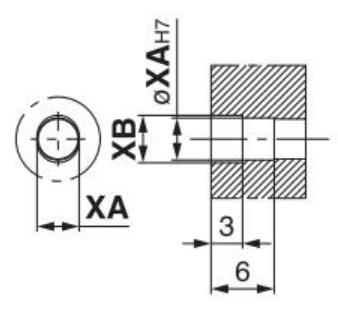

JGPM, JGPL Common Dimensions

Bore Size(mm)	Standard Stroke(mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	P	PA
12	10,20,30,40,50,75,100,125,150,175,200,250	42	29	6	7	6	26	10	7	58	M4	13	13	18	M4×0.7	10	M4×0.7	4.3	8	4.5	M5×0.8	13
16	10,20,30,40,50,75,100,125,150,175,200,250	46	33	8	7	6	30	10.5	7.5	64	M4	15	13	22	M5×0.8	12	M5×0.8	4.3	8	4.5	M5×0.8	14.5
20	20,30,40,50,75,100,125,150,175,200,250,300,350,400	53	37	10	8	8	36	11.5	9	83	M5	18	18	24	M5×0.8	13	M5×0.8	5.4	9.5	5.5	Rc1/8	13.5
25	20,30,40,50,75,100,125,150,175,200,250,300,350,400	53.5	37.5	12	9	7	42	11.5	10	93	M5	21	21	30	M6×1.0	15	M6×1.0	5.4	9.5	5.5	Rc1/8	12.5

Bore Size (mm)	PB	PW	Q	R	S	T	U	VA	VB	WA					WB					X	XA	XB	YY	YL	Z
Bore Size (mm)	PB	PW	Q	R	S	T	U	VA	VB	Below 30st	Over 30st Below 100st	Over 100st Below 200s	Over 200st Below 300st	Over 300st	Below 30st	Over 30st Below 100s	Over 100s Below 200st	Over 200st Below 300st	Over 300st	X	XA	XB	YY	YL	Z
12	8	18	14	48	22	56	41	50	37	20	40	110	200	-	15	25	60	105	-	23	3	3.5	M5×0.8	10	5
16	10	19	16	54	25	62	46	56	38	24	44	110	200	-	17	27	60	105	-	24	3	3.5	M5×0.8	10	5
20	10.5	25	18	70	30	81	54	72	44	24	44	120	200	300	29	39	77	117	167	28	3	3.5	M6×1.0	12	17
25	13.5	30	26	78	38	91	64	82	50	24	44	120	200	300	29	39	77	117	167	34	4	4.5	M6×1.0	12	17

JGPM (Slide Bearing) /A, DB, E Dimensions

Bore Size mm	A				DB	E
Bore Size mm	Below 50st	Over 50st Below 100st	Over 100st Below 200st	Over 200st	DB	Below 50st	Over 50st Below 100st	Over 100st Below 200st	Over 200st
12	42	60.5	82.5	82.5	8	0	18.5	40.5	40.5
16	46	64.5	92.5	92.5	10	0	18.5	46.5	46.5
20	53	77.5	77.5	110	12	0	24.5	24.5	57
25	53.5	77.5	77.5	109.5	16	0	24	24	56

JGPL (Ball Bearing) /A, DB, E Dimensions

Bore Size(mm)	A				DB	E
Bore Size(mm)	Below 50st	Over 50st Below 100St	Over 100st Below 200St	Over 2005t	DB	Below 50st	Over 50st Below 100st	Over100st Below 200st	Over 200st
12	43	55	84.5	84.5	6	1	13	42.5	42.5
16	49	65	94.5	94.5	8	3	19	48.5	48.5
20	59	76	100	117.5	10	6	23	47	64.5
25	65.5	81.5	100.5	117.5	13	12	28	47	64

Overall Dimension

Dimension Of XX

Dimension Of T-Shaped Slot

Bore Size	a	b	C	d	e
12	6.4	10.5	5.5	3.5	9.5
16	6.4	10.5	5.5	4	11
20	8.4	13.5	7.5	4.5	13.5
25	11	17.8	10	7	18.5

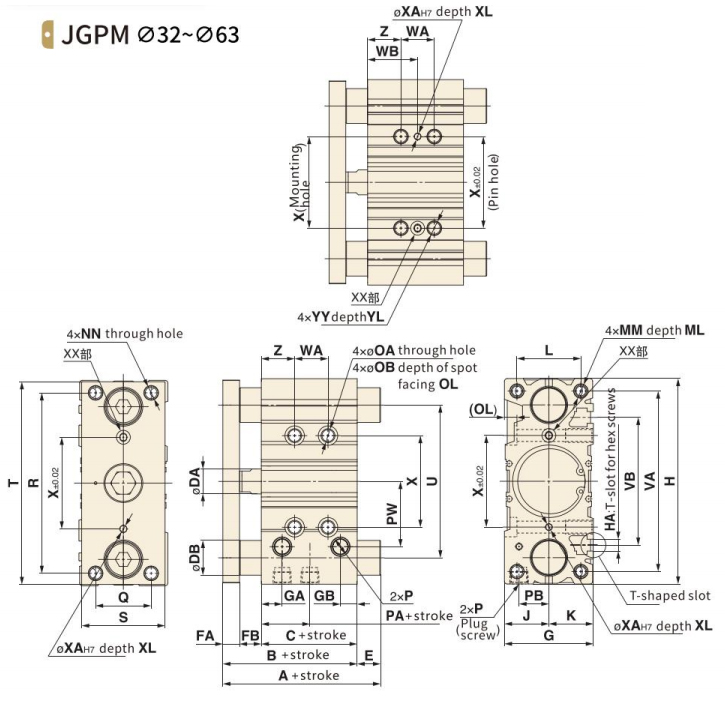

JGPM, JGPL Common Dimensions

Bore Size(mm)	Standard Stroke(mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	P	PA
32	25,50,75,100,125,150,175,200,250,300,350,400	59.5	37.5	16	10	12	48	12	9	112	M6	24	24	34	M8×1.25	20	M8×1.25	6.7	11	7.5	Rc1/8	6.5
40		66	44	16	10	12	54	15	12	120	M6	27	27	40	M8×1.25	20	M8×1.25	6.7	11	7.5	Rc1/8	13
50		72	44	20	12	16	64	15	12	148	M8	32	32	46	M10×1.5	22	M10×1.5	8.6	14	9	Rc1/4	9
63		77	49	20	12	16	78	15.5	13.5	162	M10	39	39	58	M10×1.5	22	M10×1.5	8.6	-	9	Rc1/4	13

Bore Size(mm)	PB	PW	Q	R	S	T	U	VA	VB	WA					WB					X	XA	XB	YY	YL	Z
Bore Size(mm)	PB	PW	Q	R	S	T	U	VA	VB	Below 25st	Over 25st Below 1005t	Over 100st Below 200st	Over 200st Below 300st	Over 300st	Below 25st	Over 25st Below 100st	Over 100st Below 200st	Over 200st Below 300st	Over 300st	X	XA	XB	YY	YL	Z
32	16	35.5	30	96	44	110	78	98	63	24	48	124	200	300	33	83	83	121	171	42	4	4.5	M8×1.25	16	21
40	18	39.5	30	104	44	118	86	106	72	24	48	124	200	300	34	84	84	122	172	50	4	4.5	M8×1.25	16	22
50	21.5	47	40	130	60	146	110	130	92	24	48	124	200	300	36	86	86	124	174	66	5	6	M10×1.5	20	24
63	28	58	50	130	70	158	124	142	110	28	52	128	200	300	38	88	88	124	174	80	5	6	M10×1.5	20	24

JGPM (Slide Bearing) /A, DB, E Dimensions

Bore Size (mm)	A			DB	E
Bore Size (mm)	Below 50st	Over 50st Below 200st	Over 200st	DB	Below 50st	Over 50st Below 200st	Over 200st
32	75	93.5	129.5	20	15.5	34	70
40	75	93.5	129.5	20	9	27.5	63.5
50	88.5	109.5	150.5	25	16.5	37.5	78.5
63	88.5	109.5	150.5	25	11.5	32.5	73.5

JGPL(Ball Bearing) /A, DB, E Dimensions

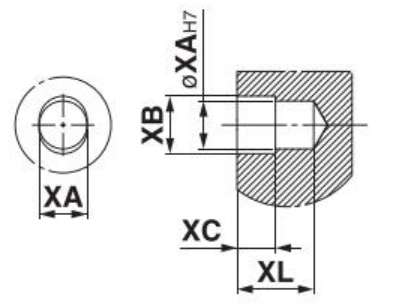

Bore Size(mm)	XC	XL
32	3	6
40	3	6
50	4	8
63	4	8

Overall Dimension

Dimension Of XX

Dimension Of T-Shaped Slot

Bore Size	a	b	C	d	e
80	13.3	20.3	12	8	22.5

JGPM, JGPL Common Dimensions

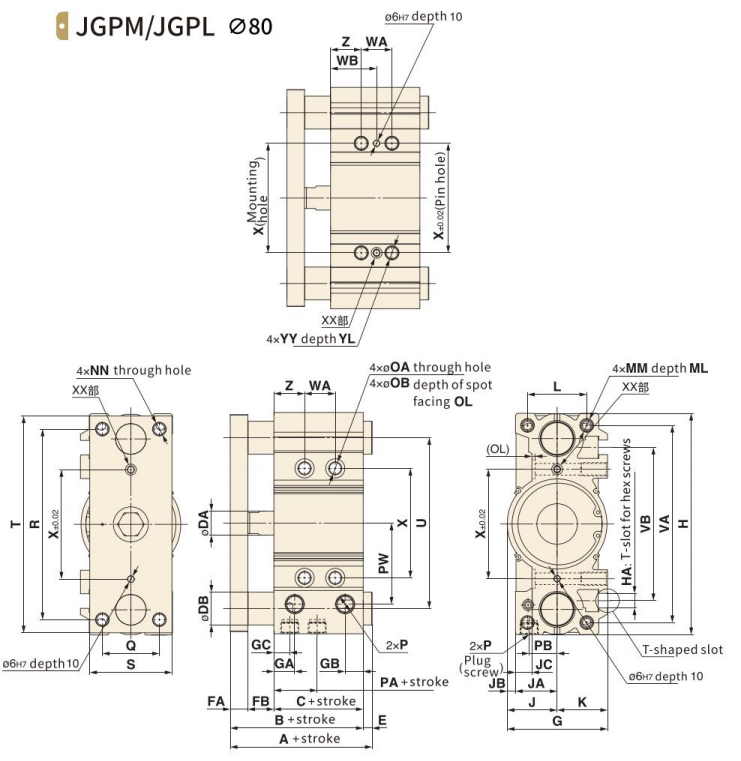

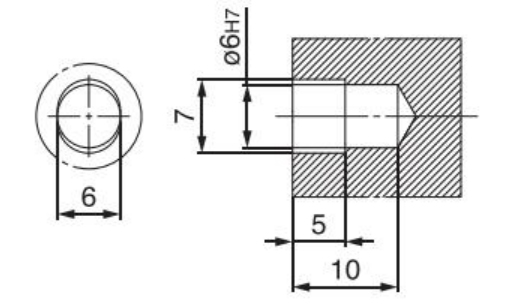

Bore Size(mm)	Standard Stroke(mm)	B	C	DA	FA	FB	G	GA	GB	GC	H	HA	J	JA	JB	JC	K	L	MM	ML	NN	OA	OB
80	25,50,75,100,125,150,175,200,250,300,350,400	96.5	56.5	25	16	24	91.5	19	16.5	14.5	202	M12	45.5	38	7.5	15	46	54	M12×1.75	25	M12×1.75	10.6	17.5

Bore Size	PB	PW	Q	R	S	T	U	VA	VB	OL	P	PA	WA					WB					X	YL	Z	YY
													Below 30st	Over 30st Below 100st	Over 100st Below 200st	Over 200st Below 300st	Over 300st	Below 30st	Over 30st Below 100st	Over 100st Below 200st	Over 200st Below 300st	Over 300st
80	25.5	74	52	174	75	198	156	180	140	3	Rc3/8	14.5	28	52	128	200	300	42	54	92	128	178	100	24	28	M12x1.75

JGPM (Slide Bearing) /A, DB, E Dimensions

Bore Size	A			DB	E
Bore Size	Below 50st	Over 50st Below 200st	Over 200st	DB	Below 50st	Over 50st Below 200st	Over 200st
80	104.5	131.5	180.5	30	8	35	84
