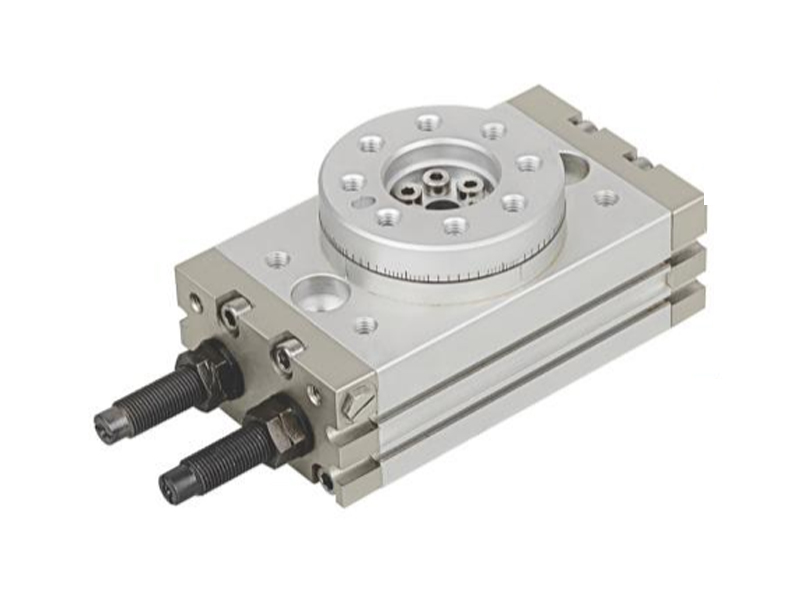

JSQB Series Rotary Table (Rack&Pinion Style)

JSQB Series Rotary Table (Rack&Pinion Style)

Features:

1. Rotary table type, easy to install the workpiece
2. Hollow shafts can be used to introduce wires or air pipes
3. Standard Angle adjustment device, adjustment Angle range is large (0~190°)
4. Built-in magnetic ring, sensor can be installed

  • Product parameters

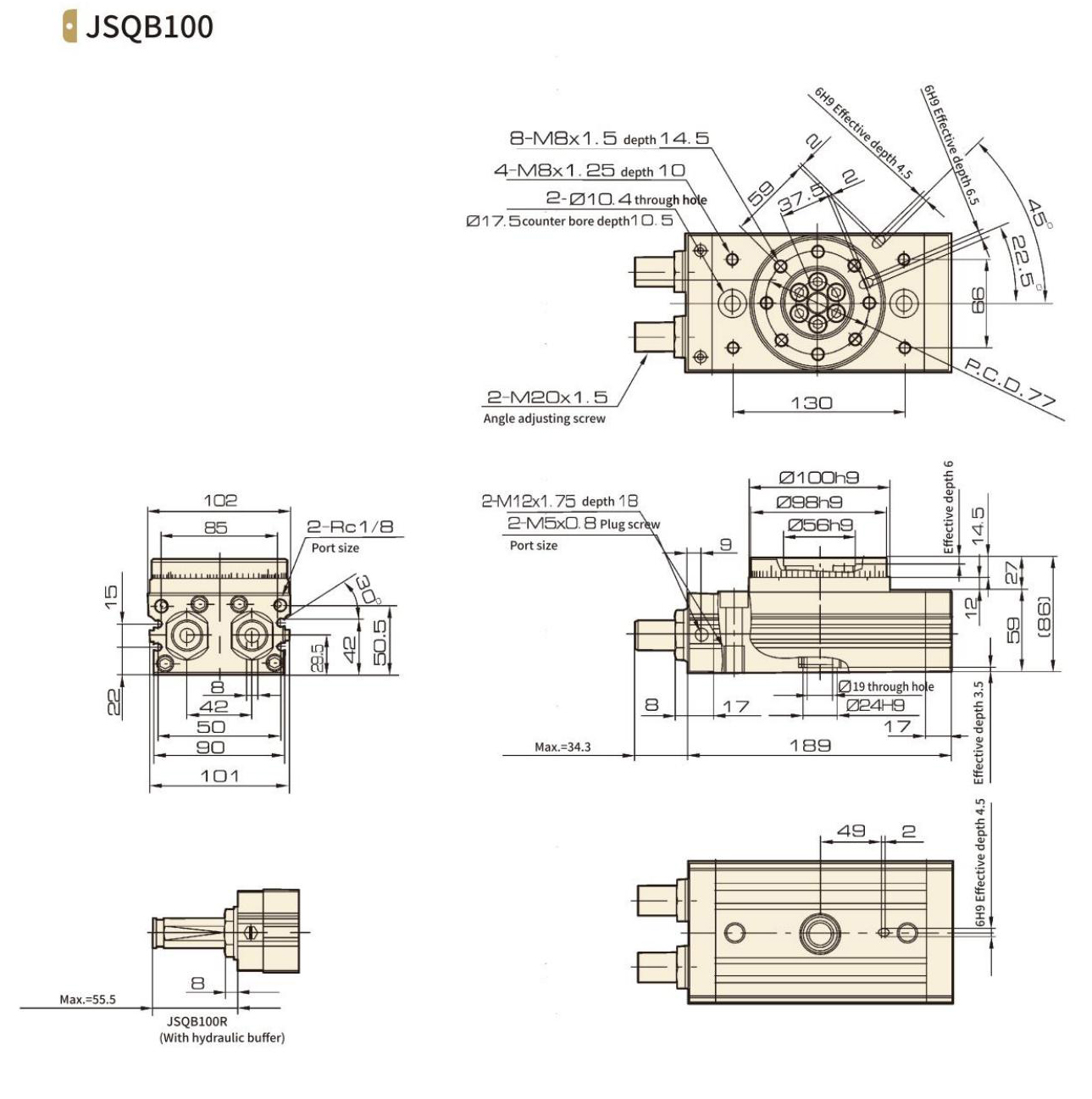

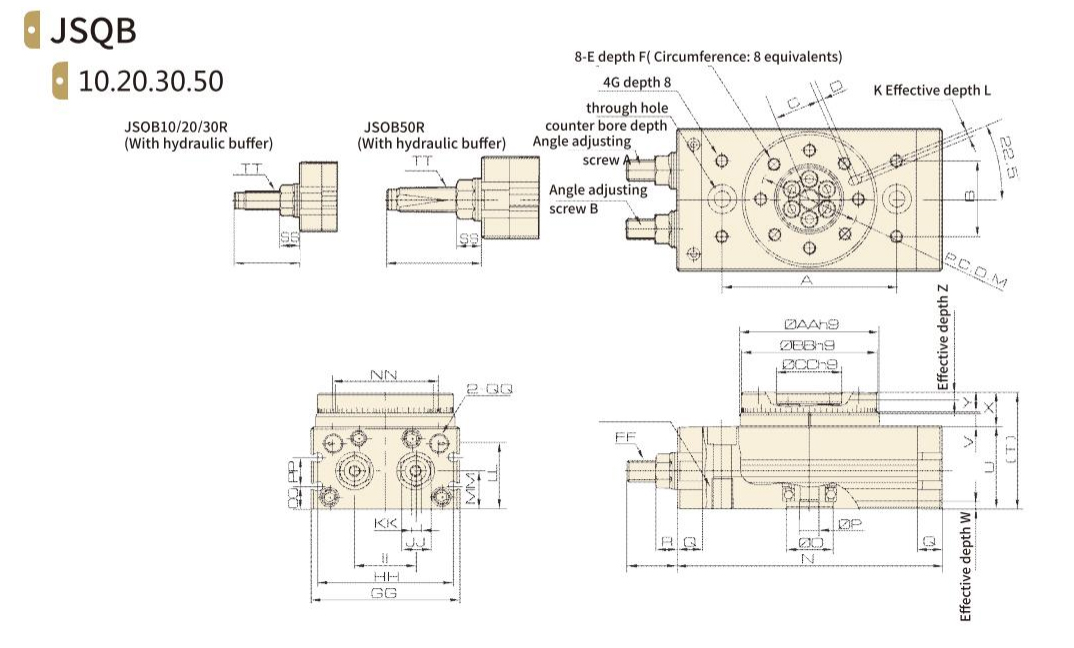

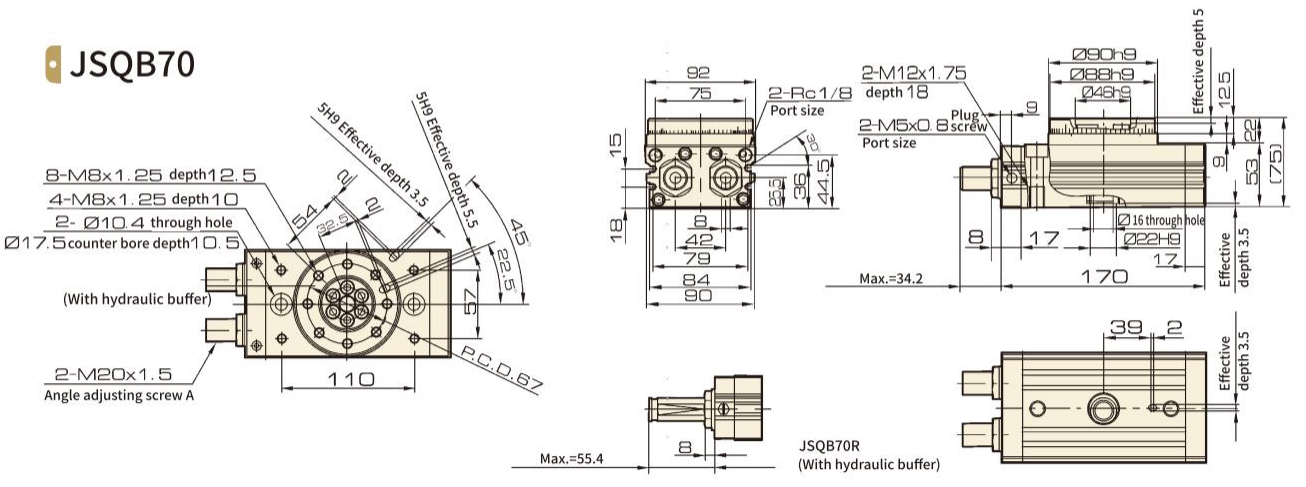

  • Product size

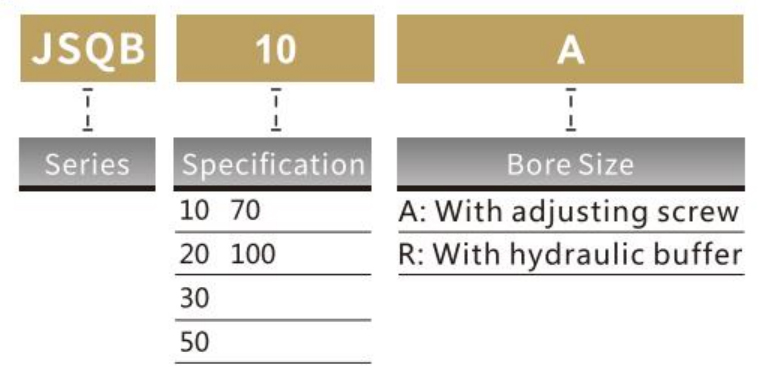

Ordering Code

Stroke/Sensor Model

Code

Sensor Model

10

JEL-07D

20

30

50

70

100

[Note]Sensor please refer to P173 for the specific ordering code.



Specification

Bore Size 10  20  30  50  70    100
Working Medium Air(non-lubrication)
Operation Double Acting
Operation Pressure Range 0.15~0.7MPa
Ambient And Fluid Temperature -10~60℃(with no condensation)
Cushion Rubber Buffer (Standard)/Hydraulic buffer (optional)
Enabling
Function		 With Adjusting Screw 0.007J 0025J 0.048J 0.081J 0.24J   0.32J
With Hydraulic Buffer 0.039J 0.116J 0.294J 1.1J   1.6J
Angle Adjustment Range 0~190°

Max.Swing Angle		 190°

Stable Shaking
Time Range		 With Adjusting Screw 0.2~1.0s/90° 0.2~1.5s/90°   0.2~2.0s/90°
With Hydraulic Buffer 0.2~0.7s/90° 0.2~1.0s/90°
Port Size M5x0.8 1/8

[Note]: The maximum allowable thrust of the buffer determines the maximum operating pressure of the actuator.
