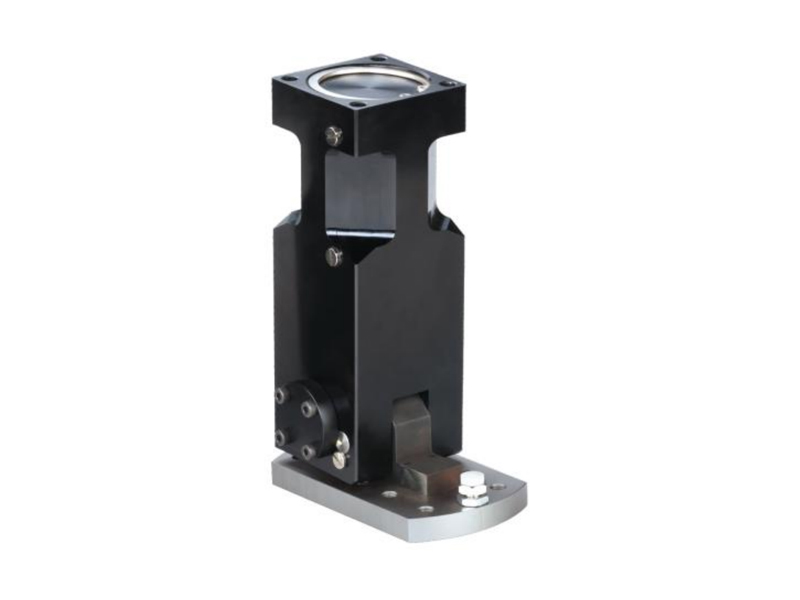

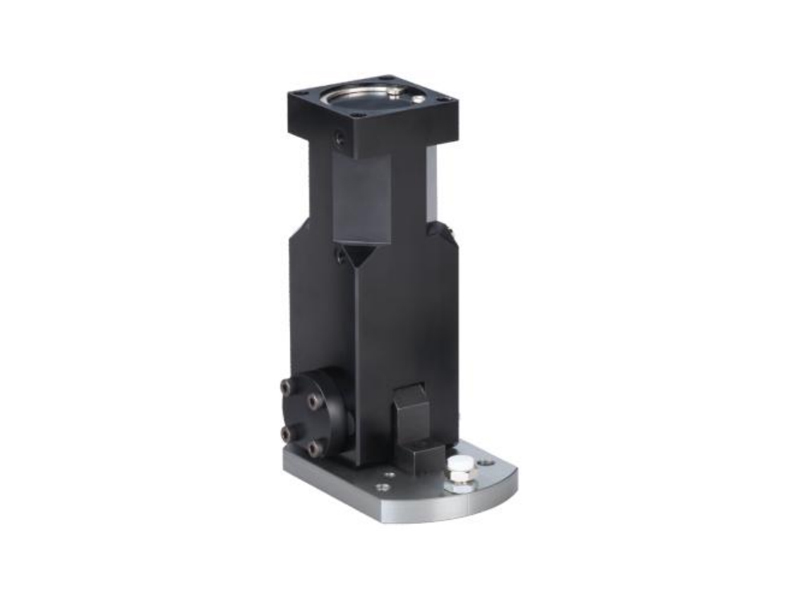

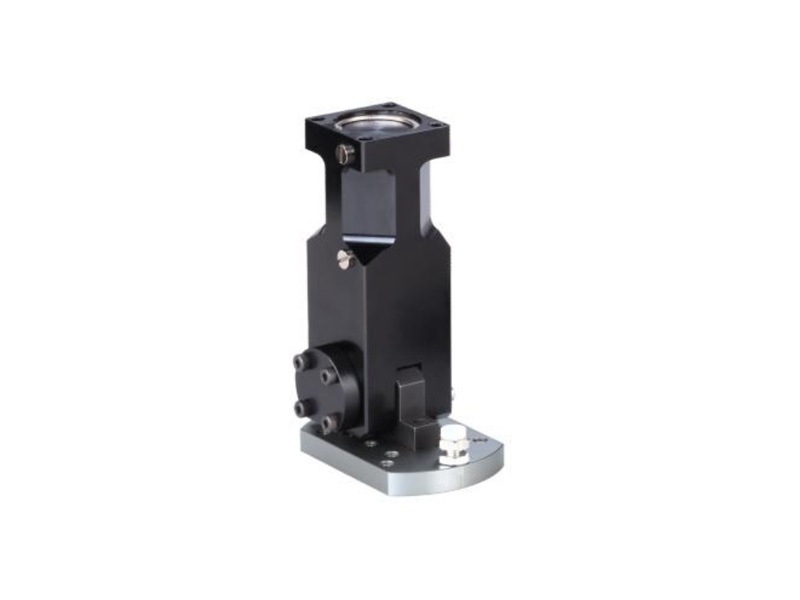

PPRM Series Elbow Cylinder

PPRM Series Elbow Cylinder

Features:

1. Rotation angle 90+.
2. The cylinder stretched out the double force, effectively increase the cylinder output requirements.
3. The new power connection mechanism reduces the connecting pipe.
4. The front piston shaft hole is pressed with an engineering plastic bearing, which can effectively reduce the friction between the shaft and the shaft hole.
5. Piston seals adopt special composite materials to provide a longer service life when the cylinder expectancy of the load.
6. The connecting plate adopts a stainless steel screw sleeve, which can effectively increase the service life of the screw hole.

  • Product parameters

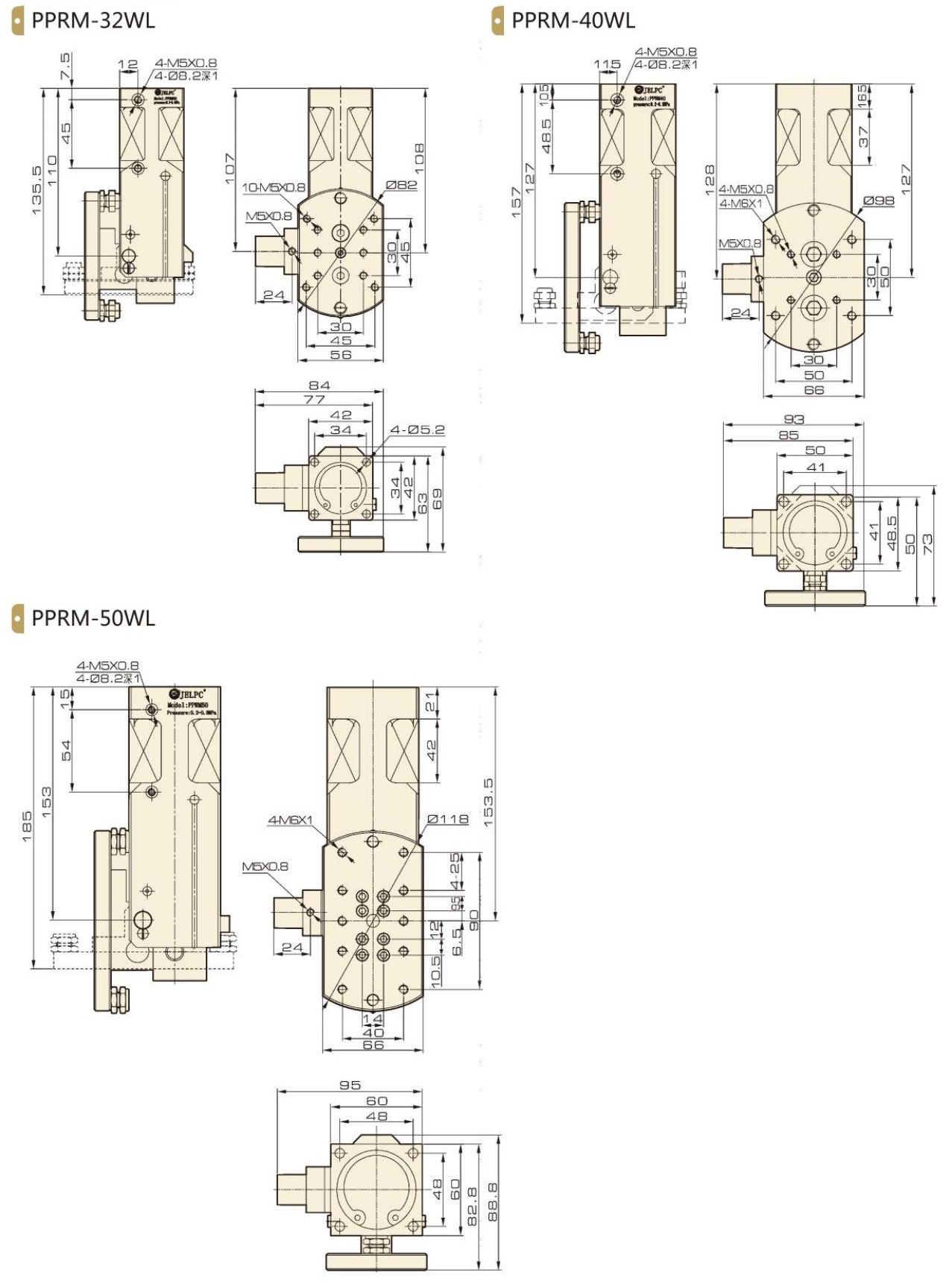

  • Product size

Internal Structure

Parts

Number Name Number Name Number Name
1  Back cover 8  Bearing 15  Long pin
2  Circlips for holes 9  Lock 16  Connecting base
3  O ring 10  Socket head cap screw 17  Spacer
4  Small piston 11  Barrel 18  Anti-collision gasket
5  C ring 12  Y ring 19  Anti-collision screw
6  Piston rod 13  Magnet 20  Connecting plate
7  Big piston 14  Pin

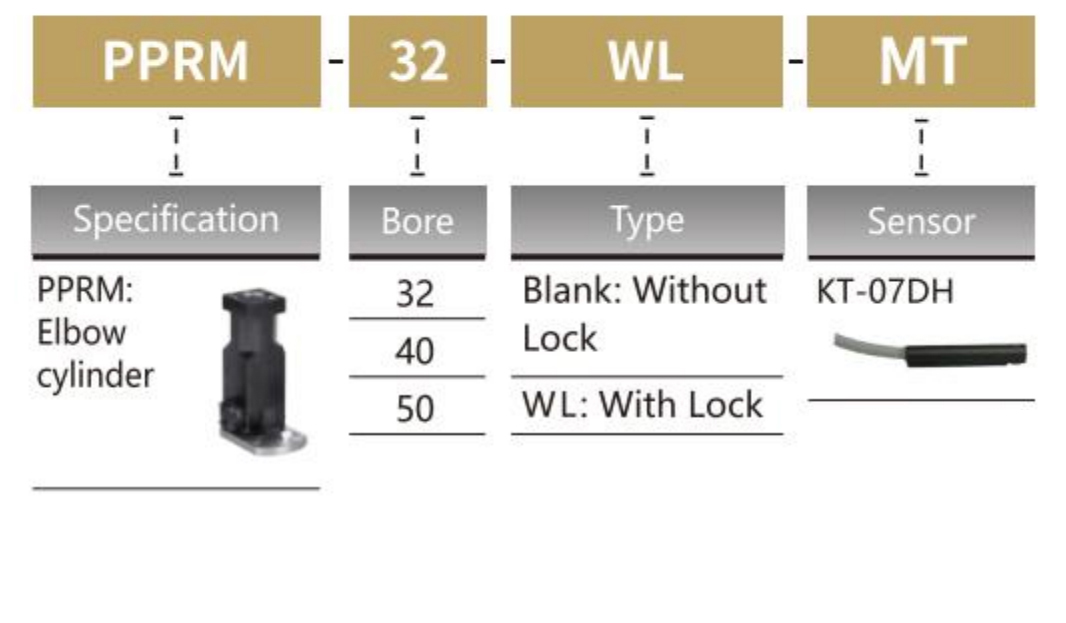

Ordering Code

*Standard wire length is 1 meter, please specify for other length.


Specification

Model

PPRM-32WL

PPRM-40WL

PPRM-50WL

Port Size

M5x0.8

Working Medium

40 Micron Filtered Air

Operating Pressure

0.2〜0.8MPa

Max. Test Pressure

20MPa

Operating Temperature

-20 〜80o℃

Rotation Angle

90°

Adjustable Angle

±2°

±4°

±3°

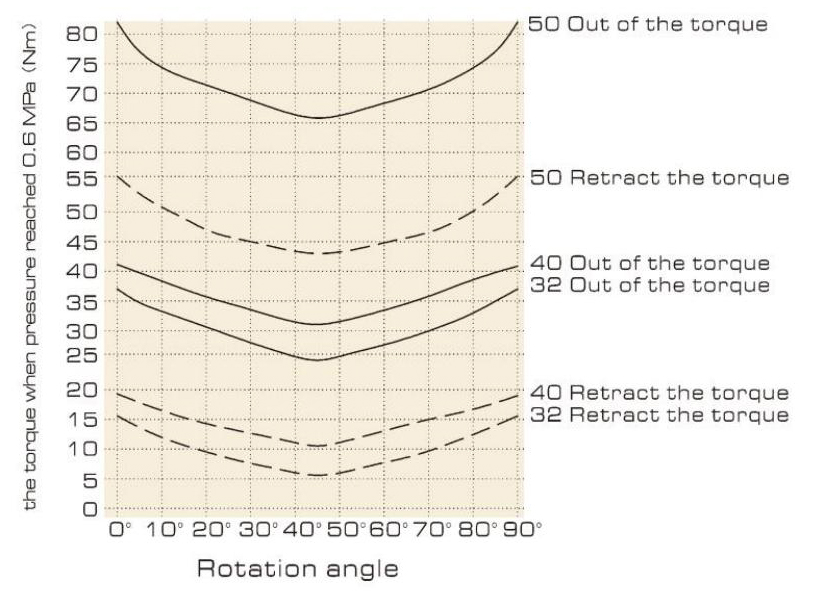

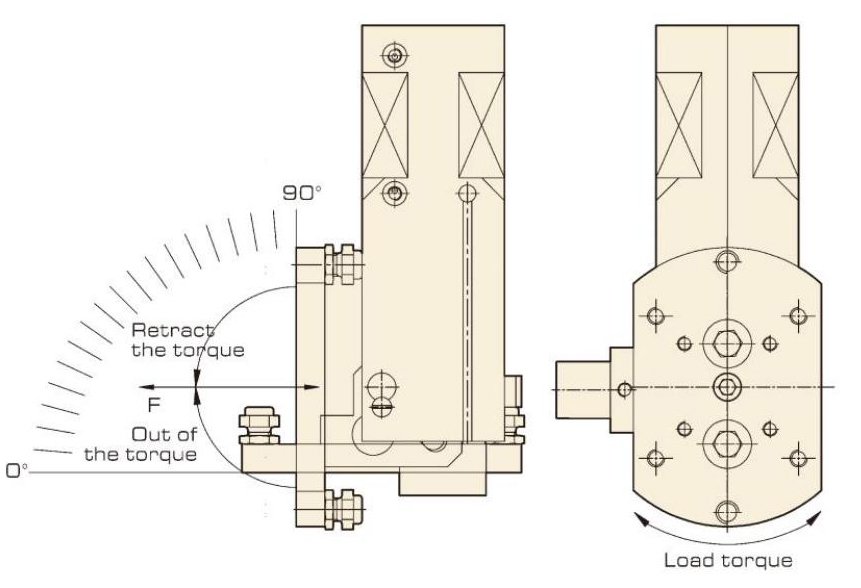

When The Pressure 0.6 Mpa, The Torque Of The Cylinder

>9.5Nm

> 24Nm

>45Nm

Weight

500g

1050g

1635g
