Sensor

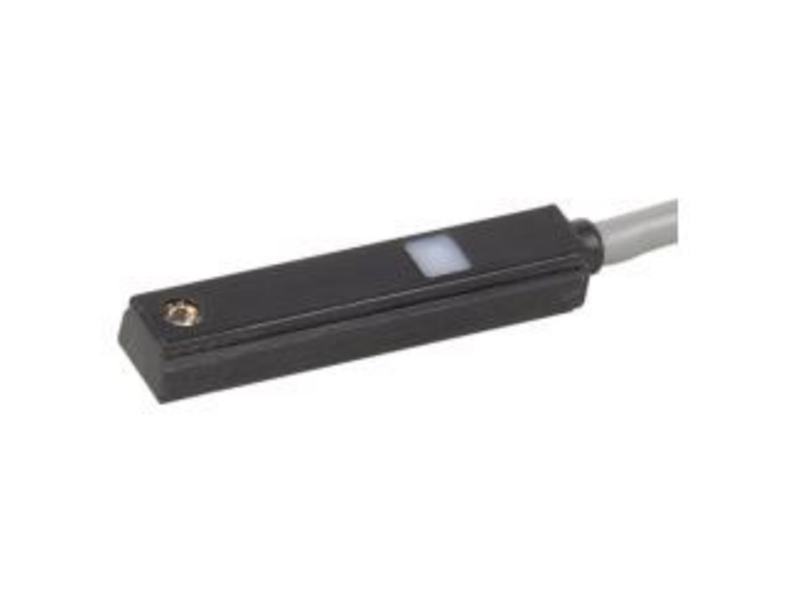

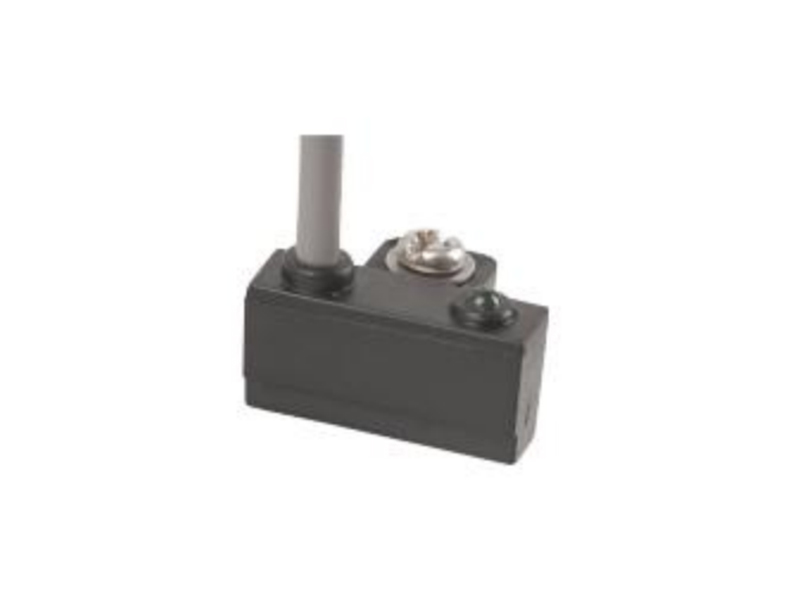

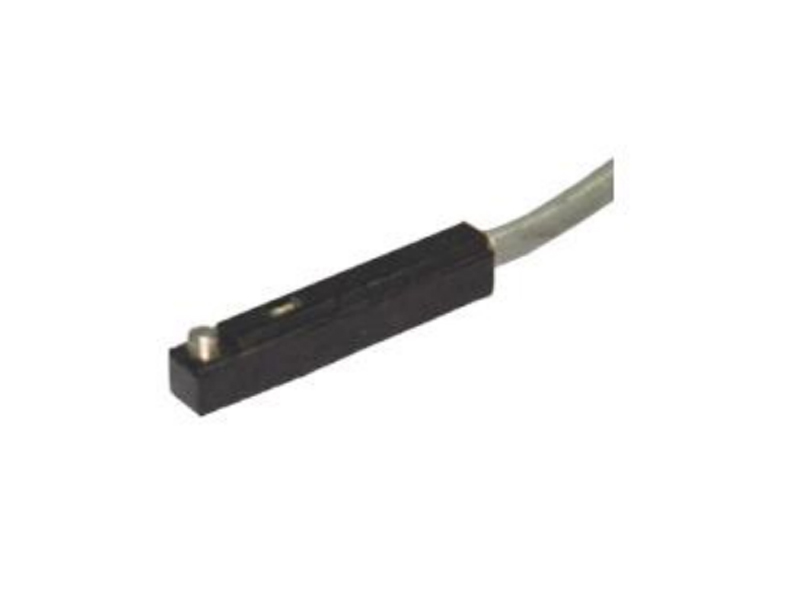

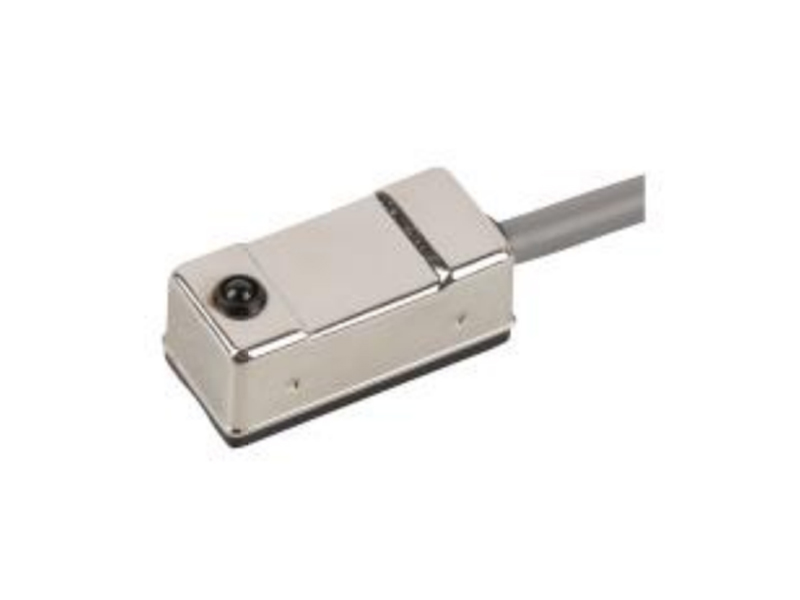

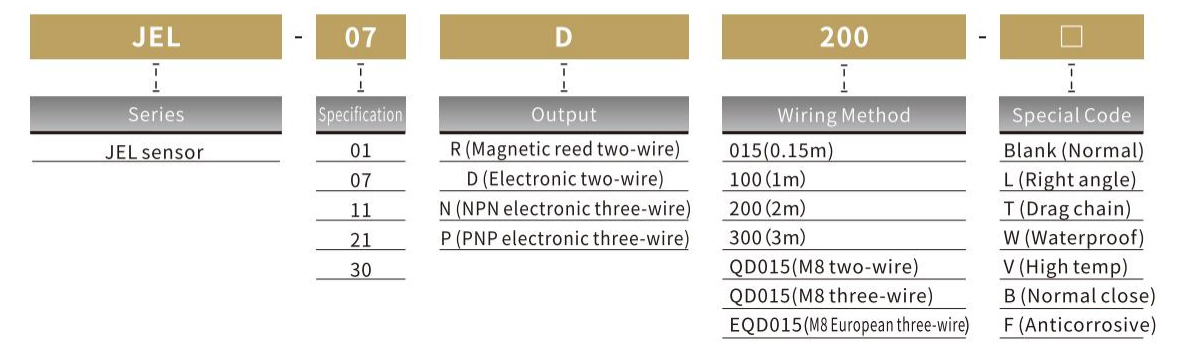

Ordering Code

Specification

Series	R	D	N	P
Characteristic\Wiring Diagram
Wiring Mode	Two-wire		Three-wire
Switching Logic	SPST Normally open	Solid state output.Normally open
Switch Type	Reed Switch	Solid State	Current Sinking	Current Sourcing
Operating Voltage	5-240V DC/AC	10-28VDC	5-30VDC
Max.Switching Current	100mAmax	4-40mA max	200mA max
Switching Range	10W max	1.5W max	6W max
Current Consumption	-		8mA @24V DCmax
InternalVoltage Drop	3.0V max		1.5V max
Leakage Current	-	1mA max	0.01mA max
Indicator	Red LED		Red LED	Green LED
Cable	∮3.22C PVC		∮3.23C PVC
Temperature Range	-10~70℃
Enclosure Classification	IEC 529 IP 67

Code Specification

Sensor Model		JEL-01	JEL-07	JEL-11	JEL-21	JEL-30	Accessories
Cylinder Model\Cylinder Groove Diagram					Need Install Accessories		Accessories
SI	All series					●
SQ/DNT	All series					●
SQ	125				●		PMA12
	160				●		PMA16
	200				●		PMA16
	250				●		PI5
	320				●		PI7
SC	32				●		PMA6
	40				●		PMA6
	50				●		PMA6
	63				●		PMA8
	80				●		PMA10
	100				●		PMA10
	125				●		PMA12
SU	32				●		PI2
	40				●		PI2
	50				●		PI2
	63				●		PI3
	80				●		PI4
	100				●		PI4
	125				●		PI5
DN/DSN	8	●					SKB-8
	10	●					SKB-10
	12	●					SKB-12
	16	●					SKB-16
	20	●					SKB-20
	25	●					SKB-25
	32	●					SKB-32
	40	●					SKB-40
MA/MAC	12	●					SKB-12
	16	●					SKB-16
	20	●					SKB-20
	25	●					SKB-25
	32	●					SKB-32
	40	●					SKB-40
MAL/MALC	16	●					SKL-16
	20	●					SKL-20
	25	●					SKL-25
	32	●					SKL-32
	40	●					SKL-40
SDA	12			●
	16			●
	20	●		●
	25	●		●
	32	●		●
	40	●		●
	50	●		●
	63	●		●
	80	●		●
	100	●		●
CQ2/TCQ2	All series		●
ADN/TADN	All series					●
TN	All series			●
JGP	All series		●
JXH	All series		●
JXQ	All series		●
JXS	All series		●
JHF2	All series		●
JHL2	All series		●
JHY2	All series		●
JHZ2	All series		●
JHC2	All series		●

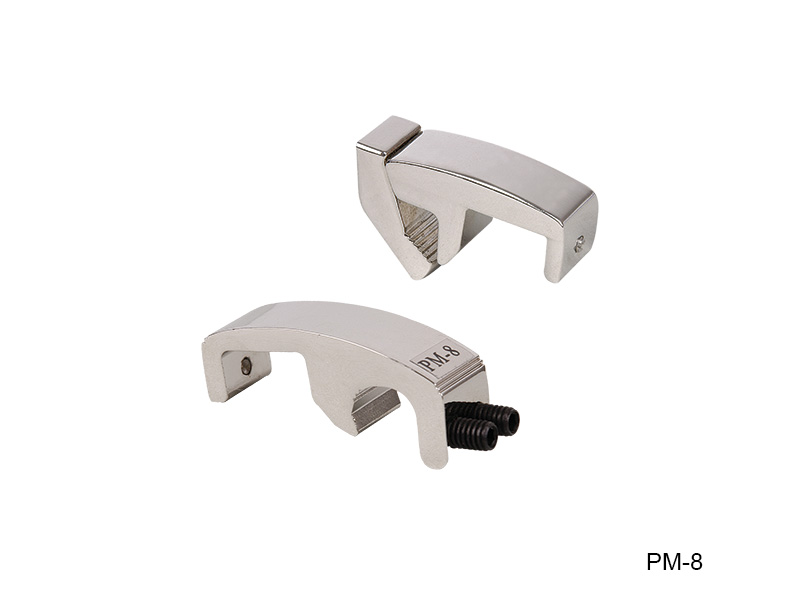

Other and Cylinder Accessories
