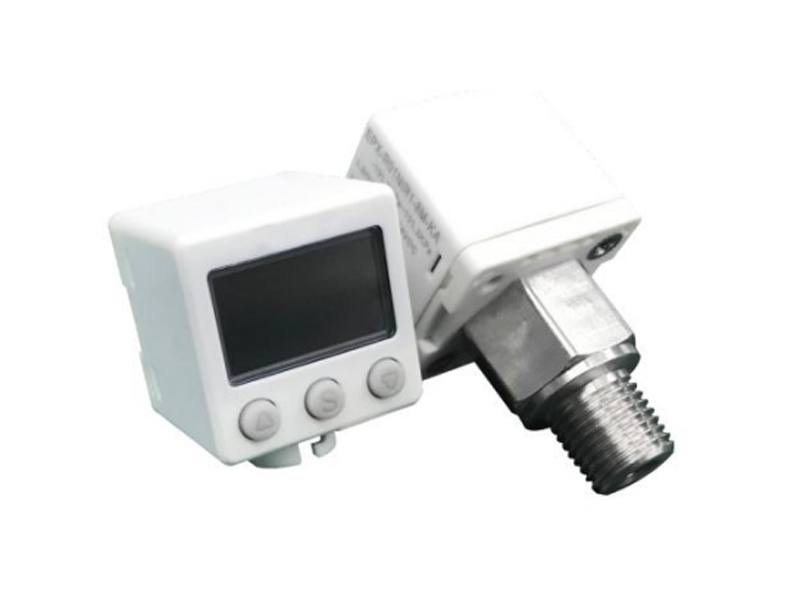

EPX Series Digital Pressure Sensor

EPX Series Digital Pressure Sensor

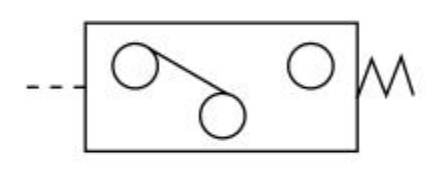

  • Product parameters

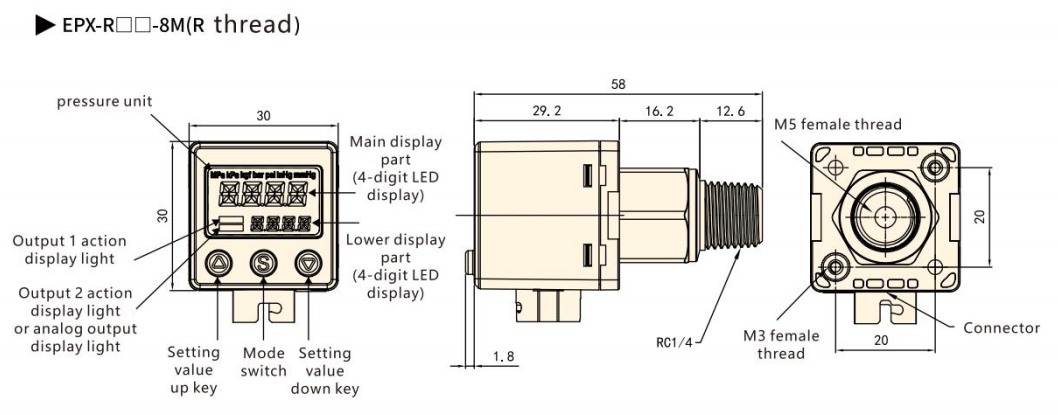

  • Product size

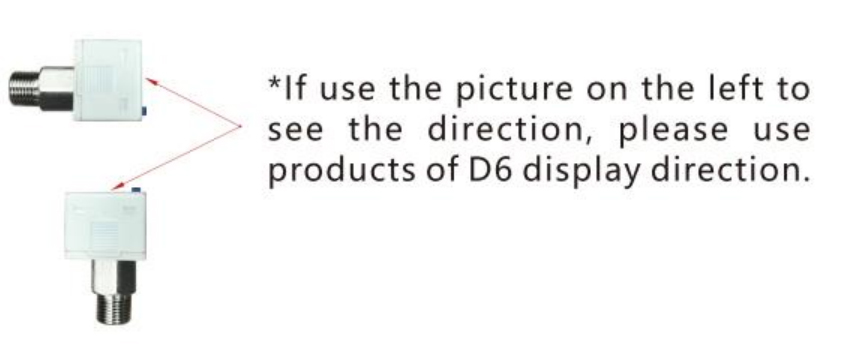

Ordering Code

Symbol



Specification

Item Standard Type
Low pressure Application EPX-R01 High pressure Application EPX-R10
Pressure Sensing Element Diffusion Semiconductor Pressure Sensor
Applicable Fluid Air or non-corrosive SUS316L fluids
Pressure Form Gauge Pressure
Rated Pressure Range -101.3~+101.3kPa 101.3kPa~+1MPa
Set Pressure Range -101.3~+101.3kPa -101.3kPa~+1MPa
Unit Representation kPa MPa
Minimum Unitof Representation 0.1kPa 0.001MPa
Unit Switching Function Mpa,kPa.kgf/cm²,bar,psi,mmHg,inchHg
Guaranteed Withstand Pressure 200kPa 1.5MPa
Repeatability Precision ±0.2%Full Scale(Within±2-digit) ±0.2%Full Scale(Within±2-digit)
Temperature   Characteristics
(20°as  the  benchmark)		 Within±0.5 full scale Within±1 full scale
Display 4-digit+4-digit tri-color LED display(Display update cycle:250ms,1000ms select with the operation keys)
Display Light Red, green and orange LED(Comparison output 1 action display light, comparison output 2 action display light: When the comparison output is ON, the light is on.
Power supply voltage 12~24V,DC±10%,Fluctuation below P-P10%
Power Usually: below 840mW(under 35nWin voltage 24V)
Energy-saving mode: below 600mWin standard time(under 25mWin voltage 24V)and below 480mW in full scale (under 20mWin voltage 24V).
Comparative Output
(Switched Output)		 NPN Output Type NPN  Diode, open  Connector, maximum  Inflow  Current:100mA, additional  Voltage: below  30DC
(When comparing output OV),residual voltage:below 2V(when the outflow current is 100mA)
Output Action Normally open/Normal close select with the operation keys
Output Mode Simple Mode/Hysteretic Mode/Window Comparison Mode
Response Deviation(Hysteresis) Minimum 1-digit (variable)
Response Time 2.5ms,5ms,10ms,25ms,50ms,100ms,250ms,500ms,1000ms,5000ms select with the operation keys
Short Circuit Protection Standard
Environmental
Resistance		 Enclosure IP65
Operating Temperature Range -10~+50℃,stored:-10~+60℃
Operating Humidity Range 35~85%RH(But not dew or ice),stored:35~85%RH
Voltage Withstand AC1000V for 1 minute, between terminals and housing
Insulation Resistance Below DC500V, more than 50MQ measured via megohmmeter, between terminals and housing
Vibration Resistance 10~500Hz, amplitude 3mm, XYZ in each direction for 2 hours
Impact Resistance 100m/S2(about 10G),XYZin each direction for 3 times
Connecting Mode Connector
Connecting Port M5 female thread+R(PT)1/4 male thread
Weight Body weight: about 40g, Whole package: about 135g
Accessories EPX wiring(2Mcable with connector):1 pcs

 Accessories Model

Item
Symbol Content
EPX-KL Mounting bracket(With mounting screw)
CPX-ZJT Adapter(RC1/4 to RC1/8,M5)
