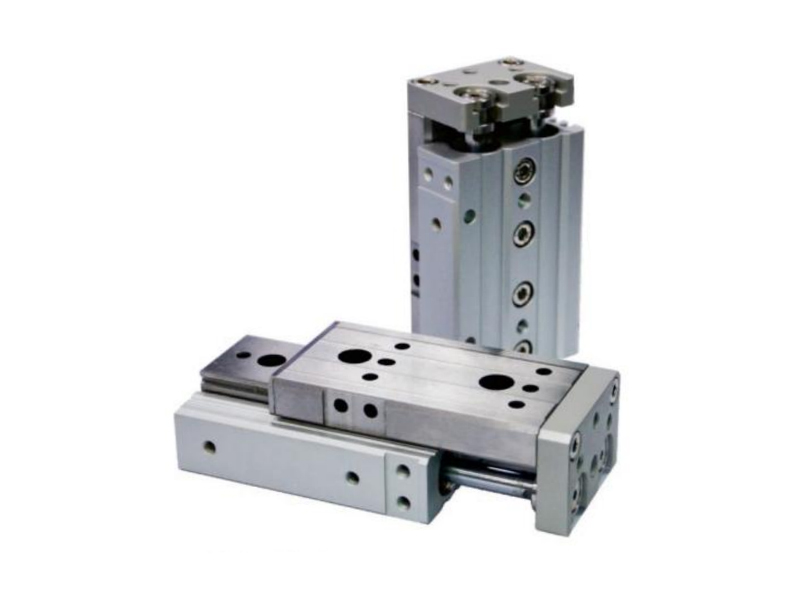

JXQ Series Slide Table Cylinder(Linear Guide)

JXQ Series Slide Table Cylinder(Linear Guide)

Features:

1. Small size, strong, high precision.

2. Combination of compact cylinder and linear guide.

3. Double cylinder design, double power output.

4. Adjustable stroke(with adjusting stroke device).

5. Mountable sensor.

  • Product parameters

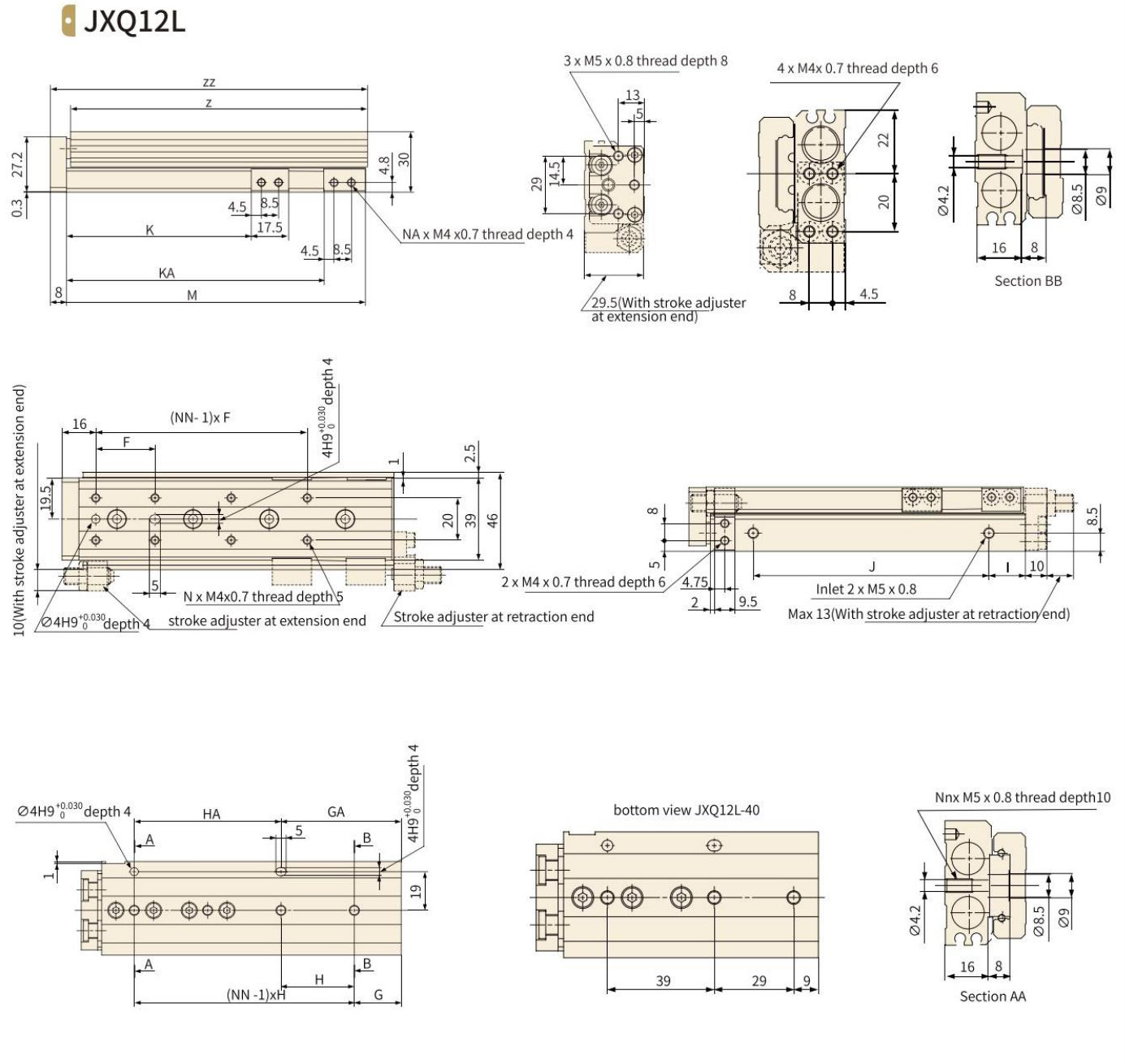

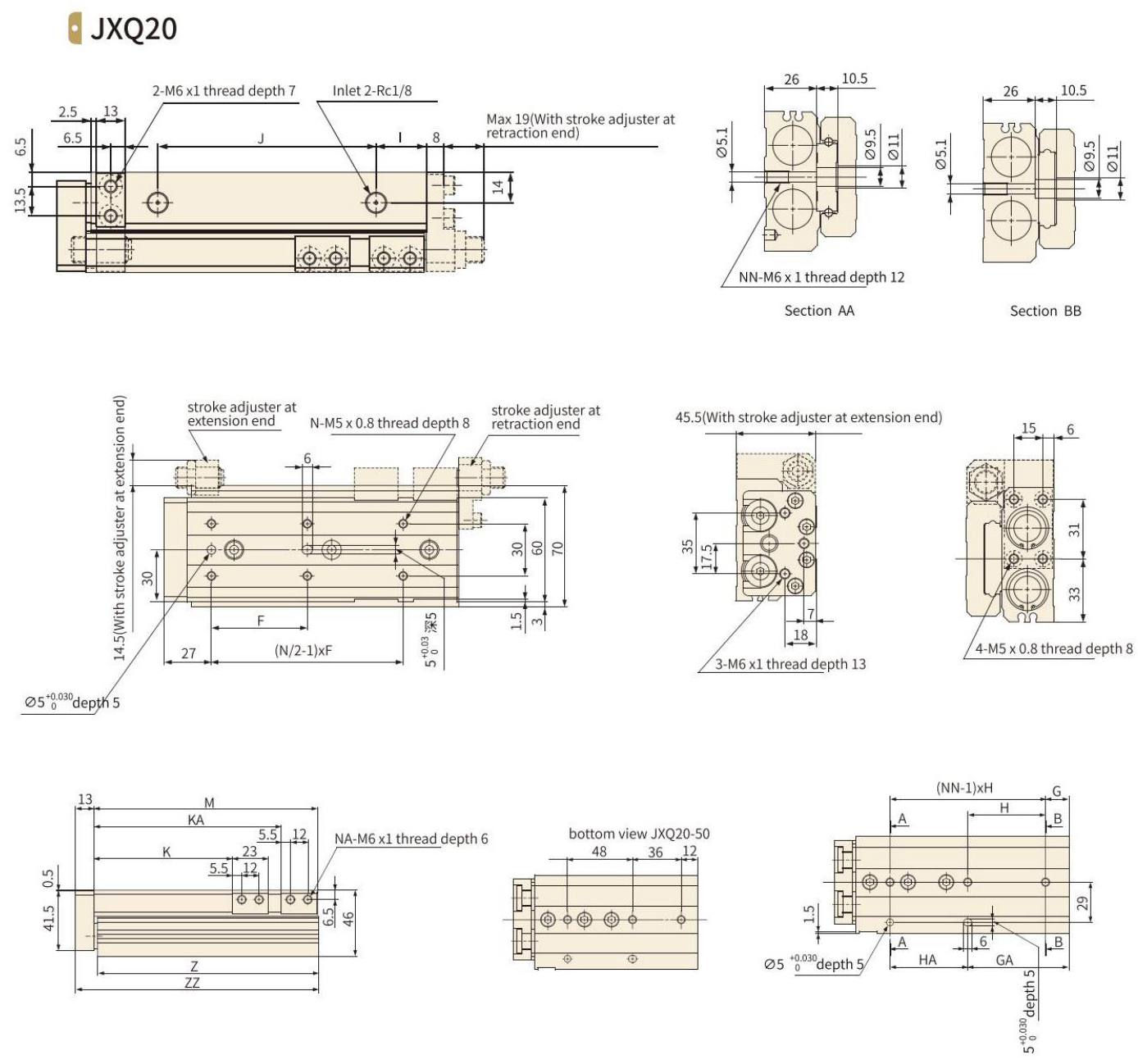

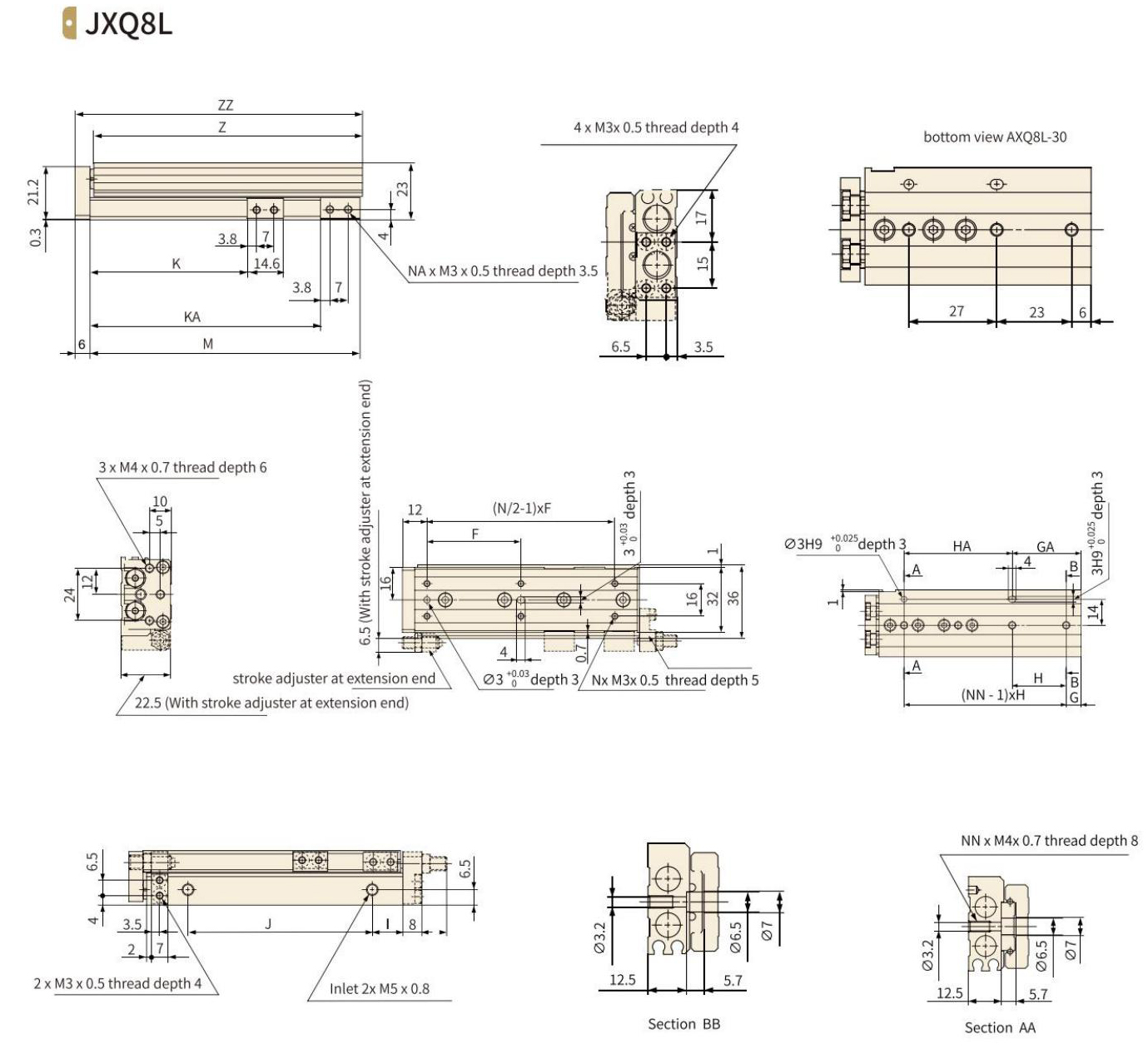

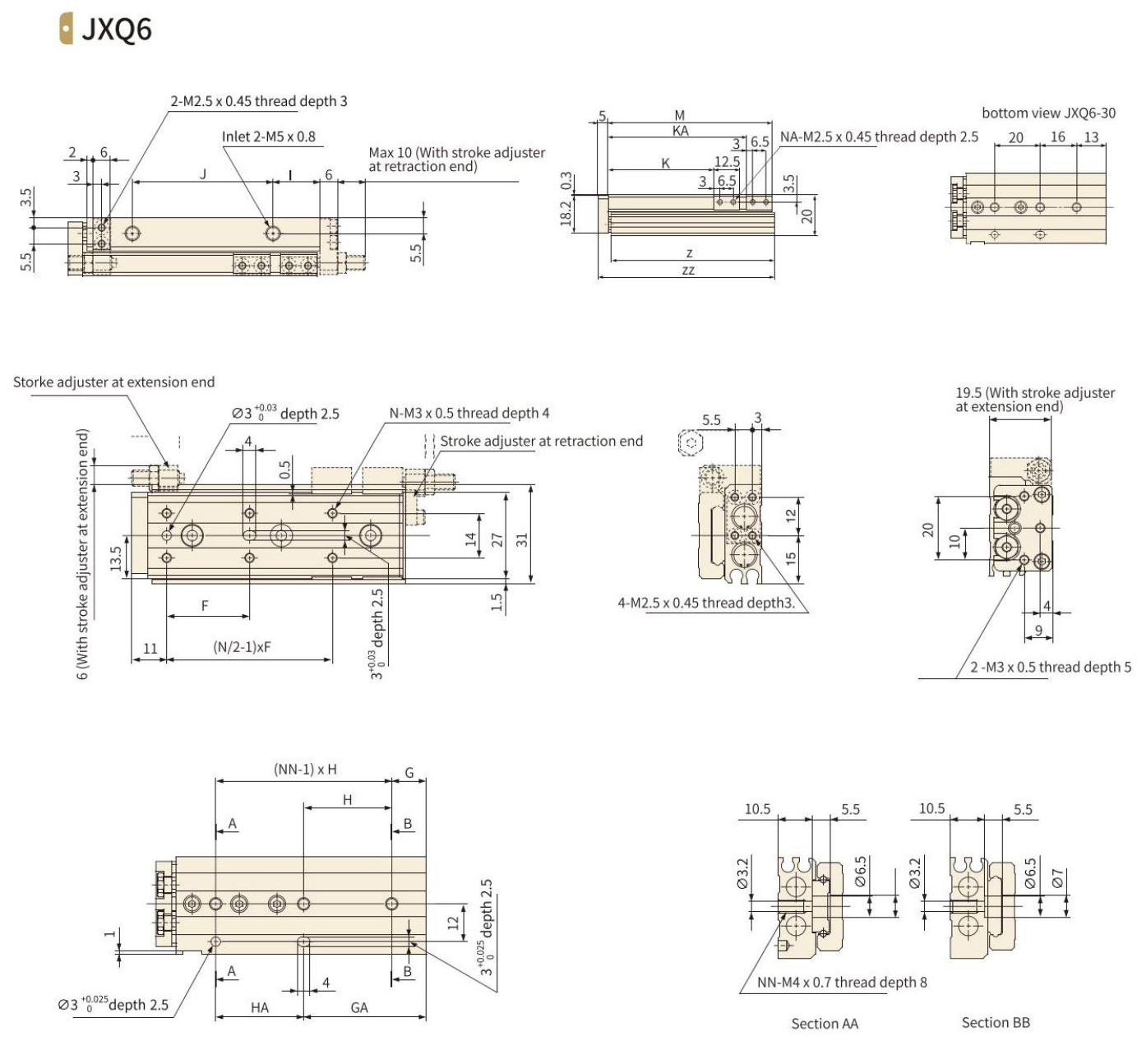

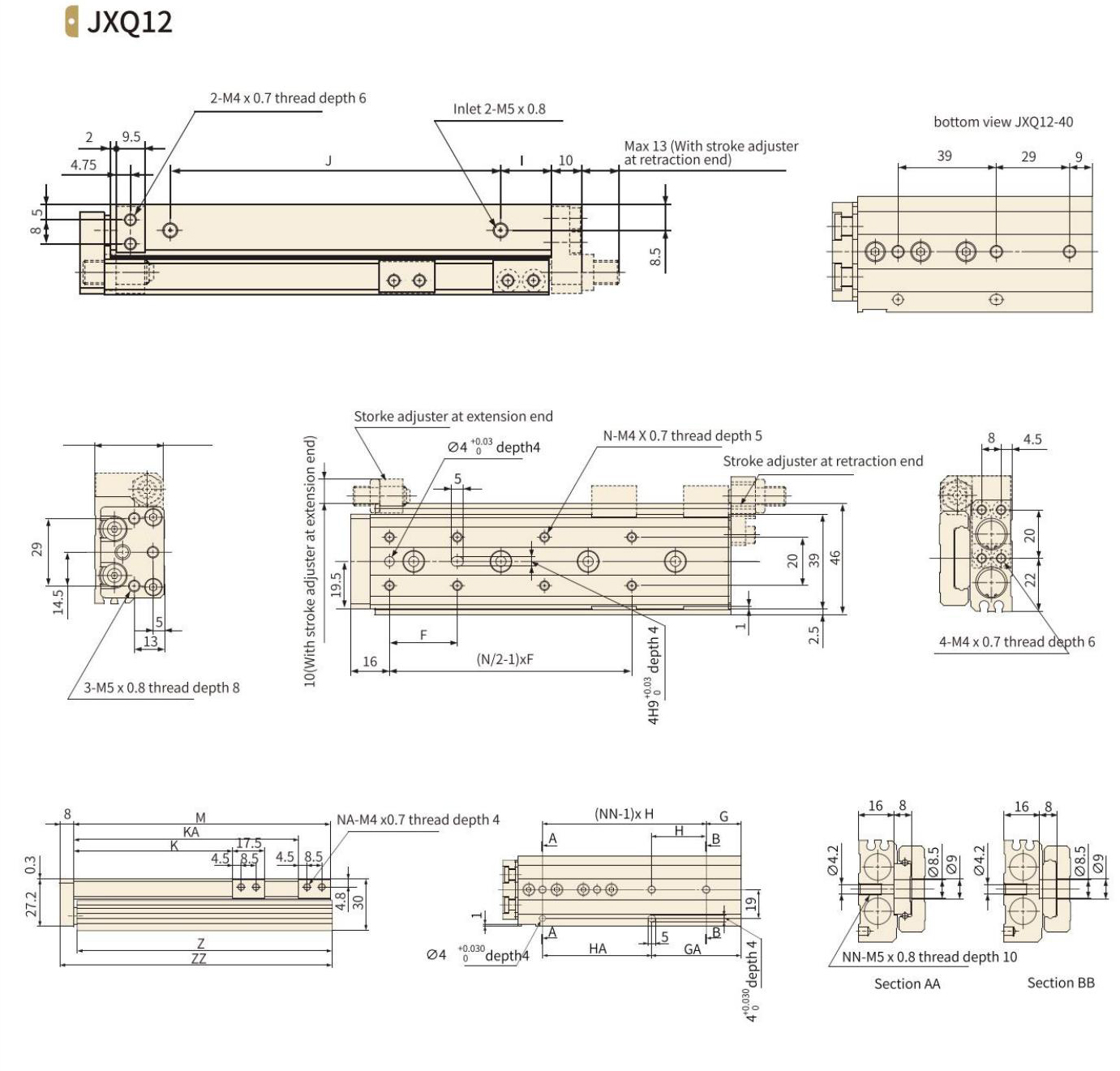

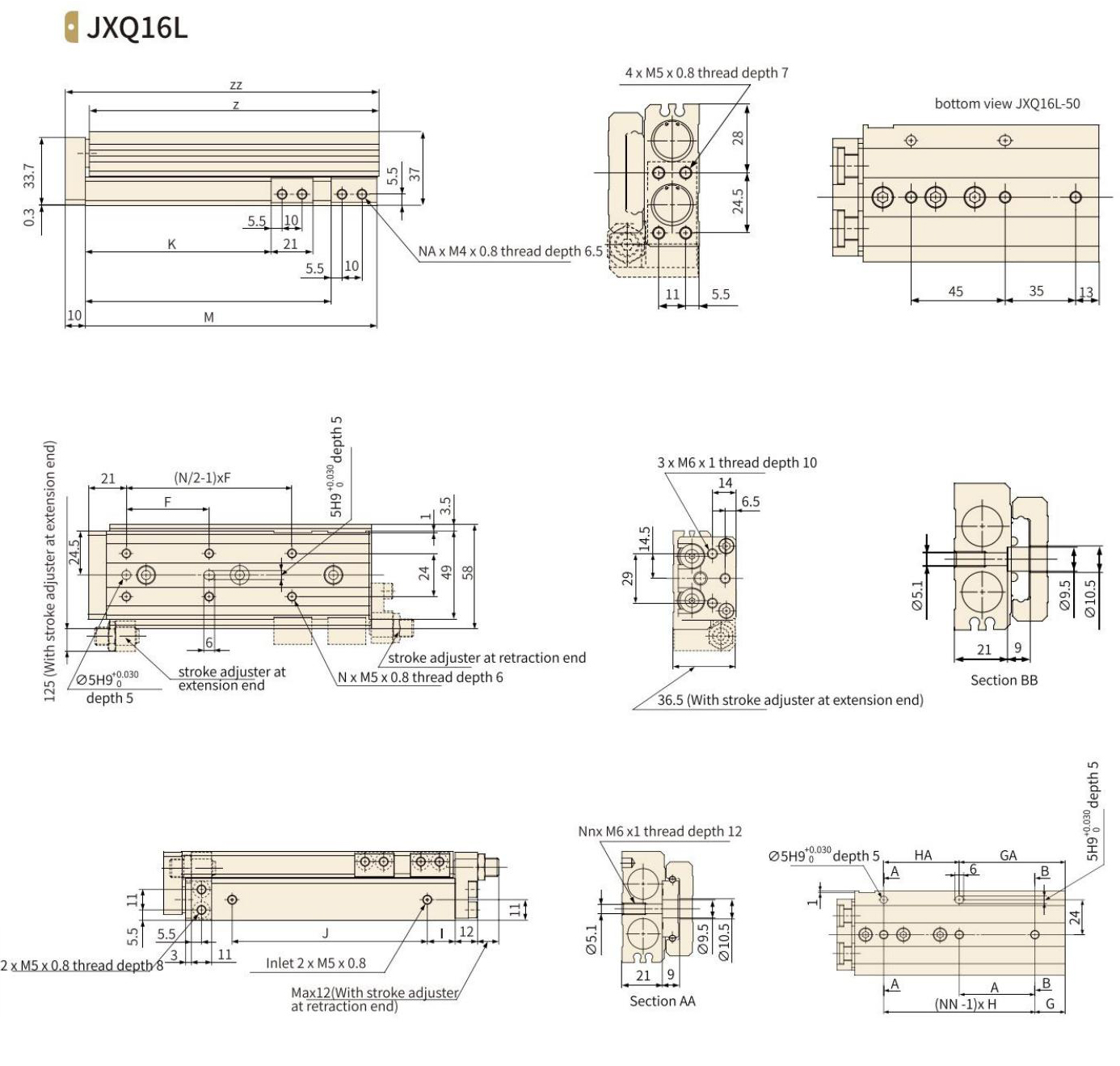

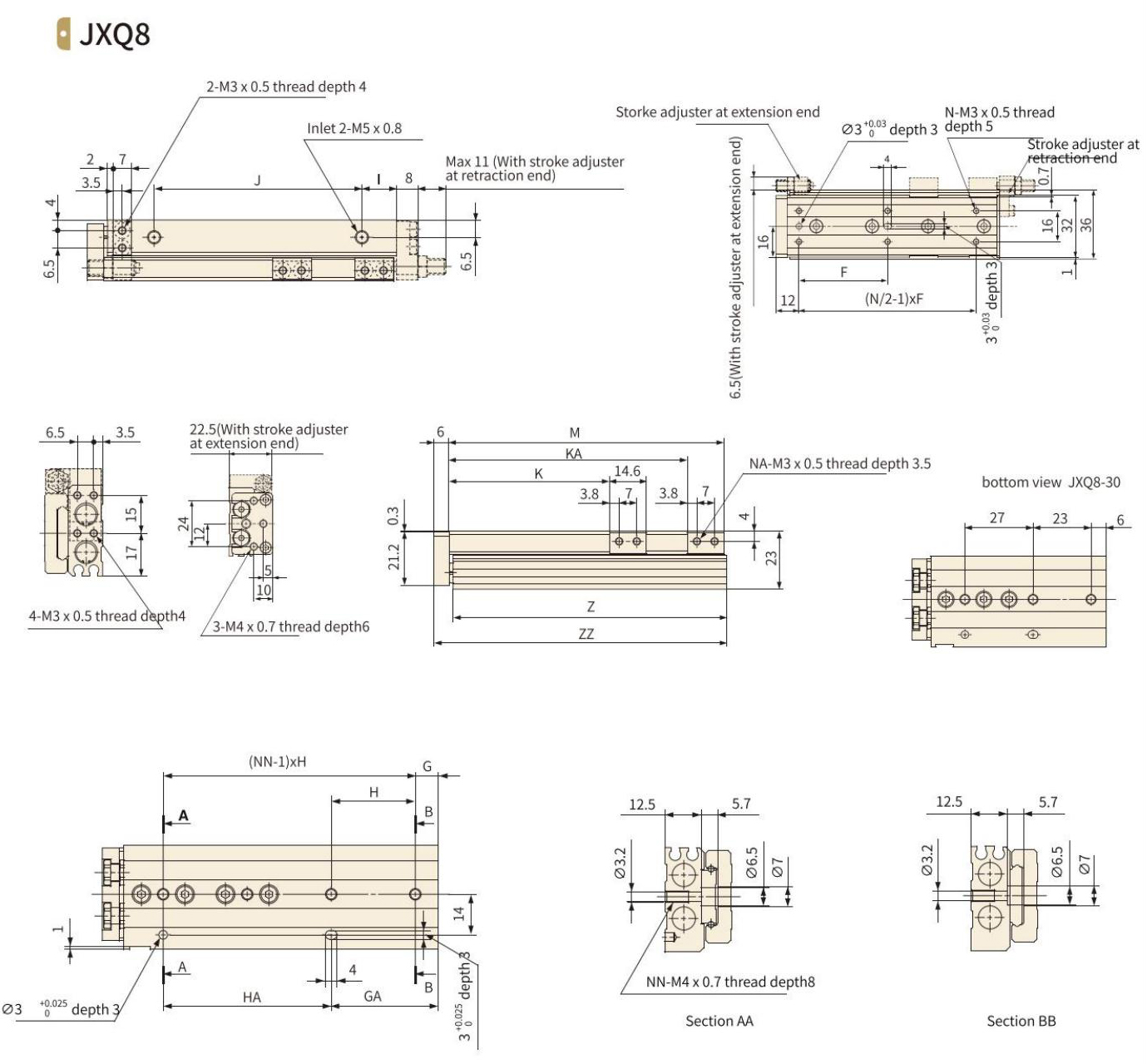

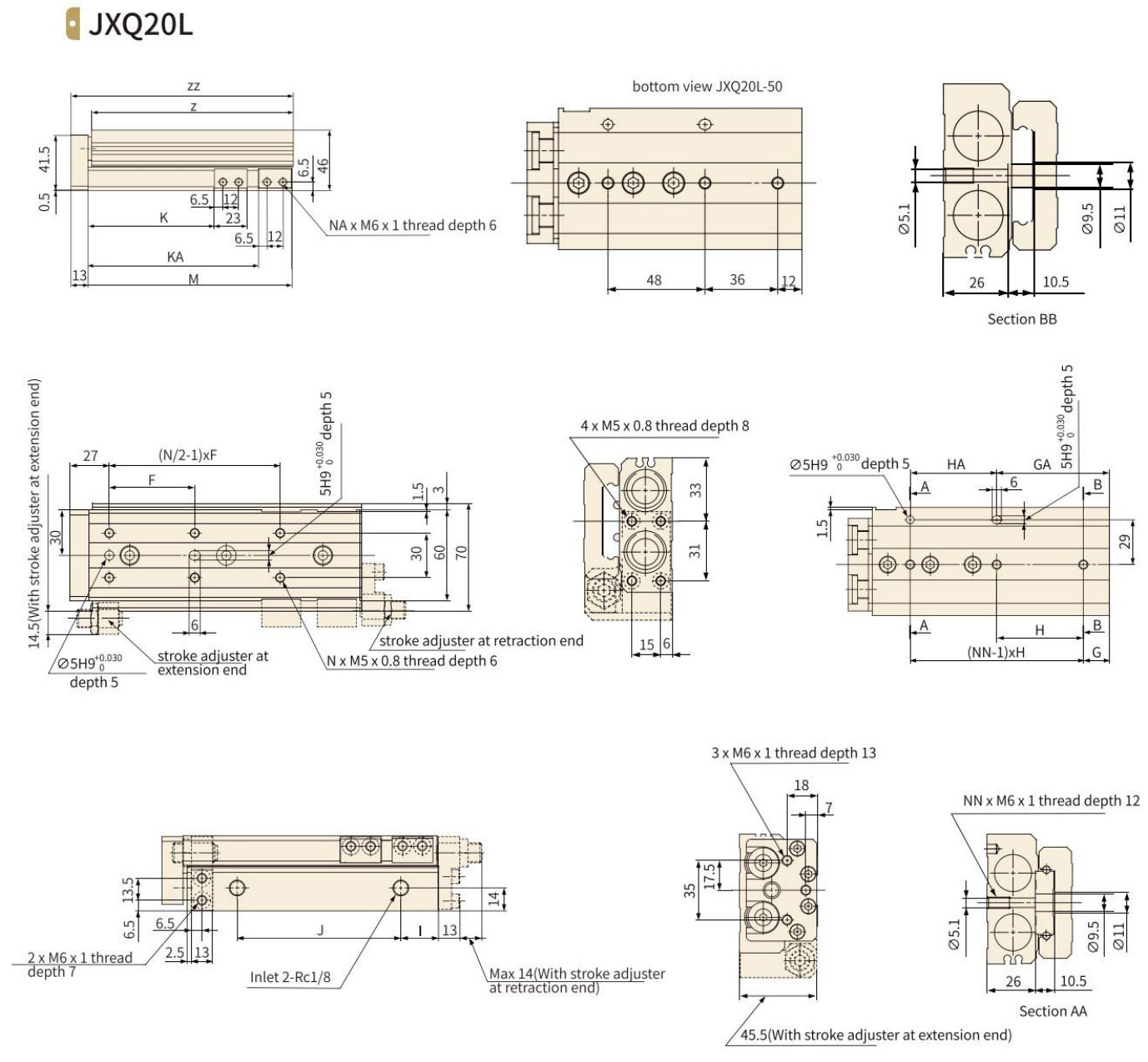

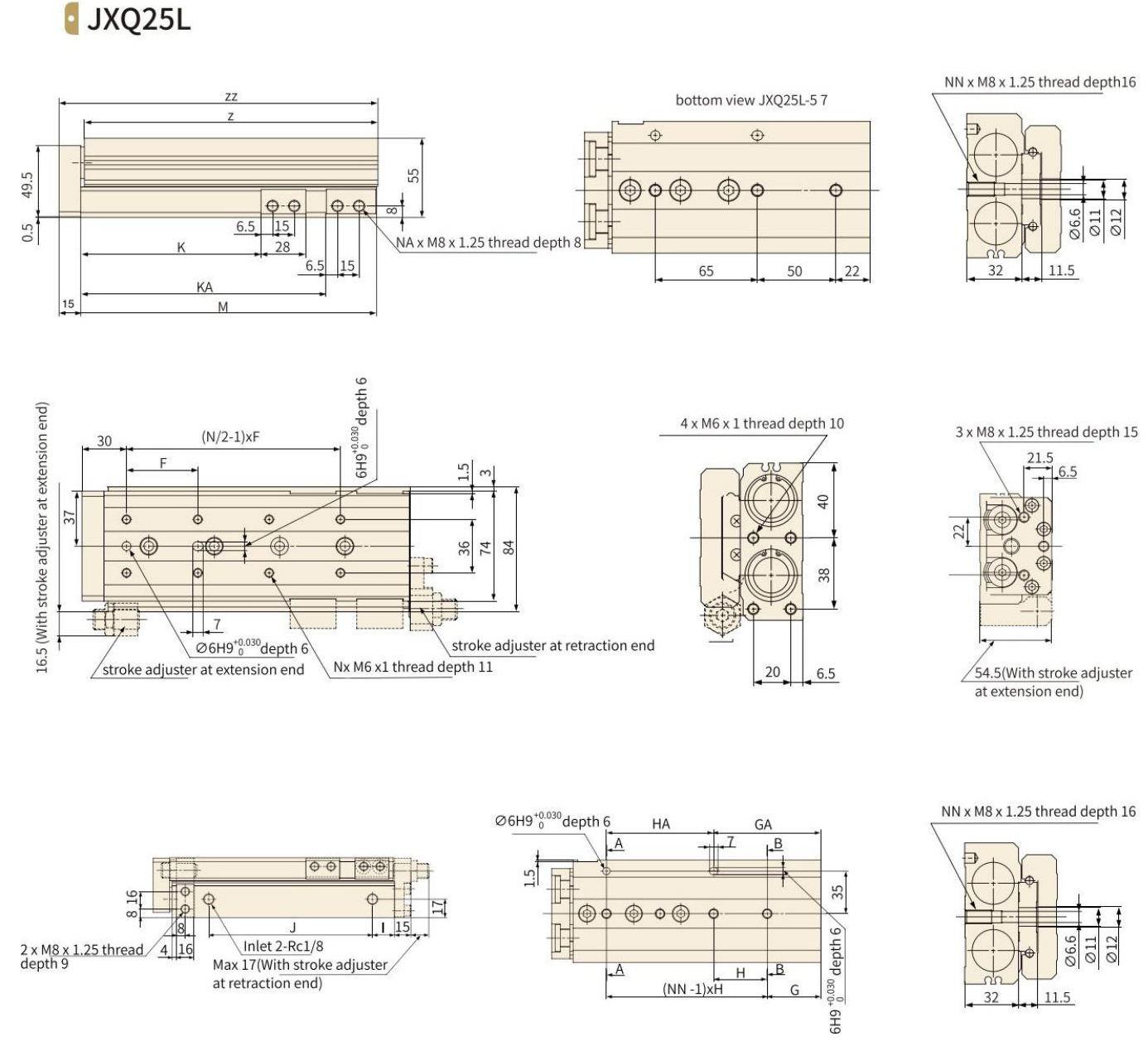

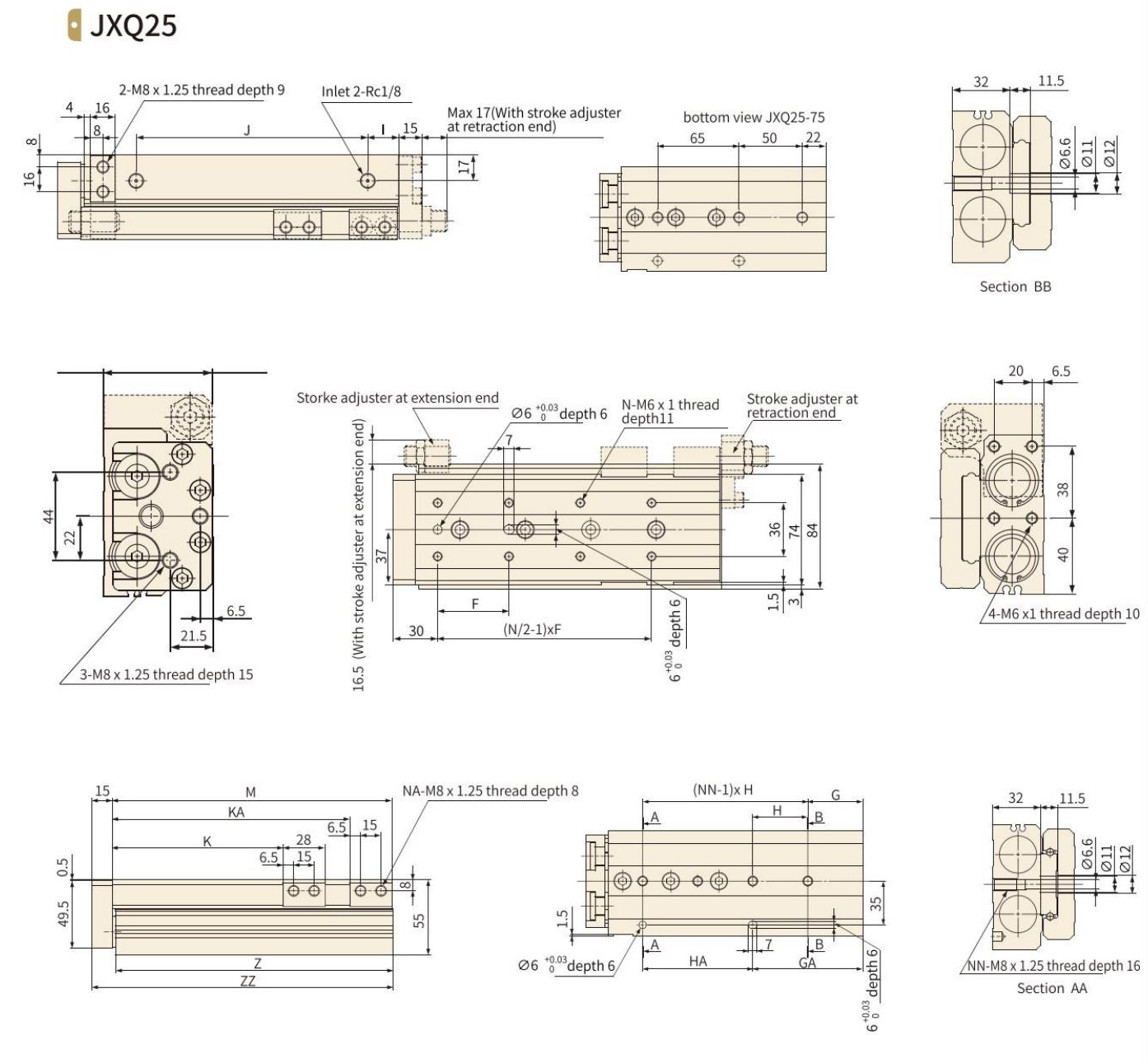

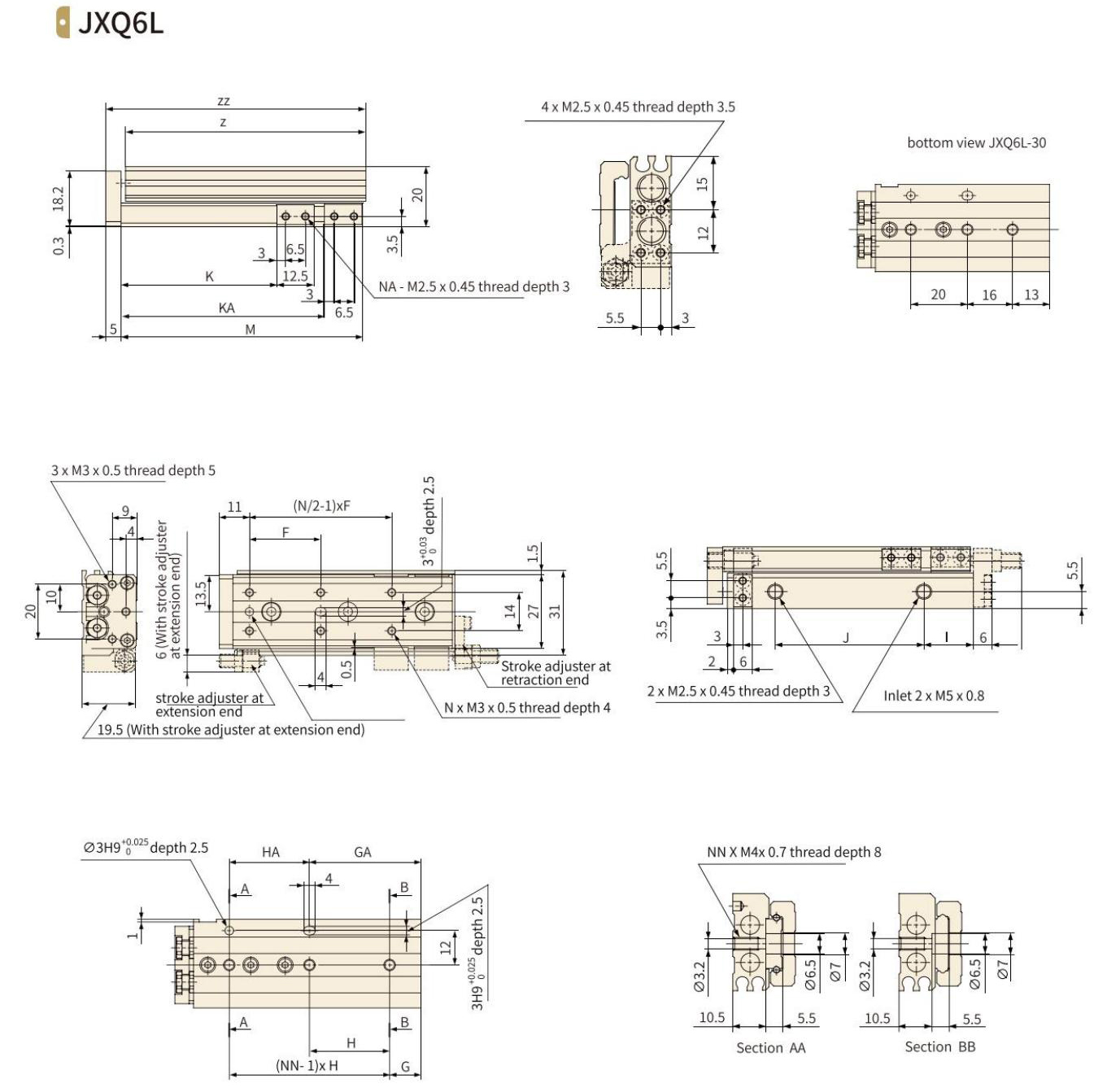

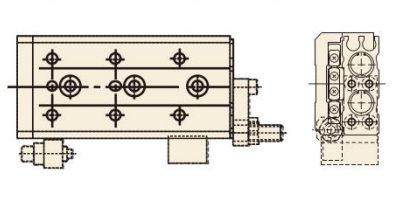

  • Product size

Specification

Bore Size(mm) 6  8  12  16  20  25
∅6x2 amount to ∅8 ∅8x2 amount to ∅11 ∅16x2 amount to ∅17 ∅16x2 amount to ∅22 ∅20x2 amount to ∅28 ∅25x2 amount to ∅35
Working Medium Air
Action Double acting
Max.Operating Pressure 0.7MPa
Min. Operating Pressure 0.15MPa
Ambient And Fud Temperature 10~60℃(with no condensation)
Piston Speed 50~500mm/s
Cushing Rubber buffer(standard)
StrokeLength Tolerance +1
0
Lubrication No need, if needed, please use Turbine oil No.1ISOVG32
Sensor Model JEL-07
Piping Size M5×0.8 1/8

Cylinder Theoretical Output Sheet (Double Cylinder Design)

Bore Size(mm) Action Direction Compression Area(mm²) Operating Pressure(Mpa)
0.2  0.3  0.4  0.5  0.6  0.7
∅6×2 OUT 57  11  17  23  29  34  40
IN 42  8  13  17  21  25  29
∅8×2 OUT 101  20  30  40  51  61  71
IN 75  15  23  30  38  45  53
∅12×2 OUT 226  45  68  90  113  136  158
IN 170  34  51  68  85  102  119
∅16×2 OUT 402  80  121  161  201  241  281
IN 302  60  91  121  151  181  211
∅20×2 OUT 628  126  188  251  314  377  440
IN 471  94  141  188  236  283  330
∅25×2 OUT 982  196  295  393  491  589  687
IN 756  151  227  302  378  454

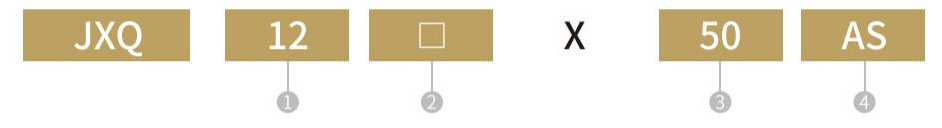

Ordering Code

Standard Type (Nil)

Symmetric Type (with L)

①Bore Size ②Model ③Stroke ④Adjusting Device
  Nil-standard
L-symmetric		   Nil  Nil
AS  Storke adjuster at extension end
AT  Stroke adjuster at retraction end
A  Stroke adjuster at both sides
*BS  Hydraulic buffer at extension end
*BT  Hydraulic buffer at retraction end
*B  Hydraulic buffer at both sides
AB  Storke adjuster at extension end and  hydraulic buffer at retraction end
BA  Storke adjuster at retraction end and hydraulic buffer at extension end

Stroke/Sensor Option

Bore Size(mm) Standard Stroke Sensor
6  10,20,30,40,50 JEL-07D
8  10,20,30,40,50,75
12  10,20,30,40,50,75,100
16  10,20,30,40,50,75,100,125
20,25 10,20,30,40,50,75,100,125,150

[Note]Sensormodel please refer to P173 for the specific ordering code.
