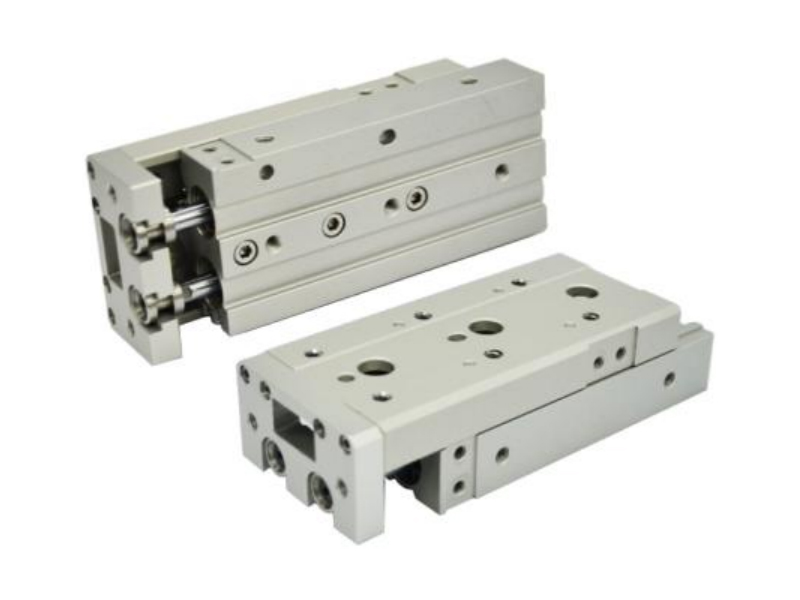

JXS Series Air Slide Table Cylinder (Cross Roller Type)

JXS Series Air Slide Table Cylinder (Cross Roller Type)

Features:

1. Double cylinder design, double power output, thin volume.

2. The combination of cylinder and work reduces the overall size.

3. Use cross roller design, low friction, without gap between cylinder and working table, suitable precision installation.

4. Can be mounted from three directions.

5. Built-in magnetic ring, can be installed sensor.

6. Stroke adjust ersare available(0~5mm), adjuster one tensioned/retraction end/both ends.

  • Product parameters

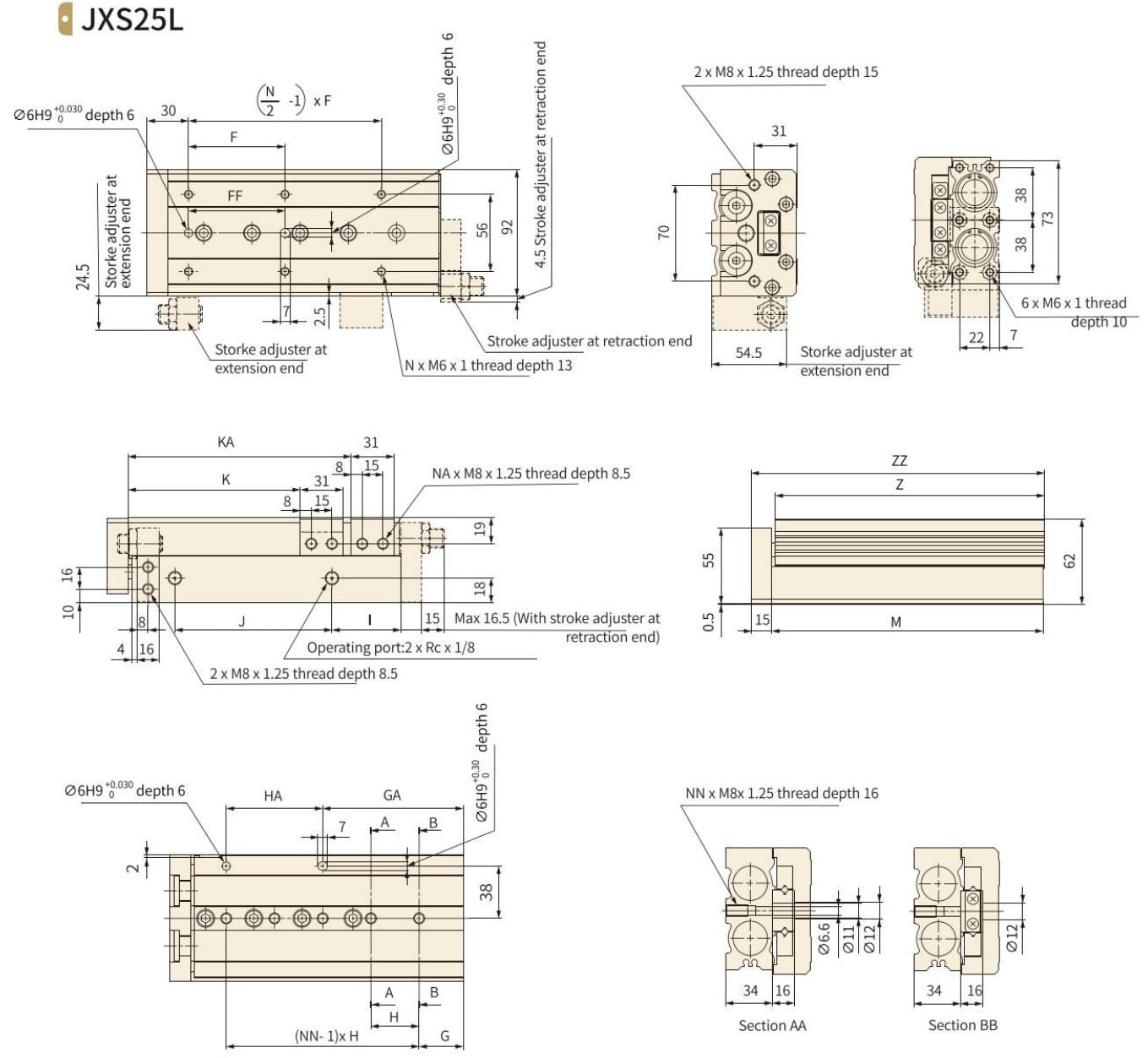

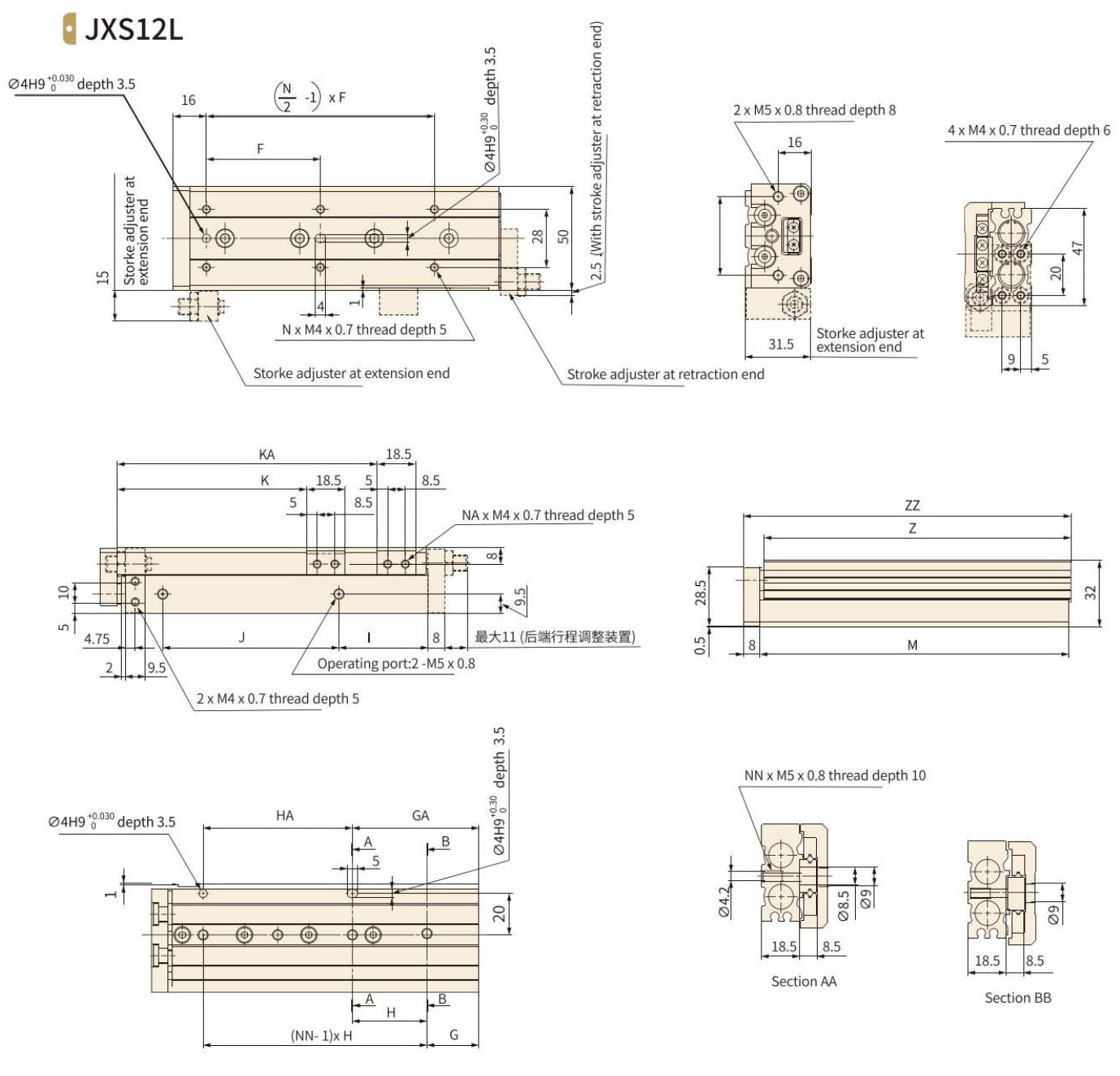

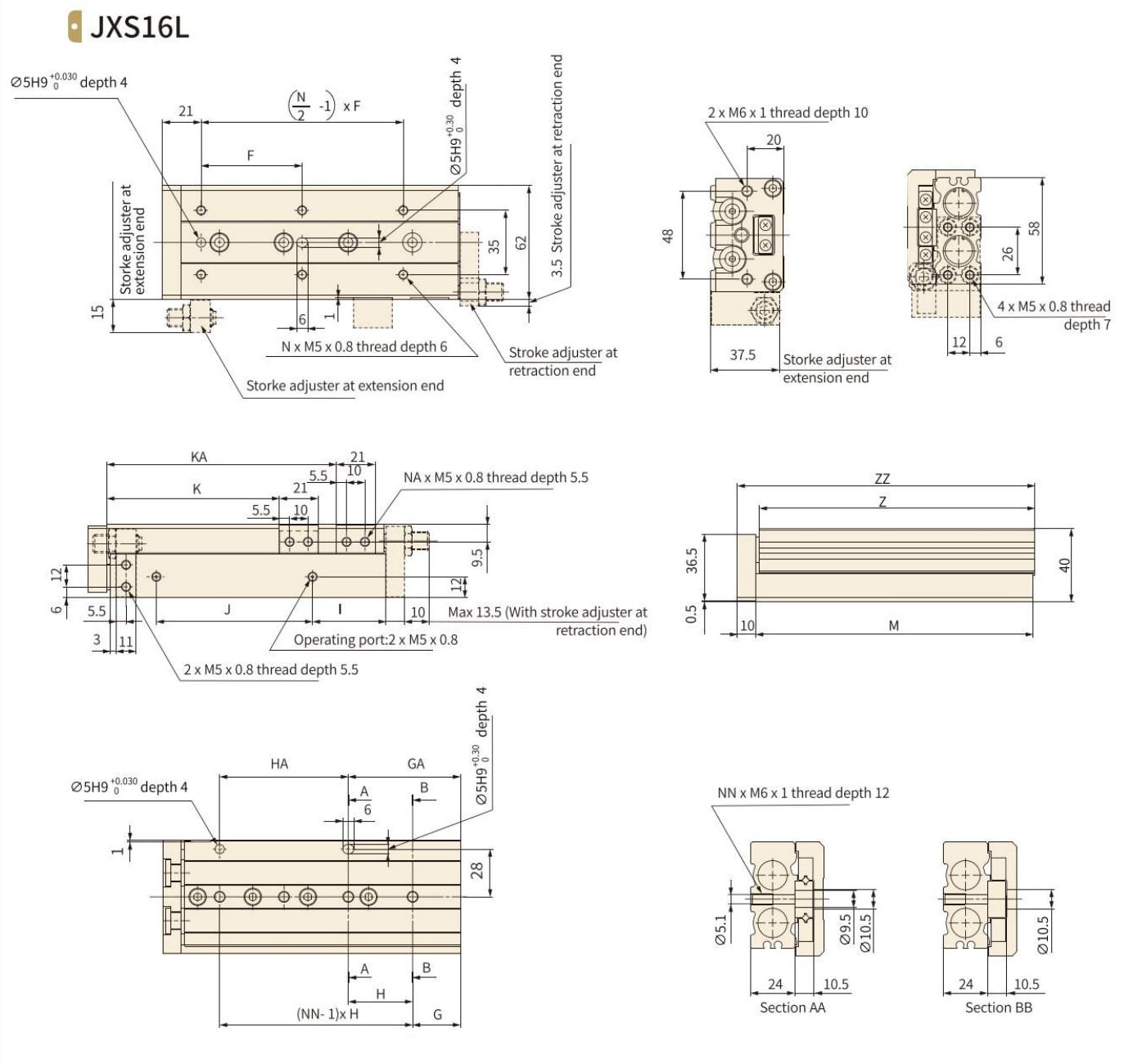

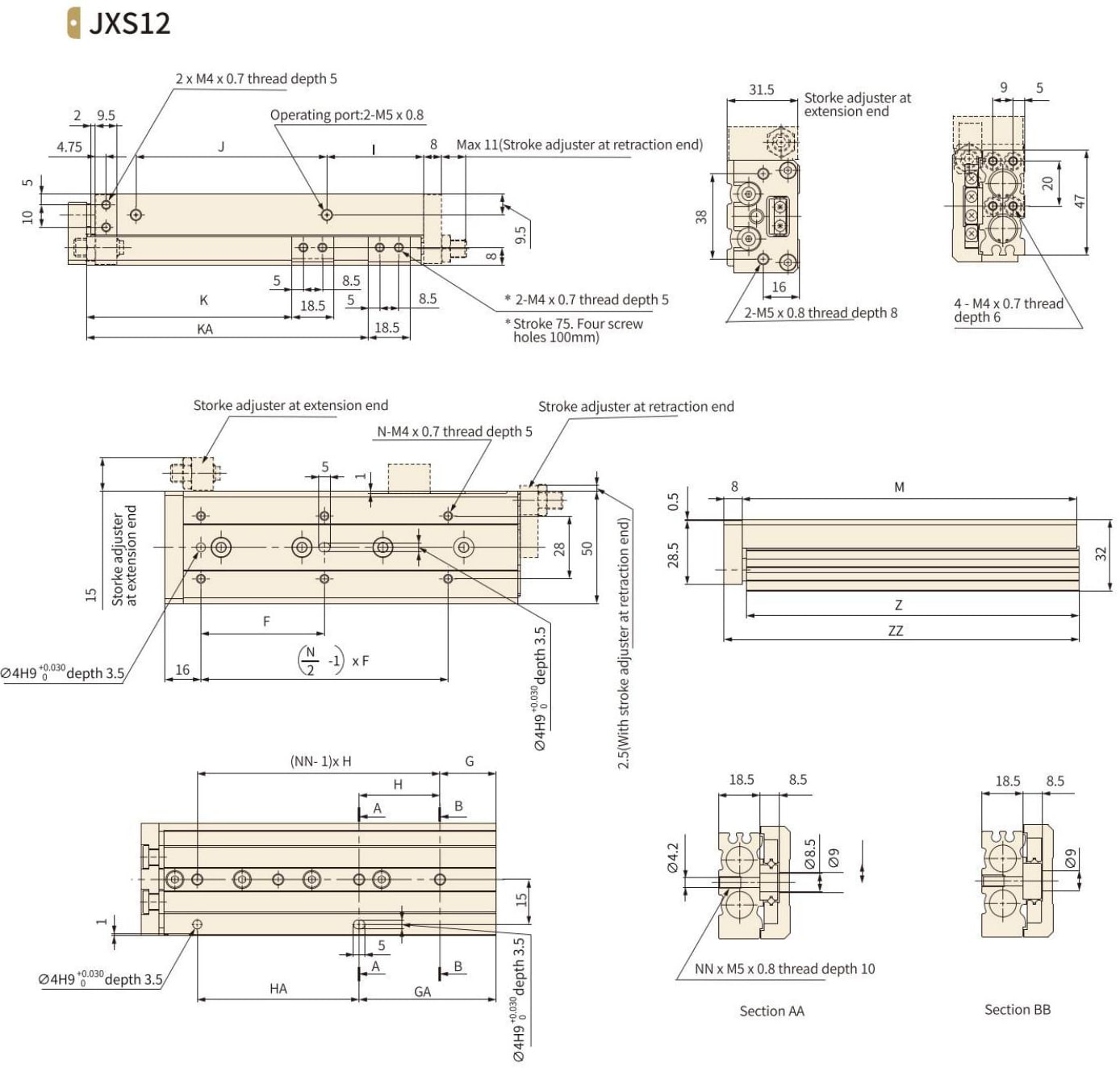

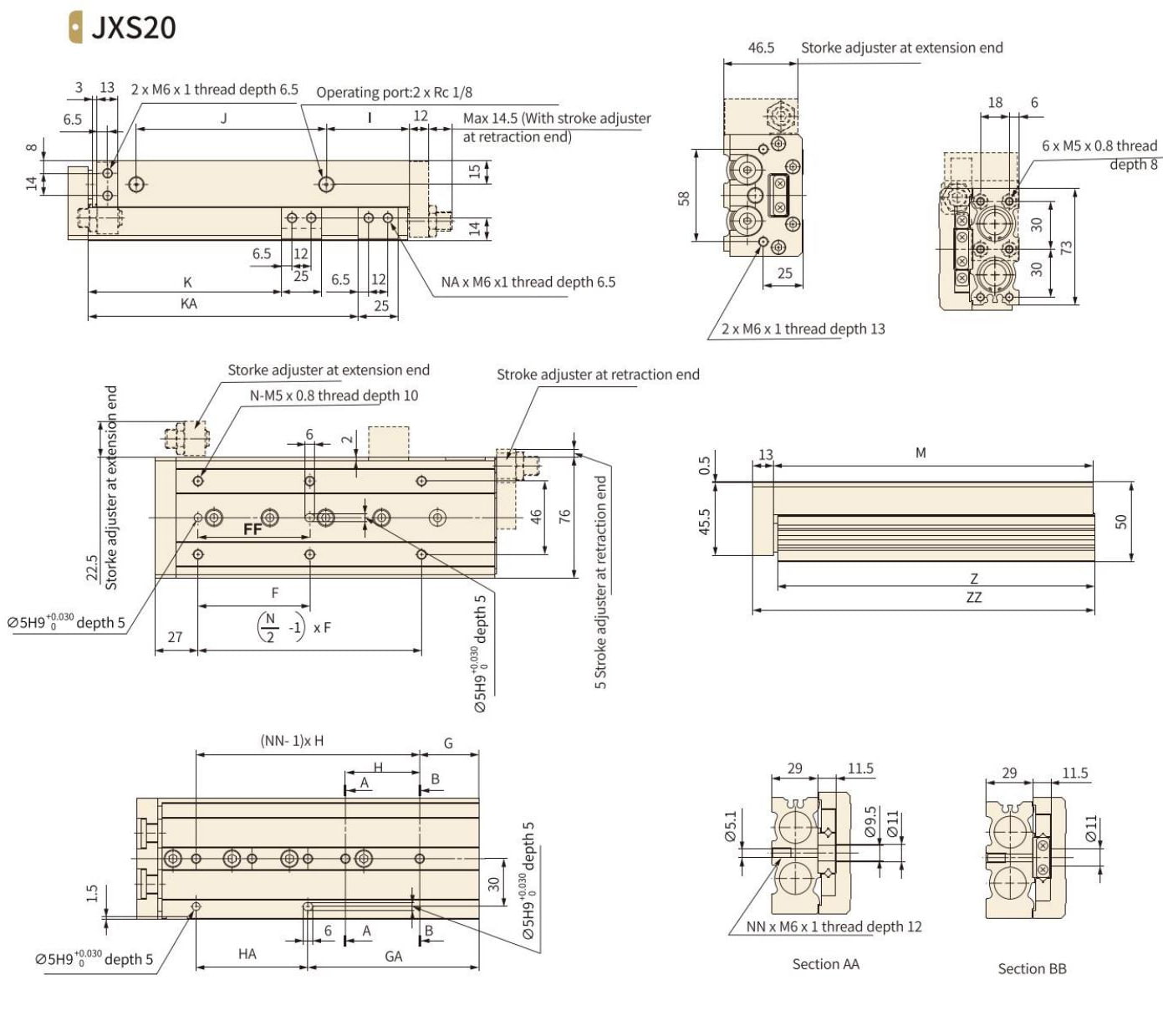

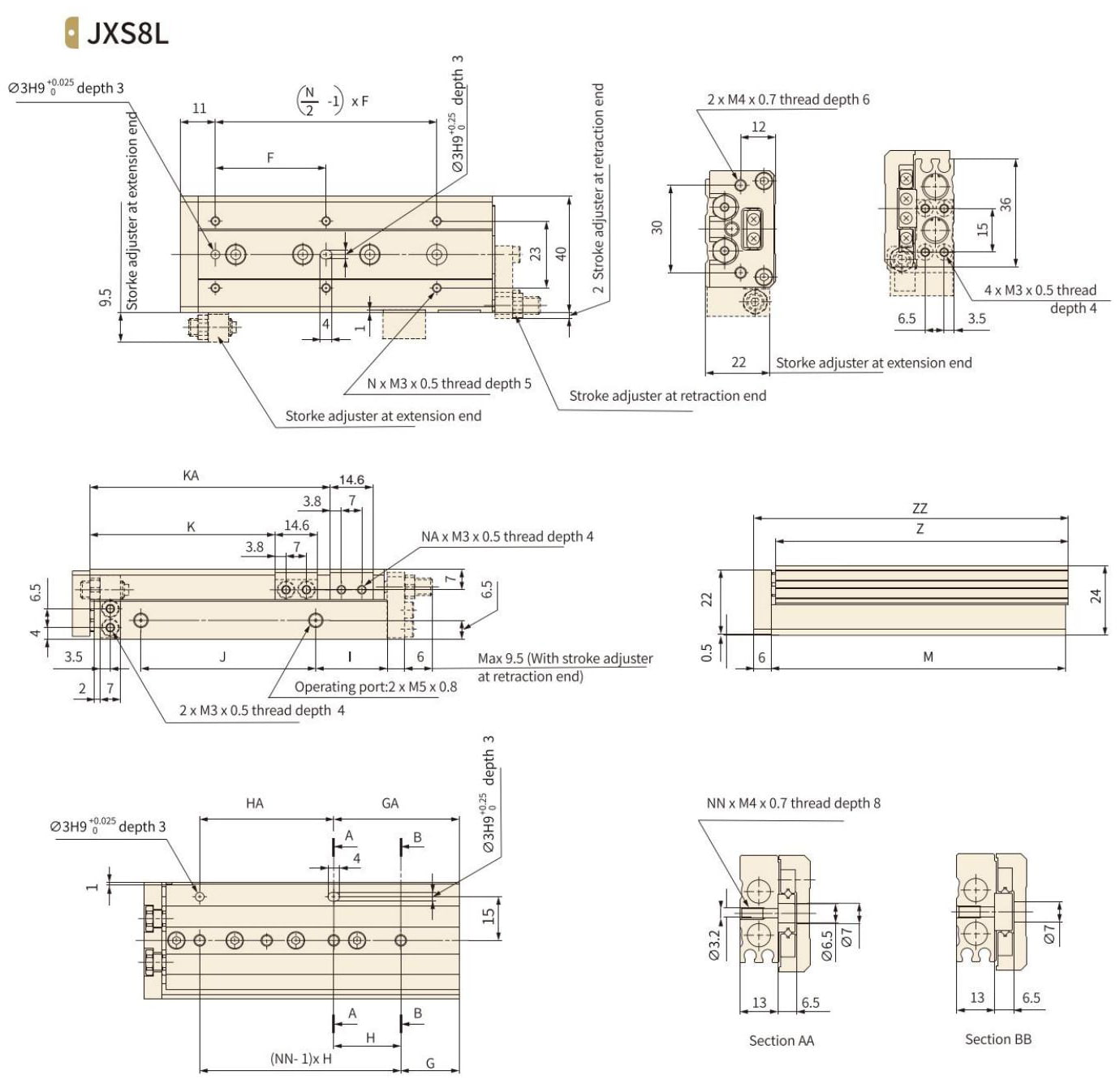

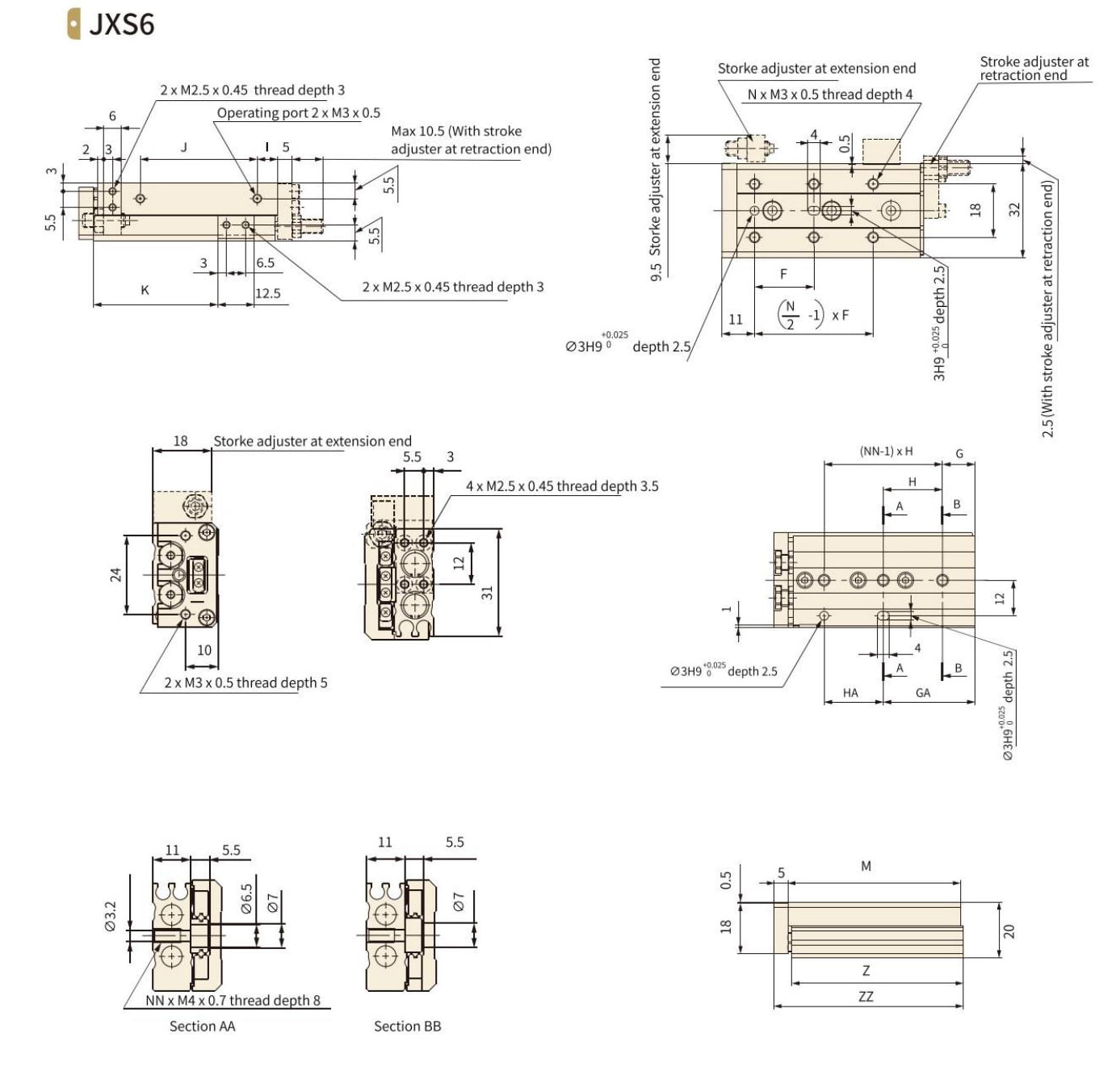

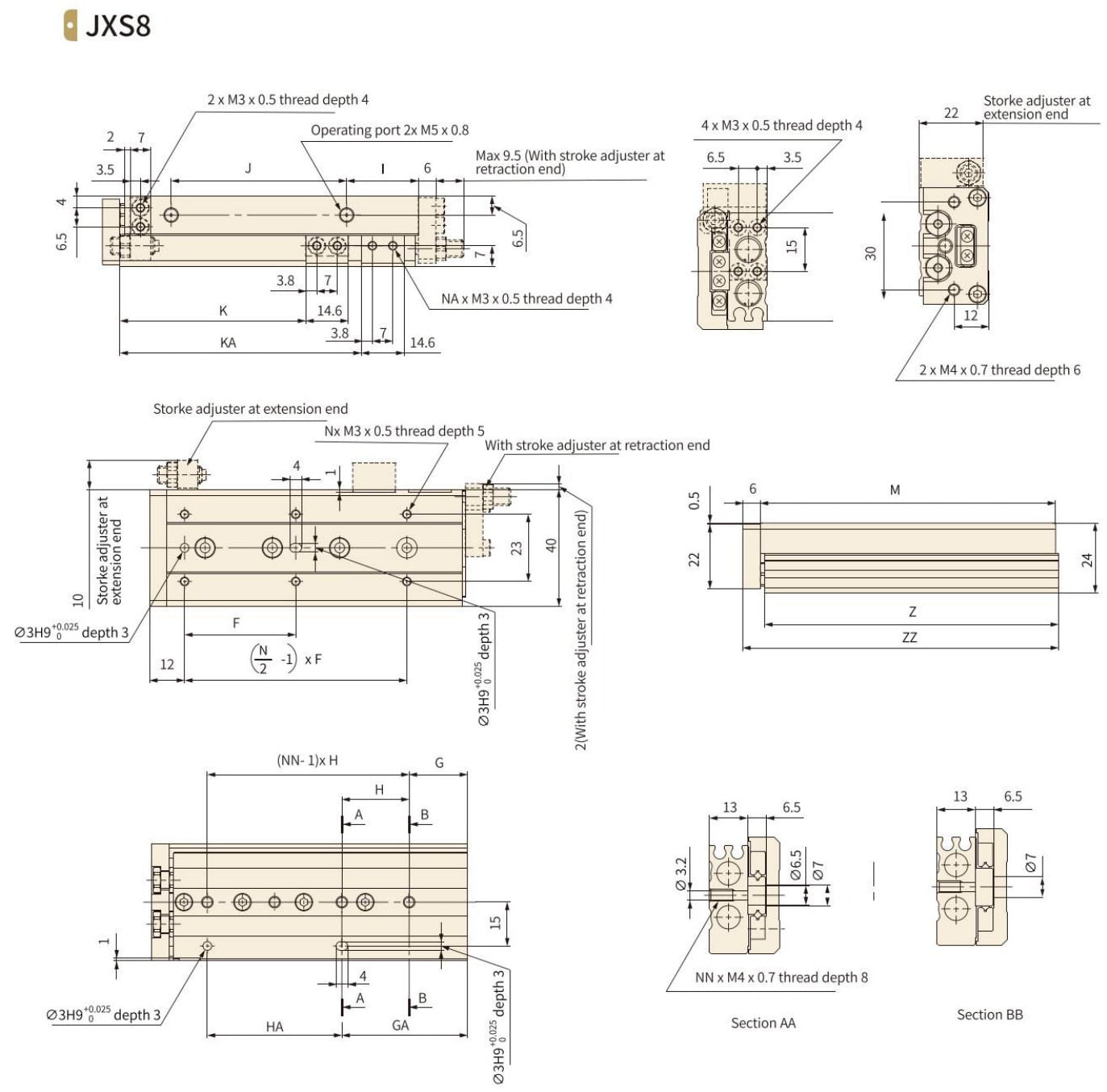

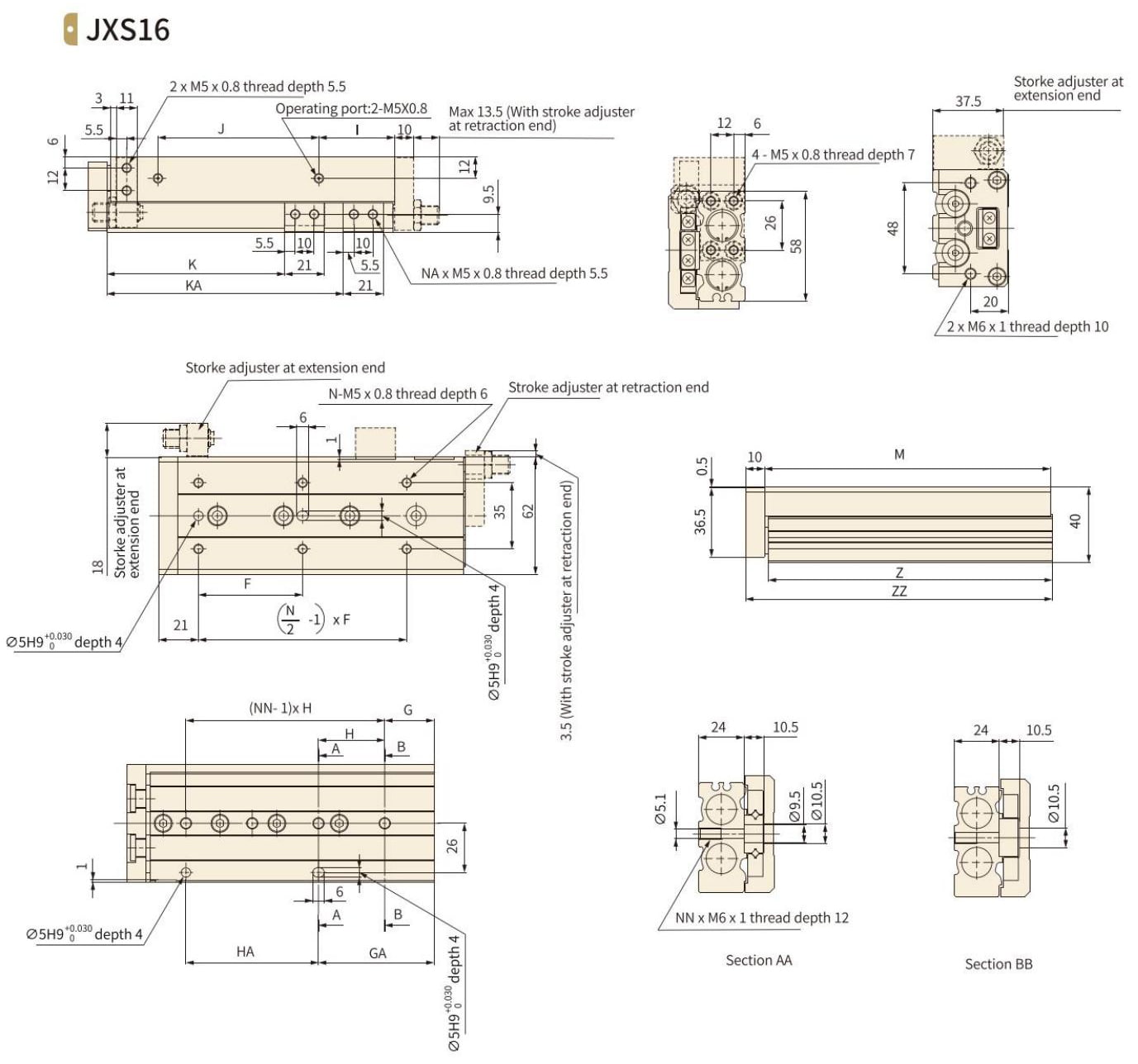

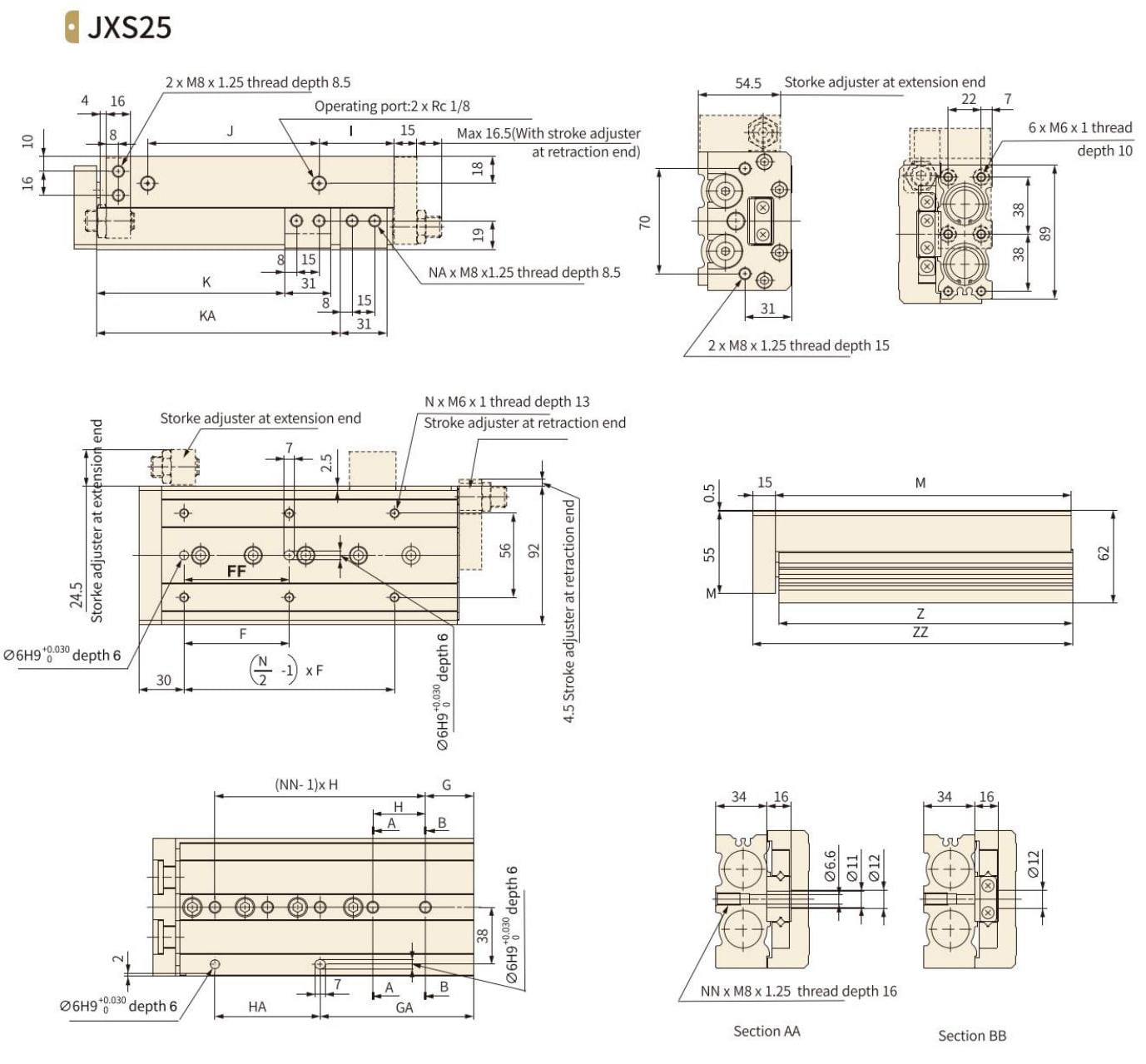

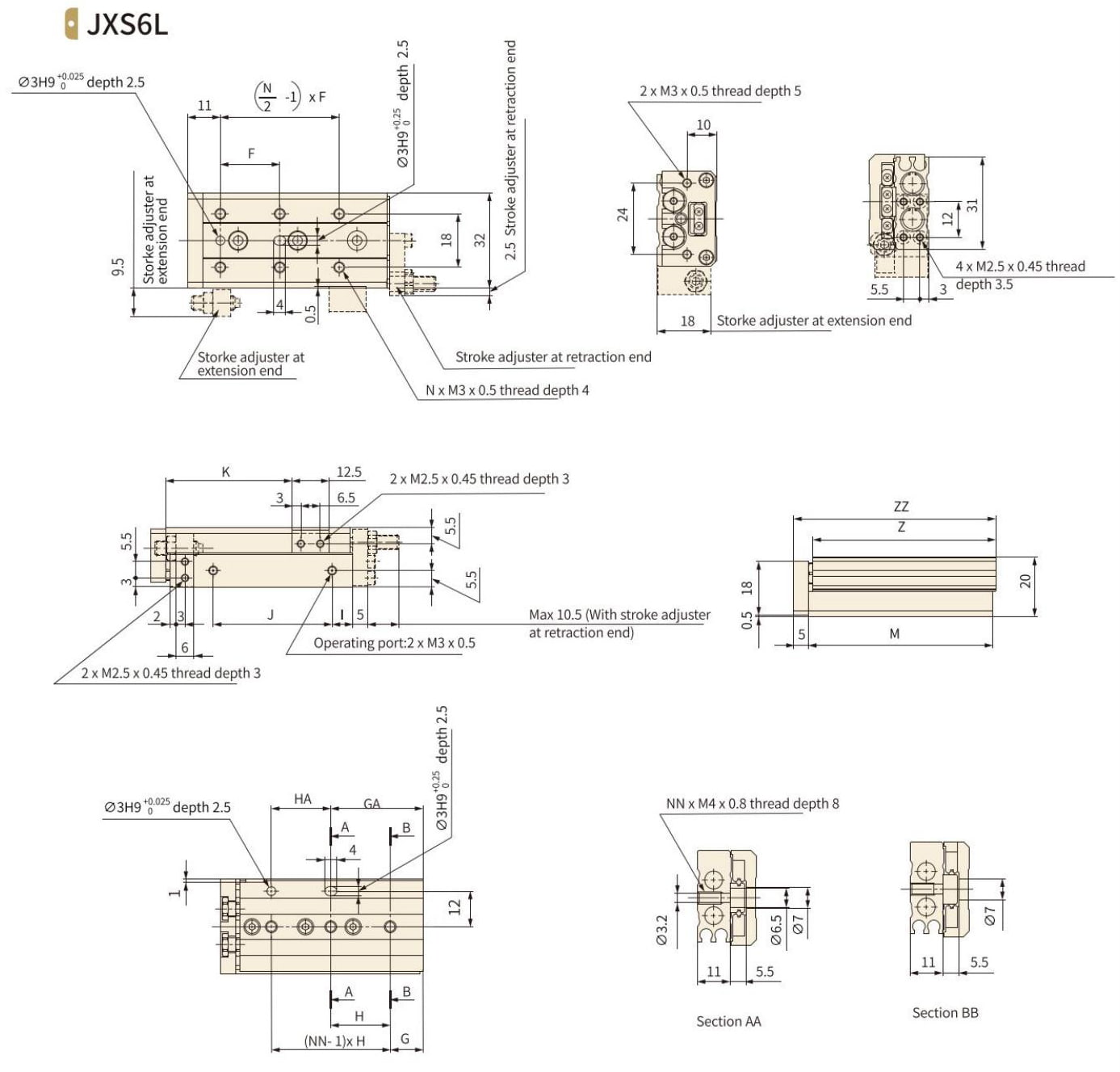

  • Product size

Specification

Bore Size(mm) 6  8  12  16  20  25
∅6x2 amount to ∅8 ∅8x2 amount to ∅11 ∅12x2 amount to ∅17 ∅16x2 amount to ∅22 ∅20x2 amount to ∅28 ∅25x2 amount to ∅35
Working Medium Air
Operation Double acting
Max. Operating Pressure 0.7MPa
Min. Operating Pressure 0.15MPa
Ambient And Fluid Temperature -10~+60℃(with no condensation)
Piston Velocity 50~500mm/s
Cushing Rubber buffer on both ends
Lubrication Turbine oil No.1 ISOVG32
Piping Size M3×0.5 M5×0.8 1/8

Cylinder Theoretical Output Sheet (Double Cylinder Design)

Bore Size(mm) Operating Direction Piston Area(mm²)  Operating Pressure (Mpa)
0.2  0.3  0.4  0.5  0.6  0.7
∅6×2 OUT 57  11  17  23  29  34  40
IN 42  8  13  17  21  25  29
∅8×2 OUT 101  20  30  40  51  61  71
IN 75  15  23  30  38  45  53
∅12×2 OUT 226  45  68  90  113  136  158
IN 170  34  51  68  85  102  119
∅16×2 OUT 402  80  121  161  201  241  281
IN 302  60  91  121  151  181  211
∅20×2 OUT 628  126  188  251  314  377  440
IN 471  94  141  188  236  283  330
∅25×2 OUT 982  196  295  393  491  589  687
IN 756  151  227  302  378  454  529

Ordering Code

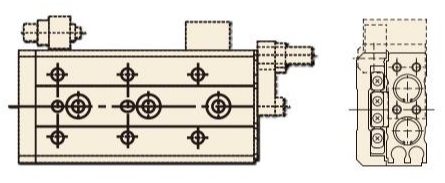

Standard Type (Nil)

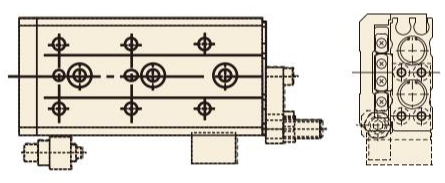

Symmetric Type (with L)

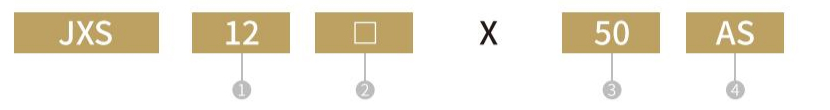

① Bore Size ②Model ③Stroke ④Adjusting Device
  Nil-standard
L-symmetric		   Nil Nil
AS Storke adjuster at extension end
AT Stroke adjuster at retraction end
A Stroke adjuster at both sides
*BS Hydraulic buffer at extension end
*BT Hydraulic buffer at retraction end
*B Hydraulic buffer at both sides
AB Storke adjuster at extension end and hydraulic buffer at retraction end
BA Storke adjuster at retraction end and hydraulic buffer at extension end

Sensor option

Bore Size Stroke Function Optional Sensor
10  20  30  40  50  75  100  125  150  Stroke Adjuster Direct Mounting
∅6×2 ● ● ● ● ●         ● JEL-07D
∅8×2 ● ● ● ● ● ●       ●
∅12×2 ● ● ● ● ● ● ●     ●
∅16×2 ● ● ● ● ● ● ● ●   ●
∅20×2 ● ● ● ● ● ● ● ● ● ●
∅25×2 ● ● ● ● ● ● ● ● ● ●

[Note] Sensor model please refer to P173 for the specific ordering code.
