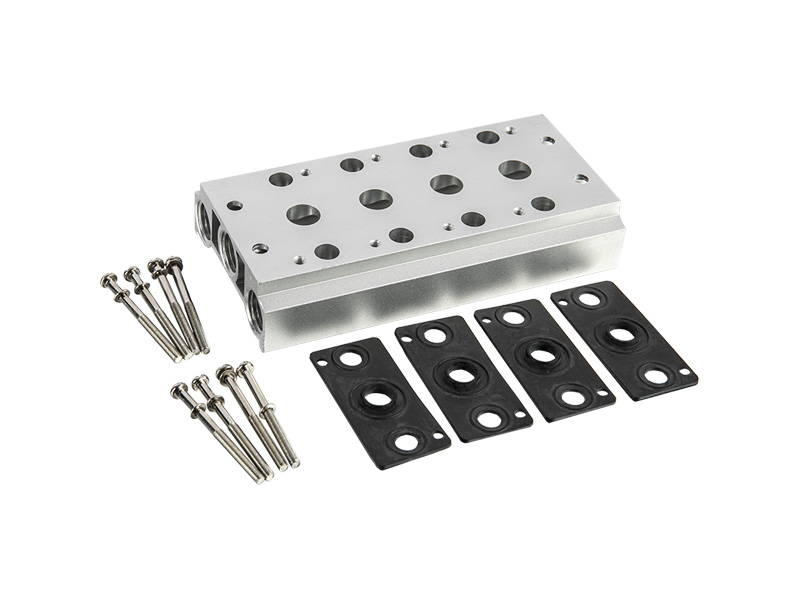

100-400 Series Manifold

100-400 Series Manifold

  • Product parameters

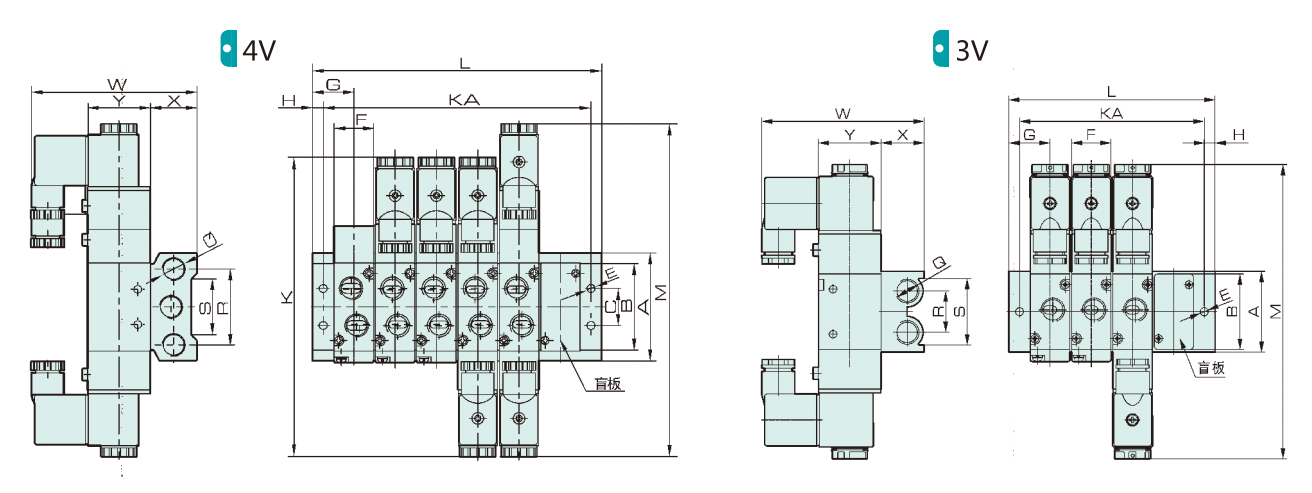

  • Product size

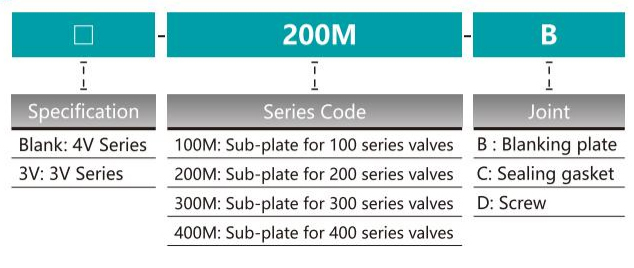

Base Ordering Code


Accessary Ordering Code



Specification

Inside Dia./ Symbol

A

B

C

E

F

G

K

KA

L

M

Q

R

S

W

X

Y

4V-100M-□F

58

43

20

4.2

18.3

19

140

(n-1)*19+28

(n-1)*19+38

155

G1/4

40

30

78.5

25

27

4V-200M-□F

59

50

21

4.3

22.2

23

170

(n-1)*23+34

(n-1)*23+46

189

G1/4

43

32

92.5

26

35

4V-300M-□F

75

64

26

4.5

27.3

27

189

(n-1)*28+42

(n-1)*28+54

208

G3/8

53

48

99

30

40

4V-400M-□F

98

94

32

5.5

34.3

31.5

222

(n-1)*35+49

(n-1)*35+63

243

G1/2

68

67

112

38

50



Inside Dia./ Symbol

A

B

E

F

G

H

KA

L

M

Q

R

S

W

X

Y

3V-100M-□F

31

30

4.5

18

18.5

4.5

(n-1)*19+28

(n-1)*19+37

130.8

G1/8

17.5

25

72.8

19

27

3V-200M-□F

45

43

4.5

22

23

6

(n-1)*23+34

(n-1)*23+46

163.4

G1/4

23

37

90.9

24

35

3V-300M-□F

50

47

4.5

27

27

6

(n-1)*28+42

(n-1)*28+54

190.5

G3/8

29

42

97.4

28

40

3V-400M-□F

62.5

62.5

5.5

34

31.5

7

(n-1)*35+49

(n-1)*35+63

191.9

G1/2

35.5

51.5

109.4

35

50
