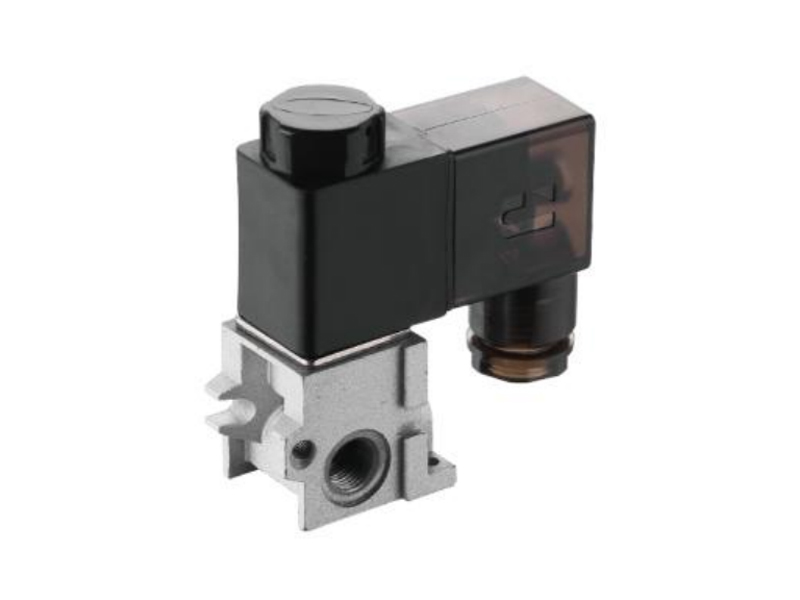

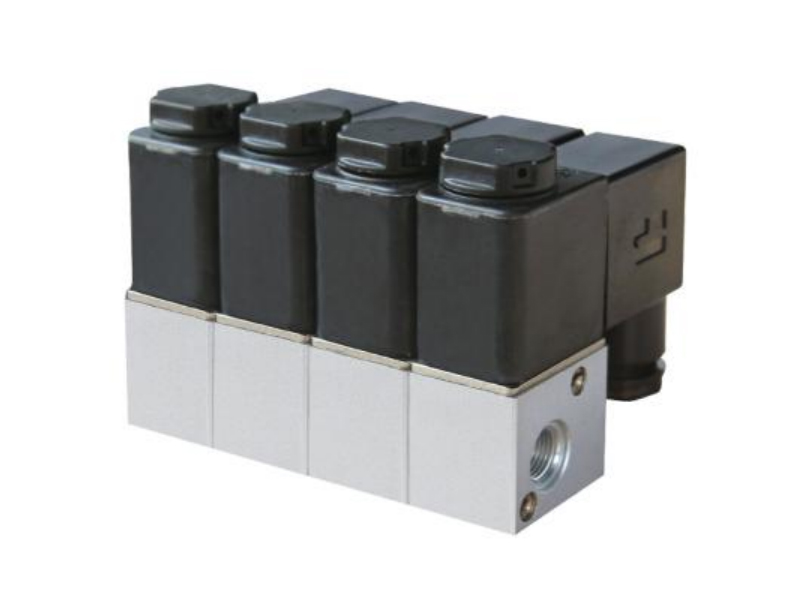

3V1 Series Solenoid Valve

3V1 Series Solenoid Valve

Features:

1. We guarantee inner hole roughness within our new processing

2. Can be assembling with many joints.

3. To import German soft magnetic stainless steel to improve the magnetic performance and reduce coil capacity 30%.

  • Product parameters

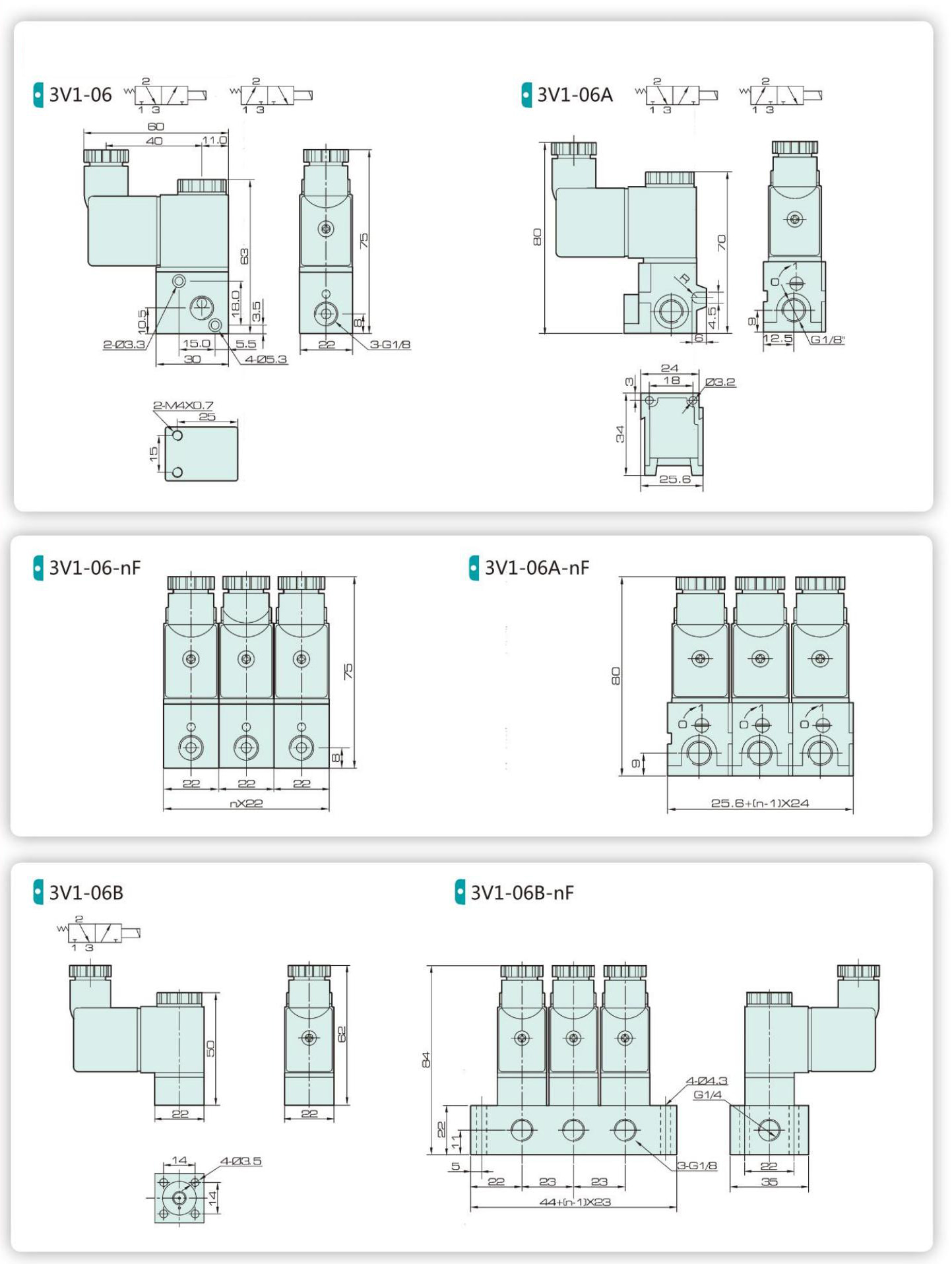

  • Product size

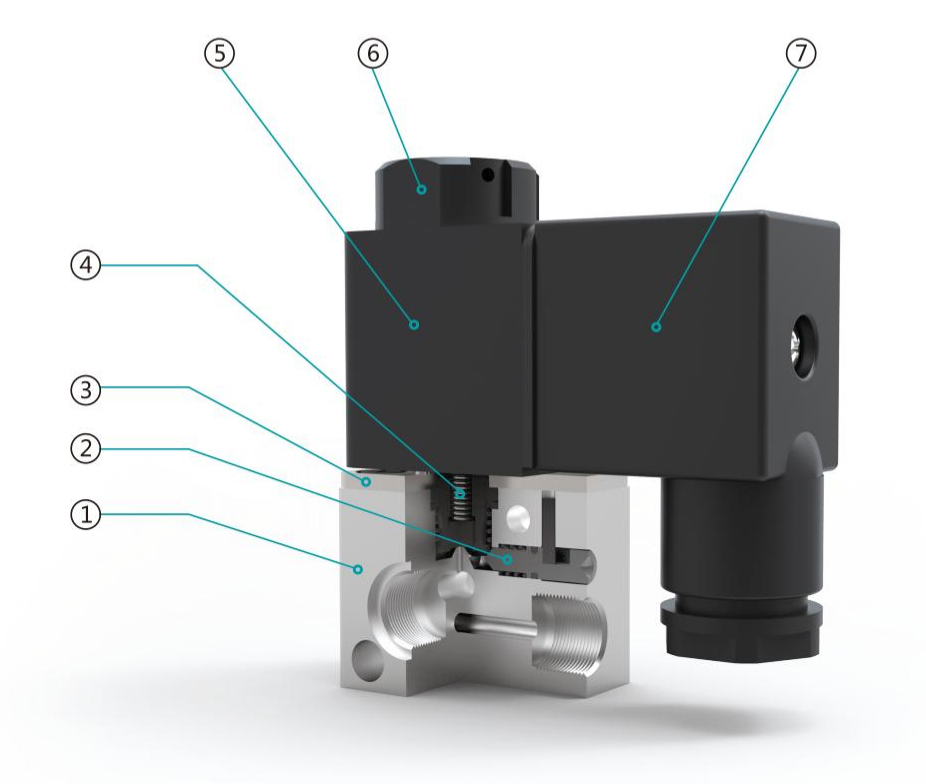

Internal Structure

Parts

Number Name Number Name
1  Valve body 5  Coil
2  Mannual ride spindle 6  Coil nut
3  Connecting part 7  Terminal
4  Solenoid plunger

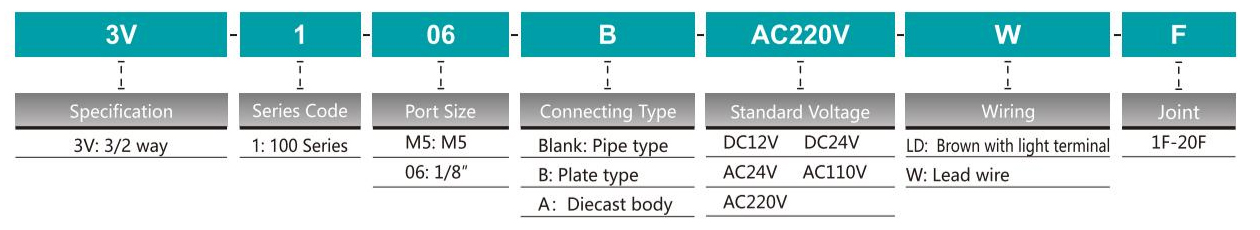

Ordering Code

Specification

Model  3V1-M5 3V1-06(B/A)-NC
Working Medium 40 Micron Filtered Air
Operation Direct
Port Size M5 1/8"(Without or G1/8")
Ambient Temperature  -10～+60℃
Gas Temperature 5~60℃
Air Outlet Diameter 1.0mm
Lubrication  Not Required
Working Pressure 0~0.8 MPa
Max.Test Pressure 1.2 MPa
Power Consumption AC:5.5VA     DC:4.8W
Protect Class IP65
Wiring/Connector Cable/Lead Wire or DIN Connector
Material of Body Aluminum Alloy
Switching Frequency 10 Cycles/Sec.
Insulation F Class
Operating Voltage Tolerance ±10%
Response Time 0.05 Sec.
Flow Aperture ∅1mm

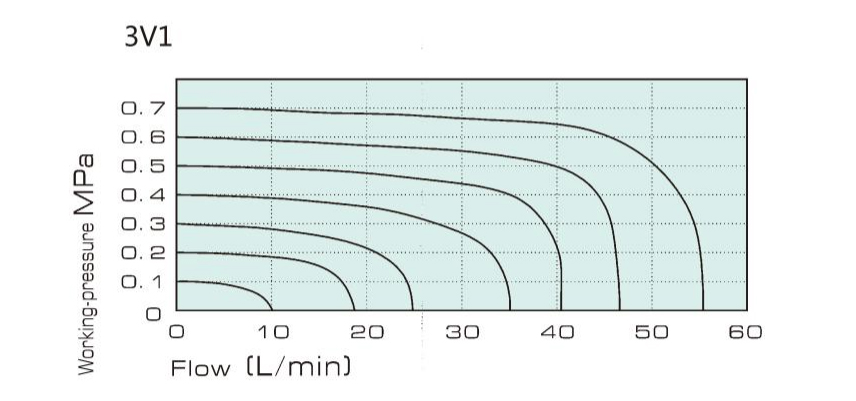

Flow Chart
