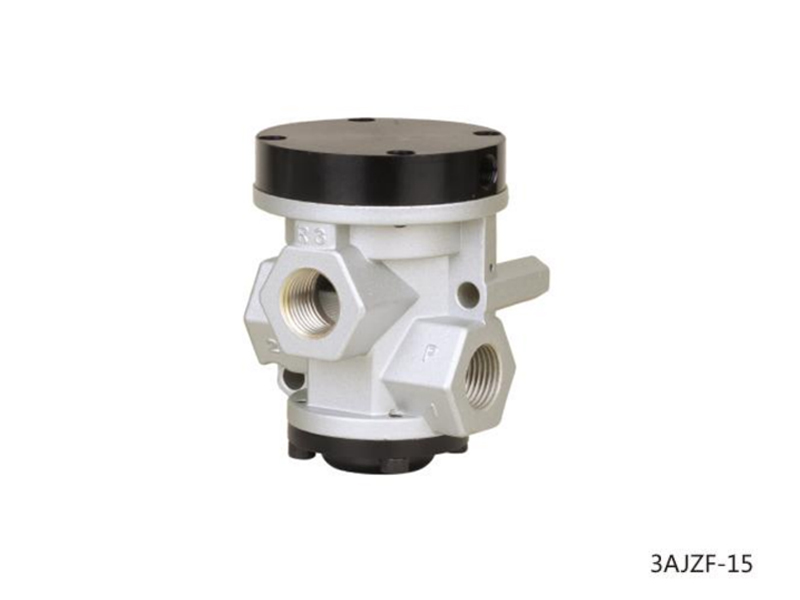

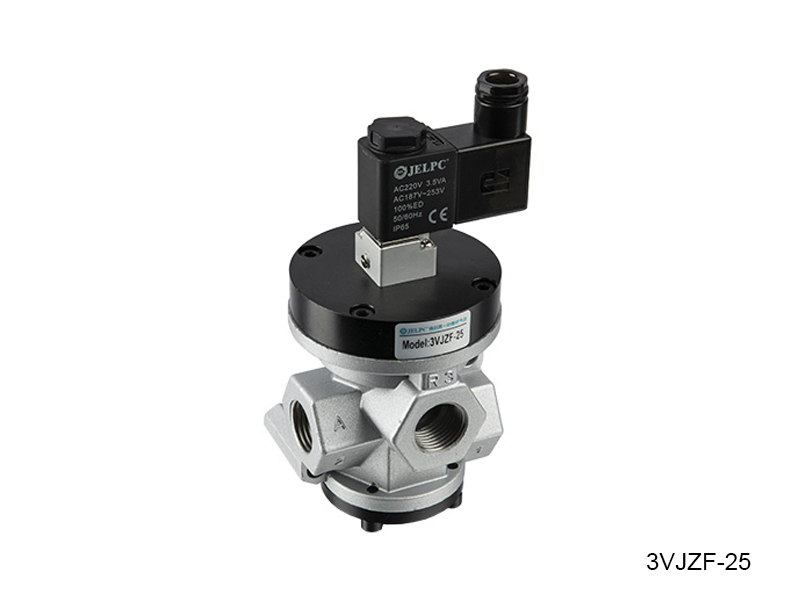

3VJZF Series 3/2 Way Stop Solenoid Valve

3VJZF Series 3/2 Way Stop Solenoid Valve

  • Product parameters

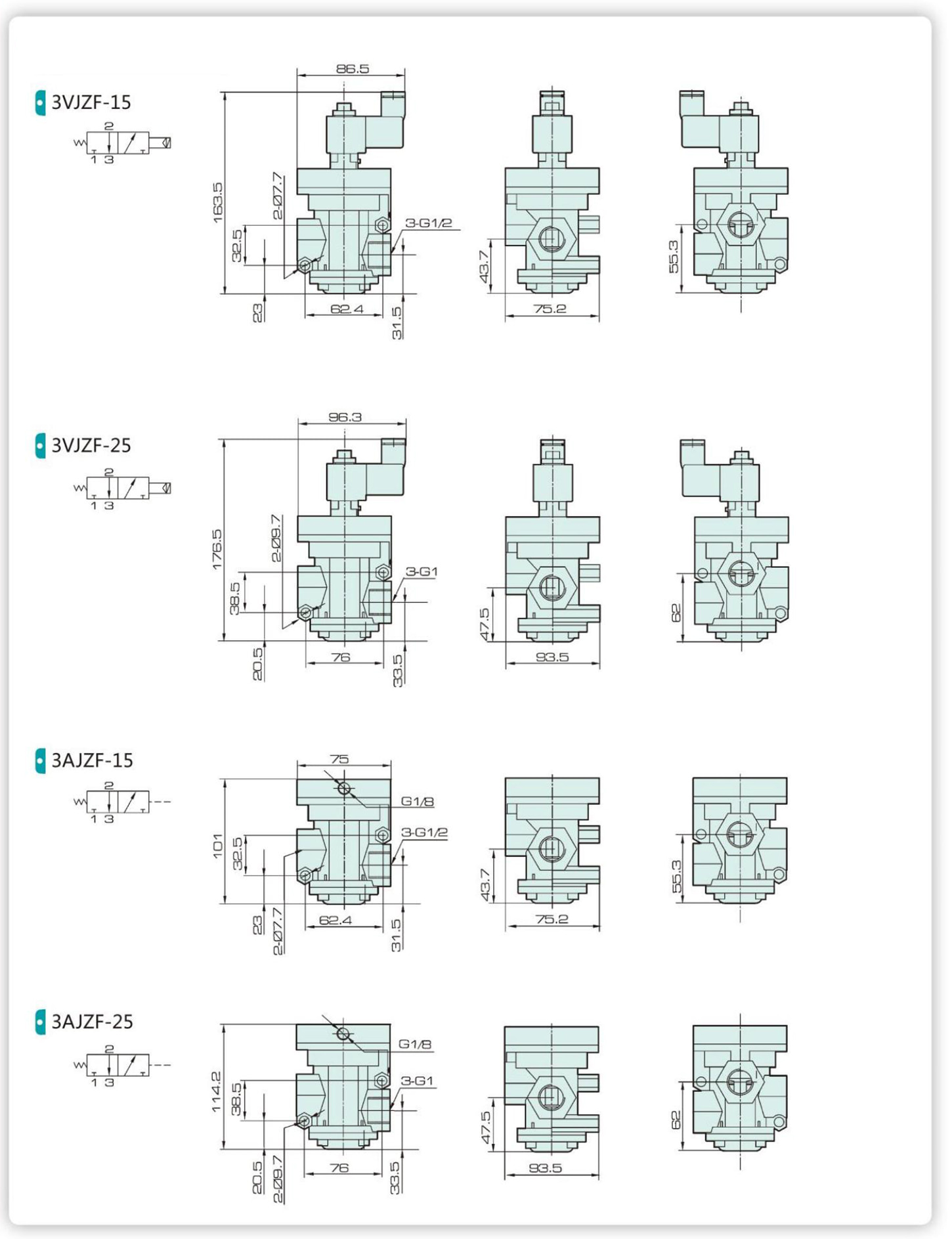

  • Product size

Ordering Code

Specification

Model 3VJZF-15 3VJZF-25/20 3AJZF-15 3AJZF-25/20
Working Medium Air
Operation Stop Type
Orifice 16mm 25mm 16mm 25mm
Port Size G1/2" G1"/G3/4" G1/2" G1"/G3/4"
Working Pressure 0~1.0MPa
Max.Test Pressure 1.5MPa
Operating Voltage Tolerance ±10%
Material of Body Aluminum
