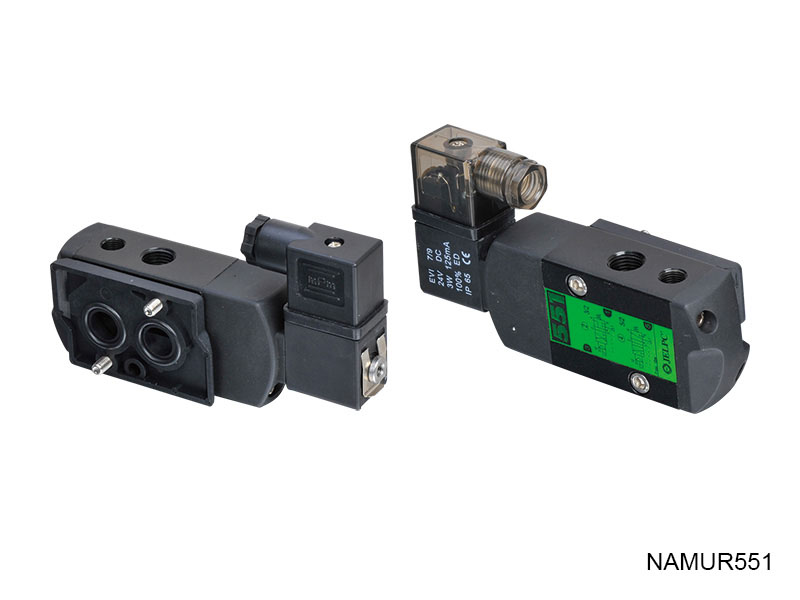

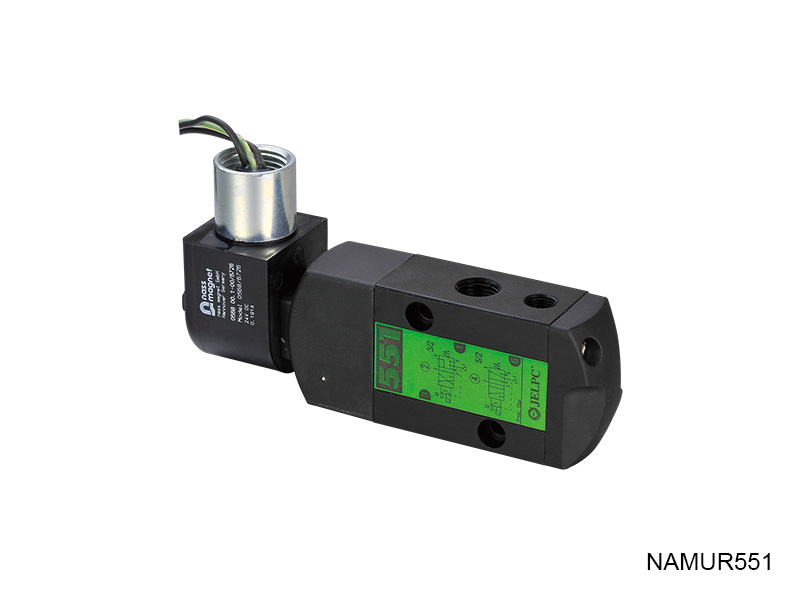

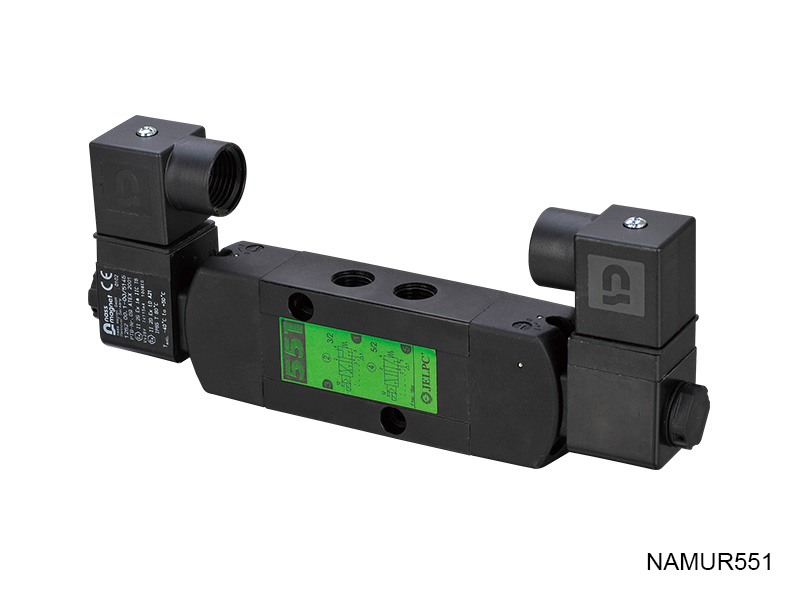

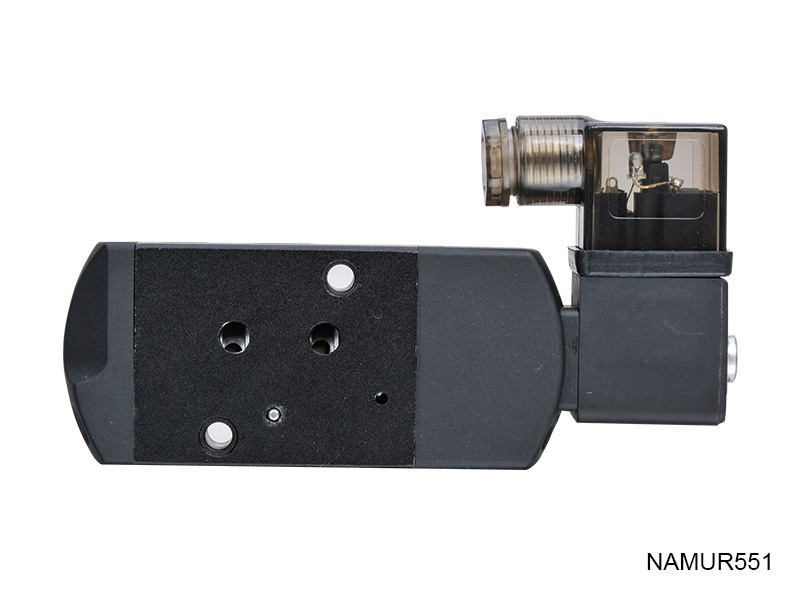

551 Series Solenoid Valve

551 Series Solenoid Valve

Features:
1. Aluminum valve body, with thread connector and Namur interface.
2. A slide valve can be assembled to 3/2 closed or 5/2 in order to control acting and single acting actuator.
3. With hand operator.
4. Coil can be rotated 360°

  • Product parameters

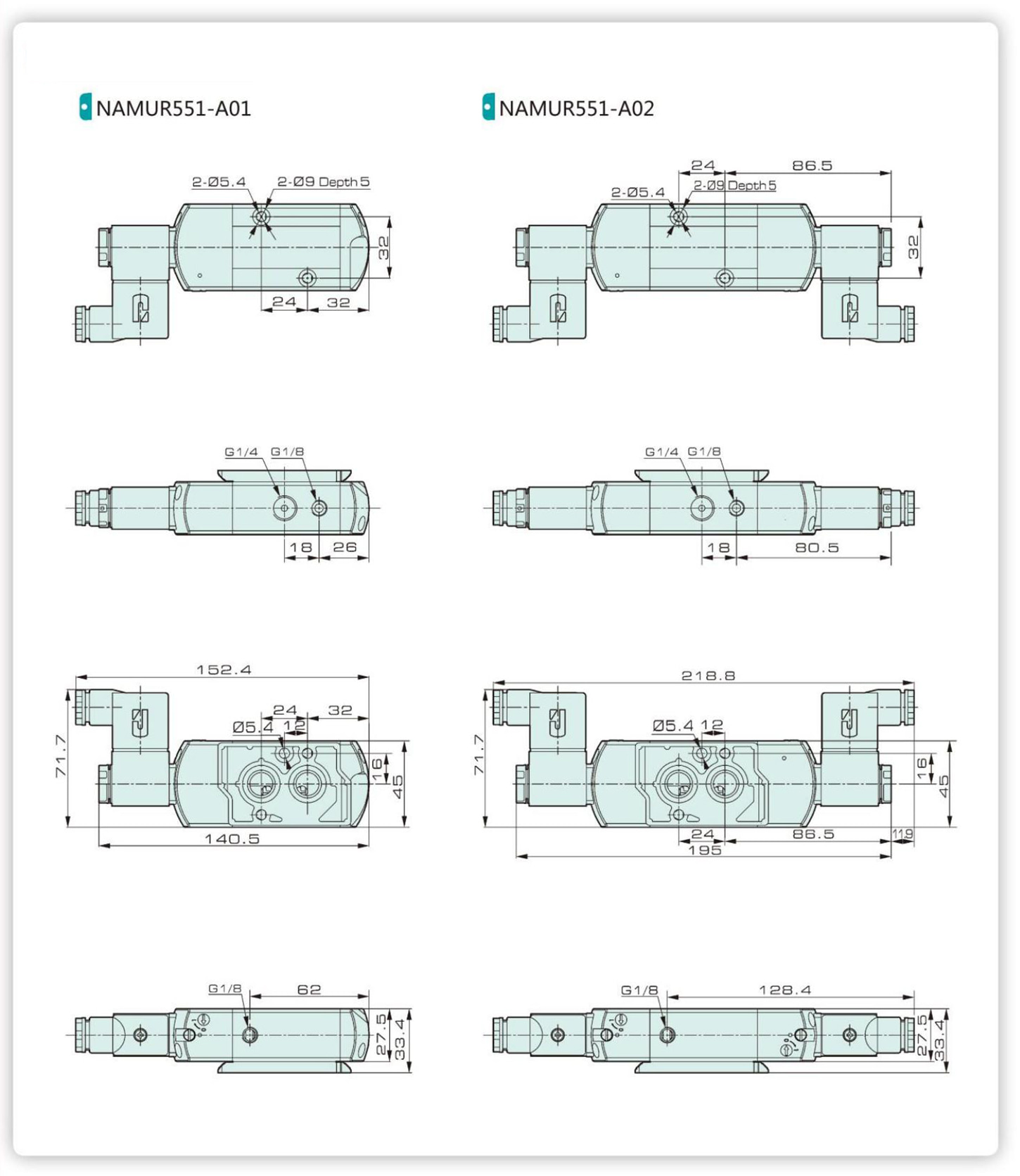

  • Product size

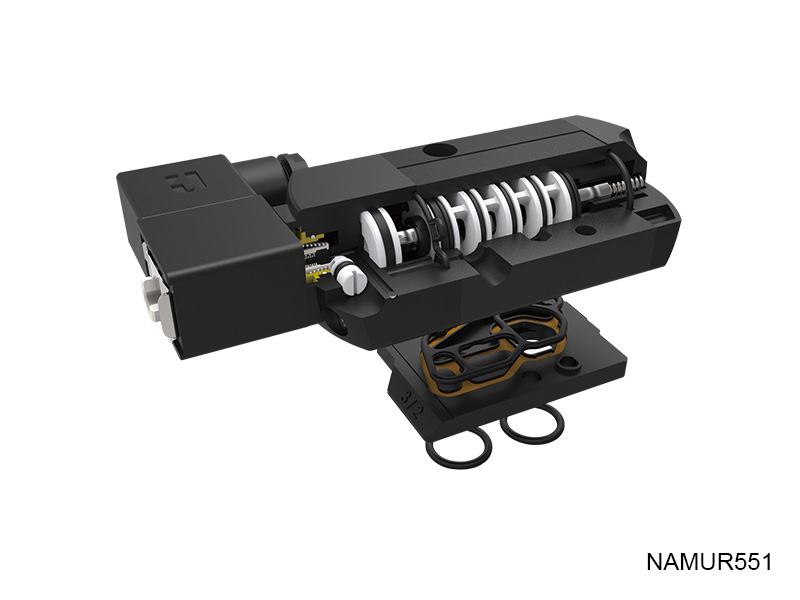

Internal Structure

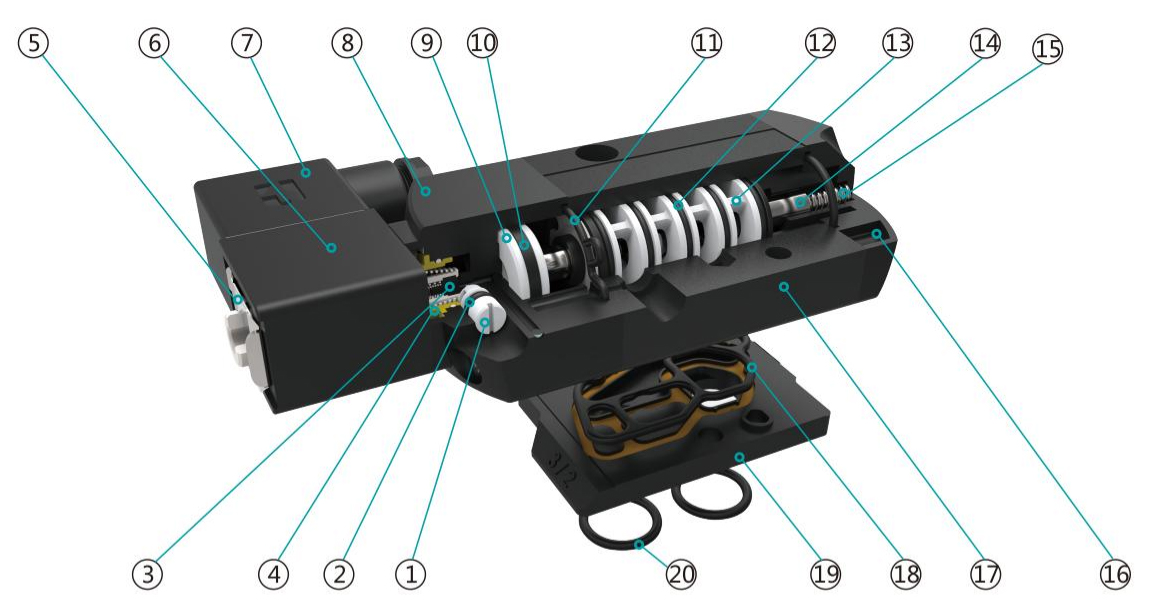

Parts

Number Name Number Name
1  Mannual Ride Spindle 11  Seal
2  O ring 12  O ring
3  Seal 13  Sleeve
4  Spring 14  Spool
5  Clip 15  Spring
6  Coil 16  End-cap
7  Terminal 17  Body
8  Pilot Set 18  Seal
9  Piston 19  Corverting Plate
10  Piston Seal 20  O ring

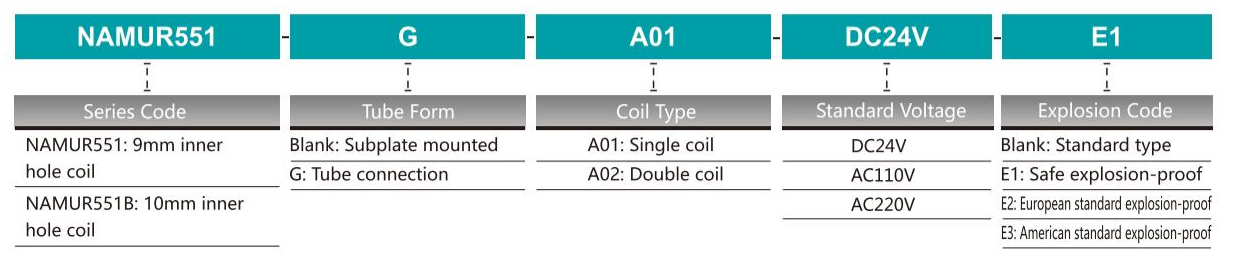

Ordering Code

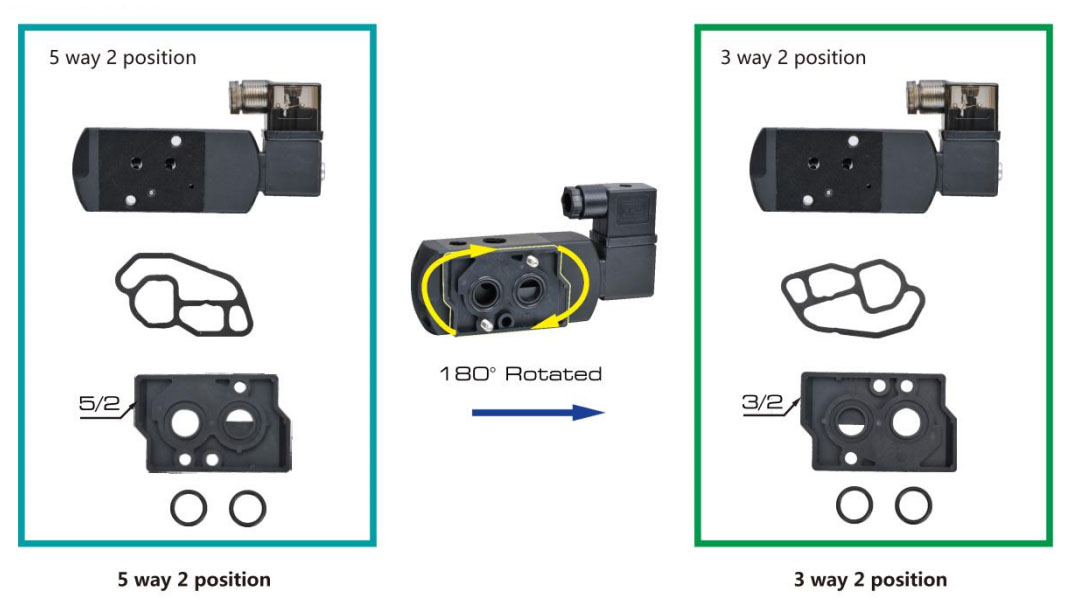

Install instruction

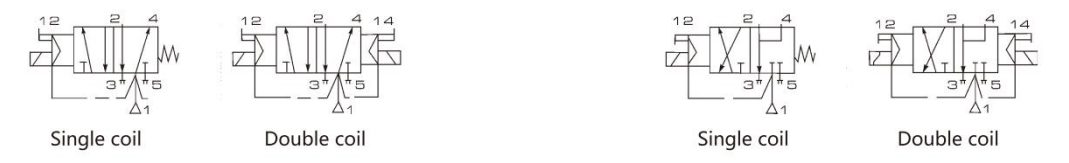

Symbol

Specification

Working Pressure 2-10bar
Max Pressure 10bar
Flow Rate 700L/min
Medium Air, Clean air
Ambient Temperature -25℃ to+60℃
Seal NBR+PUR
Port Size Inlet=G1/4"Exhaust=G1/8"

Feature

Coil Power DC  3W;AC  4VA
Standard Voltage DC24V;AC220V
Voltage Tolerance ±10%
Insulation Class F
Protect Class IP65
Operation 100%
