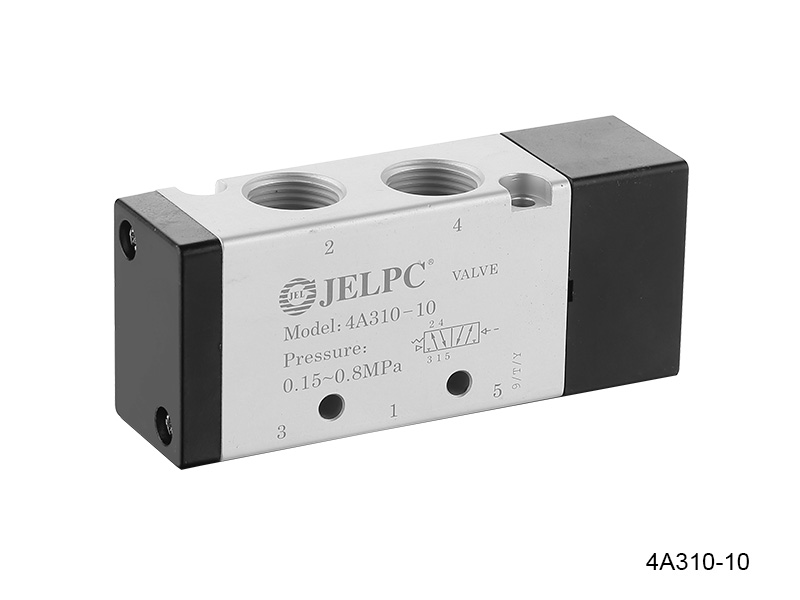

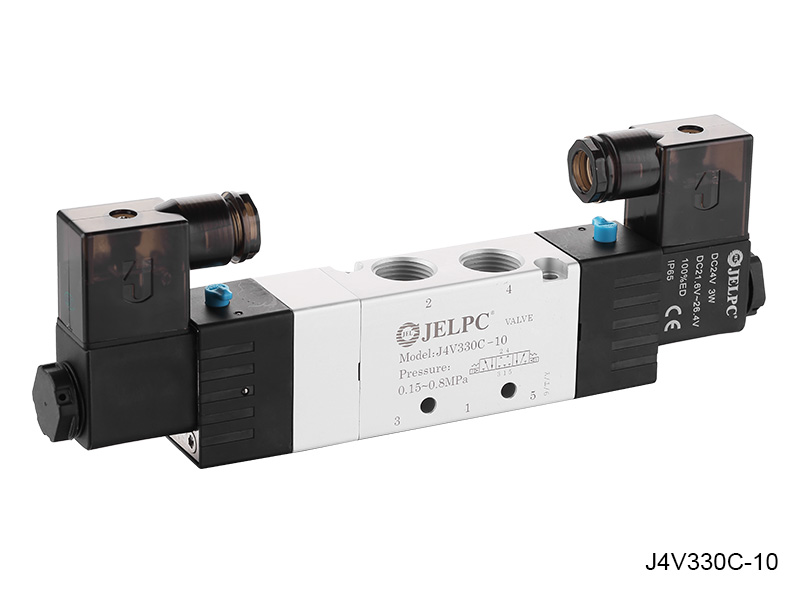

J4V300 Series Solenoid Valve, Air Pilot Valve

J4V300 Series Solenoid Valve, Air Pilot Valve

Features:
1. The Anti-friction seal is added at both ends of the valve spool to make the valve spool more stable during the switchingprocess and increase the valve life time.
2. Seals original imported from Japan; Optimize valve body inner flow path; Maximum increase the air flow area.
3. Valve piloted seat is from taiwan, the surface design with 5 pcs stripe; increased the strength of mannual ride spindle; the appearance is more distinctive (applied appearance patent).
4. The valve body surface treatment adopts a new environmental protection process.
5. Fully automated assembling & test line with good product consistency.

  • Product parameters

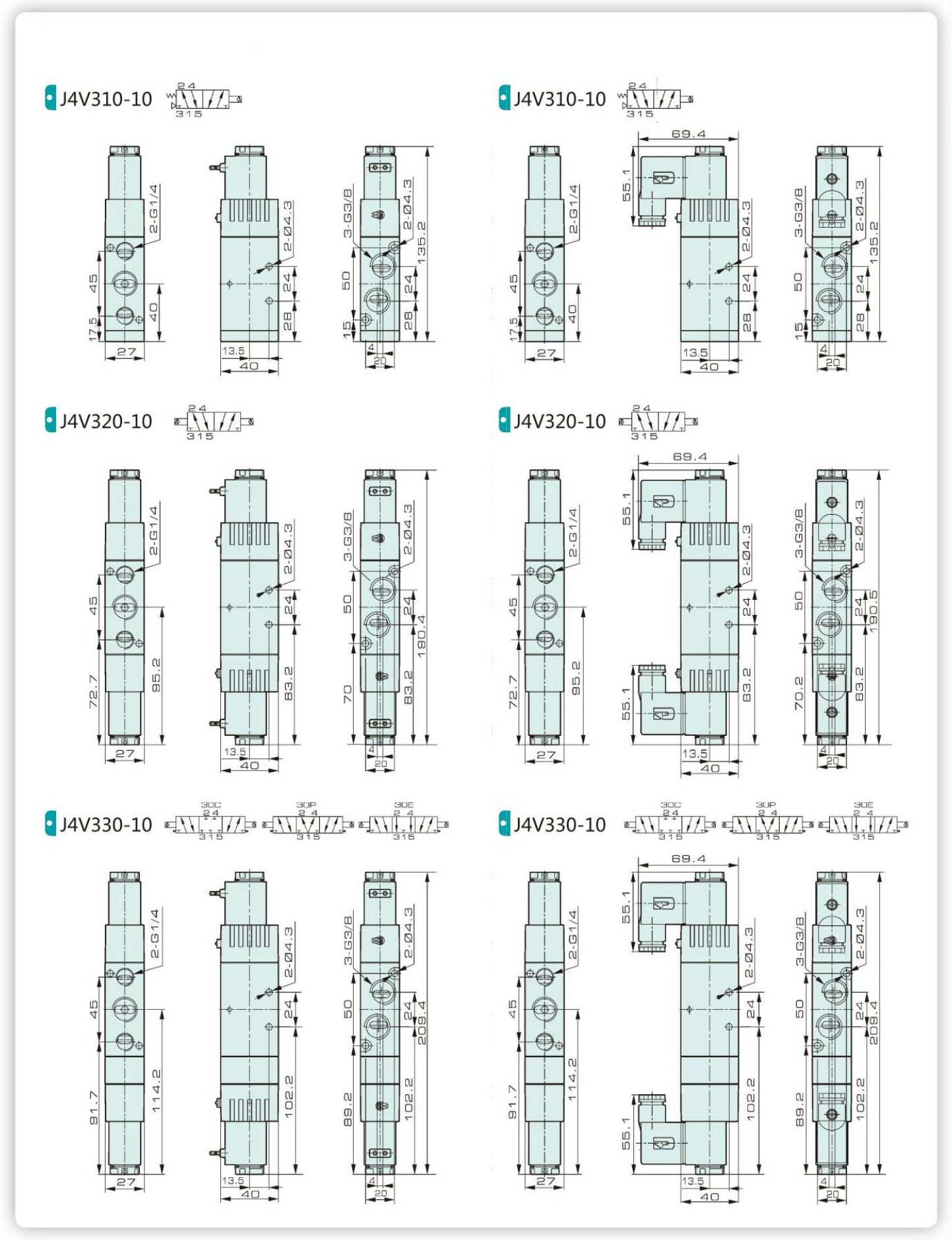

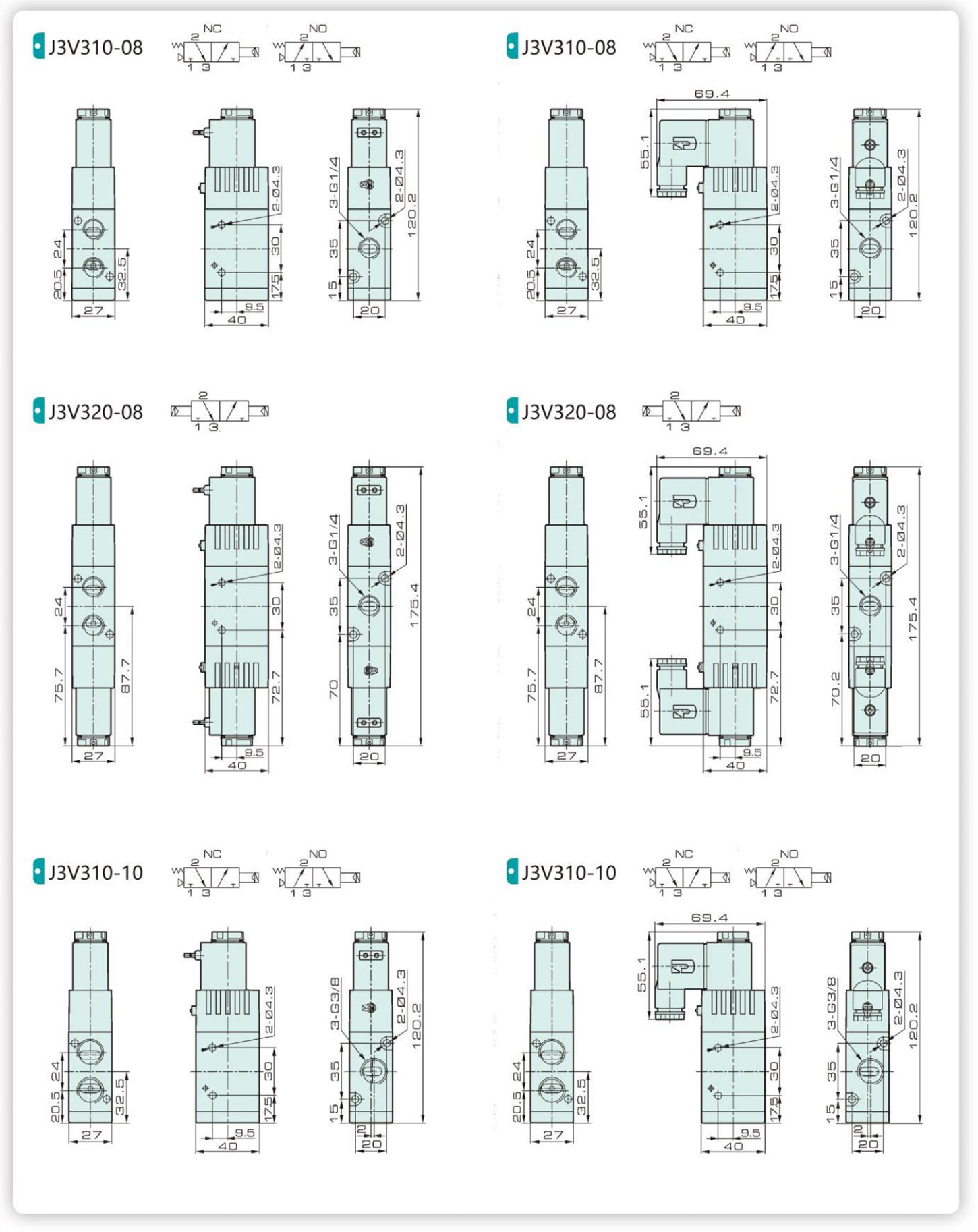

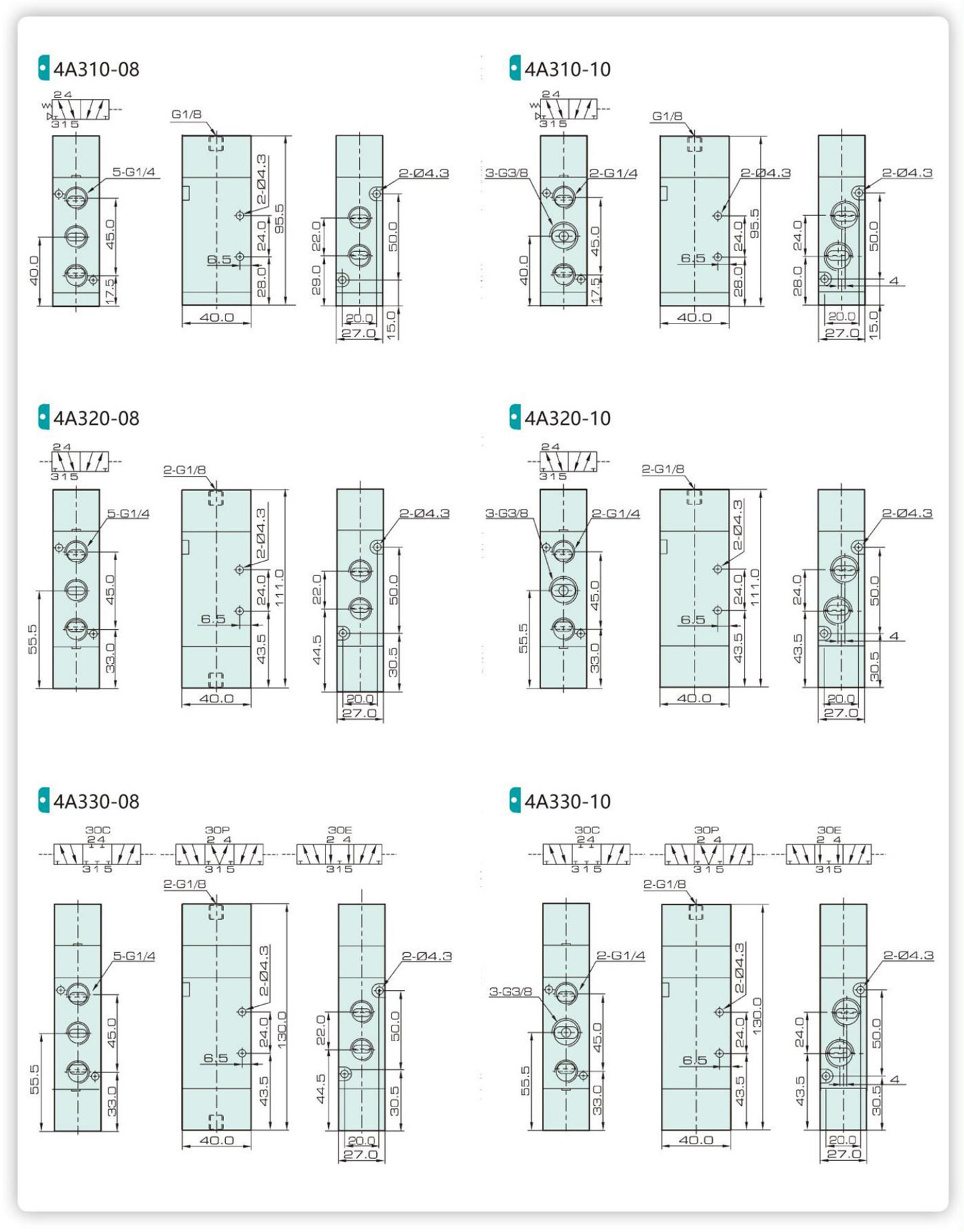

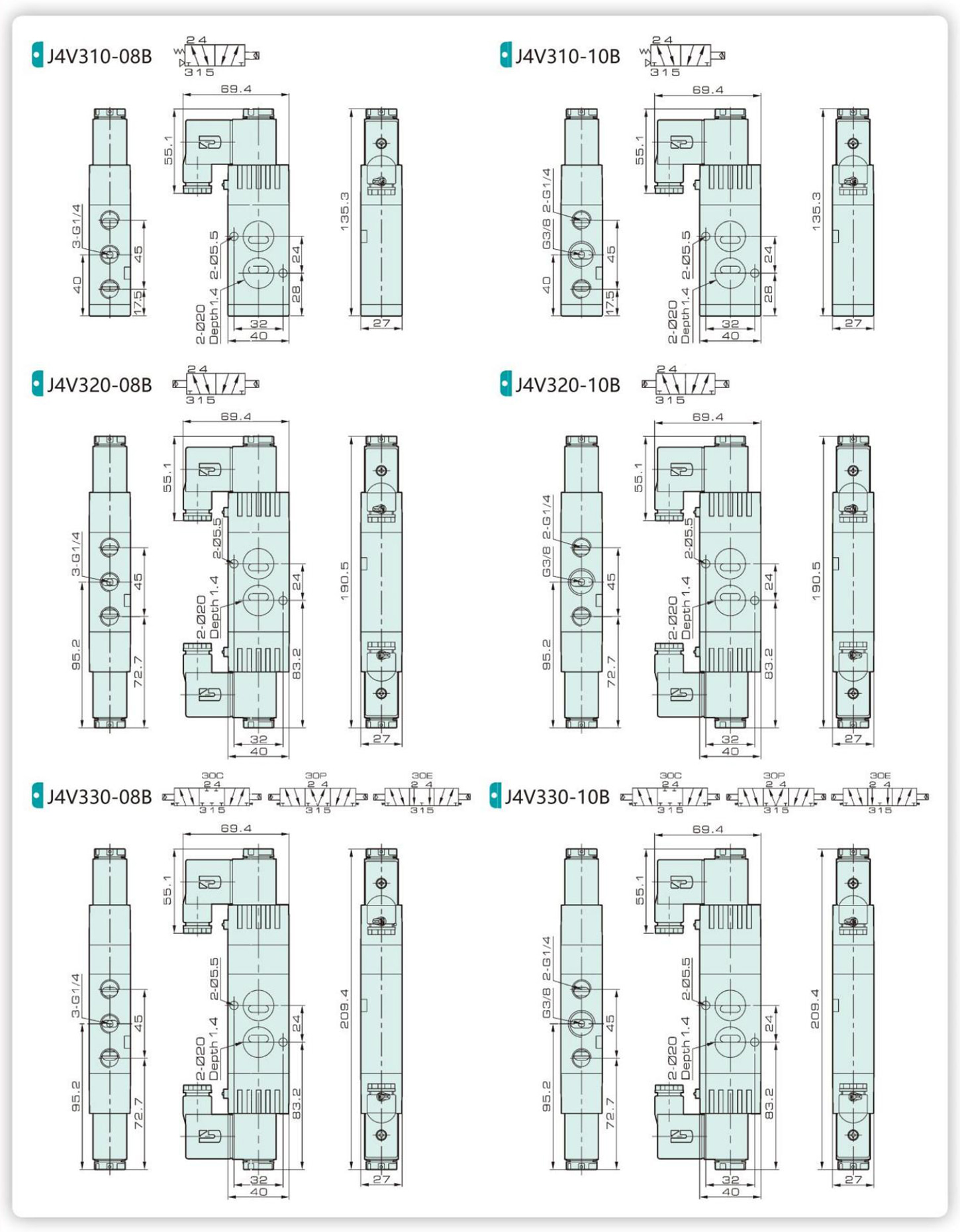

  • Product size

Internal Structure


Parts

Number Name Number Name Number Name
1  Cross slot pan screw 7  Valve spool 13  Coil
2  Back cover 8  Piston 14  Coil nut
3  Spring 9  Y ring 15  Fix plate
4  Anomalous seal 10  Spring 16  O ring
5  Valve body 11  Mannual ride spindle 17  Plunger
6  Flat ring 12  Terminal 18  Pilot seat


Improvement of Flow Performance Indicator


Improvement of Life-time

The chart shows that the response time of the solenoid valve is within 25 milliseconds.
The response time of the solenoid valve is minor difference after 40 million lifetime tests.

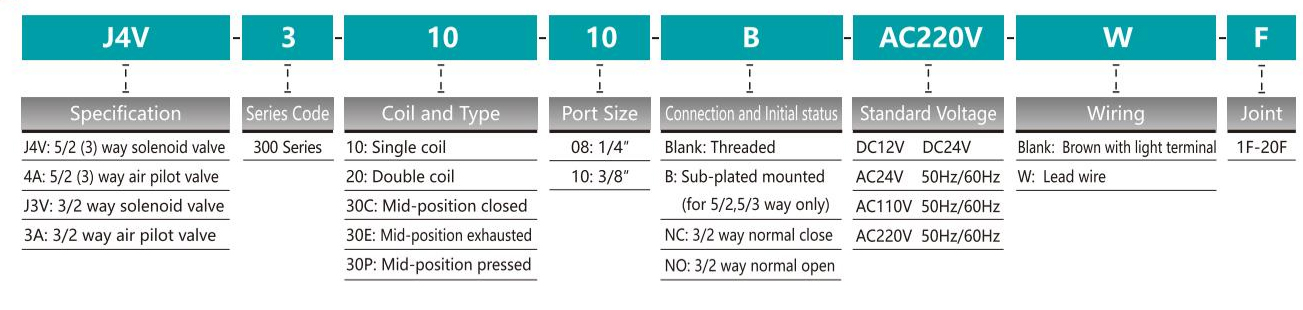

Ordering Code


Specification

Model J4V310-08 J4V320-08 J4V330C-08 J4V330E-08 J4V330P-08 J4V310-10 J4V320-10 J4V330C-10 J4V330E-10 J4V330P-10
4A310-08 4A320-08 4A330C-08 4A330E-08 4A330P-08 4A310-10 4A320-10 4A330C-10 4A330E-10 4A330P-10
Valve Type 5/2 way 5/3 way 5/2 way 5/3 way
Effective Cross Section Area 25mm²(CV=1.40) 18mm²(CV=1.00) 30mm²(CV=1.68) 18mm²(CV=1.00)
Model J3V310-08 J3V320-08 3A310-08 3A320-08 J3V310-10 J3V320-10 3A310-10 3A320-10
Valve Type 3/2 way
Effective Cross Section Area 25mm²(CV=1.40) 30mm²(CV=1.68)
Port Size Inlet, Outlet, Exhaust Port =G 1/4”   Inlet, Outlet=G 3/8"Exhaust Port =G1/4"
Working Medium 40 Micron Filtered Air
Operation Internal piloted
Working Pressure 0.15～0.8MPa
Max.Test Pressure 1.2MPa
Ambient Temperature -20~70℃
Operating Voltage Tolerance ±10%
Power Consumption AC:3.5VA    DC:3.0W
Connector Protection F Class, IP 65
Wiring/Connector Cable/Lead Wire or DIN Connector
Switching Frequency 5 Cycles/Sec.
Response Time 0.05 Sec.
