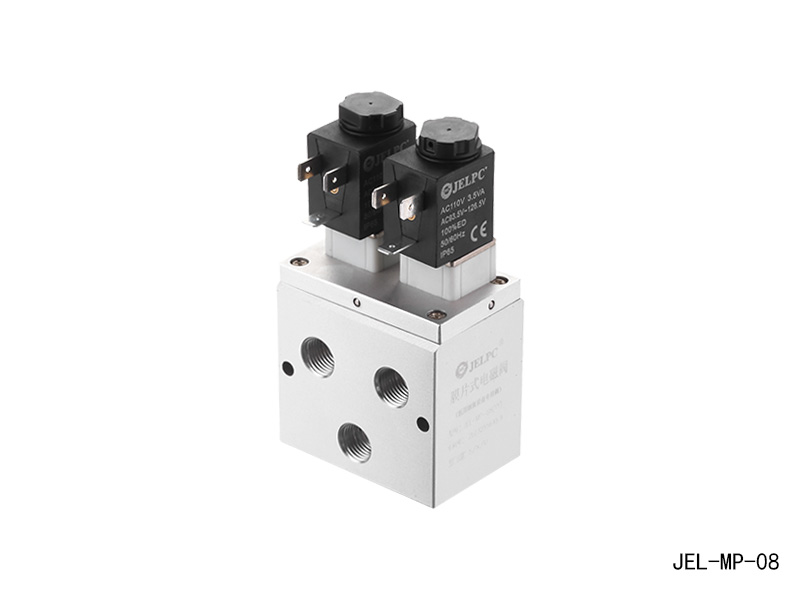

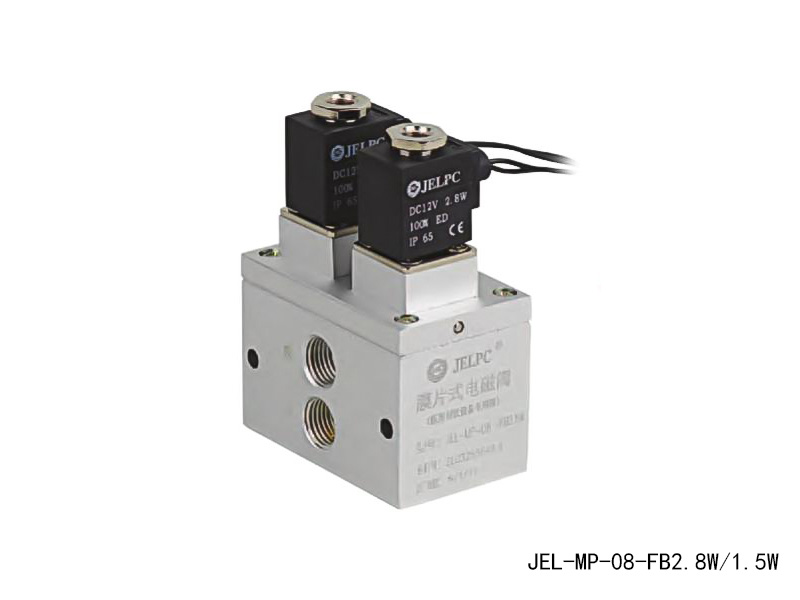

JEL Series Diaphragm Solenoid Valve

JEL Series Diaphragm Solenoid Valve

Features:

1. Adopt new processing, improved inner hole roughness.

2. Adopt specially formulated silicone to increase of service life.

3. To import German high standard special grease which pro film in order to reduce the friction.

4. Valve spool material use soft magnetic stainless steel from German increase the magnetic properties and reduce the coil power to 30%.

  • Product parameters

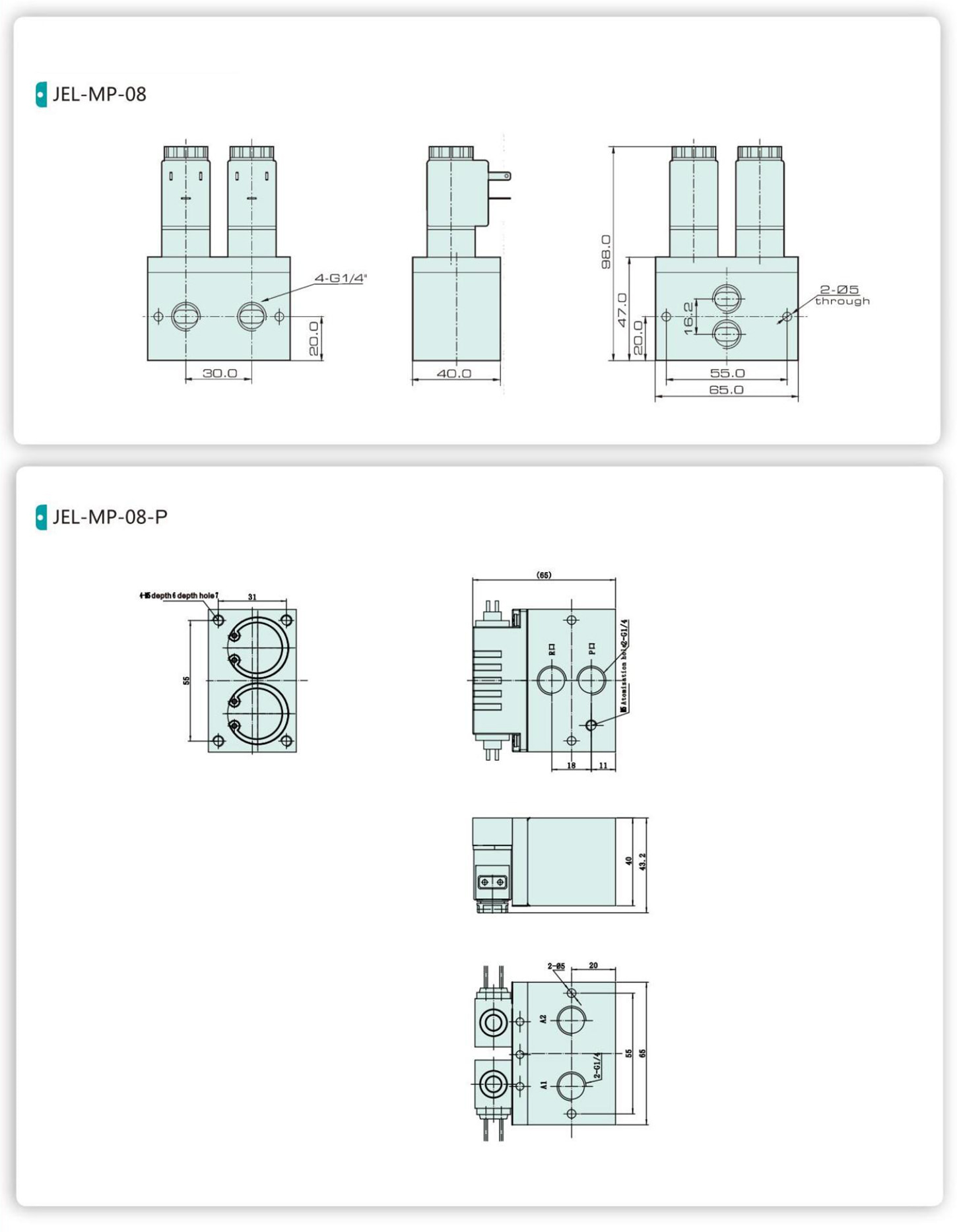

  • Product size

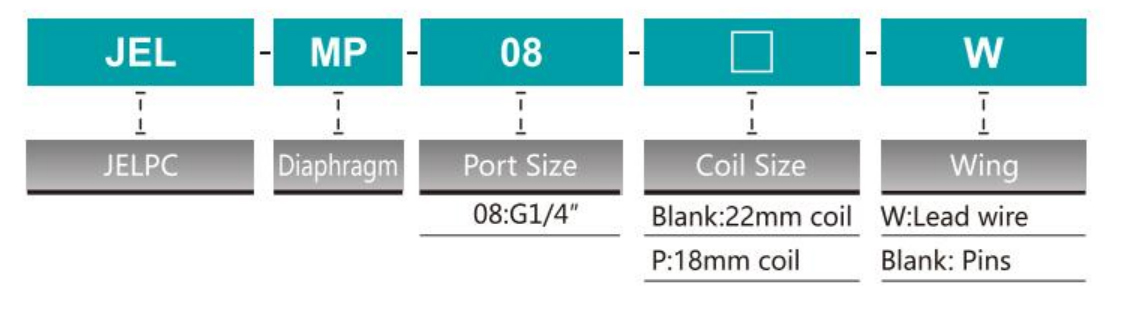

Ordering Code

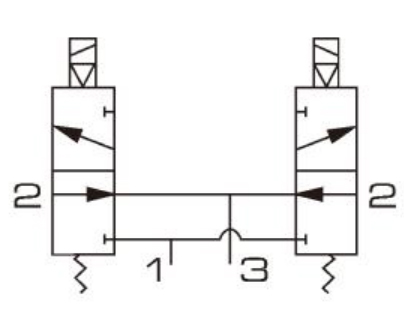

Symbol

Specification

Model JEL-MP-08
Blank  P
Valve Type 4/2 Way
Power 3W 1.5W 2.5W
Working Medium 40 Micron Filtered Air
Operation Internal Piloted
Working Pressure 0.08~0.35MPa
Ambient Temperature -5~80℃
Protection Class F Class, IP 65
