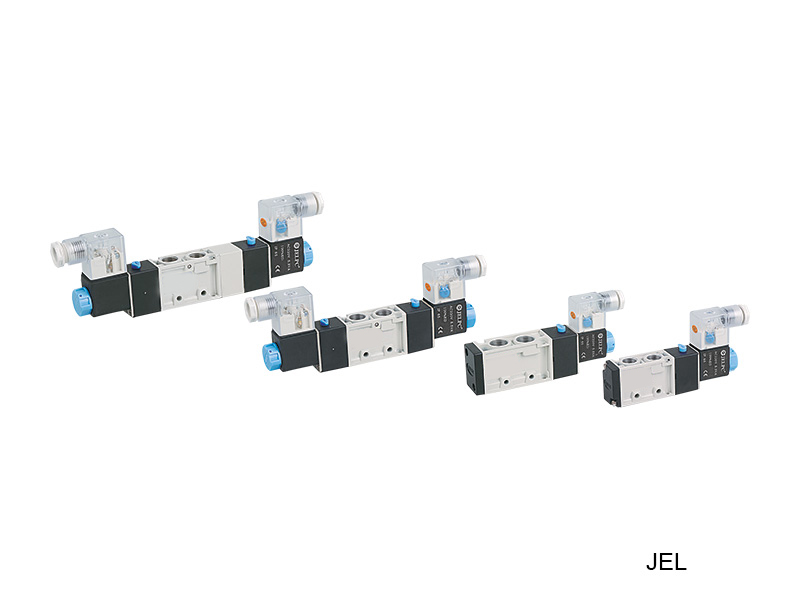

JEL Series Solenoid Valve

JEL Series Solenoid Valve

  • Product parameters

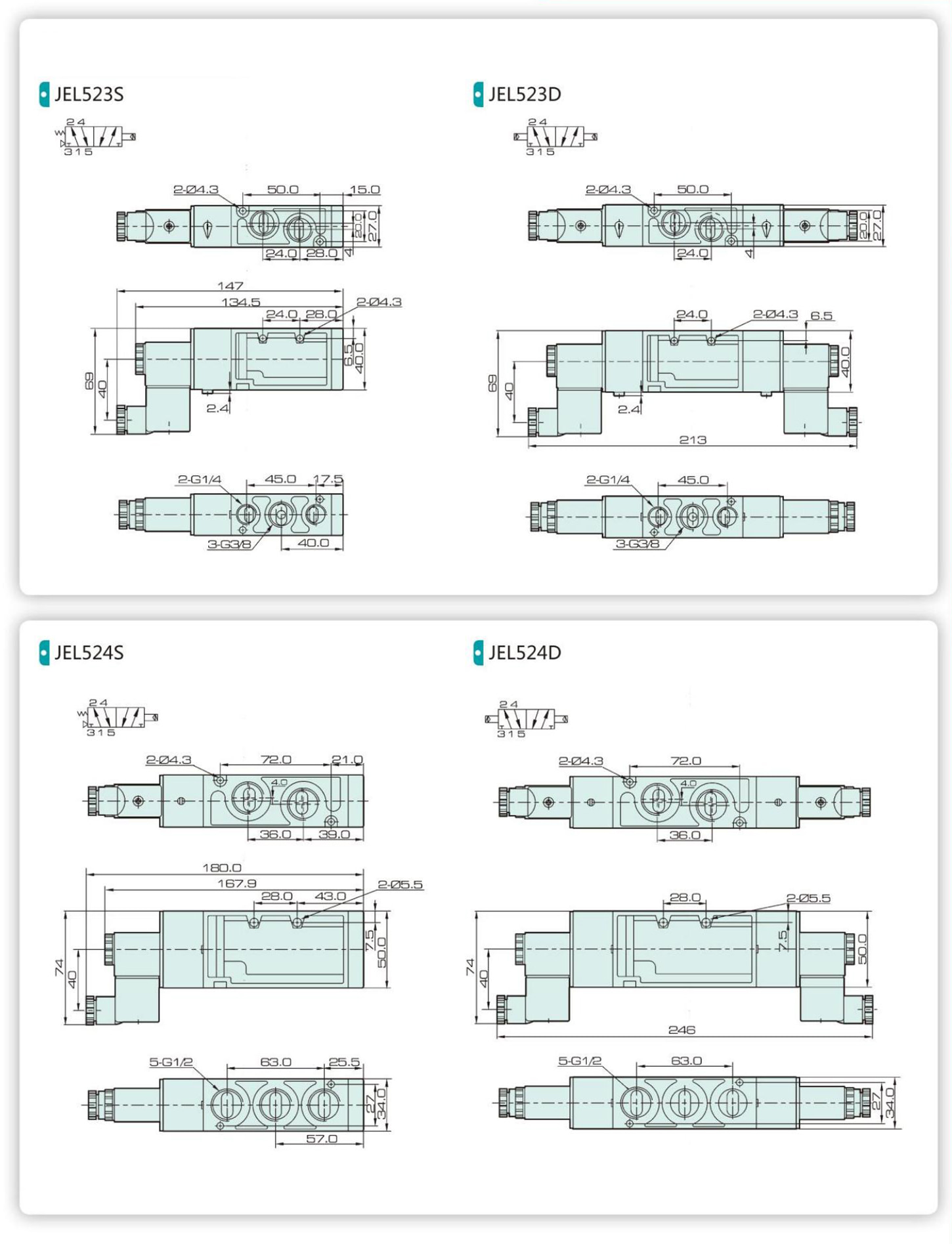

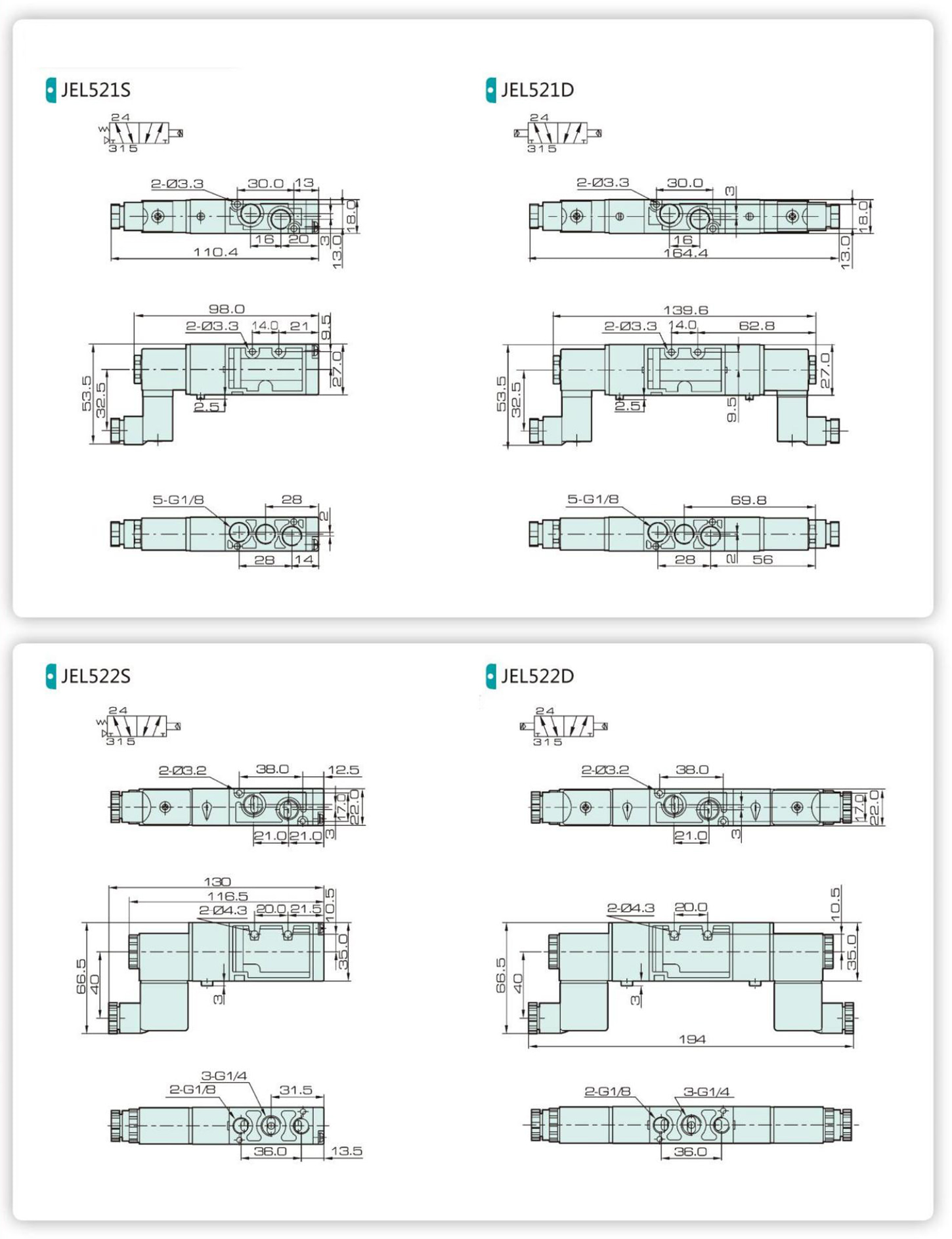

  • Product size

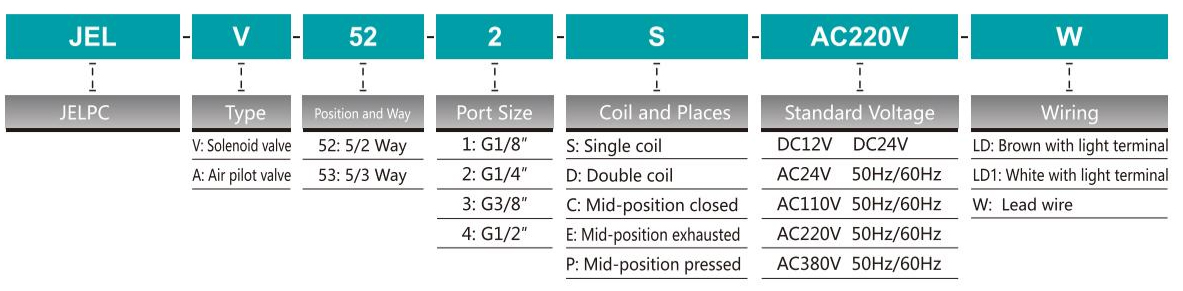

Ordering Code

Specification

Model

JELV521S

JELV521D

JELV53XC(E/P)

JELV522S

JELV522D

JELV532C(E/P)

JELV523S

JELV523D

JELV533C(E/P)

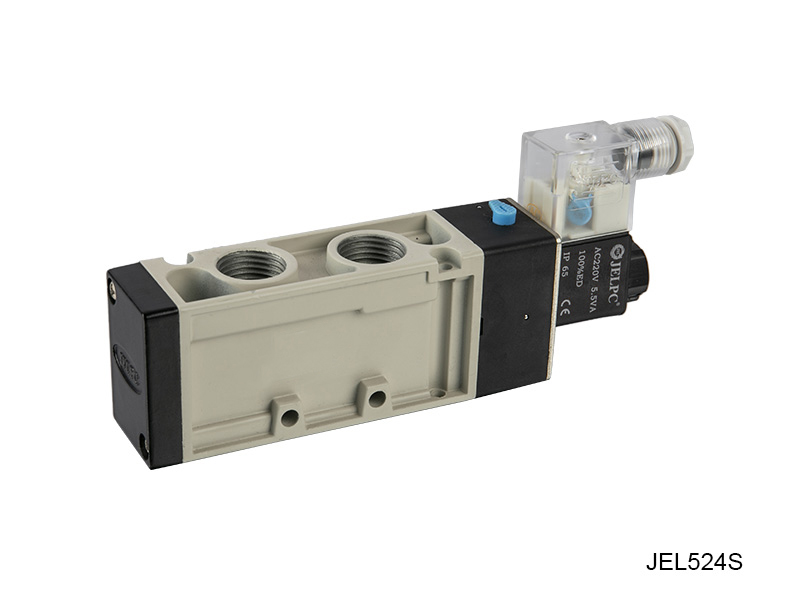

JELV524S

JELV524D

JELV534C(E/P)

JELA521S

JELA521D

JELA531C(E/P)

JELA522S

JELA522D

JELA532C(E/P)

JELA523S

JELA523D

JELA533C(E/P)

JELA524S

JELV524D

JELA534C(E/P)

Valve Type

5/2 Way

5/3 Way

5/2 Way

5/3 Way

5/2 Way

5/B Way

5/2 Way

5/3 Way

Effective Cross Section Area

12mm2(CV=0.67)

9mm2(CV=0.5)

14mm2(CV=0.78)

12mm2(CV=0.69)

25mm2(CV=1.40)

18mm2(CV=1.00)

50mm2(CV=2.79)

30mm2(CV=1.68)

Working Medium

40 Micron Filtered Air

Operation

Internal piloted

Working Pressure

0.15 〜0.8MPa

Max. Test Pressure

1.2MPa

Max. Ambient Temperature

-20~70°C

Operating Voltage Tolerance

±10%

Power Consumption

AC: 5.5VA DC: 4.8W

Connector Protection

F Class, IP 65

Wiring / Connector

Cable / Lead Wire or DIN Connector

Switching Frequency

5 Cycles / Sec.

Response Time

0.05 Sec.
